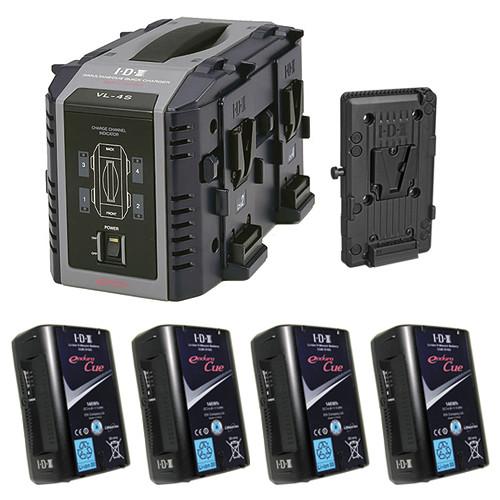

Product description This 4-battery IDX Endura Cue-D150 V-Mount Power Kit from B&H can provide continuous power for your AJA CION camcorder. Included in this kit are 4 Cue-D150 series 146 V-Mount batteries, a 4-bay simultaneous charger, and a V-Mount Adapter Plate for powering the CION camcorder and a D-Tap accessory. While one battery provides power the camera and accessories, you can charge the other three batteries and make sure they're ready to replace the spent battery. See below for more information on the individual items in this kit. - 4 x IDX System Technology CUE-D150 147Wh Li-Ion V-Mount Battery Power your camera or other pro video equipment with the IDX CUE-D150 147Wh Li-Ion V-Mount Battery. The battery can supply up to 16.8 VDC to the plate, and can also provide up to 50W to power accessories through the integrated D-tap output. CUE series batteries feature an internal pack design, which cradles each cell and isolates it in order to enhance reliability and safety. IDX CUE-D batteries should be charged using IDX-branded chargers; third party chargers may not charge CUE-D batteries correctly. UPC: 825781012789
- IDX System Technology VL-4SE Endura 4-Channel Lithium-Ion Battery Charger (V-Mount) The IDX VL-4SE Endura 4-Channel Lithium-Ion Battery Charger charges up to 4 IDX Endura V-mount batteries at the same time. Each bay is independent of the others, so there is no waiting for one battery to finish before the next one can start. The charger features a durable yet lightweight polycarbonate body with a recessed power switch and a top handle. This V-mount charger is compatible with IDX's Endura series of batteries.
Integrated safety circuitry protects charging batteries from an overcharge condition and the charger from damage should you try to charge a faulty or misused battery. It supports worldwide power so you can take and use this charger virtually anywhere in the world. - Simultaneous 4-channel lithium-ion battery charger.
- Lightweight, high-impact polycarbonate enclosure is rugged, weighs under 7 lbs. and features a recessed power switch with an integrated carry handle.
- An LED condition indicator offers a quick glance of each battery's charge status.
- Light Off: No battery
- Solid Amber: Standby
- Solid Red: Quick charge in progress
- Solid Green: Fully charged
- Flashing Amber: Over voltage / current protection activated, charging protection timer activated
- Flashing Red: Charger fault
- As Li-ion is memory free, batteries can be charged from any state regardless of the batteries' charge status. Each IDX Li-ion battery has its own built-in microprocessor which enables direct communication with the charger's program to individually select for each battery the correct charge program specific for that battery.
- The charger features a built-in fan to prevent the unit from overheating.
- As with all IDX chargers, the VL-4S's power switch is recessed to prevent an accidental loss of power. A worldwide, auto-sensing AC power (AC 100-240V) operation is standard.
UPC: 825781012987 - IDX System Technology P-V2 V-Mount Camera Plate The IDX P-V2 is a battery mounting plate adapter for the IDX Endura system batteries. The P-V2 easily converts any professional camera to a V-Mount. A two-Pin DC-out connector allows an on-camera light to receive power from the on camera battery. Note: This Mount will not work with the Sony HDW-700A
- D-Tap
- The P-V2 includes a 2-Pin D-Tap connector for powering on-camera lights.
- Digi-View
- Allows the remaining battery capacity percentage to be displayed in the viewfinder of cameras designed to support battery data.
UPC: 825781026403 In the Box - 4 x CUE-D150 147Wh Li-Ion V-Mount Battery
- Limited 2-Year Warranty
- VL-4SE Endura 4-Channel Lithium-Ion Battery Charger (V-Mount)
- P-V2 V-Mount Camera Plate tbryrswcweazyabbdfucvqtffxcaaq
Table of Contents
|
Upload User Manual
Have you got an user manual for the IDX System Technology Endura Cue-D150 V-Mount 4-Battery Kit for AJA CION in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 4 x IDX System Technology CUE-D150 147Wh Li-Ion V-Mount Battery
| Mount / Series Type | V-Mount | | Chemistry | Lithium-Ion | | Capacity (Wh) | 147 Wh | | Output Voltage | 14.8 VDC | | Maximum Load | 10 A | | Accessory Port | 1 x D-Tap | | Storage Temperature | 32 to 104°F / 0 to 40°C | | Charging Temperature | 32 to 104°F / 0 to 40°C | | Discharging Temperature | -4 to 113°F / -20 to 45°C | | Dimensions (W x H x D) | 3.8 x 5.8 x 2.3" / 97.0 x 146.0 x 58.0 mm | | Weight | 2.2 lb / 1 kg | | | | Box Dimensions (LxWxH) | 7.0 x 4.45 x 2.8" | - IDX System Technology VL-4SE Endura 4-Channel Lithium-Ion Battery Charger (V-Mount)
| Power Supply | No | | Battery Bays | 4 | | Type of Charging | Simultaneous/Independent | | Diagnostics | None | | Connections/Interface | 4 x V-mount | | Power Requirements | 100-240 VAC, 50/60Hz | | Power Consumption | 220 VA (max) | | Quick Charge Current | 1-to-3 Channel: 3 A
4 Channel: 2.7 A | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Dimensions (WxHxD) | 6.14 x 6 x 11.34" / 15.6 x 15.2 x 28.8 cm | | Weight | 6.0 lb / 2.7 kg | | | | Box Dimensions (LxWxH) | 13.8 x 8.9 x 7.9" | - IDX System Technology P-V2 V-Mount Camera Plate
| Battery and Power | Sony V-Mount
D-Tap (Power Tap) | | Mount Type | This plate mounts directly rear of full size camcorders | | Voltage | 12-14.4 VDC | | | | Box Dimensions (LxWxH) | 6.0 x 5.0 x 2.0" |
