IDX System Technology Endura Cue-D95 V-Mount

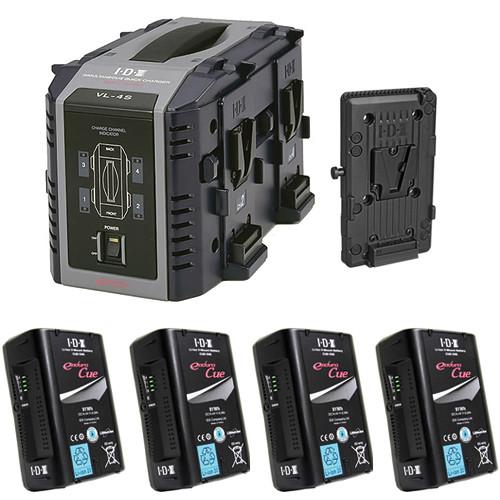

User Manual for IDX System Technology Endura Cue-D95 V-Mount 4-Battery Kit for AJA CION

• Product category: On Camera Batteries IDX System Technology
• Brand: IDX System Technology
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for IDX System Technology On Camera Batteries

Product description

• 4 x IDX System Technology CUE-D95 91Wh Li-Ion V-Mount Battery
  • Product Demo
  Power your camera or other pro video equipment with the IDX CUE-D95 91Wh Li-Ion V-Mount Battery. The battery can supply up to 16.8 VDC to the plate, and can also provide up to 50W to power accessories through the integrated D-tap output. CUE series batteries feature an internal pack design, which cradles each cell and isolates it in order to enhance reliability and safety. IDX CUE-D batteries should be charged using IDX-branded chargers; third party chargers may not charge CUE-D batteries correctly. UPC: 825781012765
• IDX System Technology VL-4SE Endura 4-Channel Lithium-Ion Battery Charger (V-Mount)
  • Product Demo
  The IDX VL-4SE Endura 4-Channel Lithium-Ion Battery Charger charges up to 4 IDX Endura V-mount batteries at the same time. Each bay is independent of the others, so there is no waiting for one battery to finish before the next one can start. The charger features a durable yet lightweight polycarbonate body with a recessed power switch and a top handle. This V-mount charger is compatible with IDX's Endura series of batteries.

  Integrated safety circuitry protects charging batteries from an overcharge condition and the charger from damage should you try to charge a faulty or misused battery. It supports worldwide power so you can take and use this charger virtually anywhere in the world.
  • Simultaneous 4-channel lithium-ion battery charger.
  • Lightweight, high-impact polycarbonate enclosure is rugged, weighs under 7 lbs. and features a recessed power switch with an integrated carry handle.
  • An LED condition indicator offers a quick glance of each battery's charge status.
    • Light Off: No battery
    • Solid Amber: Standby
    • Solid Red: Quick charge in progress
    • Solid Green: Fully charged
    • Flashing Amber: Over voltage / current protection activated, charging protection timer activated
    • Flashing Red: Charger fault
  • As Li-ion is memory free, batteries can be charged from any state regardless of the batteries' charge status. Each IDX Li-ion battery has its own built-in microprocessor which enables direct communication with the charger's program to individually select for each battery the correct charge program specific for that battery.
  • The charger features a built-in fan to prevent the unit from overheating.
  • As with all IDX chargers, the VL-4S's power switch is recessed to prevent an accidental loss of power. A worldwide, auto-sensing AC power (AC 100-240V) operation is standard.
  UPC: 825781012987
• IDX System Technology P-V2 V-Mount Camera Plate
  • Product Demo
  The IDX P-V2 is a battery mounting plate adapter for the IDX Endura system batteries. The P-V2 easily converts any professional camera to a V-Mount. A two-Pin DC-out connector allows an on-camera light to receive power from the on camera battery. Note: This Mount will not work with the Sony HDW-700A
  D-Tap
  • The P-V2 includes a 2-Pin D-Tap connector for powering on-camera lights.
  Digi-View
  • Allows the remaining battery capacity percentage to be displayed in the viewfinder of cameras designed to support battery data.
  UPC: 825781026403

• 4 x CUE-D95 91Wh Li-Ion V-Mount Battery xavrqacfxzxetysedzz
• Limited 2-Year Warranty

• VL-4SE Endura 4-Channel Lithium-Ion Battery Charger (V-Mount)

• P-V2 V-Mount Camera Plate

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• 4 x IDX System Technology CUE-D95 91Wh Li-Ion V-Mount Battery

  Mount / Series Type	V-Mount
  Chemistry	Lithium-Ion
  Capacity (Wh)	91 Wh
  Output Voltage	14.4 VDC
  Maximum Load	6.3 A
  Accessory Port	1 x D-Tap
  Storage Temperature	32 to 104°F / 0 to 40°C
  Charging Temperature	32 to 104°F / 0 to 40°C
  Discharging Temperature	-4 to 113°F / -20 to 45°C
  Dimensions (W x H x D)	3.8 x 5.8 x 2.3" / 97.0 x 146.0 x 58.0 mm
  Weight	1.8 lb / 0.8 kg

  Box Dimensions (LxWxH)	6.95 x 4.4 x 2.85"

• IDX System Technology VL-4SE Endura 4-Channel Lithium-Ion Battery Charger (V-Mount)

  Power Supply	No
  Battery Bays	4
  Type of Charging	Simultaneous/Independent
  Diagnostics	None
  Connections/Interface	4 x V-mount
  Power Requirements	100-240 VAC, 50/60Hz
  Power Consumption	220 VA (max)
  Quick Charge Current	1-to-3 Channel: 3 A 4 Channel: 2.7 A
  Operating Temperature	32 to 104°F / 0 to 40°C
  Dimensions (WxHxD)	6.14 x 6 x 11.34" / 15.6 x 15.2 x 28.8 cm
  Weight	6.0 lb / 2.7 kg

  Box Dimensions (LxWxH)	13.8 x 8.9 x 7.9"

• IDX System Technology P-V2 V-Mount Camera Plate

  Battery and Power	Sony V-Mount D-Tap (Power Tap)
  Mount Type	This plate mounts directly rear of full size camcorders
  Voltage	12-14.4 VDC

  Box Dimensions (LxWxH)	6.0 x 5.0 x 2.0"
