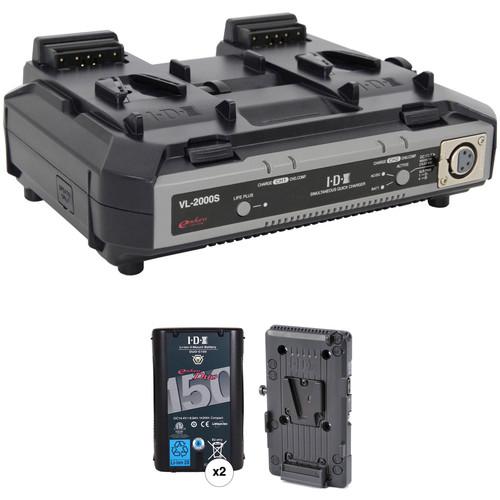

User Manual for IDX System Technology Endura Duo-150 V-Mount 2-Battery Kit for Blackmagic URSA

• Product category: On Camera Batteries IDX System Technology
• Brand: IDX System Technology
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for IDX System Technology On Camera Batteries

Product description

• 2 x IDX System Technology DUO-C150 143Wh High-Load Battery with D-Tap Advanced, Standard D-Tap & USB Port The IDX DUO-C150 143Wh High-Load Battery with D-Tap Advanced, Standard D-Tap & USB Port features a V-mount and is only 2.3" thick, but packs 143Wh of capacity to power your professional devices. It is well suited for digital cinema cameras and camera stabilizer systems where long runtimes are required. Battery data information displays in most camera's viewfinders.

  The DUO-C150 can handle a combined load of up to 14A among its V-mount, D-Tap outputs, and USB port. One of the D-Taps can also be used to charge the battery, although that requires an optional charger that is not included. Designed with battery circuit protection against overcharge, over-discharge, over-current, and exposure to high temperatures, providing protection to your battery from the rigors of production. A 5-LED battery life indicator on the side of the battery provides a quick visual indication of charge state of your battery.
  Key Features
  • • Suitable for handheld gimbal, aerial, run-and-gun, and other productions that need a high-power-draw battery in a small package
    • The battery data displays in the viewfinder system of most cameras, and the addition of an SMBUS enables RED cameras to display this information as well
    • Handles up to 14A loads
    • Two unregulated D-tap accessory outputs at 50W each
    • USB port
    • Battery circuit protection
    • 5-LED battery life indicator
    • Fully compatible with all IDX Endura V-mount chargers
  UPC: 825781013076
• IDX System Technology VL-2000S Simultaneous Quick Charger with 100W DC Output (2-Channel) The VL-2000S Quick Charger from IDX is a simultaneous 2-channel Li-ion V-Mount battery charger with a 100W DC output (4-pin XLR). Supporting LIFE PLUS mode, the VL-2000S can extend battery life up to 20%. It features Power Base mode. This mode gives you the ability to utilize the mounted batteries for powering equipment via the 4-pin XLR output. Low voltage batteries are safely charged with the Recovery Charge mode. The charger also houses energy efficient circuitry that will automatically power down the charger when inactive. UPC: 825781012949
• IDX System Technology V-Mount Adapter Plate for Blackmagic URSA & URSA Mini This IDX V-Mount Adapter Plate attaches directly to the rear of a Blackmagic URSA or URSA Mini camera and allows you to power the camera with V-Mount batteries. It also features an unregulated D-Tap output for powering accessories. UPC: 825781012796

• 2 x DUO-C150 143Wh High-Load Battery with D-Tap Advanced, Standard D-Tap & USB Port vfffzyyqxtzads
• Limited 2-Year Warranty

• VL-2000S Simultaneous Quick Charger with 100W DC Output (2-Channel)

• V-Mount Adapter Plate for Blackmagic URSA & URSA Mini

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• 2 x IDX System Technology DUO-C150 143Wh High-Load Battery with D-Tap Advanced, Standard D-Tap & USB Port

  Mount / Series Type	V-Mount
  Chemistry	Lithium-Ion
  Capacity (Wh)	143 Wh
  Amp-Hours	9.9 Ah
  Output Voltage	14.4 VDC
  Maximum Load	14 A
  Accessory Port	2 x D-Tap 1 x USB Type-A
  Maximum Load (Accessory Port)	80 W ( D-Tap )
  USB Output	5 V, 2.3 A
  Dimensions (W x H x D)	3.8 x 5.7 x 2.3" / 9.7 x 14.5 x 5.8 cm
  Weight	2 lb / 0.9 kg

  Box Dimensions (LxWxH)	7.0 x 4.5 x 2.8"

• IDX System Technology VL-2000S Simultaneous Quick Charger with 100W DC Output (2-Channel)

  Channels	2
  Interface	V-Mount
  Chemistry	Li-ion
  AC Input Voltage	100 to 240 VAC; 50/60 Hz
  DC Output	Via 4-pin XLR: 100 W @ 15 VDC/6.7 A
  Quick Charge Current	1 Battery: 4 A 2 Batteries: 3 A
  Dimensions	7.16 x 3.24 x 9.05" (18.19 x 8.23 x 22.98 cm)
  Weight	2.64 lb (1.19 kg)

  Box Dimensions (LxWxH)	11.1 x 9.9 x 3.95"

• IDX System Technology V-Mount Adapter Plate for Blackmagic URSA & URSA Mini

  Auxiliary Output	1x D-Tap, unregulated 12 - 17 VDC, 50 W max
  Dimensions	3.3 x 5.6 x 0.5" (8.3 x 14.2 x 1.2 cm)
  Weight	6 oz (170 g)

  Box Dimensions (LxWxH)	5.7 x 4.2 x 1.0"
