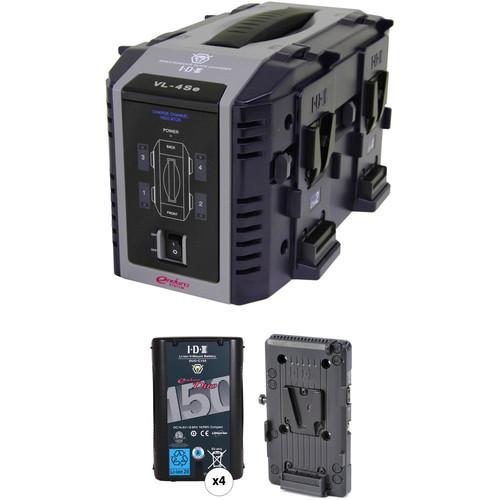

User Manual for IDX System Technology Endura Duo-150 V-Mount 4-Battery Kit for Blackmagic URSA

• Product category: On Camera Batteries IDX System Technology
• Brand: IDX System Technology
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for IDX System Technology On Camera Batteries

Product description

• 4 x IDX System Technology DUO-C150 143Wh High-Load Battery with D-Tap Advanced, Standard D-Tap & USB Port The IDX DUO-C150 143Wh High-Load Battery with D-Tap Advanced, Standard D-Tap & USB Port features a V-mount and is only 2.3" thick, but packs 143Wh of capacity to power your professional devices. It is well suited for digital cinema cameras and camera stabilizer systems where long runtimes are required. Battery data information displays in most camera's viewfinders.

  The DUO-C150 can handle a combined load of up to 14A among its V-mount, D-Tap outputs, and USB port. One of the D-Taps can also be used to charge the battery, although that requires an optional charger that is not included. Designed with battery circuit protection against overcharge, over-discharge, over-current, and exposure to high temperatures, providing protection to your battery from the rigors of production. A 5-LED battery life indicator on the side of the battery provides a quick visual indication of charge state of your battery.
  Key Features
  • • Suitable for handheld gimbal, aerial, run-and-gun, and other productions that need a high-power-draw battery in a small package
    • The battery data displays in the viewfinder system of most cameras, and the addition of an SMBUS enables RED cameras to display this information as well
    • Handles up to 14A loads
    • Two unregulated D-tap accessory outputs at 50W each
    • USB port
    • Battery circuit protection
    • 5-LED battery life indicator
    • Fully compatible with all IDX Endura V-mount chargers
  UPC: 825781013076
• IDX System Technology VL-4SE Endura 4-Channel Lithium-Ion Battery Charger (V-Mount) The IDX VL-4SE Endura 4-Channel Lithium-Ion Battery Charger charges up to 4 IDX Endura V-mount batteries at the same time. Each bay is independent of the others, so there is no waiting for one battery to finish before the next one can start. The charger features a durable yet lightweight polycarbonate body with a recessed power switch and a top handle. This V-mount charger is compatible with IDX's Endura series of batteries.

  Integrated safety circuitry protects charging batteries from an overcharge condition and the charger from damage should you try to charge a faulty or misused battery. It supports worldwide power so you can take and use this charger virtually anywhere in the world.
  • Simultaneous 4-channel lithium-ion battery charger.
  • Lightweight, high-impact polycarbonate enclosure is rugged, weighs under 7 lbs. and features a recessed power switch with an integrated carry handle.
  • An LED condition indicator offers a quick glance of each battery's charge status.
    • Light Off: No battery
    • Solid Amber: Standby
    • Solid Red: Quick charge in progress
    • Solid Green: Fully charged
    • Flashing Amber: Over voltage / current protection activated, charging protection timer activated
    • Flashing Red: Charger fault
  • As Li-ion is memory free, batteries can be charged from any state regardless of the batteries' charge status. Each IDX Li-ion battery has its own built-in microprocessor which enables direct communication with the charger's program to individually select for each battery the correct charge program specific for that battery.
  • The charger features a built-in fan to prevent the unit from overheating.
  • As with all IDX chargers, the VL-4S's power switch is recessed to prevent an accidental loss of power. A worldwide, auto-sensing AC power (AC 100-240V) operation is standard.
  UPC: 825781012987
• IDX System Technology V-Mount Adapter Plate for Blackmagic URSA & URSA Mini This IDX V-Mount Adapter Plate attaches directly to the rear of a Blackmagic URSA or URSA Mini camera and allows you to power the camera with V-Mount batteries. It also features an unregulated D-Tap output for powering accessories. UPC: 825781012796

• 4 x DUO-C150 143Wh High-Load Battery with D-Tap Advanced, Standard D-Tap & USB Port
• Limited 2-Year Warranty

• VL-4SE Endura 4-Channel Lithium-Ion Battery Charger (V-Mount) vfffzyyqxtzads

• V-Mount Adapter Plate for Blackmagic URSA & URSA Mini

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• 4 x IDX System Technology DUO-C150 143Wh High-Load Battery with D-Tap Advanced, Standard D-Tap & USB Port

  Mount / Series Type	V-Mount
  Chemistry	Lithium-Ion
  Capacity (Wh)	143 Wh
  Amp-Hours	9.9 Ah
  Output Voltage	14.4 VDC
  Maximum Load	14 A
  Accessory Port	2 x D-Tap 1 x USB Type-A
  Maximum Load (Accessory Port)	80 W ( D-Tap )
  USB Output	5 V, 2.3 A
  Dimensions (W x H x D)	3.8 x 5.7 x 2.3" / 9.7 x 14.5 x 5.8 cm
  Weight	2 lb / 0.9 kg

  Box Dimensions (LxWxH)	7.0 x 4.5 x 2.8"

• IDX System Technology VL-4SE Endura 4-Channel Lithium-Ion Battery Charger (V-Mount)

  Power Supply	No
  Battery Bays	4
  Type of Charging	Simultaneous/Independent
  Diagnostics	None
  Connections/Interface	4 x V-mount
  Power Requirements	100-240 VAC, 50/60Hz
  Power Consumption	220 VA (max)
  Quick Charge Current	1-to-3 Channel: 3 A 4 Channel: 2.7 A
  Operating Temperature	32 to 104°F / 0 to 40°C
  Dimensions (WxHxD)	6.14 x 6 x 11.34" / 15.6 x 15.2 x 28.8 cm
  Weight	6.0 lb / 2.7 kg

  Box Dimensions (LxWxH)	13.8 x 8.9 x 7.9"

• IDX System Technology V-Mount Adapter Plate for Blackmagic URSA & URSA Mini

  Auxiliary Output	1x D-Tap, unregulated 12 - 17 VDC, 50 W max
  Dimensions	3.3 x 5.6 x 0.5" (8.3 x 14.2 x 1.2 cm)
  Weight	6 oz (170 g)

  Box Dimensions (LxWxH)	5.7 x 4.2 x 1.0"
