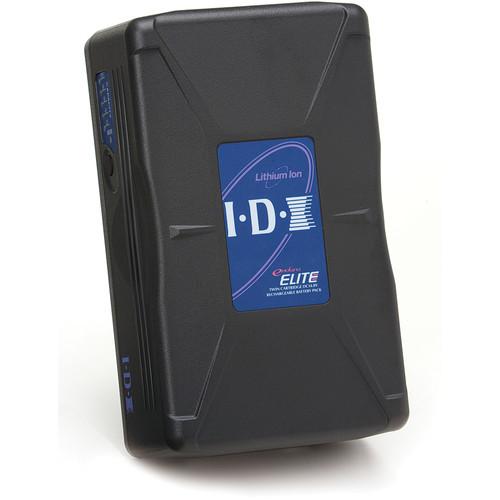

User Manual for IDX System Technology ENDURA ELITE 14.8V 136Wh Lithium-Ion V-Mount Battery Click to enlarge the picture
Contents of the user manual for the IDX System Technology ENDURA ELITE 14.8V
- Product category: On Camera Batteries IDX System Technology
- Brand: IDX System Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for IDX System Technology On Camera Batteries
|
User manual for the IDX System Technology ENDURA ELITE 14.8V contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any IDX System Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official IDX System Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a IDX System Technology product will considerably shorten its lifespan!
|
Product description The IDX ENDURA ELITE offers a 9.2Ah, 136Wh capacity to support the higher loads of HD cameras. - Dual Power Cartridges
- Two identical PC-14 power cartridges are housed inside the outer casing of the ELITE. This design allows for an easy exchange of cartridges, reducing the cost of replacement batteries.
- Battery Protection
- Built into Individual Power Cartridges:
Overcharge (reset)
Over-discharge (reset)
Overcurrent (reset)
Temperature protection (non reset) - Digi-View
- Digi-View gives the camera operator an accurate display of the ELITES's remaining capacity, shown via the camera's viewfinder.
- LED Indicators
- Five LEDs are located on the side of the ELITE with 10 settings to display remaining battery capacity. This is done in increments of 10% by full/flashing combination of the five LEDs.
- Battery Circuit Protection
- Battery circuit protection ensures the ELITE is fully protected against common causes of battery misuse, guarding against overcharge, over-discharge, overcurrent, and exposure to high temperatures. This high level of protection is built into both PC-14 power cartridges.
- Charging Options
- The ELITE can be charged using IDX sequential or simultaneous ENDURA chargers (VL-2SPLUS or VL-4S series).
UPC: 825781082010 In the Box IDX System Technology ENDURA ELITE 14.8V 136Wh Lithium-Ion V-Mount Battery Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the IDX System Technology ENDURA ELITE 14.8V 136Wh Lithium-Ion V-Mount Battery in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIDX System Technology Elite Specs | Mount / Series Type | V-Mount | | Chemistry | Lithium-Ion | | Capacity (Wh) | 136 Wh | | Capacity per Section (Wh) | 68 Wh | | Output Voltage | 14.8 VDC | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Charging Temperature | 32 to 104°F / 0 to 40°C | | Discharging Temperature | -4 to 122°F / -20 to 50°C | | Dimensions (W x H x D) | 3.9 x 6.7 x 2.8" / 100.0 x 170.0 x 70.0 mm | | Weight | 2.8 lb / 1.3 kg | | | | Package Weight | 3.6 lb | | Box Dimensions (LxWxH) | 10.9 x 8.4 x 3.8" |
