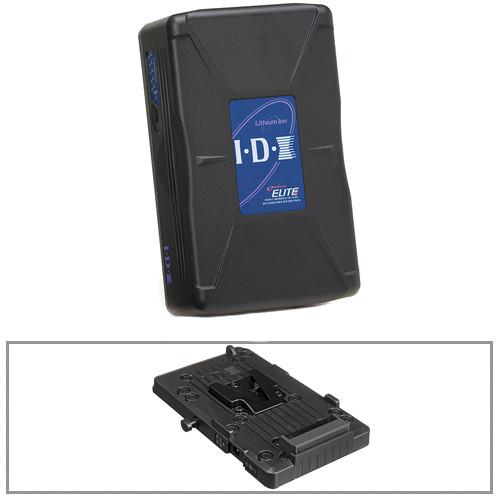

User Manual for IDX System Technology Endura Elite 14.8V DC V-Mount Battery with VL-PVC1 Charger Kit Click to enlarge the picture
Contents of the user manual for the IDX System Technology Endura Elite 14.8V
- Product category: On Camera Batteries IDX System Technology
- Brand: IDX System Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for IDX System Technology On Camera Batteries
|
User manual for the IDX System Technology Endura Elite 14.8V contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any IDX System Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official IDX System Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a IDX System Technology product will considerably shorten its lifespan!
|
Product description The IDX Endura Elite 14.8V DC V-Mount Battery with VL-PVC1 Charger Kit from pairs a professional Lithium-ion battery with a slim-profile charger that delivers a safe electric charge to the battery for zero-to-full replenishment in less than 9 hours.Connecting to your camcorder via a V-mount connection, the Endura Elite 14.8V DC battery features a large capacity of 136Wh, for reliable camera power over long production days. - IDX System Technology ENDURA ELITE 14.8V 136Wh Lithium-Ion V-Mount Battery The IDX ENDURA ELITE offers a 9.2Ah, 136Wh capacity to support the higher loads of HD cameras.
- Dual Power Cartridges
- Two identical PC-14 power cartridges are housed inside the outer casing of the ELITE. This design allows for an easy exchange of cartridges, reducing the cost of replacement batteries.
- Battery Protection
- Built into Individual Power Cartridges:
Overcharge (reset)
Over-discharge (reset)
Overcurrent (reset)
Temperature protection (non reset) - Digi-View
- Digi-View gives the camera operator an accurate display of the ELITES's remaining capacity, shown via the camera's viewfinder.
- LED Indicators
- Five LEDs are located on the side of the ELITE with 10 settings to display remaining battery capacity. This is done in increments of 10% by full/flashing combination of the five LEDs.
- Battery Circuit Protection
- Battery circuit protection ensures the ELITE is fully protected against common causes of battery misuse, guarding against overcharge, over-discharge, overcurrent, and exposure to high temperatures. This high level of protection is built into both PC-14 power cartridges.
- Charging Options
- The ELITE can be charged using IDX sequential or simultaneous ENDURA chargers (VL-2SPLUS or VL-4S series).
UPC: 825781082010 - IDX System Technology Single Channel V-Mount Charger For safe, portable, and reliable charging of your IDX ENDURA V-Mount batteries, the IDX Single Channel V-Mount Charger is slightly thicker than a V-Mount battery plate, yet allows you to charge a single battery virtually anywhere there is an AC outlet. Designed specifically to charge ENDURA series batteries, this plate and its power supply can fit into most camera cases, while larger fast chargers usually require their own case.
The charger features an LED indicator that lights when the battery is charging and is dark when the battery is charged to 90% capacity. The charger takes advantage of the built-in overcharge protection of ENDURA series batteries to safely charge your ENDURA batteries. It includes a US-plug-style AC power adapter that accepts worldwide power, and you can source a cigarette lighter adapter that can also power the charger. - Charges ENDURA batteries up to 90% capacity
- LED indication for a visual confirmation of the charge mode
- Ultra slim profile for minimal storage space requirements
- Lightweight, rugged construction
UPC: 825781012420 In the Box - ENDURA ELITE 14.8V 136Wh Lithium-Ion V-Mount Battery bdduqqafxuyqdwfr
- Limited 1-Year Warranty
- Single Channel V-Mount Charger
Table of Contents
|
Upload User Manual
Have you got an user manual for the IDX System Technology Endura Elite 14.8V DC V-Mount Battery with VL-PVC1 Charger Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - IDX System Technology ENDURA ELITE 14.8V 136Wh Lithium-Ion V-Mount Battery
| Mount / Series Type | V-Mount | | Chemistry | Lithium-Ion | | Capacity (Wh) | 136 Wh | | Capacity per Section (Wh) | 68 Wh | | Output Voltage | 14.8 VDC | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Charging Temperature | 32 to 104°F / 0 to 40°C | | Discharging Temperature | -4 to 122°F / -20 to 50°C | | Dimensions (W x H x D) | 3.9 x 6.7 x 2.8" / 100.0 x 170.0 x 70.0 mm | | Weight | 2.8 lb / 1.3 kg | | | | Box Dimensions (LxWxH) | 10.9 x 8.4 x 3.8" | - IDX System Technology Single Channel V-Mount Charger
| Input Voltage | AC adapter: 100 to 240 VAC 50/60 Hz
Charge plate: DC 12 V +/- 5% | | Output Voltage | 12 VDC | | Output Current | 3 A | | Power Consumption | 23 W maximum | | Operating Temperature | 32 to 104° F / 0 to 40° C | | Cable Length | Approximately 59.7" / 1.5 m | | Dimensions (W x H x D) | V-Mount charger: 3.3 x 1.1 x 5.6" / 83.82 x 28 x 142.24 mm
AC adapter: 1.8 x 1.5 x 2.9" / 45.72 x 38.1 x 73.66 mm | | Weight | Approximately 0.79 lb / 360 g | | | | Box Dimensions (LxWxH) | 7.5 x 5.3 x 4.6" |
