Product description

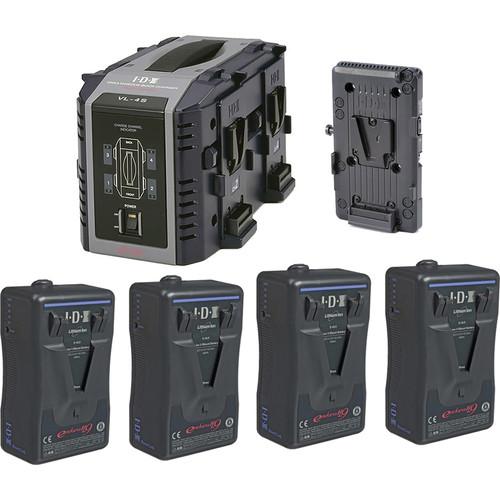

• 4 x IDX System Technology E-HL9 Lithium Ion V-Mount Battery The IDX E-HL9 is a lithium ion, V-Mount battery. It offers 88Wh for 14.4VDC equipment in a compact package.
  Capacity
  • With a continuous draw of up to 10 Amps, the E-HL9 has an impressive capacity using highly durable cell technology. High-load capacity results in 50% higher discharge rate for this series.
  Low Temperature Discharge
  • Advanced low temperature discharge characteristics prohibit a voltage drop off down to -4 degrees Fahrenheit in extreme environment conditions.
  Lifecycle
  • Longer overall lifecycle operators can expect about 10% longer battery viability when the 500-cycle level is reached.
  PowerLink
  • PowerLink technology allows two E-HL9 batteries to be docked together, doubling capacity up to 176Wh for longer run times and high power needs.
  Digi-View
  • Digi-View gives the camera operator an accurate display of the E-HL9's remaining capacity, shown via the camera's viewfinder.
  Power Indication
  • 5 Power Status LEDs are located on the side of the E-HL9 for a quick and accurate check of remaining capacity, shown in increments of 20%.
  BMS
  • BMS is a unique software package that enables users to monitor the history and condition of their batteries to increase their life span. BMS gathers battery data and provides PC access to a comprehensive database, invaluable when managing large fleets of ELITE, E-10 and E-HL9 batteries.
  Circuit Protection
  • Battery circuit protection ensures the E-HL9 is fully protected against common causes of battery misuse, guarding against over charge, over discharge, over current and exposure to high temperatures.
  UPC: 825781012208
• IDX System Technology VL-4SE Endura 4-Channel Lithium-Ion Battery Charger (V-Mount) The IDX VL-4SE Endura 4-Channel Lithium-Ion Battery Charger charges up to 4 IDX Endura V-mount batteries at the same time. Each bay is independent of the others, so there is no waiting for one battery to finish before the next one can start. The charger features a durable yet lightweight polycarbonate body with a recessed power switch and a top handle. This V-mount charger is compatible with IDX's Endura series of batteries.

  Integrated safety circuitry protects charging batteries from an overcharge condition and the charger from damage should you try to charge a faulty or misused battery. It supports worldwide power so you can take and use this charger virtually anywhere in the world.
  • Simultaneous 4-channel lithium-ion battery charger.
  • Lightweight, high-impact polycarbonate enclosure is rugged, weighs under 7 lbs. and features a recessed power switch with an integrated carry handle.
  • An LED condition indicator offers a quick glance of each battery's charge status.
    • Light Off: No battery
    • Solid Amber: Standby
    • Solid Red: Quick charge in progress
    • Solid Green: Fully charged
    • Flashing Amber: Over voltage / current protection activated, charging protection timer activated
    • Flashing Red: Charger fault
  • As Li-ion is memory free, batteries can be charged from any state regardless of the batteries' charge status. Each IDX Li-ion battery has its own built-in microprocessor which enables direct communication with the charger's program to individually select for each battery the correct charge program specific for that battery.
  • The charger features a built-in fan to prevent the unit from overheating.
  • As with all IDX chargers, the VL-4S's power switch is recessed to prevent an accidental loss of power. A worldwide, auto-sensing AC power (AC 100-240V) operation is standard.
  UPC: 825781012987
• IDX System Technology V-Mount Adapter Plate for Blackmagic URSA & URSA Mini This IDX V-Mount Adapter Plate attaches directly to the rear of a Blackmagic URSA or URSA Mini camera and allows you to power the camera with V-Mount batteries. It also features an unregulated D-Tap output for powering accessories. UPC: 825781012796

• 4 x E-HL9 Lithium Ion V-Mount Battery ttrrfweacfryqvbfscarwcyyv
• Battery
• Limited 1-Year Warranty

• VL-4SE Endura 4-Channel Lithium-Ion Battery Charger (V-Mount)

• V-Mount Adapter Plate for Blackmagic URSA & URSA Mini

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• 4 x IDX System Technology E-HL9 Lithium Ion V-Mount Battery

  Mount / Series Type	V-Mount
  Chemistry	Lithium-Ion
  Capacity (Wh)	88 Wh
  Amp-Hours	6150 mAh
  Output Voltage	14.4 VDC
  Dimensions (W x H x D)	3.4 x 5.5 x 2.3" / 85.0 x 140.0 x 58.0 mm
  Weight	1.6 lb / 0.7 kg

  Box Dimensions (LxWxH)	6.7 x 4.1 x 2.9"

• IDX System Technology VL-4SE Endura 4-Channel Lithium-Ion Battery Charger (V-Mount)

  Power Supply	No
  Battery Bays	4
  Type of Charging	Simultaneous/Independent
  Diagnostics	None
  Connections/Interface	4 x V-mount
  Power Requirements	100-240 VAC, 50/60Hz
  Power Consumption	220 VA (max)
  Quick Charge Current	1-to-3 Channel: 3 A 4 Channel: 2.7 A
  Operating Temperature	32 to 104°F / 0 to 40°C
  Dimensions (WxHxD)	6.14 x 6 x 11.34" / 15.6 x 15.2 x 28.8 cm
  Weight	6.0 lb / 2.7 kg

  Box Dimensions (LxWxH)	13.8 x 8.9 x 7.9"

• IDX System Technology V-Mount Adapter Plate for Blackmagic URSA & URSA Mini

  Auxiliary Output	1x D-Tap, unregulated 12 - 17 VDC, 50 W max
  Dimensions	3.3 x 5.6 x 0.5" (8.3 x 14.2 x 1.2 cm)
  Weight	6 oz (170 g)

  Box Dimensions (LxWxH)	5.7 x 4.2 x 1.0"
