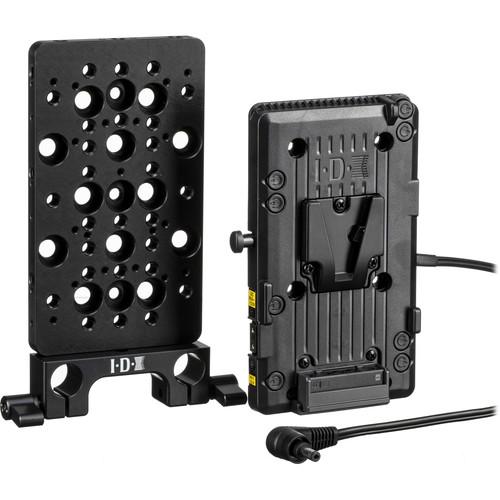

Product description The IDX EOS-CP(A) Power Adapter Kit consists of an A-E2EOSC V-Mount Adapter and an A-CP(A) Cheese Plate and Clamp. This unit efficiently powers the Canon C100, C300, or C500 Cameras on a 15mm mini-rod system.
The A-E2EOSC V-Mount Adapter allows direct mounting of IDX ENDURA batteries, and is designed for directly attachment to the IDX A-CP(A) or any other suitable mounting plate on an industry-standard rod system.

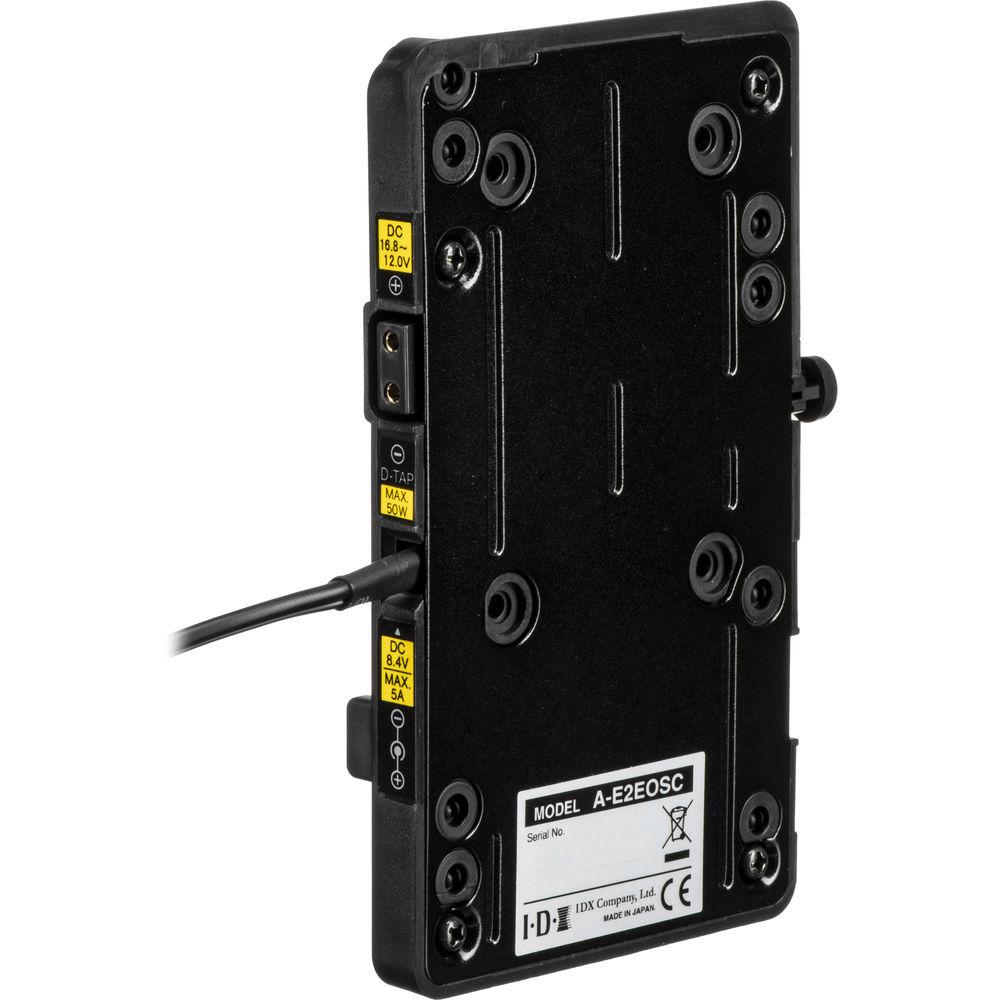

The aluminum A-CP(A) Cheese Plate and Clamp enables the attachment of IDX V-Mount P-V2 series plates to the rod system in a variety of mounting positions. - V-Mount Adapter Plate for Canon C100, C300, C500 The IDX V-Mount Adapter Plate for Canon C100, C300, C500 enables any IDX ENDURA battery to power Canon C-series cameras. An integrated 20" DC cable plugs into the camera to power it. Two unregulated D-Tap outputs, each capable of taking a 50W load, are available for powering accessories.

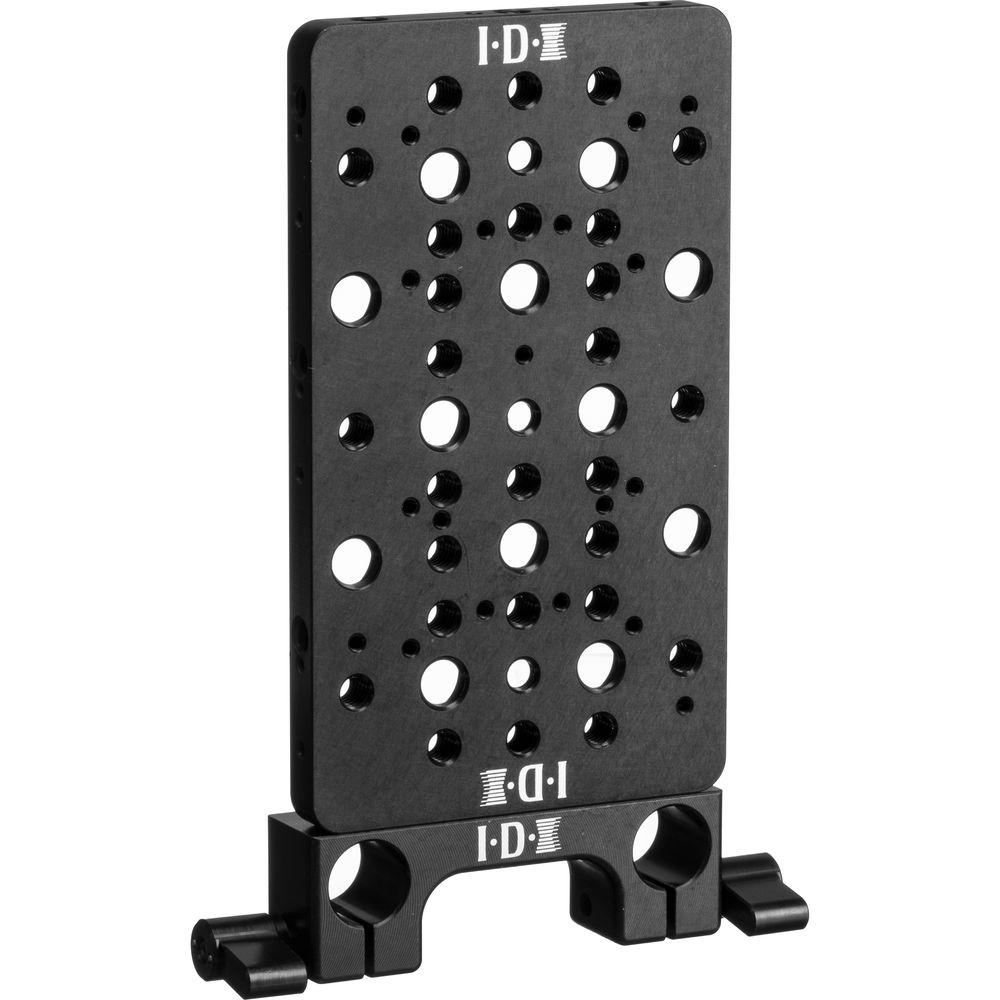

A suitable mounting plate, such as the IDX A-CP(A) cheese plate, is required for mounting this adapter plate onto a rig. Four M3 x 8mm screws are included for attaching to a mounting plate. UPC: 825781012543 - A-CP(A) Universal Cheese Plate and 15mm Clamp Adapter The IDX A-CP(A) Universal Cheese Plate and 15mm Clamp Adapter is a battery plate adapter featuring numerous accessory threads. It's designed for a perfect fit with IDX P-V2 V-Mount plates but is also compatible with several other IDX camera plates (please see the bullet list below).
The 15mm clamp adapter can be attached in 6 different positions around the cheese plate. If you attach it along the wide side of the cheese plate, positioning the cheese plate sideways, you can mount two P-V2 plates to the cheese plate by screwing in only a half portion of each. - Screw Holes
-
- 39x 1/4"
- 3x 1/4" with counter bore
- 12x 3/8" with counter bore
- Compatible V-Mount Plates
-
- P-V2
- P-VS2
- P-V212
- P-V284
- P-V257
- ET-PV2BM
- A-E2EOSC
UPC: 825781012550 In the Box Bundle Items V-Mount Adapter Plate for Canon C100, C300, C500 sefacarysyycfzfudcfqsw A-CP(A) Universal Cheese Plate and 15mm Clamp Adapter
Also Includes Table of Contents
|
Upload User Manual
Have you got an user manual for the IDX System Technology EOS-CP Power Adapter Kit for Canon C100, C300, C500 Cameras in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - V-Mount Adapter Plate for Canon C100, C300, C500
| Cable Output Voltage | 8.4 V DC, max current 5 A (42 W) | | D-Tap Output Voltage | 12 to 17 V DC | | Maximum D-Tap Output | 50 W per port | | Cable Length | Approx. 20" (50 cm) | | Dimensions | 3.2 x 5.6 x .5" (8.2 x 14.2 x 1.2 cm) | | Weight | Approx. 0.46 lb (210 g) | | | | Box Dimensions (LxWxH) | 5.9 x 3.7 x 1.3" | - A-CP(A) Universal Cheese Plate and 15mm Clamp Adapter
| Compatibility | Compatible with the following V-Mount IDX camera plates:
P-V2
P-VS2
P-V212
P-V284
P-V257
ET-PV2BM
A-E2EOSC | | Material | 6061 aluminum / black anodized | | Dimensions | 3.85 x 5.5 x .78" (9.8 x 14.1 x 2 cm) | | Weight | Approx. 0.64 lb (290 g) | | | | Box Dimensions (LxWxH) | 7.9 x 6.75 x 0.9" |
