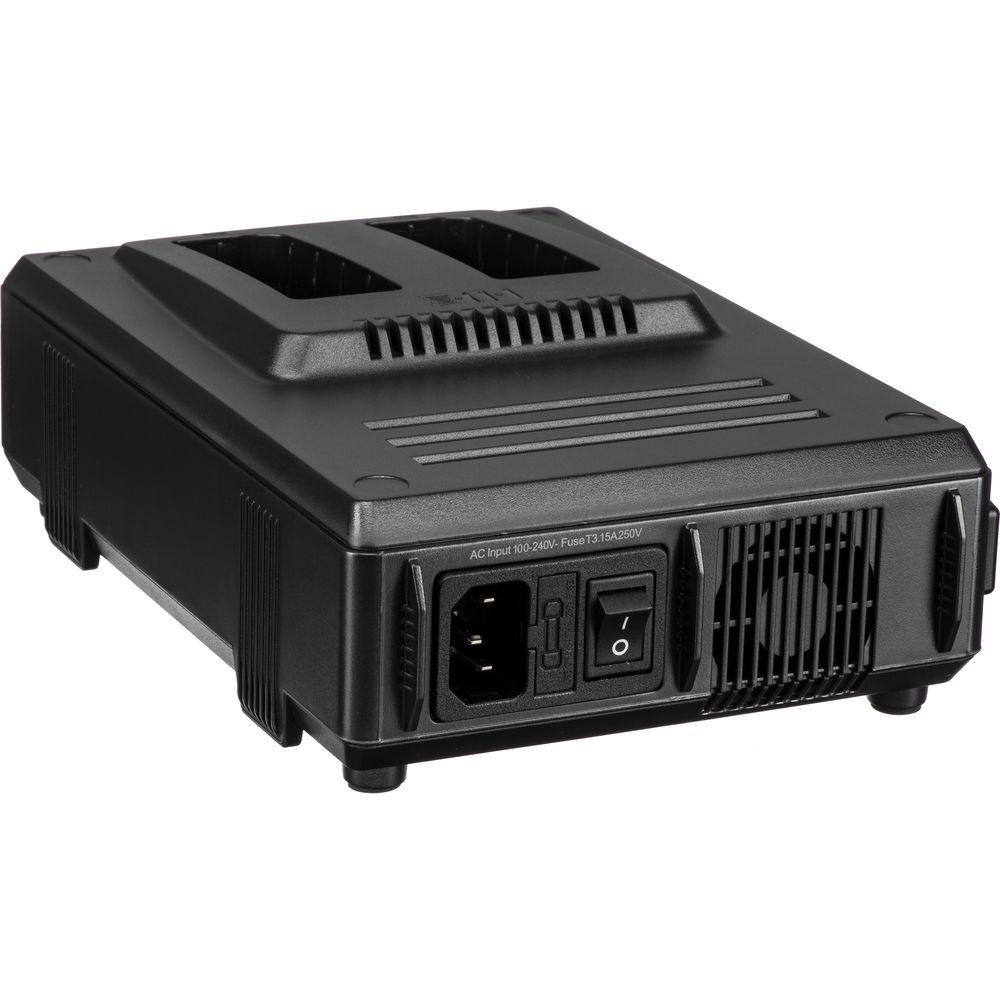

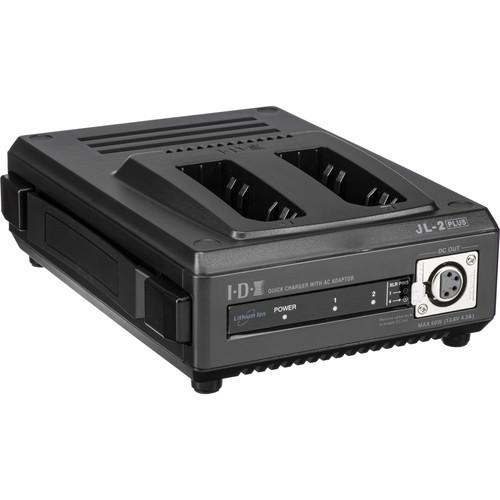

User Manual for IDX System Technology JL-2PLUS 2-Channel Fast Charger Click to enlarge the picture
Contents of the user manual for the IDX System Technology JL-2PLUS 2-Channel Fast
- Product category: Chargers IDX System Technology
- Brand: IDX System Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for IDX System Technology Chargers
 |
User manual for the IDX System Technology JL-2PLUS 2-Channel Fast contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any IDX System Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official IDX System Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a IDX System Technology product will considerably shorten its lifespan!
|
Product description The JL-2PLUS is a compact, two-channel, sequential multi-chemistry fast charger with a built-in 60W power supply. Up to two NP-Style batteries can be charged in approximately 3 hours. The primary use of this unit is as a charger, and you can charge batteries or use it as a power supply, but you cannot do both simultaneously. The charger includes a removable AC power cord. - Portability

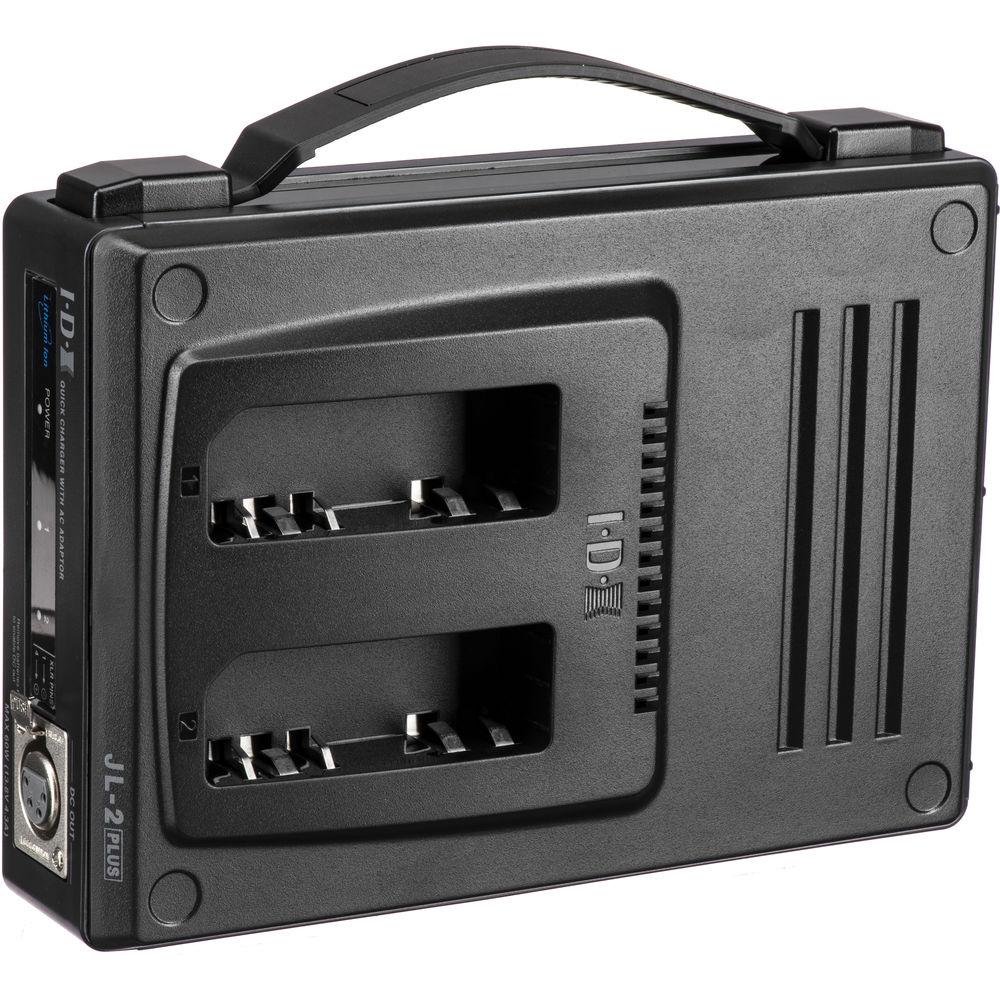

- The JL-2PLUS offers a lightweight design (3.3 lbs) with a convenient built-in handle.
- NP-Style Mount
- The JL-2PLUS is designed to directly charge NP-Style batteries. Since the NP-Style mount is one of the most common battery mounts on broadcast and professional camcorders, IDX has adopted the design to help fit that need.
- Condition Indicator
- An LED condition indicator is offers a quick glance of each battery's charge status.
- Red (charging)
- Green (complete/trickle)
- Orange (battery fault)
- Durable Construction
- An all-metal case construction ensures that the JL-2PLUS will hold up under the harsh rigors of location shooting.
- Multi-Chemistry Design
- Any combination of battery chemistries can be automatically charged with the JL-2PLUS.
*Any one of the following battery chemistries can be used: - Li-Ion (Lithium Ion)
- NiCd (Nickel Cadmium)
- NiMH (Nickel Metal Hydride)*NP-Style only
- Memory Effect
- This is a simple charger that will charge either Ni-Cad or Li-ion batteries, but it does not contain charging protocols to drain the batteries before charging. Ni-Cad batteries should be drained to the proper voltage before charging to avoid the memory effect.
- Power Supply
- A standard 4-Pin Canon type connector is available on the front panel to provide 60 watts of DC power via the built-in power supply.
- Worldwide AC Power
- As with all IDX chargers, the JL-2PLUS's power switch is recessed to prevent an accidental loss of power. A worldwide, auto-sensing AC power (AC 100-240V) operation is standard.
UPC: 825781073803 In the Box IDX System Technology JL-2PLUS 2-Channel Fast Charger AC Power Cord Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the IDX System Technology JL-2PLUS 2-Channel Fast Charger in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIDX System Technology JL-2PLUS Specs | Power Supply | Built-in (60W) | | Battery Bays | 2 | | Type of Charging | Sequential | | Diagnostics | Auto-Chemistry Sensing | | Connections/Interface | NP-1 Slot (x 2)
4-Pin XLR (x 1) | | Power Requirements | 100-240 Volts AC, 50 or 60 Hz | | Dimensions (WxHxD) | 5.94 x 3.1 x 8.34 inches
151 x 79 x 212 mm | | Weight | 2 lbs.
950 g | | | | Package Weight | 2.605 lb | | Box Dimensions (LxWxH) | 9.9 x 9.45 x 3.65" |
