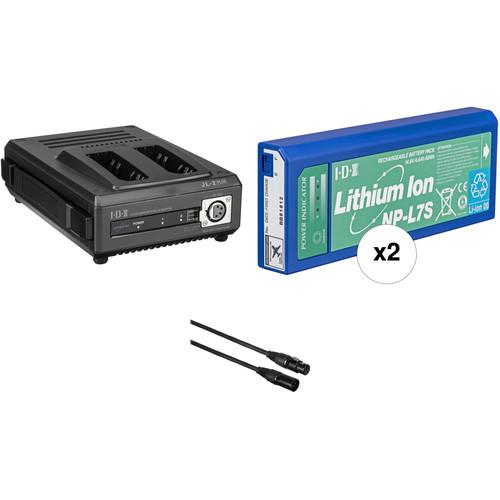

User Manual for IDX System Technology NPS-722 NP Starter Kit - NPL-7S Batteries, 2 Position Charger Power Supply, Power Cables Click to enlarge the picture
Contents of the user manual for the IDX System Technology NPS-722 NP Starter
- Product category: On Camera Batteries IDX System Technology
- Brand: IDX System Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for IDX System Technology On Camera Batteries
|
User manual for the IDX System Technology NPS-722 NP Starter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any IDX System Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official IDX System Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a IDX System Technology product will considerably shorten its lifespan!
|
Product description The IDX NPS-722 Battery and Power Kit consists of two NPL-7S batteries, JL-2P Charger and Power Supply and a 10' DC Power Cable. This kit will supply power to a camcorder, monitor or other equipment utilizing AC adapted power or DC battery power. - IDX System Technology JL-2PLUS 2-Channel Fast Charger The JL-2PLUS is a compact, two-channel, sequential multi-chemistry fast charger with a built-in 60W power supply. Up to two NP-Style batteries can be charged in approximately 3 hours. The primary use of this unit is as a charger, and you can charge batteries or use it as a power supply, but you cannot do both simultaneously. The charger includes a removable AC power cord.
- Portability
- The JL-2PLUS offers a lightweight design (3.3 lbs) with a convenient built-in handle.
- NP-Style Mount
- The JL-2PLUS is designed to directly charge NP-Style batteries. Since the NP-Style mount is one of the most common battery mounts on broadcast and professional camcorders, IDX has adopted the design to help fit that need.
- Condition Indicator
- An LED condition indicator is offers a quick glance of each battery's charge status.
- Red (charging)
- Green (complete/trickle)
- Orange (battery fault)
- Durable Construction
- An all-metal case construction ensures that the JL-2PLUS will hold up under the harsh rigors of location shooting.
- Multi-Chemistry Design
- Any combination of battery chemistries can be automatically charged with the JL-2PLUS.
*Any one of the following battery chemistries can be used: - Li-Ion (Lithium Ion)
- NiCd (Nickel Cadmium)
- NiMH (Nickel Metal Hydride)*NP-Style only
- Memory Effect
- This is a simple charger that will charge either Ni-Cad or Li-ion batteries, but it does not contain charging protocols to drain the batteries before charging. Ni-Cad batteries should be drained to the proper voltage before charging to avoid the memory effect.
- Power Supply
- A standard 4-Pin Canon type connector is available on the front panel to provide 60 watts of DC power via the built-in power supply.
- Worldwide AC Power
- As with all IDX chargers, the JL-2PLUS's power switch is recessed to prevent an accidental loss of power. A worldwide, auto-sensing AC power (AC 100-240V) operation is standard.
UPC: 825781073803 - 2 x IDX System Technology NP-L7S NP-Style Lithium-Ion Battery The IDX NP-L7S is a 14.6 VDC/4.6 Ah NP-style Li-Ion (Lithium-Ion) battery. With convenient features, practical size, low cost and high-performance characteristics, the NP-L7S is designed to fit just about any application. The NP-L7S features a built-in LED for an instant visual display of battery power status.
- High-Grade Cells
- Unlike conventional cells that are damaged by fast charging, IDX individually selects and balances each cell for optimum life and performance.
- 14.6 Volts
- Professional camcorders operate on a 12-volt system. As per their design, a majority of camcorders will activate a low voltage warning or even cease to operate when they determine that the battery has fallen below 11-volts. Most equipment manufacturers suggest that a higher voltage battery should be used whenever possible.
- Cell Protection
- Your investment is protected externally by a tough ABS case and internally by a high temperature battery protection circuit (Auto Reset Temperature breaker type).
- Power Status Display
- The NP-L7S incorporates a three LED array, for quick and precise indication of the remaining battery capacity.
UPC: 825781076101 - IDX System Technology CA-4XLR 4-pin XLR Male to 4-pin XLR Female Cable - 10' The IDX CA-4XLR is a 10' 4-Pin XLR power extension cable. It features a 4-Pin XLR male connector on one end and a female 4-Pin XLR connector on the other end. This allows the user to extend the distance between the power source and the equipment an extra 10'. UPC: 825781080603
In the Box - JL-2PLUS 2-Channel Fast Charger rcrrybtdfuvacrbqsbbwbd
- AC Power Cord
- Limited 3-Year Warranty
- 2 x NP-L7S NP-Style Lithium-Ion Battery rcrrybtdfuvacrbqsbbwbd
- CA-4XLR 4-pin XLR Male to 4-pin XLR Female Power Cable - 10'
Table of Contents
|
Upload User Manual
Have you got an user manual for the IDX System Technology NPS-722 NP Starter Kit - NPL-7S Batteries, 2 Position Charger Power Supply, Power Cables in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - IDX System Technology JL-2PLUS 2-Channel Fast Charger
| Power Supply | Built-in (60W) | | Battery Bays | 2 | | Type of Charging | Sequential | | Diagnostics | Auto-Chemistry Sensing | | Connections/Interface | NP-1 Slot (x 2)
4-Pin XLR (x 1) | | Power Requirements | 100-240 Volts AC, 50 or 60 Hz | | Dimensions (WxHxD) | 5.94 x 3.1 x 8.34 inches
151 x 79 x 212 mm | | Weight | 2 lbs.
950 g | | | | Box Dimensions (LxWxH) | 9.9 x 9.45 x 3.65" | - 2 x IDX System Technology NP-L7S NP-Style Lithium-Ion Battery
| Mount / Series Type | NP-1 Mount | | Chemistry | Lithium-Ion | | Capacity (Wh) | 68 Wh | | Output Voltage | 14.6 VDC | | Dimensions (W x H x D) | 7.3 x 2.8 x 1.0" / 185.0 x 72.0 x 25.0 mm | | Weight | 1 lb / 0.5 kg | | | | Box Dimensions (LxWxH) | 7.45 x 2.85 x 1.05" | - IDX System Technology CA-4XLR 4-pin XLR Male to 4-pin XLR Female Cable - 10'
| | | Box Dimensions (LxWxH) | 8.1 x 6.35 x 1.9" |
