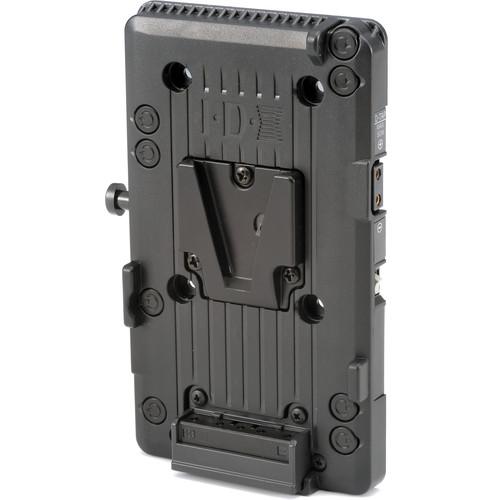

User Manual for IDX System Technology P-V257 Endura V-Mount Plate Click to enlarge the picture
Contents of the user manual for the IDX System Technology P-V257 Endura V-Mount
- Product category: Battery Mounting Plates IDX System Technology
- Brand: IDX System Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for IDX System Technology Battery Mounting Plates
|
User manual for the IDX System Technology P-V257 Endura V-Mount contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any IDX System Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official IDX System Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a IDX System Technology product will considerably shorten its lifespan!
|
Product description The IDX P-V257 Endura V-Mount Plate is a 2-pin D-tap DC Out and DigiView plate that is an enhanced variation of the P-V2 Plate series. Providing an ideal solution for combining Endura V-Mount batteries to handheld cameras without the standard V-Mount style battery lock, the plate offers precise DC power connectivity. For camera systems compliant with DigiView, the remaining battery power can be displayed in the viewfinder. Converting 12VDC power, the plate uses 1 tap for regulated 5V/7.3V (switchable). The second D-tap offers 50W (max) unregulated battery throughput for equipment such as lights and HDD recorders. You can use the Endura V-Mount Plate for a variety of cameras using the optional IDX cables specific to the camera models. The maximum power output available from the plate is 50W, and it measures 3.25 x 5.59 x 0.47" and weighs 0.40 lb. Note: Requires factory install if used with the Panasonic AF100 camera - Offers 2-pin D-tap DC Out and DigiView
- Enhanced P-V2 plate series variation
- Provides an ideal solution for combining Endura V-Mount batteries to handheld cameras without the standard V-Mount style battery lock; the plate offers precise DC power connectivity
- Displays remaining battery power in the viewfinder for camera systems compliant with DigiView
- Converts 12VDC power to 5V/7.3V
- Uses 1 D-tap for regulated 5V/7.3V (switchable)
- Second D-tap offers 50W (max) unregulated battery throughput for equipment such as lights and HDD recorders
- Supports a variety of cameras using the optional IDX cables specific to the camera models
- Offers a maximum power output of 50W
- Measures 3.25 x 5.59 x 0.47" and weighs 0.40 lb
UPC: 825781012352 In the Box IDX System Technology P-V257 Endura V-Mount Plate 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the IDX System Technology P-V257 Endura V-Mount Plate in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIDX System Technology P-V257 Specs | Power Output | Max. D-Tap Output: 50W | | Dimensions (WxHxD) | 3.3 x 5.6 x 0.5" (84 x 142 x 13mm) | | Weight | Approx. 0.4 lbs (0.2kg) | | | | Package Weight | 0.45 lb | | Box Dimensions (LxWxH) | 5.7 x 4.0 x 1.1" |
