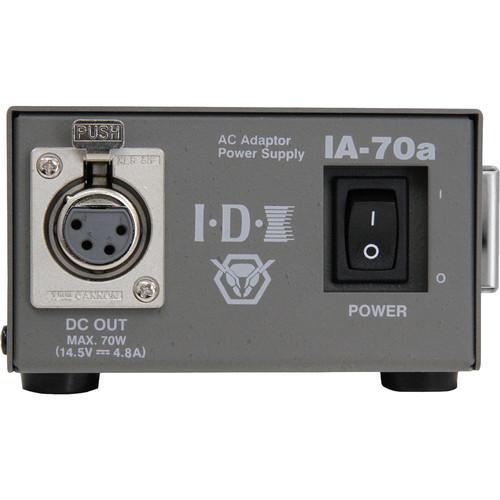

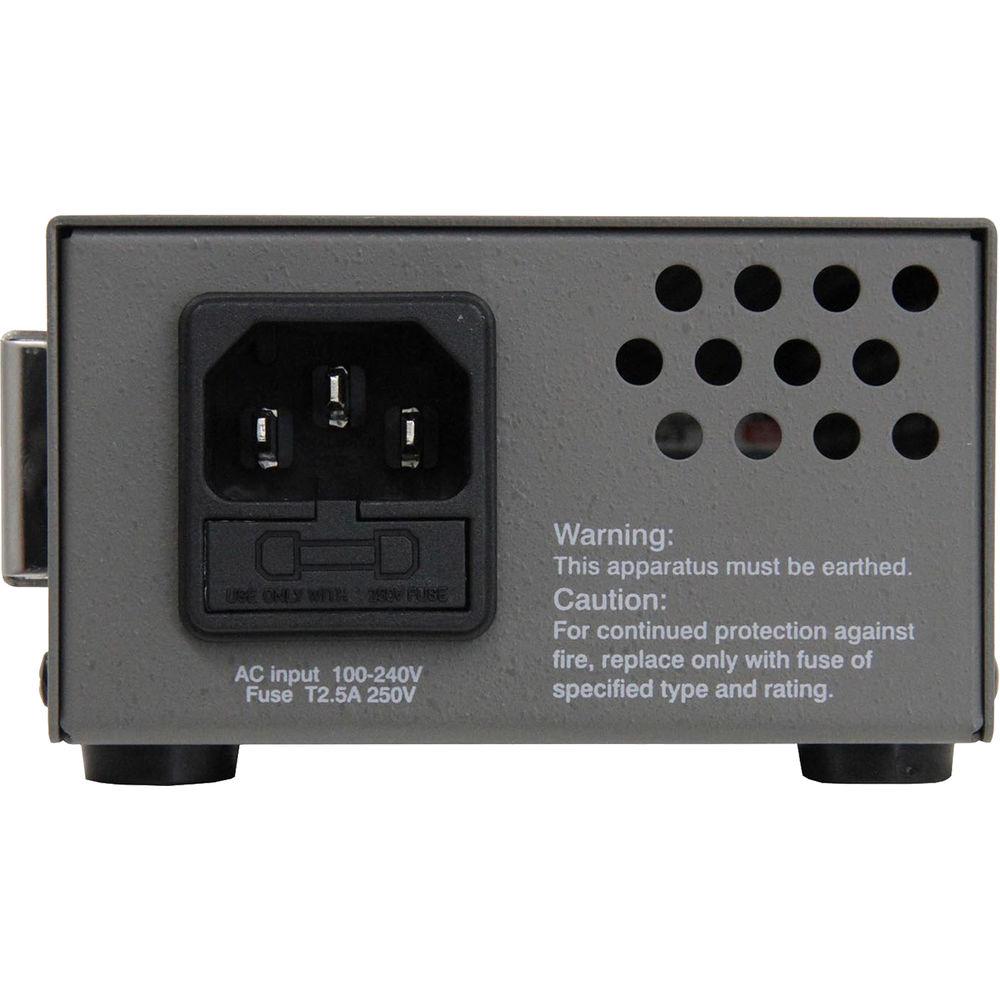

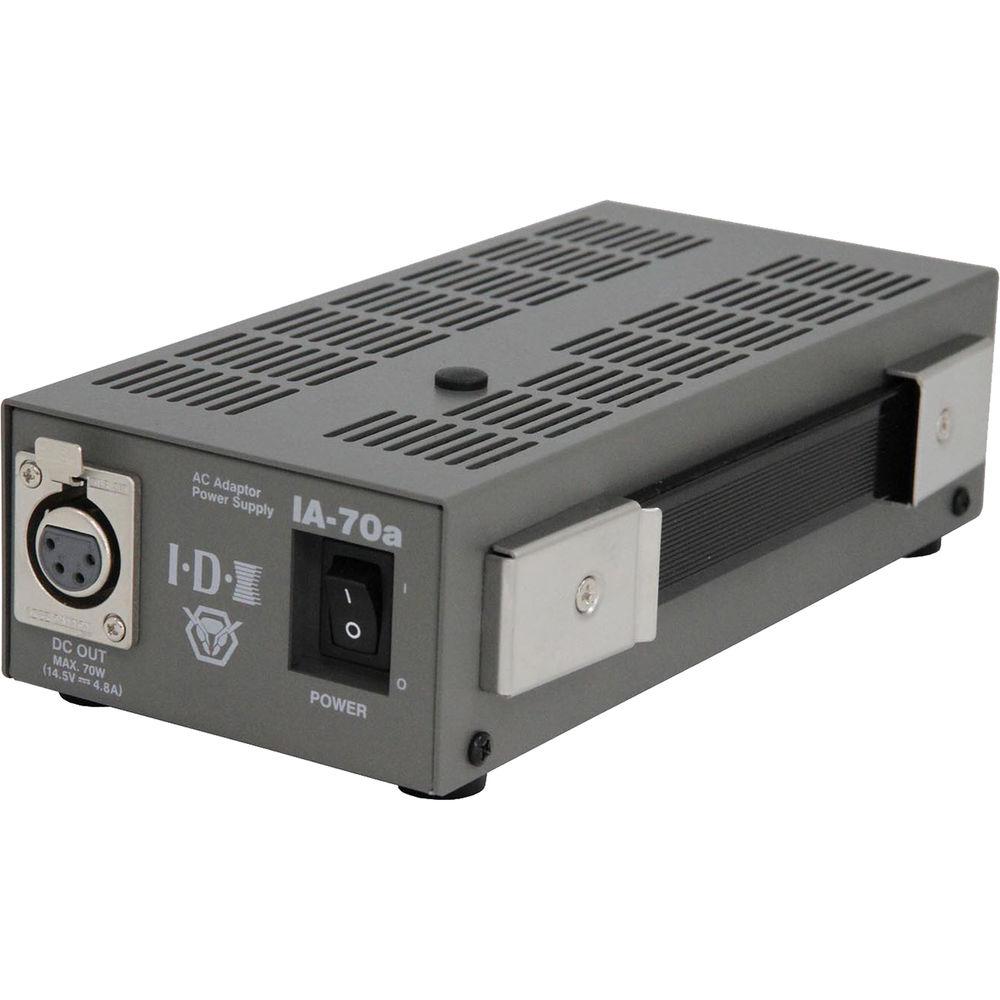

Product description The IDX IA-70a Single Channel DC Power Supply is a 70W AC power supply offering a 4-pin XLR output suitable for use with ENG cameras. It features a rugged yet lightweight metal housing with plenty of ventilation slots, and an integrated carry handle. The power supply outputs a nominal 14.5 VDC, however the output range is adjustable from 14.3 to 15.8 volts, and it supports a 70-watt draw.
The power supply features built-in overload protection that causes the unit to shut itself down in the event of a current overdraw. The IA-70a will also automatically recover after a current overdraw. Although powerful, the unit produces "low ripple noise", allowing you to use it without interfering with nearby electronic devices. It features a metal chassis with ventilation slots, and on/off switch, 4-pin XLR port, and an integrated carry handle. The IA-70a supports worldwide power, so you can take it with you almost anywhere. UPC: 825781013014 In the Box IDX System Technology Single Channel DC Power Supply AC Power Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the IDX System Technology Single Channel DC Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIDX System Technology IA-70A Specs | Output | 70 W max (14.5 V at 4.8 A), adjustable from 14.3-15.8 V | | Connections/Interface | 1 x 4-pin XLR | | Power Requirements | 100 to 240 VAC, 50/60 Hz | | Consumption | 170 W maximum | | Dimensions | 3.5 x 7.5 x 2" / 9 x 19 x 5 cm | | Weight | 1.65 lb / 0.75 kg | | | | Package Weight | 2.29 lb | | Box Dimensions (LxWxH) | 8.8 x 6.6 x 2.6" |
