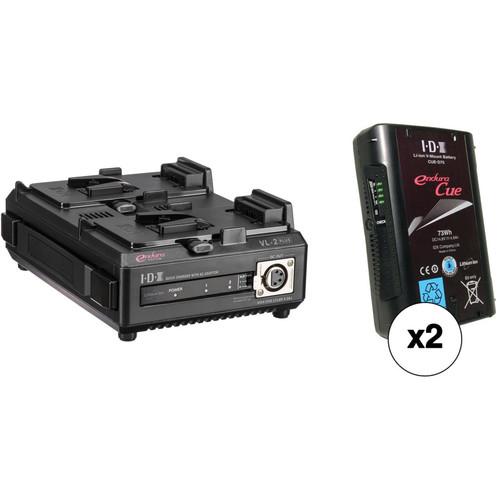

User Manual for IDX System Technology Two 14.8V 73Wh Li-Ion V-Mount Batteries & Dual Charger PSU Kit Click to enlarge the picture
Contents of the user manual for the IDX System Technology Two 14.8V 73Wh
- Product category: On Camera Batteries IDX System Technology
- Brand: IDX System Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for IDX System Technology On Camera Batteries
|
User manual for the IDX System Technology Two 14.8V 73Wh contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any IDX System Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official IDX System Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a IDX System Technology product will considerably shorten its lifespan!
|
Product description This Kit includes two compact IDX 14.8V Endura CUE-D75 Batteries and the VL-2 Dual Charger/Power Supply. Designed for low power-consumption cameras, the CUE-D75 batteries feature a 73Wh capacity and support loads up to 4.9A/59W. The VL-2 Charger will charge both batteries sequentially in under 5 hours and can alternatively be used as a 60W power supply via a 4-pin XLR output.
The CUE-D75 batteries feature individually cradled cells for increased heat dissipation and safety, and circuit protection against overcharge, over-discharge, and overcurrent. The batteries also feature a P-Tap output for powering accessories.
The VL-2 Charger/Power Supply operates within the 100-240V worldwide voltage range and features charge status LEDs, built-in handle, and recessed power switch designed to prevent accidental shut downs. - 2 x IDX System Technology CUE-D75 73Wh Li-Ion V-Mount Battery Power your camera or other pro video equipment with the IDX CUE-D75 73Wh Li-Ion V-Mount Battery. The battery can supply up to 16.8 VDC to the plate, and can also provide up to 50W to power accessories through the integrated D-tap output. CUE series batteries feature an internal pack design, which cradles each cell and isolates it in order to enhance reliability and safety. IDX CUE-D batteries should be charged using IDX-branded chargers; third party chargers may not charge CUE-D batteries correctly. UPC: 825781012772
- IDX System Technology VL-2 Battery Charger/Power Supply The VL-2 is a two-channel, sequential Li-Ion (Lithium-Ion) fast charger with a built-in 60W power supply. Up to two Li-Ion Endura V-mount batteries can be charged in 5 hours.
- Portability
- The VL-2 offers a lightweight design (3.3lbs) with a convenient built-in handle.
- V-Mount
- The highly reliable V-Mount, battery mount is becoming more and more prevalent on many new broadcast and professional camcorders. In response, IDX has adapted the design of their batteries and chargers to with the V-Mount design.
- Condition Indicator
- An LED condition indicator is offers a quick glance of each batteries charge status.
- Battery Chemistries
- The optional A-E2NP allows the VL-2 to charge NP style batteries of any one of the following chemistries:
- Li-Ion (Lithium Ion)
- NiCd (Nickel Cadmium)
- NiMH (Nickel Metal Hydride)
- Power Supply
- A standard 4-Pin Canon type connector is available on the front panel for 60 watts of DC power.
- Red (charging)
- Green (complete/trickle)
- Orange (battery fault)
- World-Wide AC Power
- As with all IDX chargers, the VL-2's power switch is recessed to prevent an accidental loss of power. A world-wide, auto-sensing AC power (AC 100-240V) operation is standard.
UPC: 825781012109 In the Box - 2 x CUE-D75 73Wh Li-Ion V-Mount Battery eacerttaawf
- Limited 2-Year Warranty
- VL-2 Endura-type Lithium-Ion Battery Charger, 2-Channel Sequential Charging, with 60-Watt Power Supply
Table of Contents
|
Upload User Manual
Have you got an user manual for the IDX System Technology Two 14.8V 73Wh Li-Ion V-Mount Batteries & Dual Charger PSU Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 2 x IDX System Technology CUE-D75 73Wh Li-Ion V-Mount Battery
| Mount / Series Type | V-Mount | | Chemistry | Lithium-Ion | | Capacity (Wh) | 73 Wh | | Output Voltage | 14.8 VDC | | Maximum Load | 4.9 A | | Accessory Port | 1 x D-Tap | | Storage Temperature | 32 to 104°F / 0 to 40°C | | Charging Temperature | 32 to 104°F / 0 to 40°C | | Discharging Temperature | -4 to 113°F / -20 to 45°C | | Dimensions (W x H x D) | 3.8 x 5.8 x 1.5" / 97.0 x 146.0 x 38.0 mm | | Weight | 1.4 lb / 0.6 kg | | | | Box Dimensions (LxWxH) | 7.0 x 4.4 x 2.0" | - IDX System Technology VL-2 Battery Charger/Power Supply
| Power Supply | Yes | | Battery Bays | 2 | | Type of Charging | Sequential | | Diagnostics | None | | Connections/Interface | Endura V-Mount (x 2)
4-Pin XLR (x 1) | | Power Requirements | 100-240 Volts AC, 50 or 60 Hz | | Dimensions (WxHxD) | 5.94 x 3.1 x 8.34 inches
151 x 79 x 212 mm | | Weight | 2 lbs.
950g | | | | Box Dimensions (LxWxH) | 9.764 x 9.449 x 3.622" |
