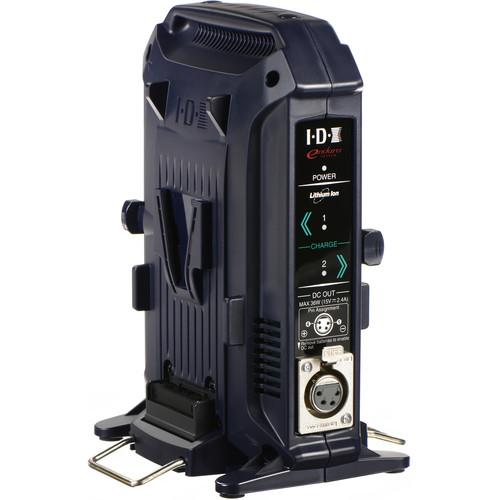

User Manual for IDX System Technology VL-2X 2-Channel V-Mount Charger & Power Supply Click to enlarge the picture
Contents of the user manual for the IDX System Technology VL-2X 2-Channel V-Mount
- Product category: Chargers IDX System Technology
- Brand: IDX System Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for IDX System Technology Chargers
|
User manual for the IDX System Technology VL-2X 2-Channel V-Mount contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any IDX System Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official IDX System Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a IDX System Technology product will considerably shorten its lifespan!
|
Product description The IDX VL-2X 2-Channel V-Mount Charger & Power Supply supports lithium-ion and NiCad batteries and features three modes of operation. Charger mode provides sequential charging, automatically switching to the second battery after fully charging the first. It delivers up to 2.7A of quick-charge current without the noise of a typical charger thanks to a fanless design. Power Supply mode offers up to 36W of DC power via a 4-pin XLR output. Power Base mode allows you to power the XLR output off of attached batteries, without having to connect the charger to a power outlet. The three modes can only be used independently.
This portable desktop charger is designed with reliable internal safety features that protect both the battery and charger from damage should faulty or misused batteries be placed on the charger. It will automatically stop charging if any attached battery reaches an overvoltage condition. - Charge Times for Select IDX Batteries
- DUO-C190:
7 hours for one / 14 hours for two
DUO-150:
5 hours for one / 10 hours for two
CUE-D150:
5 hours for one / 10 hours for two
ELITE:
4.5 hours for one / 9.4 hours for two
E-HL10DS:
3.4 hours for one / 7.2 hours for two
DUO-C95:
3.4 hours for one / 7.2 hours for two
DUO-95:
3.3 hours for one / 7 hours for two
CUE-D95:
3.3 hours for one / 7 hours for two
E-HL9:
3.2 hours for one / 6.4 hours for two
CUE-D75:
3 hours for one / 6 hours for two
NP-L7S:
3 hours for one / 6 hours for two UPC: 825781012918 In the Box IDX System Technology VL-2X 2-Channel V-Mount Charger & Power Supply 60W AC Power Supply (North American) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the IDX System Technology VL-2X 2-Channel V-Mount Charger & Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIDX System Technology VL-2X Specs | Mount Type | 2 x V-mount | | Supported Chemistries | Lithium-ion and NiCad | | Charging Type | Sequential | | Input Voltage | 100-240 VAC, 50/60 Hz | | Power Consumption | 140 VA max. | | Quick Charge Current | 2.7 A max. | | DC Output | 4-pin XLR / 36 W max. | | Operating Temperature | 23 to 104°F / -5 to 40°C | | Dimensions | 3.4 x 4.2 x 5" / 9 x 11 x 13 cm | | Weight | Approx. 0.95 lb / 430 g | | | | Package Weight | 2.5 lb | | Box Dimensions (LxWxH) | 8.4 x 8.1 x 4.1" |
