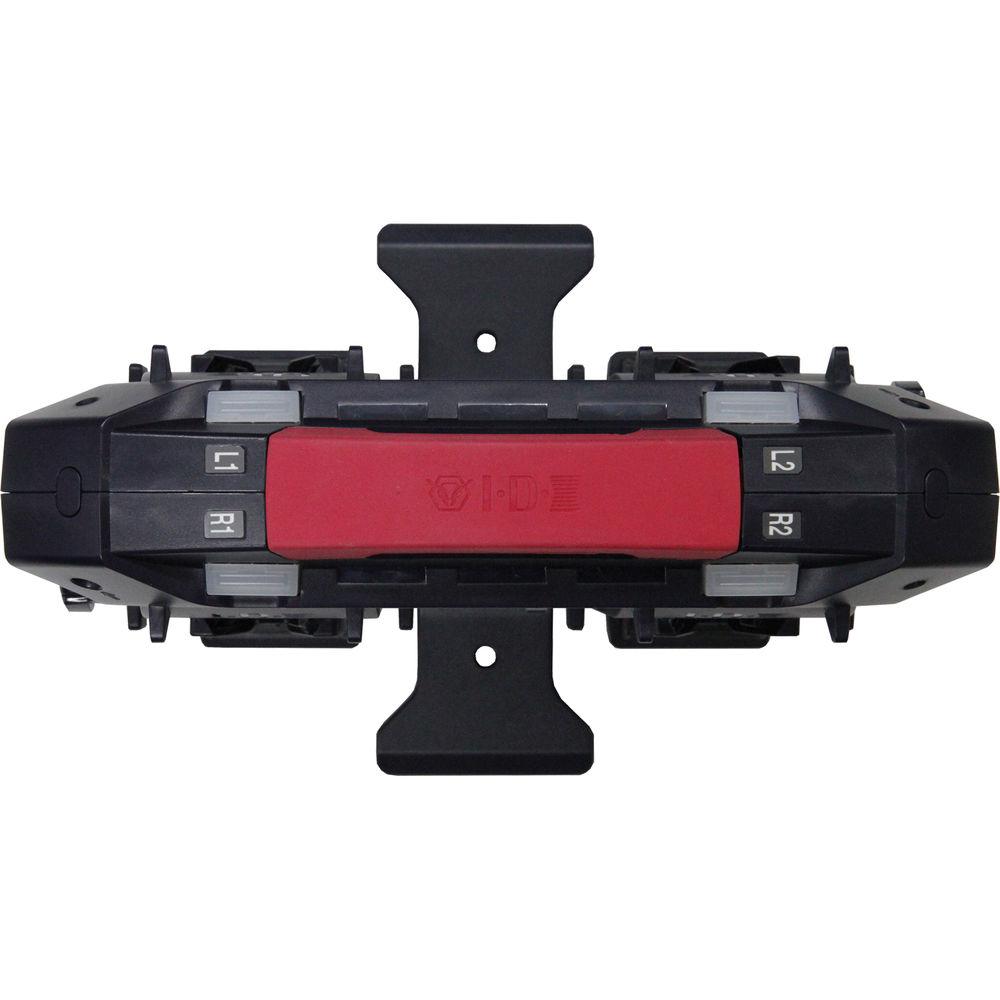

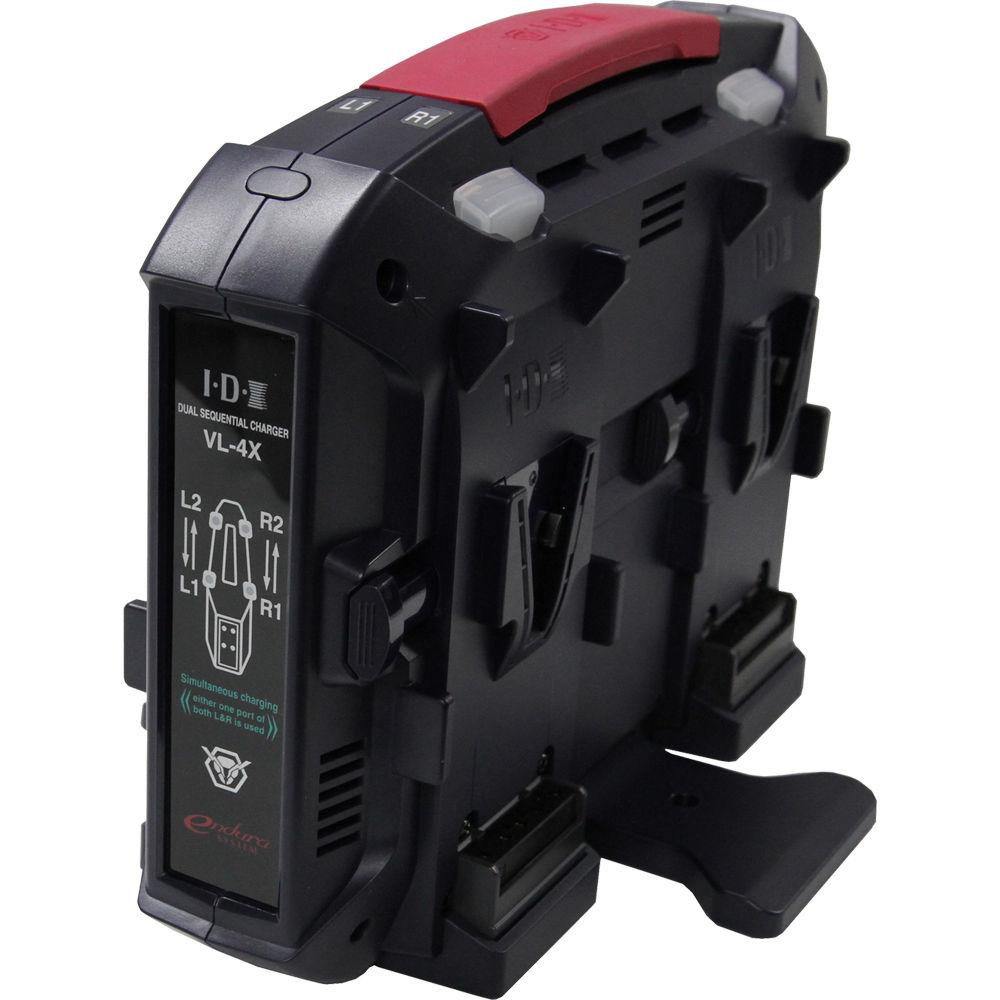

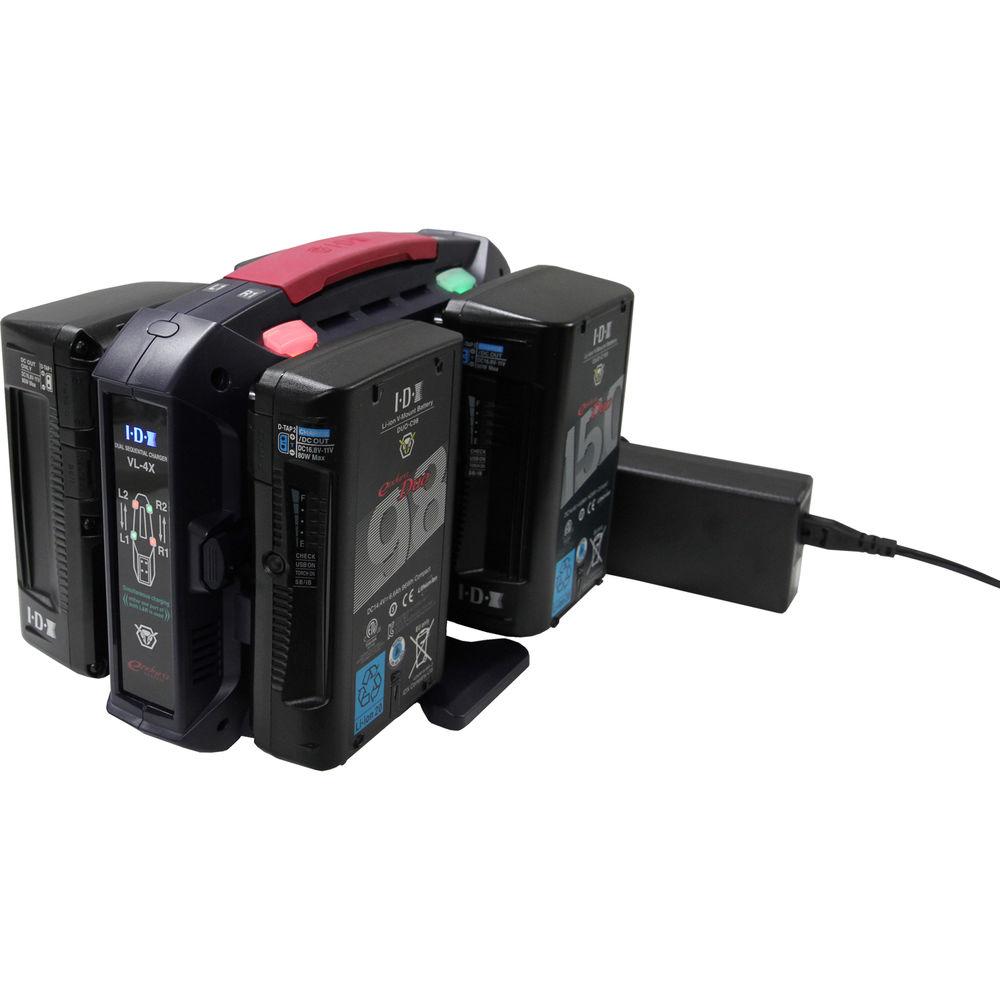

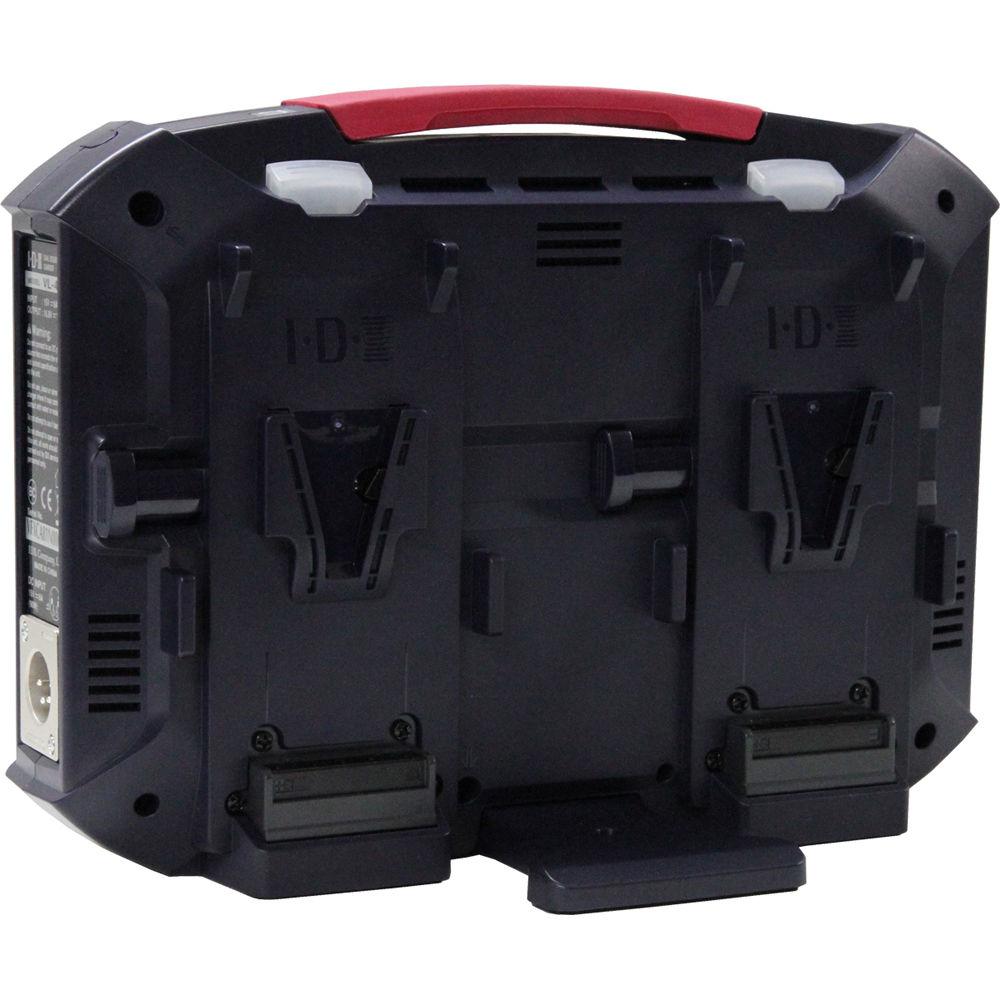

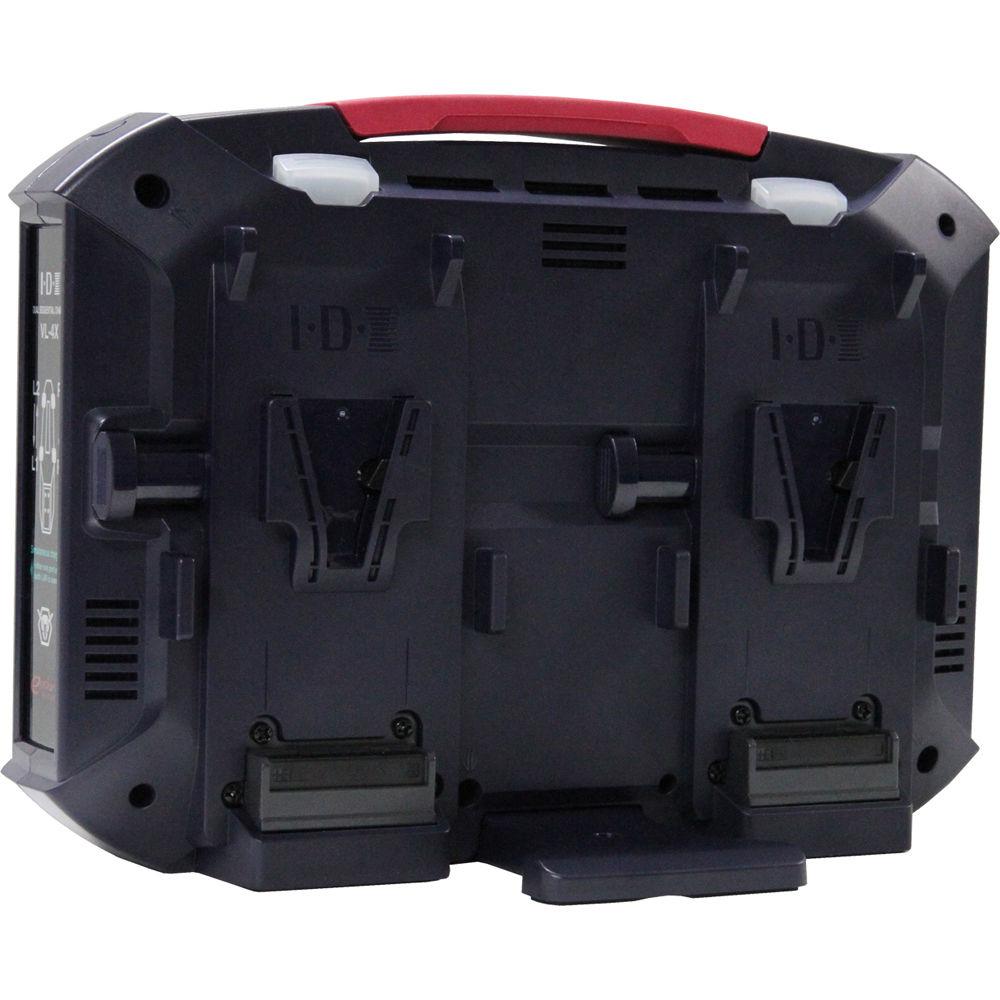

Product description The VL-4X 4-Channel V-Mount Charger with Power Supply from IDX supports lithium-ion V-mount batteries and features sequential charging for four batteries, automatically switching to the second battery after fully charging the first, and it features simultaneous charging for two batteries when on opposite sides. It delivers up to 2.7A of quick-charge current without the noise of a typical charger thanks to a fanless design.
This portable desktop charger is designed with reliable internal safety features that protect both the battery and charger from damage should faulty or misused batteries be placed on the charger. It will automatically stop charging if any attached battery reaches an overvoltage condition. It features a support stand to keep the charger upright on a flat surface. Note: Power Base (DC output) mode is not supported with the VL-4X. - Charge four lithium-ion V-mount batteries sequentially, or two batteries simultaneously
- Provides 2.7A quick-charge maximum
- Overvoltage protection circuitry stops charging the batteries when voltage exceeds a safe charge level
- Protection timer recovery charge mode is approximately two hours; a quick charge timer is approximately 5 to 12 hours

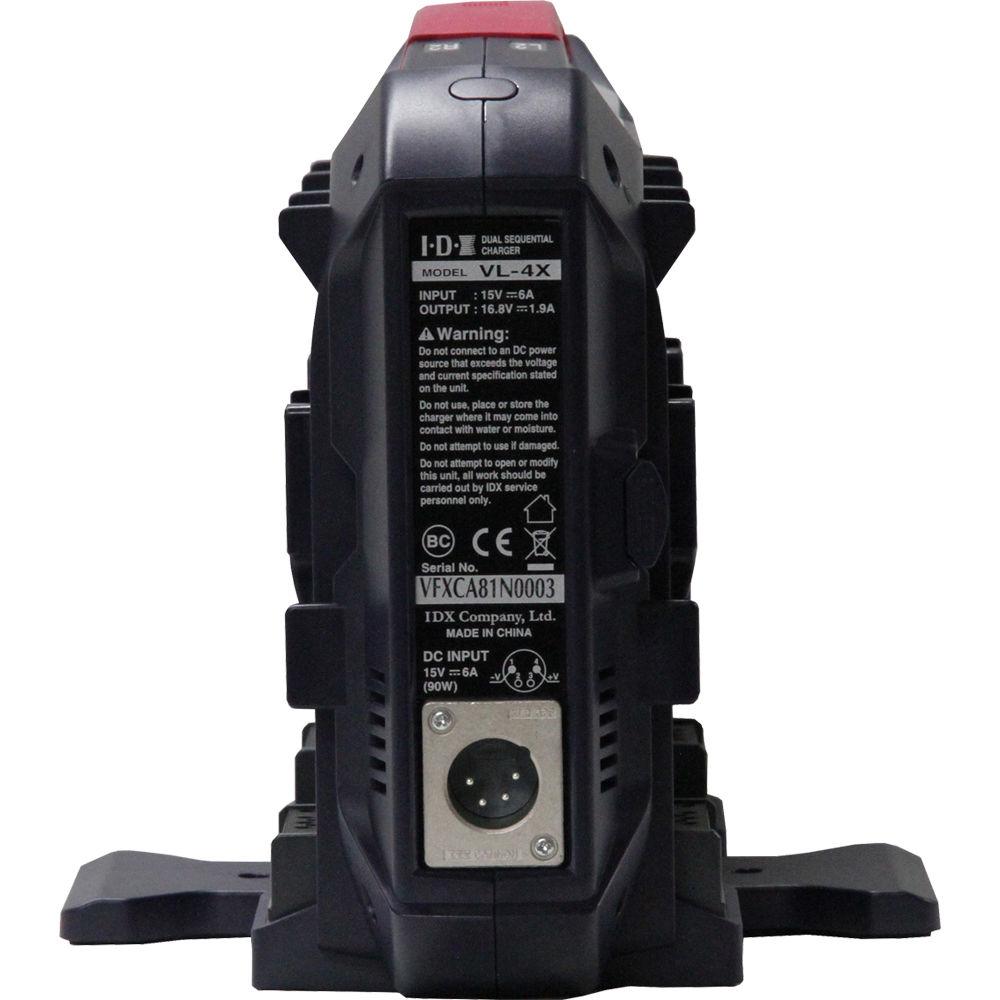

- 4-pin XLR 100-240 VAC power adapter included
In the Box IDX System Technology VL-4X 4-Channel V-Mount Charger with Power Supply 100-240 VAC/90W DC Power Supply Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the IDX System Technology VL-4X 4-Channel V-Mount Charger with Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIDX System Technology VL-4X Specs | Mount Type | 4 x V-Mount | | Supported Chemistries | Lithium-Ion | | Charging Type | 4 x Sequential
2 x Simultaneous (When on Opposite Sides) | | Power Port Connector | 4-Pin XLR | | Input Voltage | 100-240 VAC, 50/60 Hz | | Output Voltage | 15 VDC, 6 A | | Power Consumption | 220 V Max. | | Quick Charge Current | 2.7 A Max. | | Battery Output Voltage | 16.8 V, 1.9 A (Max. 2.7 A) | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity (Relative) | 20 to 90% | | Dimensions | 3.6 x 7 x 9.8" / 9.1 x 17.8 x 24.9 cm | | Weight | 2.4 lb / 1.1 kg |
