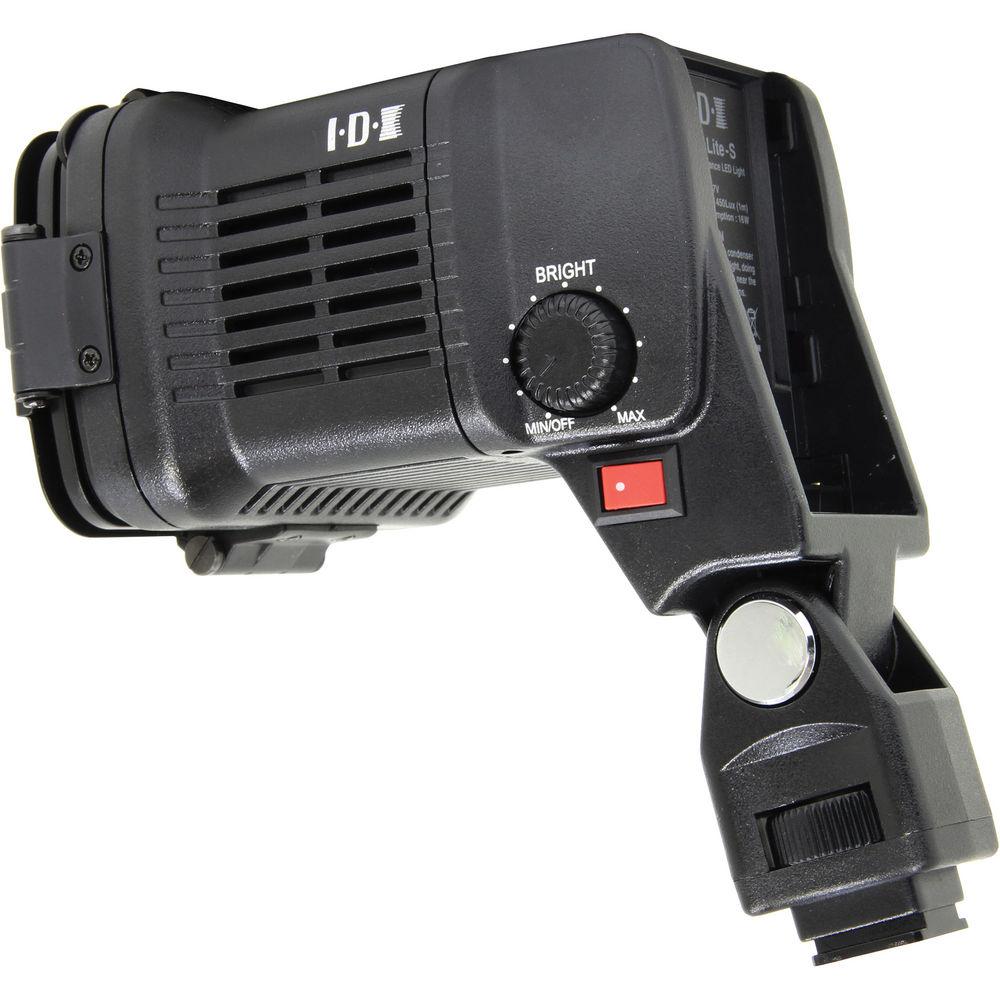

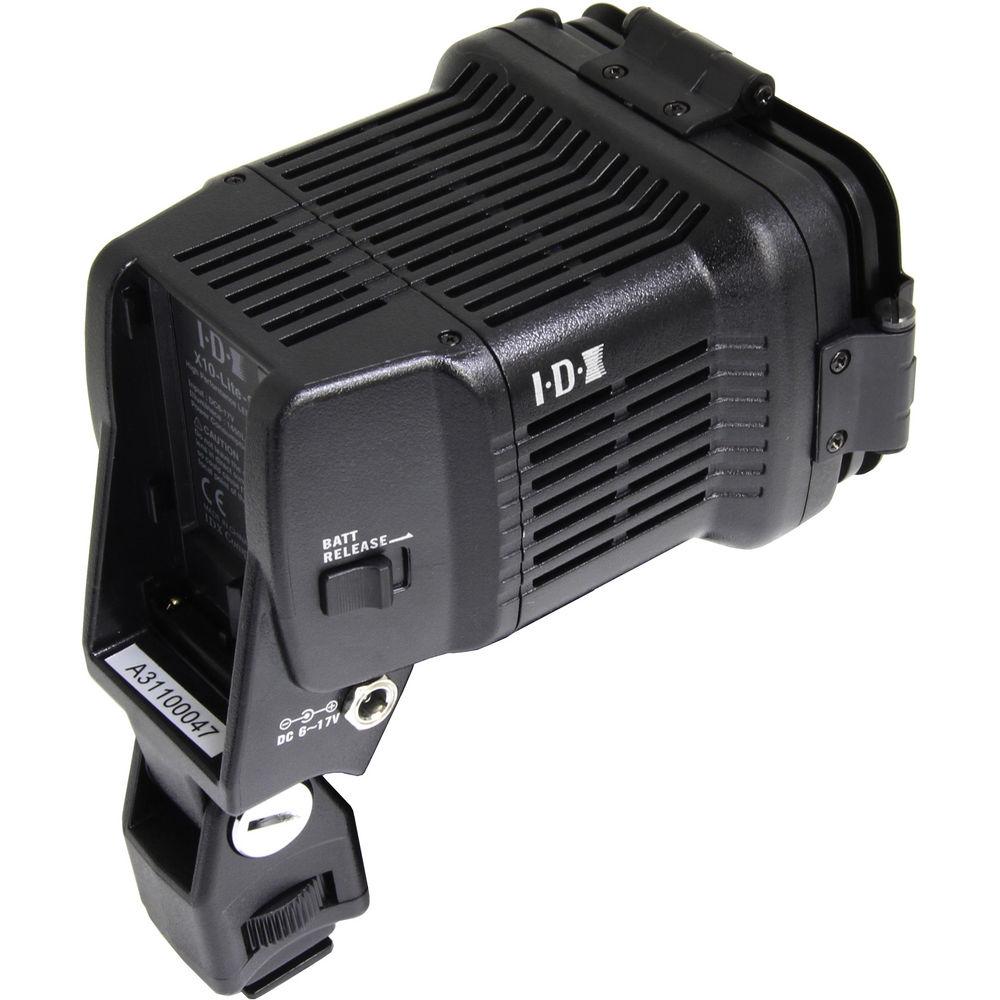

Product description The IDX X10-Lite-S Hi-Performance LED On-Camera Light mounts to a standard accessory shoe on your camera, and provides a powerful beam that can be dimmed from 100 to 0% without affecting the beam quality. The LEDs in the unit are rated to last up to 50,000 hours, and the unit powers from available Sony NP-F970 type batteries (not included). You can also power the unit from a 6 to 17 volt DC source using the included D-Tap connector.

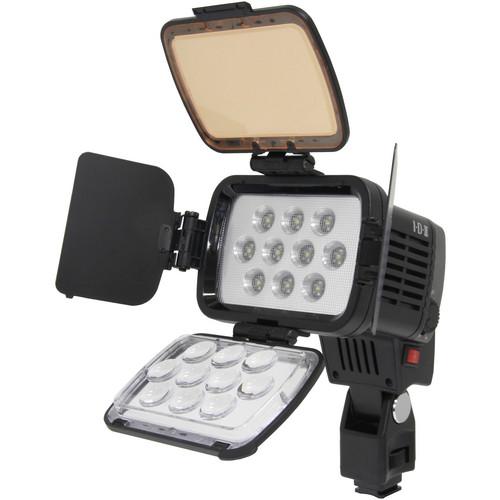

A sealed, scratch resistant lens protects the LEDs, and they deliver 1450 lux at 1m, with a 90° beam spread. This allows you to light a relatively large area from an on-camera light. For a tighter beam, you can flip up the bottom barndoor, which will adjust the beam spread to 45°, giving you more control, and less spill. The LEDs produce light with a color temperature of 4500K, which is roughly halfway between daylight and tungsten values. The barndoors incorporate a color correction filter that you can fold in front of the light to convert the color temperature from 4500K to 3200K. - The X10-Lite-S is an on-camera light that features dimming from 100 to 0%, without affecting the quality of the beam.
- The standard beam angle is 90°, however, by flipping up the bottom barndoor in front of the light, you convert the beam angle to 45° for a more spotty beam.
- The light has a color temperature of 4500K, which puts it approximately halfway between daylight and tungsten. Using this light with daylight (5600K) balanced units will result in the light causing a slight warming on the subjects you illuminate it with, when the camera is set to daylight balanced.
- The barndoors feature a color correction filter, that you can flip down to cover the LEDs, and this will convert the lights output from 4500K to 3200K, so you can mix it with traditional tungsten lighting with color temperature issues.

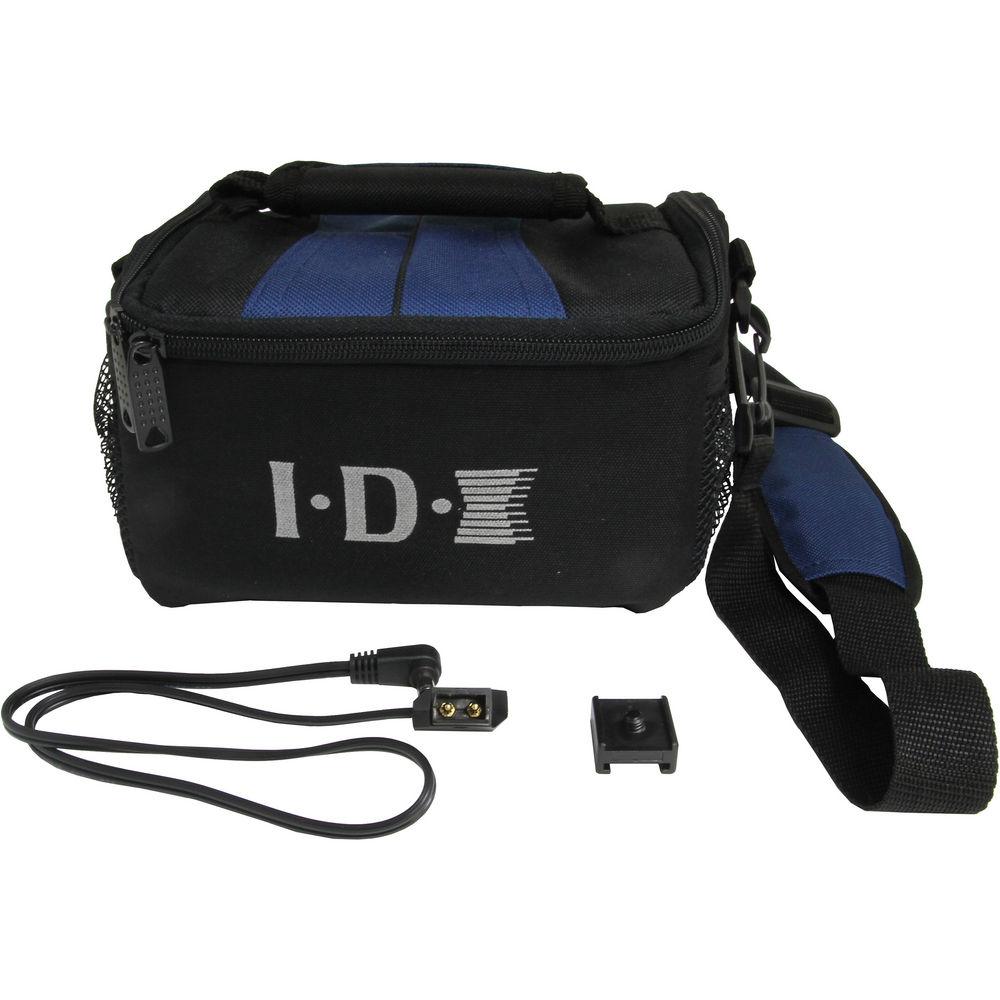

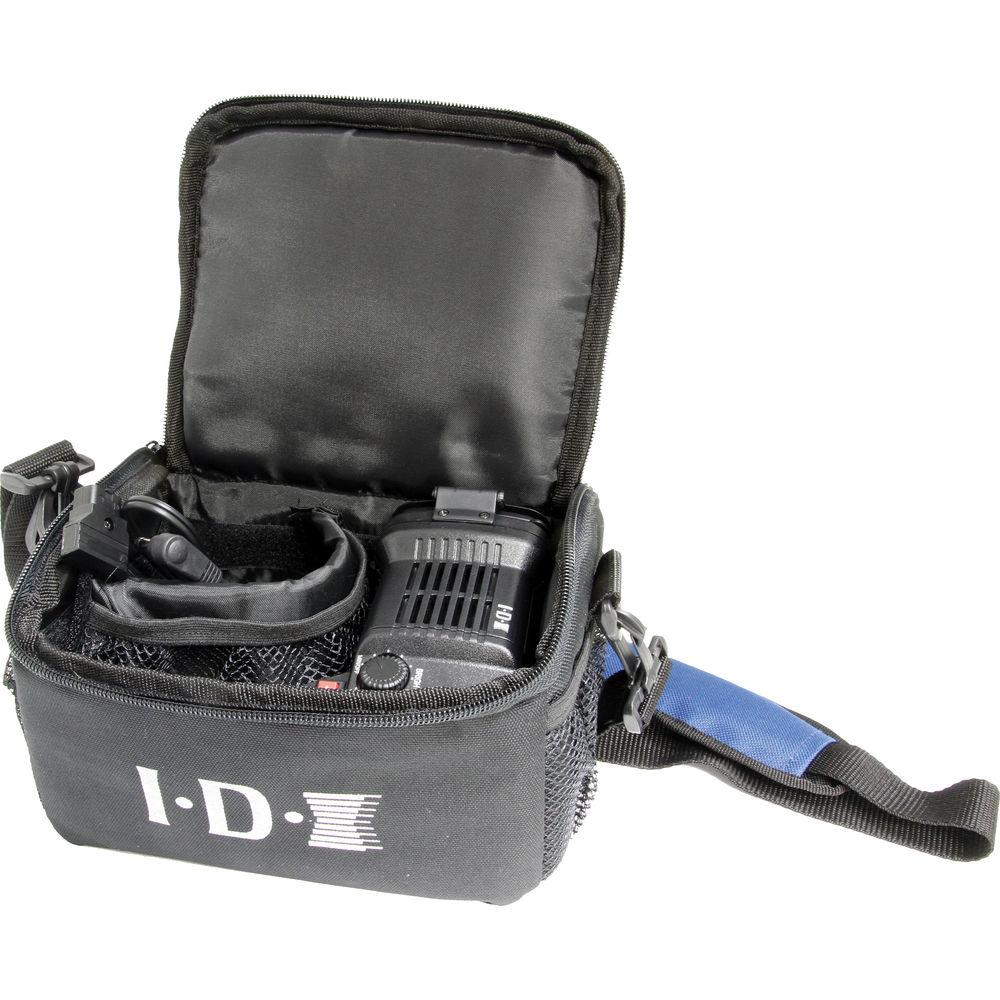

UPC: 825781012673 In the Box IDX System Technology X10-Lite-S Hi-Performance LED On-Camera Light D-Tap Power Connector Storage/Carrying Case Limited 2-Year Warranty User Manual PDF 367kbwarebrywctbbsrtytxvdsztyzsxaysucuytqde Table of Contents
|
Upload User Manual
Have you got an user manual for the IDX System Technology X10-Lite-S Hi-Performance LED On-Camera Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIDX System Technology X10-Lite-S Specs | | | Beam Angle | 90°

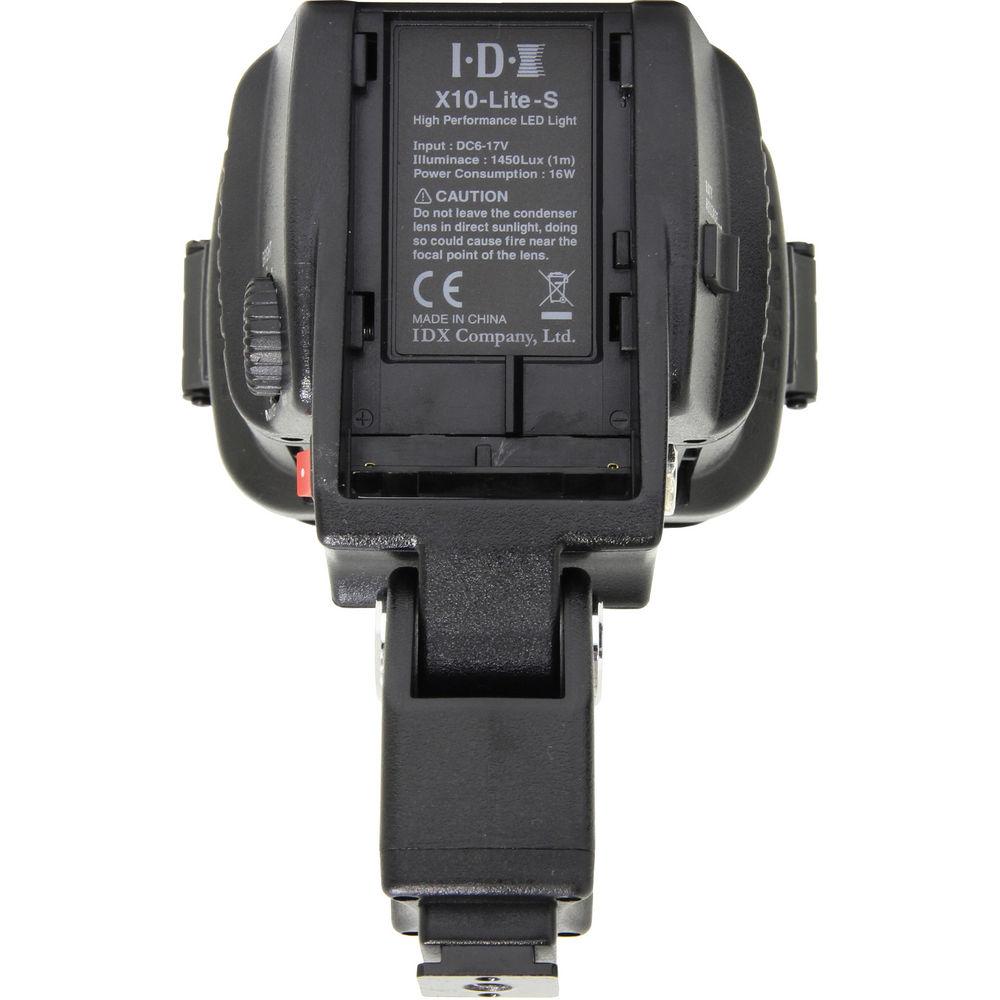

45° | | Color Temperature | 4500K | | Color Temperature with Included Filter | 3200K | | Dimming | Yes, 0 to 100% | | Number of LEDs | 10 | | | | Battery Plate | 1 x Sony L-Series (NP-F) | | DC Input Power | 6 to 17 VDC | | Max Power Consumption | 16 W | | Power Input Connector | D-Tap | | | | Mount Type | Cold Shoe | | Dimensions | 4.2 x 5.1 x 5.9" / 108 x 129 x 150 mm | | Weight | 1 lb / 0.45 kg | | | | Package Weight | 1.95 lb | | Box Dimensions (LxWxH) | 9.0 x 6.1 x 5.0" |
