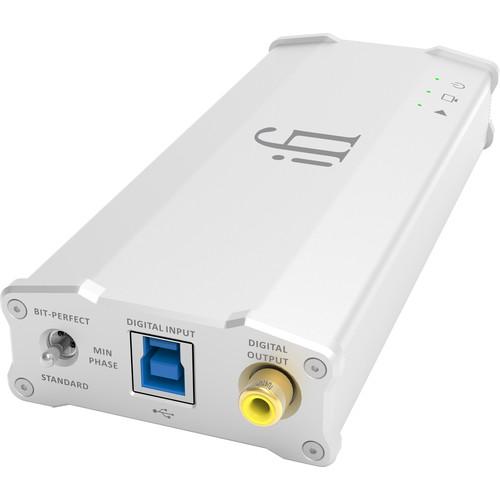

User Manual for iFi AUDIO micro-iDAC2 - DAC Headphone Amp for High-Resolution Audio Click to enlarge the picture
Contents of the user manual for the iFi AUDIO micro-iDAC2 - DAC Headphone
- Product category: Headphone Amplifiers iFi AUDIO
- Brand: iFi AUDIO
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for iFi AUDIO Headphone Amplifiers
 |
User manual for the iFi AUDIO micro-iDAC2 - DAC Headphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any iFi AUDIO product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official iFi AUDIO user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a iFi AUDIO product will considerably shorten its lifespan!
|
Product description Building upon the success of the nano-iDSD and micro-iDSD, the iFi Audio micro-iDAC2 is a state-of-the-art DAC/headphone amplifier for use at home on your desktop, but is small enough for portable applications. The DAC utilizes a single Burr-Brown converter, which utilizes three filters for True Native playback, allowing you to hear your audio in its original format and resolution. The DirectDrive circuit is sonically transparent without the need for output capacitors. This means no output coupling, which provides the most direct signal path to retain the essence of the music.

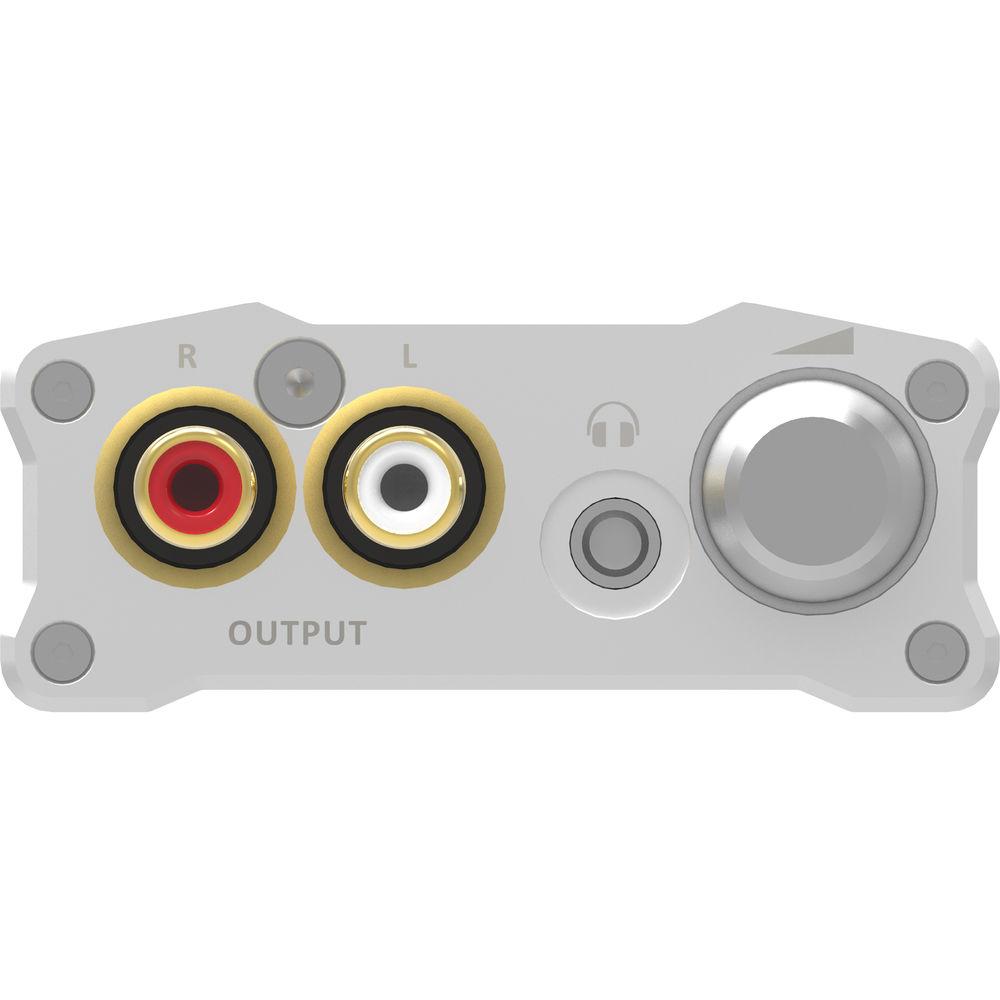

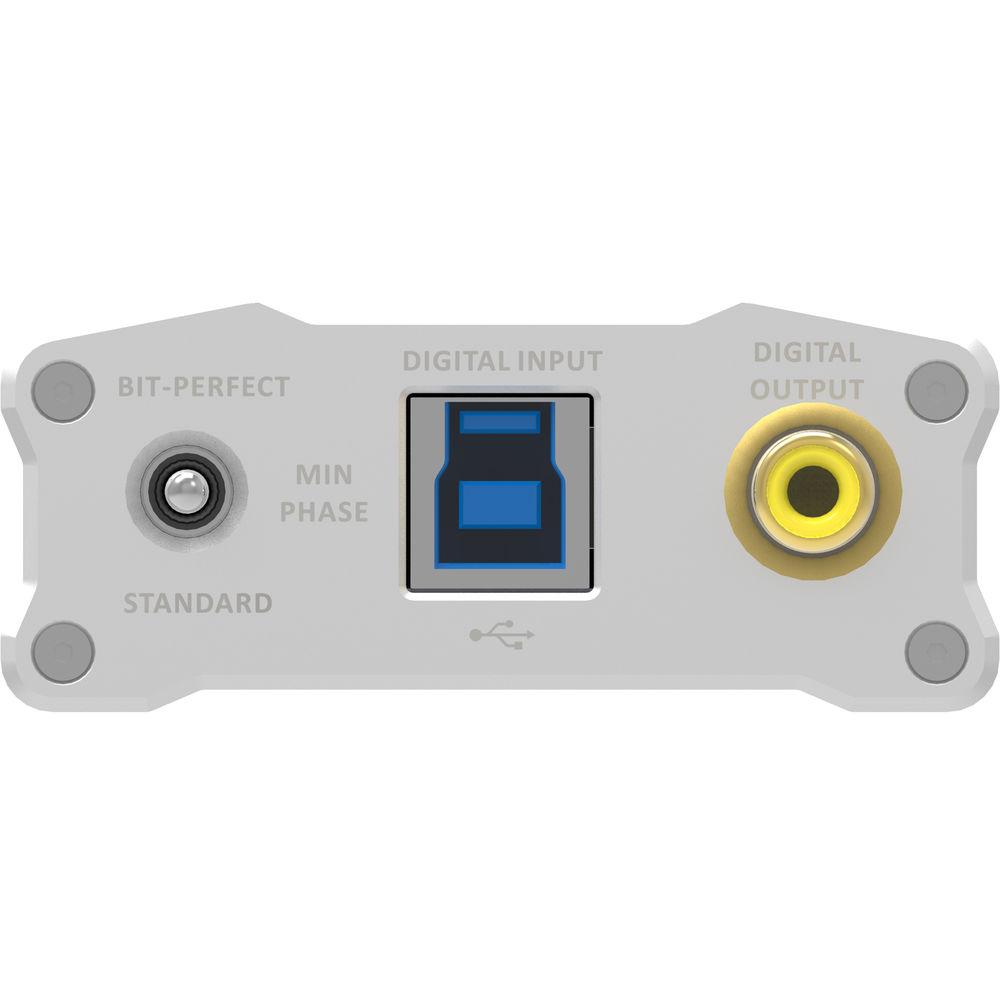

The DAC features a USB 3.0 input and includes a digital S/PDIF coaxial output, allowing for a digital format conversion. The iFi iDAC2 works with a variety of formats and sampling rates including PCM up to 384 kHz, DSD up to 12.4 MHz, and DXD up to 384 kHz. The unit is USB bus powered allowing it to be powered by your computer. The metal enclosure offers two RCA outputs, an 1/8" headphone output, which are both controlled by an analog volume control. - Burr-Brown Ture Native
-
- The Burr-Brown chipset is an integral part of the iDAC2
- Offers True Native playback on DSD and PCM, which keeps the integrity of the file format unchanged all the way through
- From beginning to end, DSD stays DSD and PCM stays PCM, allowing you to hear it as the artist intended
- Quad-DSD256 and PCM384 kHz
-
- DAC2 can handle all formats, from 16-bit/44 kHz through to Quad-Speed DSD256
- This evokes a sonic ‘rightness’ about listening to music on the iDAC2 as there is no format conversion or re-sampling
- Class-A TubeState
-
- AMR/iFi’s roots lie in single-ended valve amplification in a Class-A design
- The iDAC2’s analog stage has two special audiophile grade electrolytic capacitors (Elna Japan Silmic II)
- The analog stage also uses a discrete, Class-A buffer that combines an N-Channel J-Fet and a PNP bi-polar transistor that allows this buffer to handle loads of even 600 Ohms
- USB SPDIF
-
- Drawing on the popularity of the nano iDSD and the micro iDSD, the iDAC2 also features an SPDIF output which means it is able to receive a USB signal and then convert it and output a digital SPDIF signal to another device such as Sonos streamer or an A/V amplifier (with an onboard DAC)
- As your system changes over time, the iDAC2 will simply follow suit
- High-Quality Components
-
- AMR/iFi prides itself on the very best component quality: from Japan Elna Silmic II, TDK C0G capacitors to Vishay MELF resistors, the iDAC2 has them all.
- Take the DAC’s power supply including the latest "Super Regulator", a rather unique shunt noise filter which cleans the USB Power for the DAC
- The iDAC2 benefits from trickle-down technology from the Pro range, where high-grade Panasonic Japanese-made film capacitor for surface mounting. This combined with a smaller value C0G capacitor provides the cleanest reference pin voltage yet

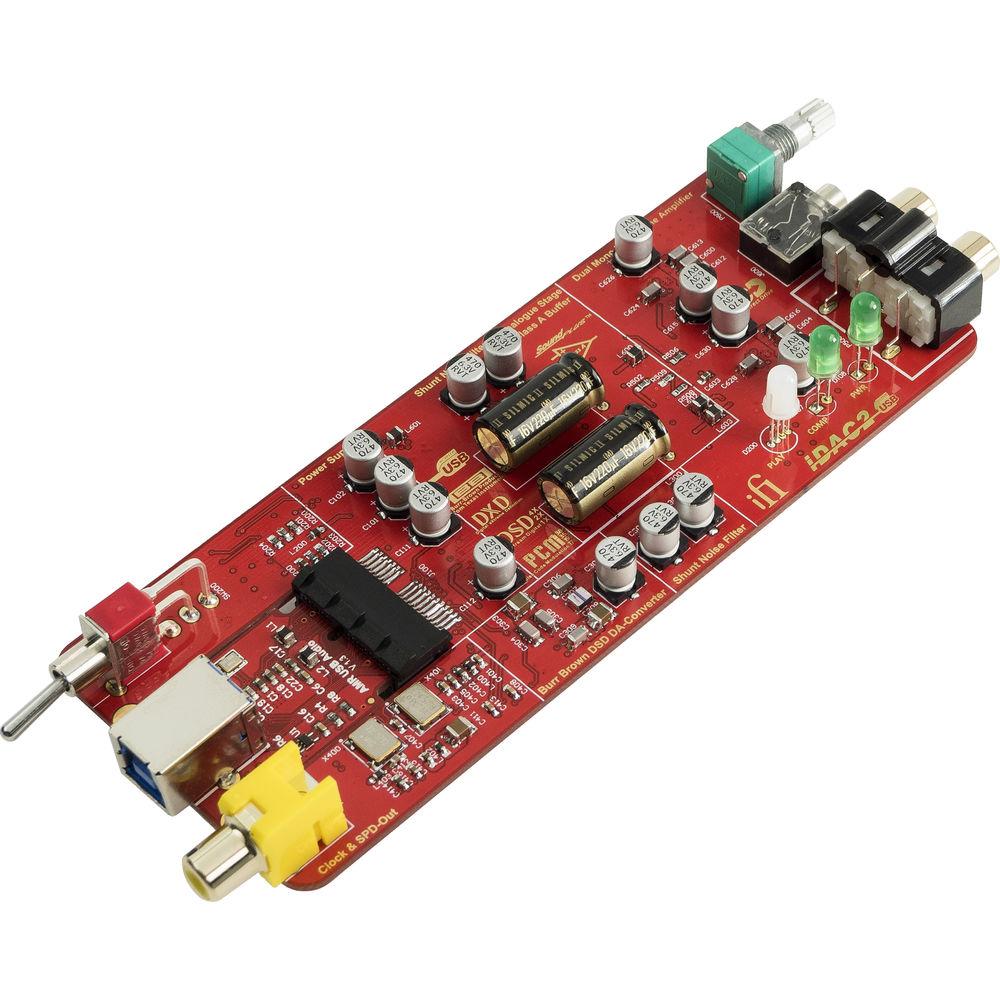

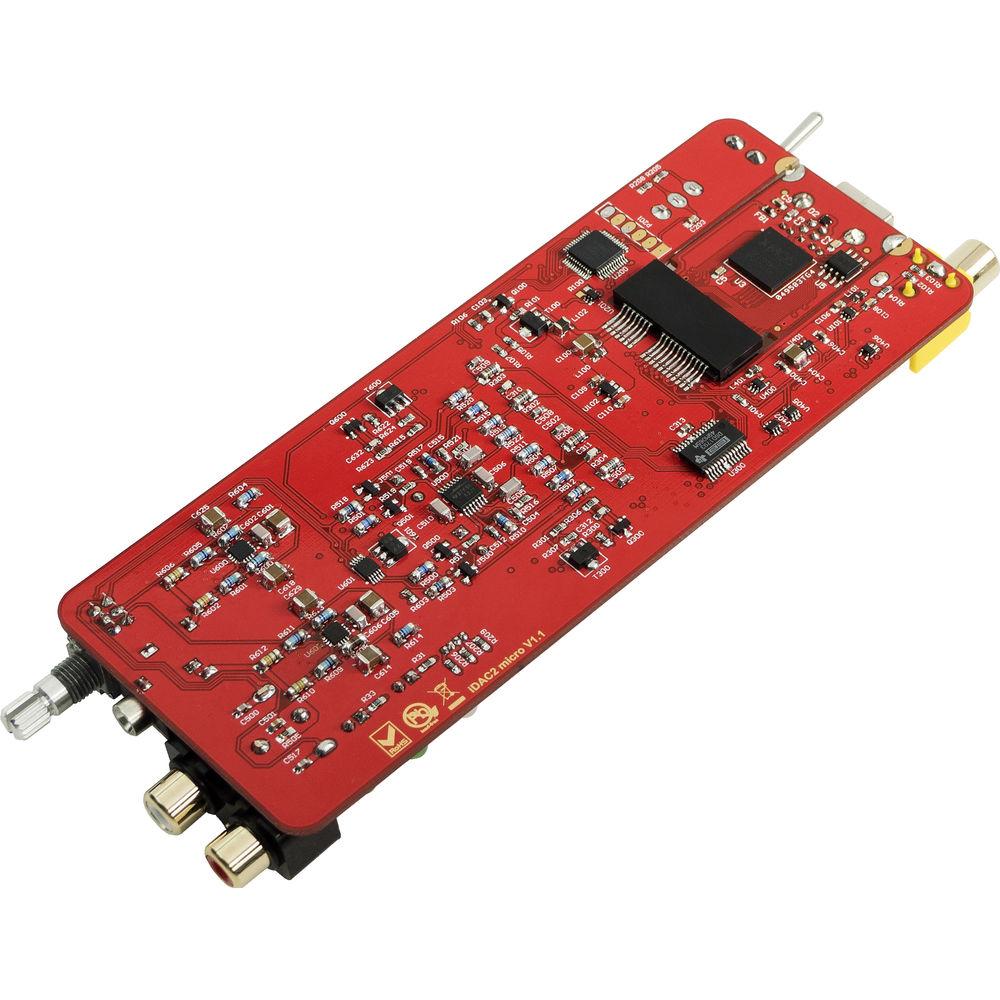

- Behind its diminutive size beats the heart of digital and analog circuitry that is of an unrivalled design and execution
In the Box iFi AUDIO micro-iDAC2 - DAC/Headphone Amp for High-Resolution Audio Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the iFi AUDIO micro-iDAC2 - DAC Headphone Amp for High-Resolution Audio in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersiFi AUDIO micro-iDAC2 Specs | Input | USB 3.0 (USB 2.0 compatible) | | Output | 1 x SPDIF RCA (only PCM up to 192 kHz)
2 x RCA
1 x 1/8" / 3.5 mm headphone | | Formats | PCM: 44.1/48/88.2/96/176.4/192/384 kHz
DSD: 2.8/3.1/5.6/6.2/11.2/12.4 MHz
DXD: 353/384 kHz | | DAC | Bit-perfect DSD and DXD DAC by Burr Brown (1-DAC chip; 2-channel; 4-signals) | | Filters | PCM: Bit-perfect/minimum phase/standard,digital filters selectable
DSD: Extreme/extended/standard, analog filters selectable
DXD: Bit-perfect processing, fixed analog filter | | Output | Line Output: 2.1 V (±0.05 V) fixed
Headphone Output:
>350 mW (2.40 V) into 16 Ohms (<10% THD+N)
>34 mW (3.20 V) into 300 Ohms (<0.1% THD+N) | | Output Impedances | Line: <39 ohms
Headphones: <2 Ohms | | Signal-to-Noise Ratio (SNR) | Line: >114 dB(A) @ 0 dBFS
Headphones: >114 dBA (3.2 V into 16 Ohm, 0 dBFS) | | THD + N | Line:
<0.0025% @ 0 dBFS (100 kOhms load)
<0.025% @ 0 dBFS (600 Ohms load)
Headphones: <0.0025% (1 V into 16 Ohms, 0 dBFS)
| | Power Consumption | <1.5 W | | Dimensions (L x W x H) | 6.2 x 2.7 x 1.1" / 158.0 x 68.0 x 28.0 mm | | Weight | 9.3 oz / 265.0 g | | | | Package Weight | 1.3 lb | | Box Dimensions (LxWxH) | 8.1 x 3.6 x 3.3" |
