User Manual for iFi AUDIO micro iTube2 Tube Pre-Amplifier, Buffer & Power Amp Click to enlarge the picture
Contents of the user manual for the iFi AUDIO micro iTube2 Tube Pre-Amplifier,
- Product category: Headphone Amplifiers iFi AUDIO
- Brand: iFi AUDIO
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for iFi AUDIO Headphone Amplifiers
 |
User manual for the iFi AUDIO micro iTube2 Tube Pre-Amplifier, contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any iFi AUDIO product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official iFi AUDIO user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a iFi AUDIO product will considerably shorten its lifespan!
|
Product description Improving upon the original in terms of components and on-board features, the iFi Audio micro iTube 2 is designed to bring the sound and feel of tubes to your listening environment, providing a tube preamp, a tubed output stage, a tube buffer, and impedance matching. It accepts RCA inputs and outputs, and is designed to be inserted at various points along the chain. For instance, you can use the device as your sole preamp, or in conjunction with a solid-state preamp to inject the tube sound on the output stage. To accomplish this, the iTube 2 provides switchable settings: SET gives you the sound of single-ended triode power amplifier, while push-pull gives you the sonics of a push-pull power amplifier. Alternately, you can choose to effect the sound of a classic, low-distortion tube preamplifier.
A large volume knob will allow you to attenuate the iTube 2 when it is being utilized as a preamp—though other features built into the unit recommend it for listening situations, such as built-in 3D Holographic+ technology for speakers to improve the sound-stage of your system, and XBass+ settings to simulate an accurate bass response to speakers which don't inherently reproduce low-end frequencies all that well. On the unit's underside, you'll find dip switches which allow you instantiate and turn off various settings. While the unit is compatible with the 12V port often provided by cars and other recreational vehicles, iFi Audio ships the unit out with a quiet 15V power supply to further enhance your listening experience. - New Components and Circuitry
- The micro iTube2 has been outfitted with parts and circuitry heretofore reserved for iFi Audio's flagship Pro series. Of the original components, only the GE5670 tube remains.

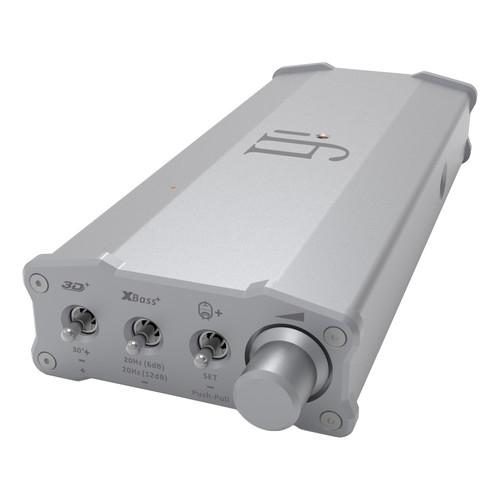

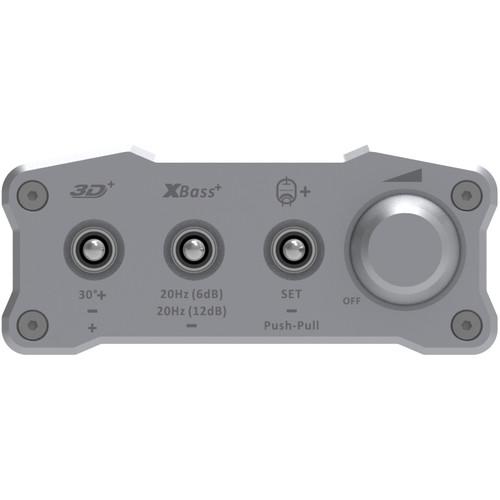

- SET, Push-Pull, or Classic Tube Sound
- The iTube2 allows you to choose among three different sonic signatures: A Single-Ended Triode power amplifier, a push-pull tube power amplifier, and a classic tube amplifier. Select the setting that works for you.
- XBass+ Matrix for Speakers
- The micro iTube2 offers XBass+ for speakers, which is intended to enhance your speaker-listening experience. Essentially, this technology allows you to adjust the level of bass control to best suit the kind of speakers you have. The unit has separate settings to better replicate bass in speakers that stop at 40 Hz or 80 Hz. If you're working with a good subwoofer at home, you can switch XBass off altogether.
- 3D Holographic+ Matrix for Speakers
- This built-in technology is designed to mitigate spatial distortions often prevalent in recorded material and exacerbated by inopportune speaker placement. It is intended to increase the width of your system's sound-stage beyond the actual speakers, offering two settings—one to redress narrow placement of speakers, and one to recreate what iFi Audio considers to be the optimal width of your sound-stage. Alternatively, you can switch it out.

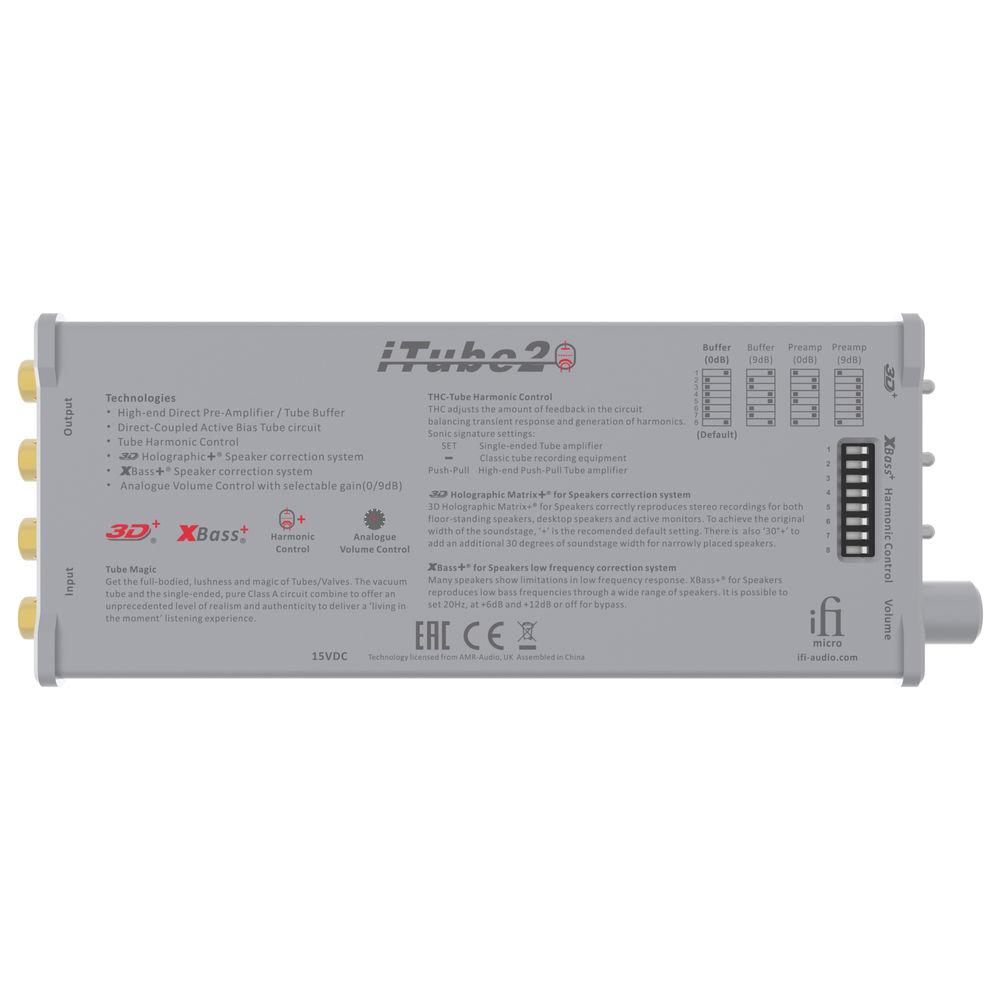

- Underside DIP Switches
- Flip the unit over (carefully, of course), and you'll see DIP switches which will engage/disengage the following options:
- Pure tube buffer
- Pure tube buffer with 9 dB gain
- Preamp with analog volume control
- Preamp with analog volume control and 9 dB gain
Please note: Only change the DIP switches when the unit is powered off, or else you might harm the device. - New PCB, Direct-Coupled for Sonic Purity
- There is no output-coupling capacity in the unit's PCB, and, fashioned in such a way, the device is set up to procure a most pristine signal path. Inherently low-distortion capacitors aid in achieving sonic purity as well.
- Quiet Power Supply
- An included iPower DC power supply provides 15V and runs quite quietly, utilizing military radar technology and a 12-Element output array to mitigate noise issues.
In the Box iFi AUDIO micro iTube2 Tube Pre-Amplifier, Buffer & Power Amp iPower 15V Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the iFi AUDIO micro iTube2 Tube Pre-Amplifier, Buffer & Power Amp in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

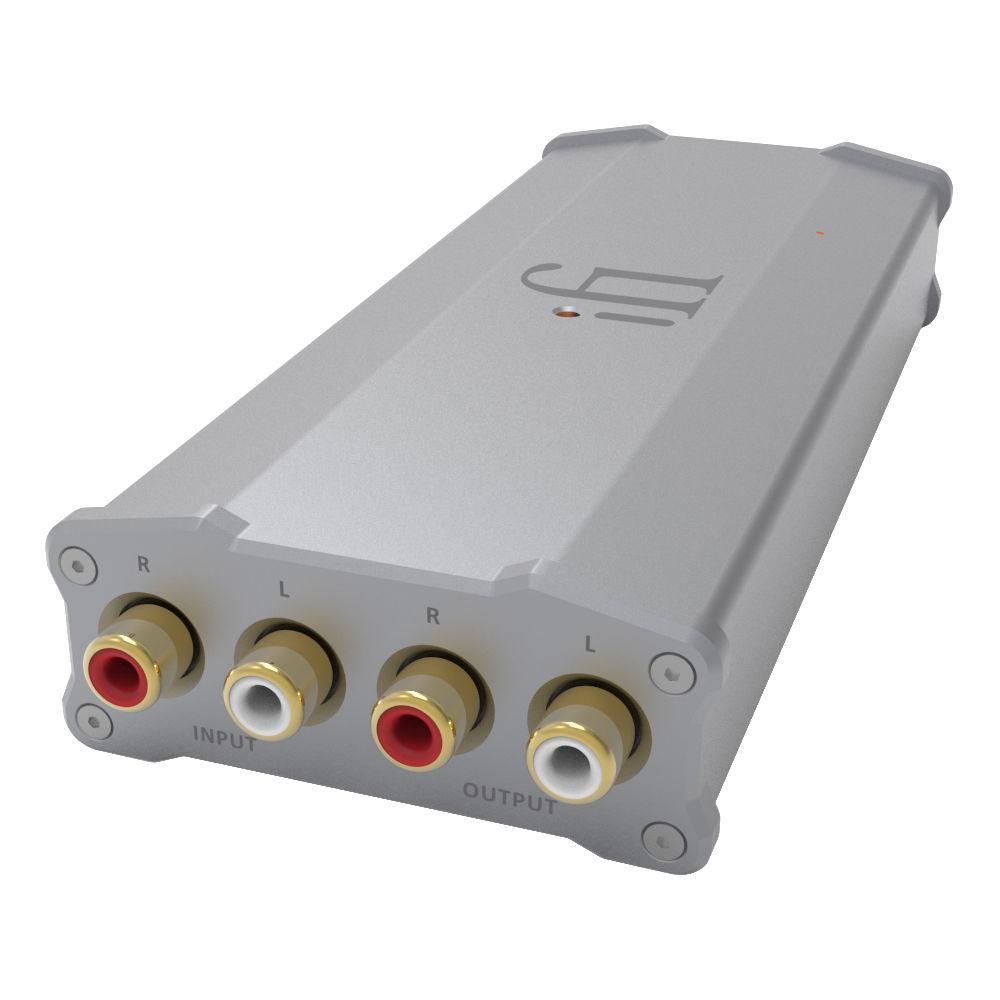

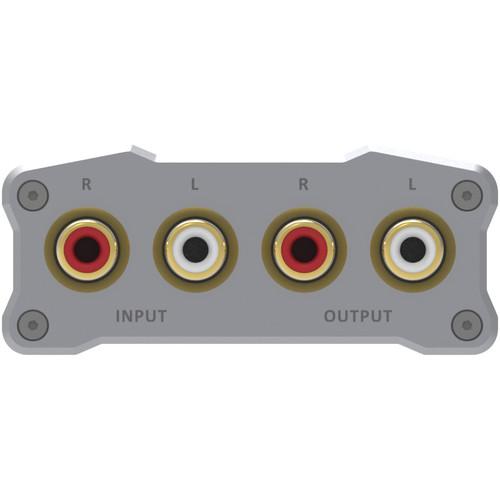

Technical parametersiFi AUDIO 303013 Specs | Audio I/O | 2 x RCA inputs
2 x RCA outputs | | Tube | 1 x NOS GE 5670 | | Maximum Output | > 7.8 V (> +20 dBu) | | SNR | 119 dB (A-weighted), re. 2 V, buffer, 0 dB gain | | DNR | 31 dB (A-weighted), re. +20 dBu, buffer, 0 dB Gain | | THD+N | <0.009% (re. 2 V, buffer, 0 dB gain, A-weighted) | | Frequency Response | < 10 Hz to > 200 kHz (-1 dB)
20 Hz to 20 kHz (±0.003 dB) | | Input Impedance | Preamp: 100 kOhms | | Output Impedance | Stage: < 1 Ohm
Corrected: < 150 Ohms | | Input Voltage | 100-240 VAC, 50 / 60 Hz | | Power Consumption | Idle: < 4 W
Max: 10 W | | Dimensions (L x W x H) | 6.9 x 2.6 x 1.1" / 175.0 x 67.0 x 28.0 mm | | Weight | 9.8 oz / 278.0 g | | | | Package Weight | 1.65 lb | | Box Dimensions (LxWxH) | 8.1 x 3.6 x 3.4" |
