User Manual for iFi AUDIO nano iDSD LE Portable DAC Headphone Amplifier for PCM, DSD & DXD Click to enlarge the picture
Contents of the user manual for the iFi AUDIO nano iDSD LE Portable
- Product category: DACs iFi AUDIO
- Brand: iFi AUDIO
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for iFi AUDIO DACs
 |
User manual for the iFi AUDIO nano iDSD LE Portable contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any iFi AUDIO product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official iFi AUDIO user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a iFi AUDIO product will considerably shorten its lifespan!
|

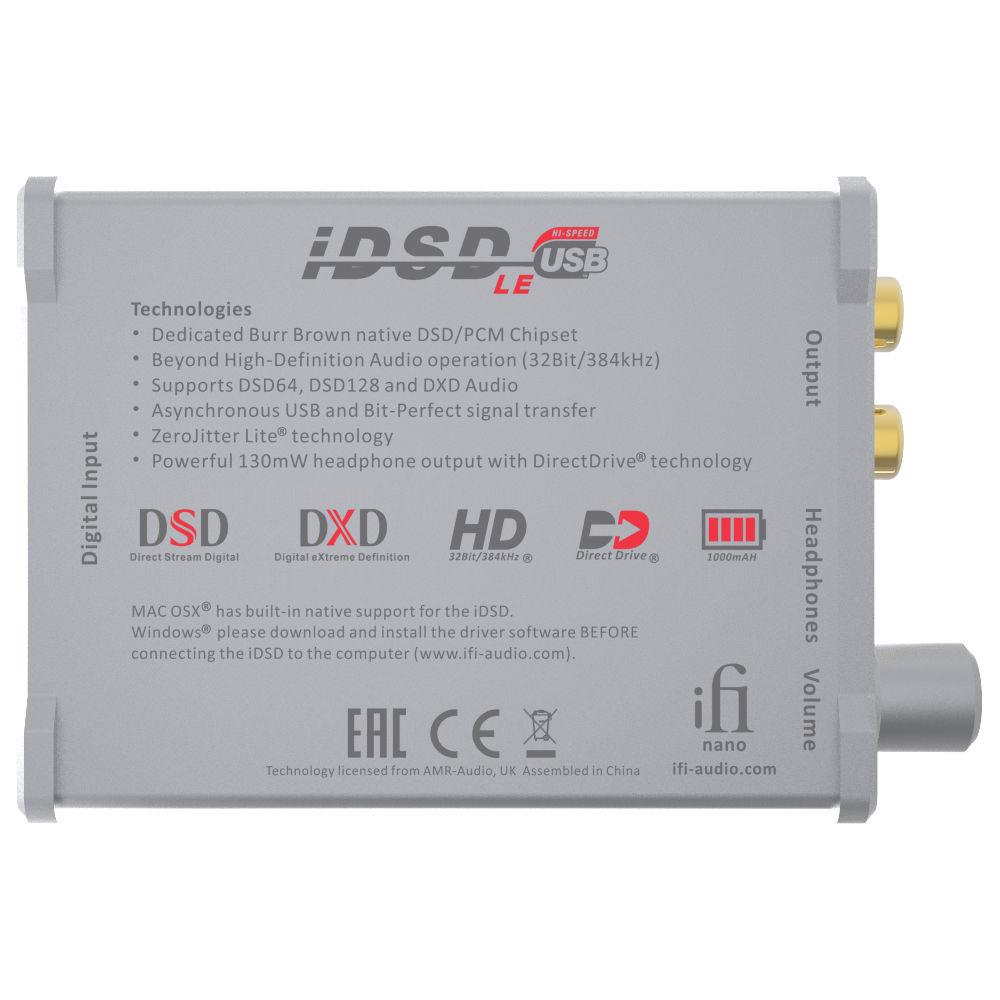

Product description The nano iDSD LE from iFi AUDIO is a portable DAC and headphone amplifier designed to facilitate high-fidelity audio playback for on-the-go devices, working well with both DSD audio players and smartphones alike. It supports PCM playback from 44.1 to 384 kHz, at resolutions of 16- to 32-bit. For high-resolution formats, the unit plays both DSD and DXD files at extremely high sample rates without file conversion, ensuring your playback is heard exactly as it was intended to be heard. A Burr-Brown DAC chipset is employed, as are AMR military-grade temperature-compensated clocks to mitigate and eliminate digital noise and jitter.
On the analog side, a smooth and precise analog volume knob gives you detailed control over the output level, and a DirectDrive signal path ensures sonic transparency. The built-in LiPo battery lasts for eight hours at a clip. - High-Resolution Capability
- The nano iDSD LE is able to play True Native, meaning there is no conversion; PCM stays PCM and DSD stays DSD. This means no signal loss or sound-quality difference usually attributable to file conversion.
- High-Resolution Playback
- The nano iDSD LE supports Hi-Resolution formats up to 384 kHz and DSD 128.
- Burr-Brown DAC Chip
- This unit features a Burr-Brown native DSD/PCM chipset.
- Precise Clock
- The clocks used in the iDSD LE have been supplied by AMR, and are military-grade temperature-compensated master-clock modules. They avoid the creation of unwanted beat frequencies. The crystals in these clocks reduce overall digital noise and eliminate jitter. The iDSD LE utilizes more than an Asynchronous USB transfer for its clocking; to truly mitigate jitter, it also employs AMR's Zero Jitter Lite technology from the AMR DP-777, which sports Asynchronous as the starting, not finishing, point.
- Built-In Battery
- A built-in LiPo battery ensures 8 hours of music on the go. To connect a smartphone/tablet, just use the appropriate cable for iOS and Android alike to extract the digital signal and let the iDSD LE do the rest. Even at home, battery-power will ensure a higher sound quality than normal USB power.
- Analog Volume Control
- The iDSD LE features a built-in precision analogue volume control. Its smooth action allows for smooth, contoured volume control.
- DirectDrive Output Signal Path
- DirectDrive technology allows for no output-coupling capacitors, providing sonic transparency.
In the Box iFi AUDIO nano iDSD LE Portable DAC/Headphone Amplifier for PCM, DSD & DXD Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the iFi AUDIO nano iDSD LE Portable DAC Headphone Amplifier for PCM, DSD & DXD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

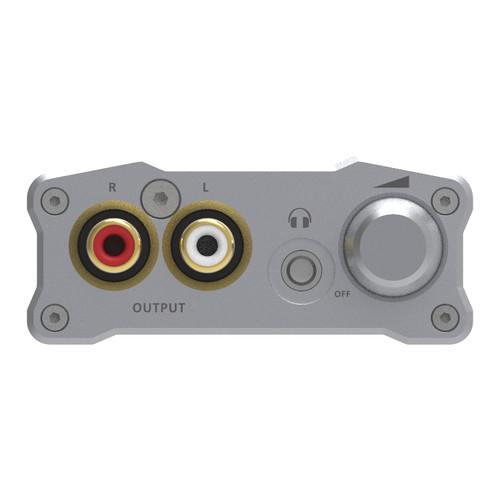

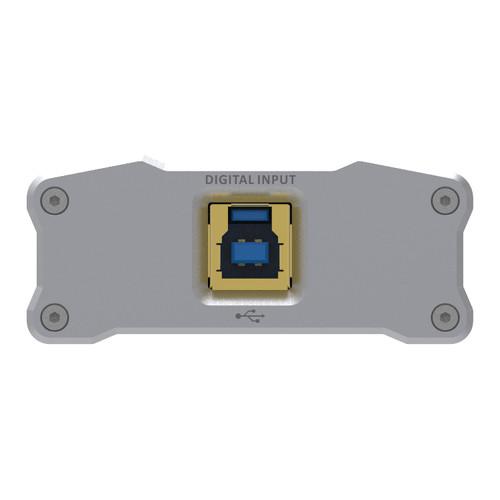

Technical parametersiFi AUDIO Nano iDSD LE Specs | Connections | 2 x RCA line output jacks
1 x stereo 3.5 mm headphone jack
1 x USB 3.0 (2.0 compatible) input | | Supported Formats | PCM: 44.1 to 384 kHz / 16- to 32-bit
DSD: 2.8, 3.1, 5.6, and 6.2 MHz / 1-bit
DXD: 352.8 and 384kHz / 24-bit
High-Speed Asynchronous USB 2.0: 384 kHz / 32-bit | | Battery | Lithium-ion polymer (LiPo), 1000 mAh | | Power | 1.5 W, max | | Dimensions (L x W x H) | 4.2 x 2.6 x 1.1" / 106.0 x 67.0 x 28.0 mm | | Weight | 5.9 oz / 167.0 g | | | | Package Weight | 0.95 lb | | Box Dimensions (LxWxH) | 8.1 x 3.6 x 1.9" |
