User Manual for iFi AUDIO Pro iDSD Digital to Analog Converter Player with WiFi Click to enlarge the picture
Contents of the user manual for the iFi AUDIO Pro iDSD Digital to
- Product category: DACs iFi AUDIO
- Brand: iFi AUDIO
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for iFi AUDIO DACs
 |
User manual for the iFi AUDIO Pro iDSD Digital to contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any iFi AUDIO product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official iFi AUDIO user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a iFi AUDIO product will considerably shorten its lifespan!
|

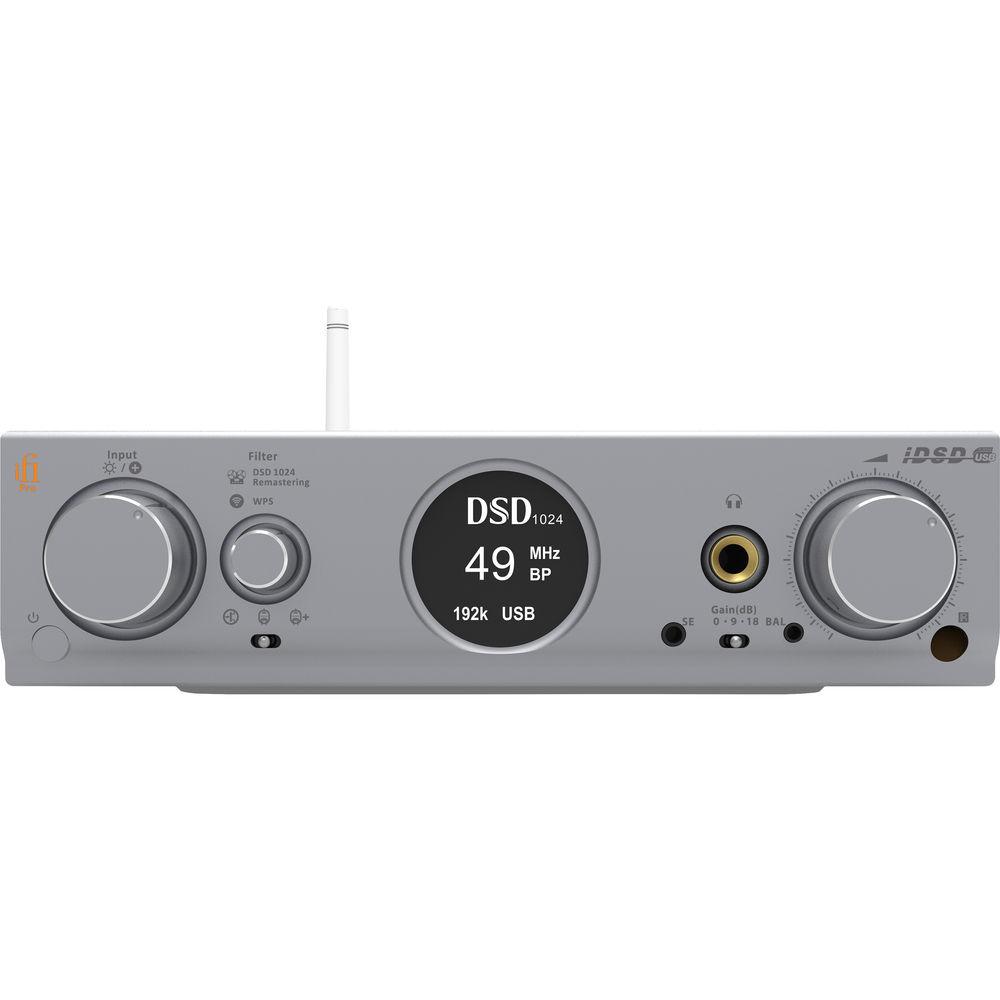

Product description The Pro iDSD Digital to Analog Converter Player from iFi AUDIO features a quad-core Burr Brown multibit/DSD hybrid DAC, supporting DSD1024 and PCM 768 kHz. It can be used as a wireless hi-resolution network player as well as a digital to analog converter in a high-end home system. With a variety of XLR balanced inputs and outputs, the player provides an AES/EBU XLR interface to connect to CD transport or DAW Digital Audio Workstations. This system includes Bit-Perfect, Bit-Perfect+, Gibbs Transient Optimised, Apodising, and Transient Aligned filters. The Pro iDSD features a Wi-Fi antenna to be used with the MUZO Player app. It plays audio files by connecting the Pro iDSD to the local Wi-Fi system to stream Spotify, TIDAL, Napster, QQ Music, and more. - Studio grade DSD1024 remastering (Crysopeia FPGA Digital Engine)
- Wireless DLNA, Airplay, and Ethernet Hi-Res playback
- User-selectable analog stage: tube or solid-state
- Master Quality Authenticated (MQA) playback
- Global Master Timing femto-grade clock system with external clock input options
- Fully discrete passive LC analog filtering
- Zero-jitter memory buffer and galvanic isolation for all inputs
- Discrete headphone/line amplifier
- Galvanically isolated ultra-quiet power supply
In the Box iFi AUDIO Pro iDSD Digital to Analog Converter Player with WiFi Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the iFi AUDIO Pro iDSD Digital to Analog Converter Player with WiFi in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersiFi AUDIO 301001 Specs | Sample Rates | PCM up to 768 kHz
DSD up to 49.152 MHz (DSD1024)

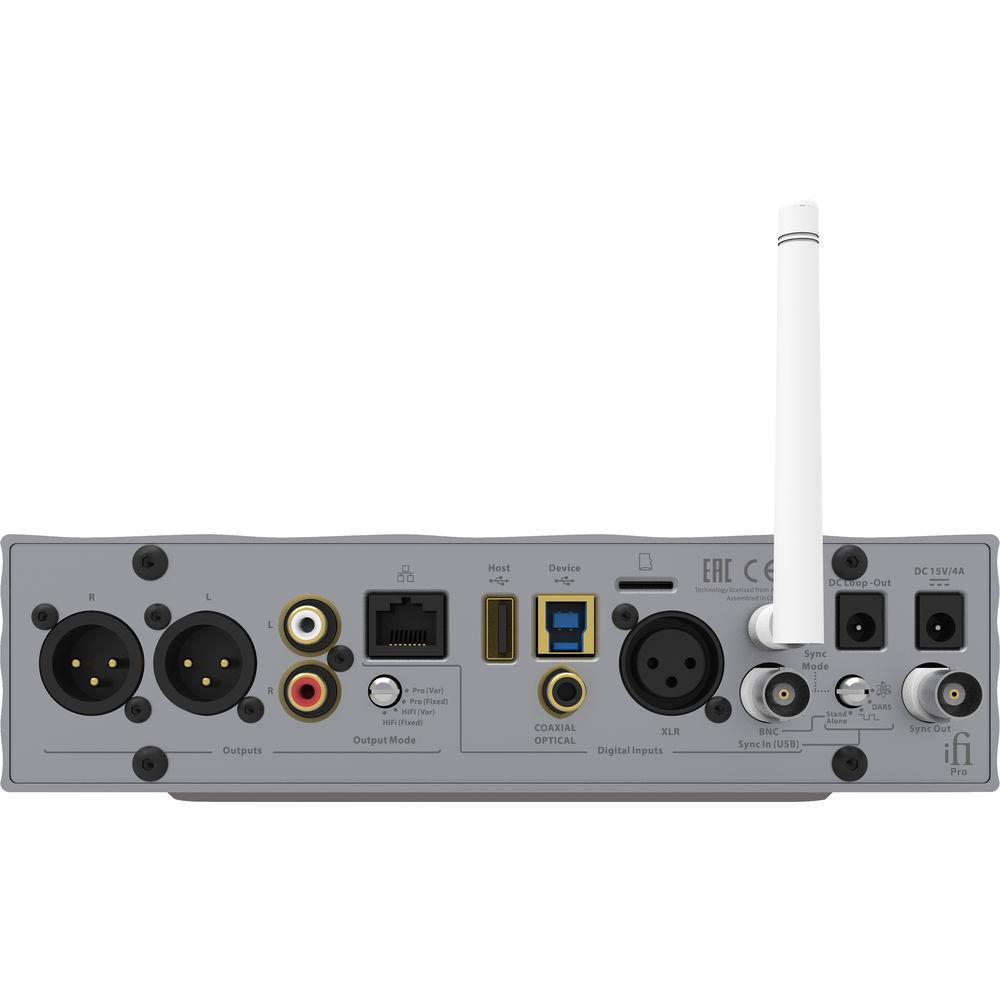

DXD and double-speed DXD (2xDXD) | | Inputs | 1 x RJ45 Ethernet
1 x USB Type-A host
1 x DAC USB Type-B
1 x S/PDIF (coaxial/optical combo)
1 x AES/EBU XLR
1 x BNC digital
1 x power | | Outputs | 1 x L/R XLR, balanced
1 x L/R RCA single ended
1 x BNC clock sync
1 x DC loop-thru
1 x 1/4" phone jack (front)
1 x 3.5 mm headphones (front)
1 x 2.5 mm headphone, balanced (front) | | Volume Control | 6-gang balanced Alps potentiometer, motorized with IR remote control | | Filters | Bitperfect: 44.1 to 192 kHz, always used for 352.8 to 768 kHz
Bitperfect+: 44.1 to 96 kHz
Gibbs Transient Optimised: 44.1 to 384 kHz
Apodising: 44.1 to 384 kHz
Transient Aligned: 44.1 to 384 kHz
DSD Filter: Fixed third-order analogue filter at 80 kHz with correction for DSD -6 dB gain | | Gain | User-Selectable: 0, 9, and 18 dB | | Dynamic Range | 119 dBA (solid-state, PCM, -60 dBFS) | | Output Power | >4000 mW / 1 > 1500 mW | | Output Voltage | >11.2 V / >5.6 V | | Input Voltage | Pro iDSD: 9 to 18 VDC, 6.7 to 3.35 A
iPower+: 85 to 265 VAC, 50/60 Hz | | Power Consumption | Maximum: 50 W
Idle: <22 W | | Dimensions | 8.4 x 8.7 x 2.5" / 21.3 x 22.0 x 6.3 cm | | Weight | 4.37 lb / 1.98 kg |
