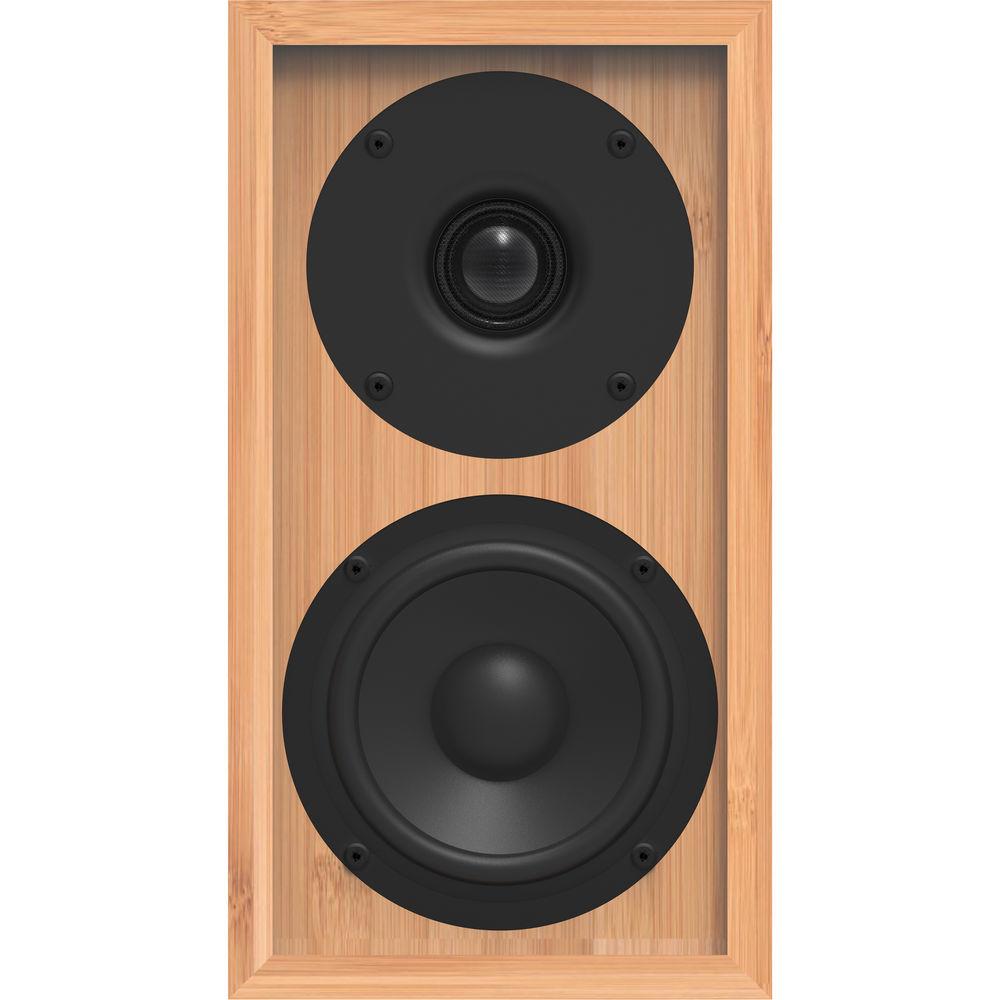

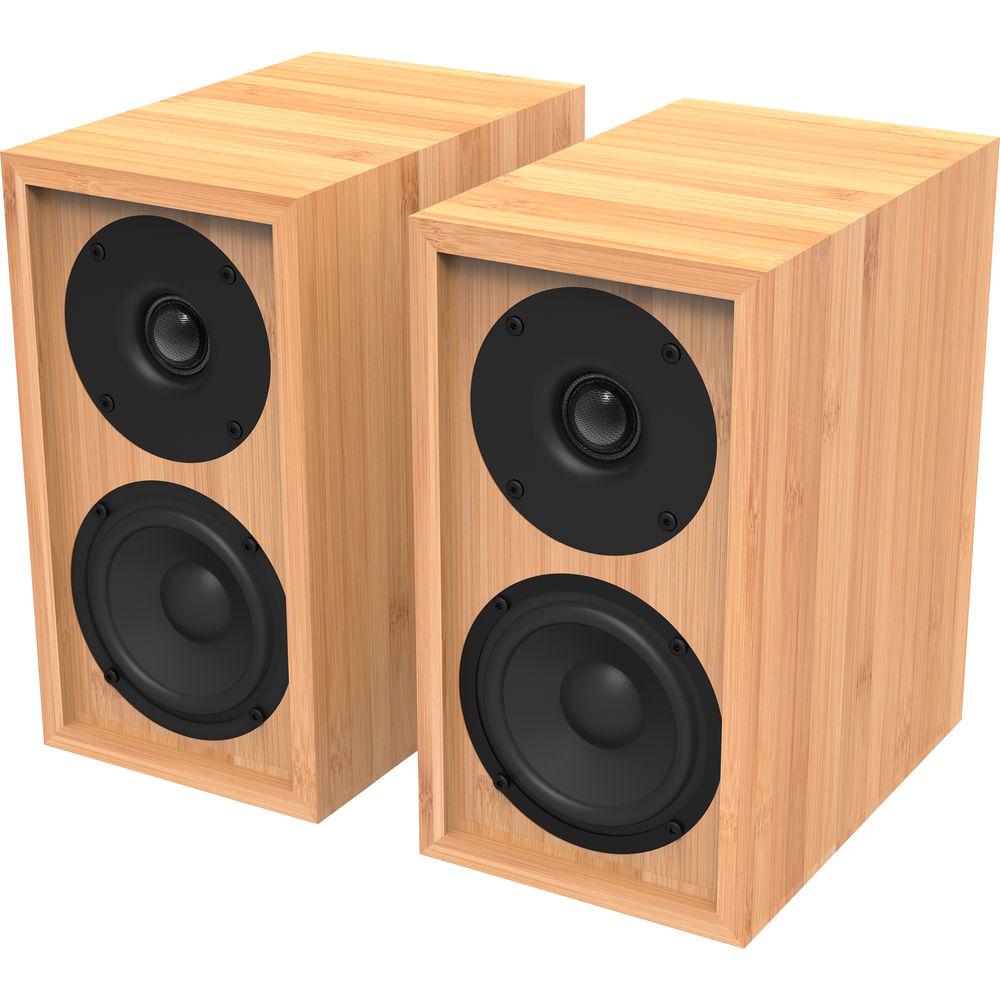

Product description The Retro LS3.5 Speakers from iFi AUDIO features a 1.1" horn-loaded tweeter, which uses a neodymium magnet, and a 4.5" paper cone woofer. The small neodymium magnet structure shifts cavity resonances outside the audible range. Being horn-loaded, it matches with the wideband driver to create a vast sound field. The tweeter is used only at the very top end of the audible range; the whole range from 59 Hz to 8 kHz covering the fundamentals of all instruments except those with very low bass notes and all the formants is covered by the wideband driver, without any electrical or mechanical crossover.
The speaker's arrangement of the crossover for the tweeter (at approximately 10 kHz acoustic crossover) and the tweeter's waveguide, insets it for time-alignment with the wideband driver that further preserves phase/impulse response. The paper cone 4.5" wideband driver perform more like a full-range driver. The wideband driver rolls off after 8 kHz and it reaches down to 59 Hz (with correct placement). - Wideband driver is made of the coated natural paper for quick response and better efficiency
- Tweeter is made of transparent organic silk and horn-loaded to create a coherent image with the wideband driver
- Cabinet is made from natural sustainable bamboo

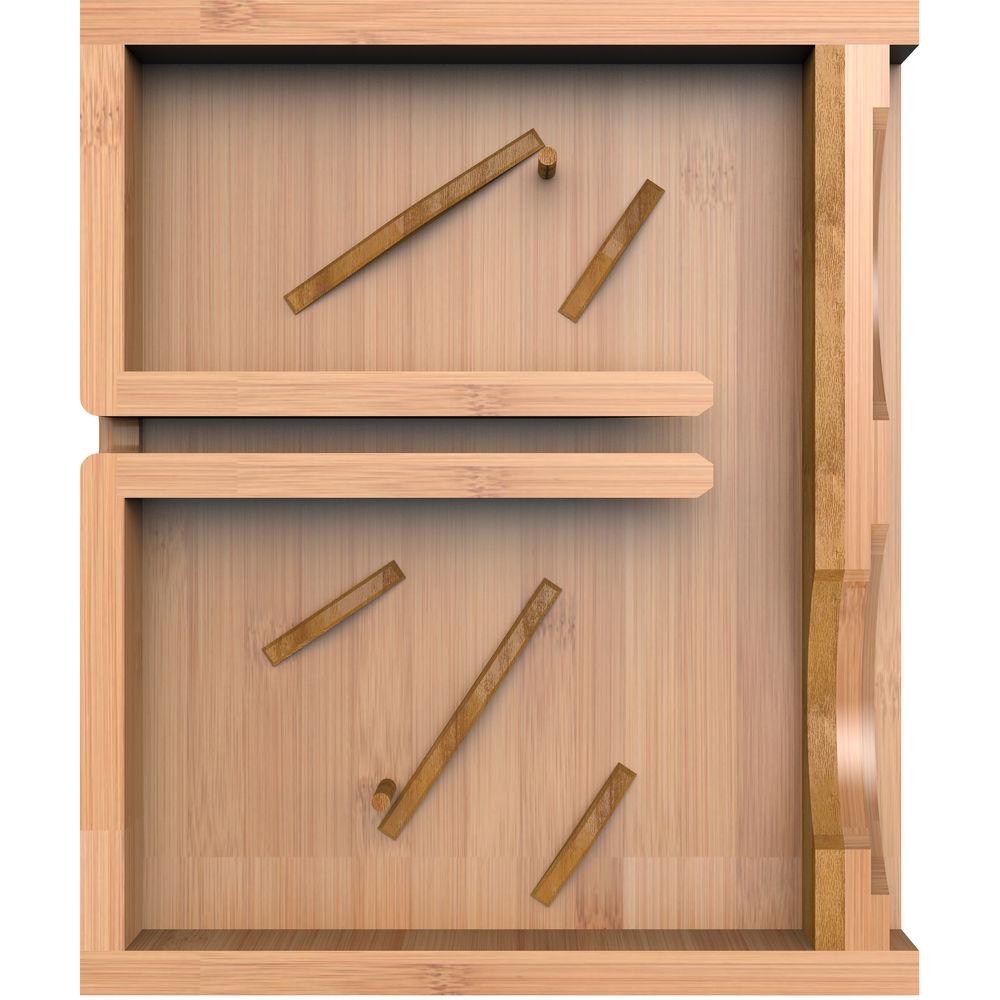

- Cabinet is an advanced multi-chamber P.G.A.H Voigt tuned enclosure with a low turbulence port to reduce port noise at high levels
- Each cabinet is tuned using tuning elements (sound bar and braces) from musical instrument manufacturing
- Time-aligned tweeter and wideband driver
- Advanced amino-plastic open cell acoustic foam for bass performance and a clean midrange
- Maximum surface contact gold-plated copper speaker terminals
In the Box iFi AUDIO Retro LS3.5 Speakers (Pair) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the iFi AUDIO Retro LS3.5 Speakers in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersiFi AUDIO Retro LS3.5 Specs | Sensitivity | 90 dB / 2.83 V / 3.3' (1 m) | | Frequency Response | 59 Hz to 20 kHz | | Drivers | 4.5" (115 mm) Paper Cone Wideband Driver
1.1" (28 mm) Silk Dome Tweeter | | Impedance | 4 Ohms | | Crossover | 10 kHz acoustic crossover
No electrical crossover on wideband driver
First order high-pass on tweeter | | Enclosure | Transmission-line port
Solid bamboo enclosure
Acoustic active tuning with minimal damping | | Dimensions | 5.7 x 10.5 x 8.9" (146 x 268 x 226 mm) | | Weight | 7.7 lb (3.5 kg) |
