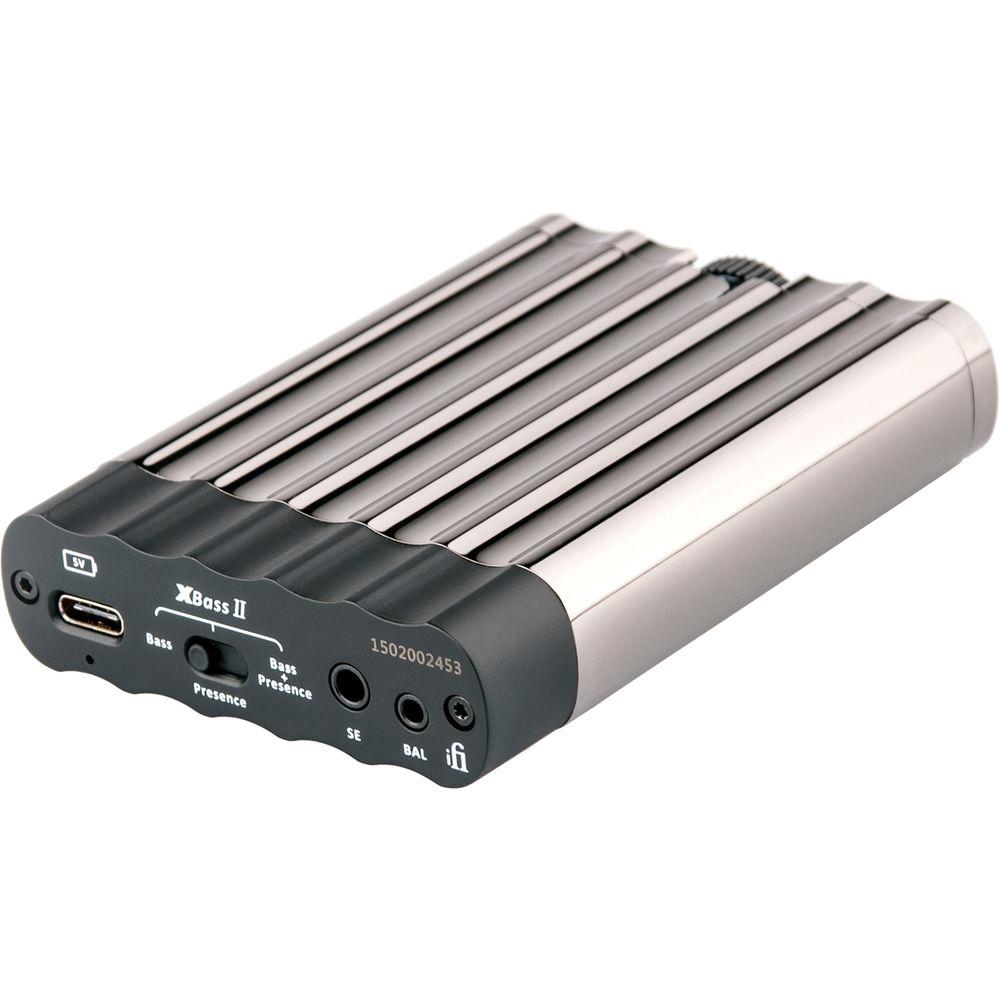

User Manual for iFi AUDIO xCAN Portable Headphone Amplifier with Bluetooth Click to enlarge the picture
Contents of the user manual for the iFi AUDIO xCAN Portable Headphone Amplifier
- Product category: Headphone Amplifiers iFi AUDIO
- Brand: iFi AUDIO
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for iFi AUDIO Headphone Amplifiers
 |
User manual for the iFi AUDIO xCAN Portable Headphone Amplifier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any iFi AUDIO product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official iFi AUDIO user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a iFi AUDIO product will considerably shorten its lifespan!
|

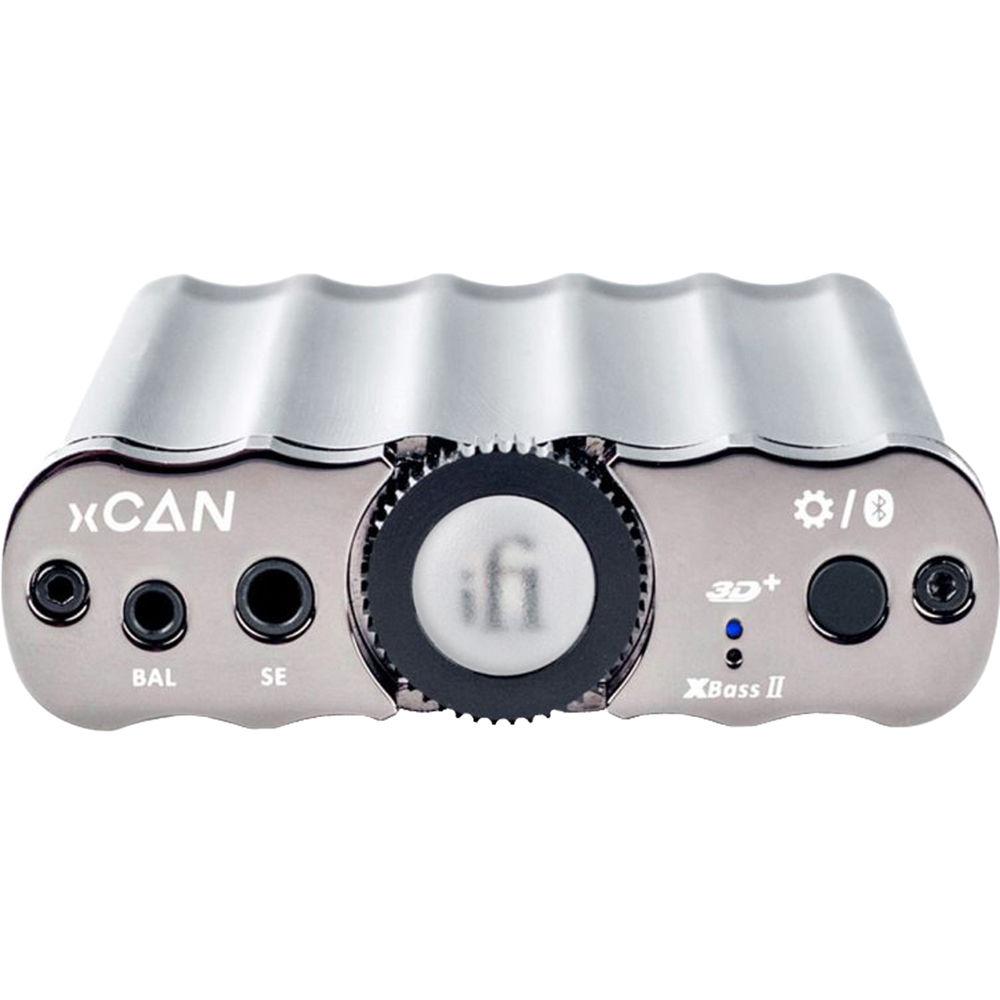

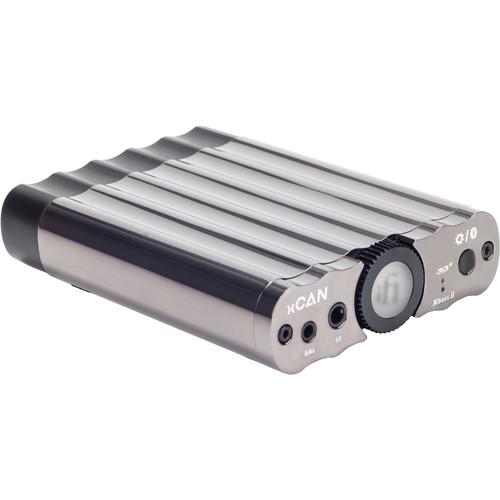

Product description The xCAN Portable Headphone Amplifier with Bluetooth from iFi AUDIO offers high-quality Bluetooth aptX and AAC reception that enables you to stream your favorite music from popular digital music sites, and listen via wired headphones with a smartphone, portable audio device, laptop, home audio system, or TV. The xCAN's dual mono amplifier outputs up to 1000mW of power per channel, suitable for most any pair of headphones. S-Balanced technology is compatible with all single-ended and balanced headphones or IEMs (in-ear monitors) through either it's 2.5mm or 3.5mm output. X-Bass II is on-board to clean up audio and reproduce a richer sound, and the 3D+ feature is designed to recreate a live stage atmosphere. With up to eight hours of battery life, you can take the xCAN everywhere you go. - Global Master Timing from AMR
- The xCAN comes with built-in Global Master Timing from AMR to nearly eliminate digital jitter.
- CD-Quality Bluetooth

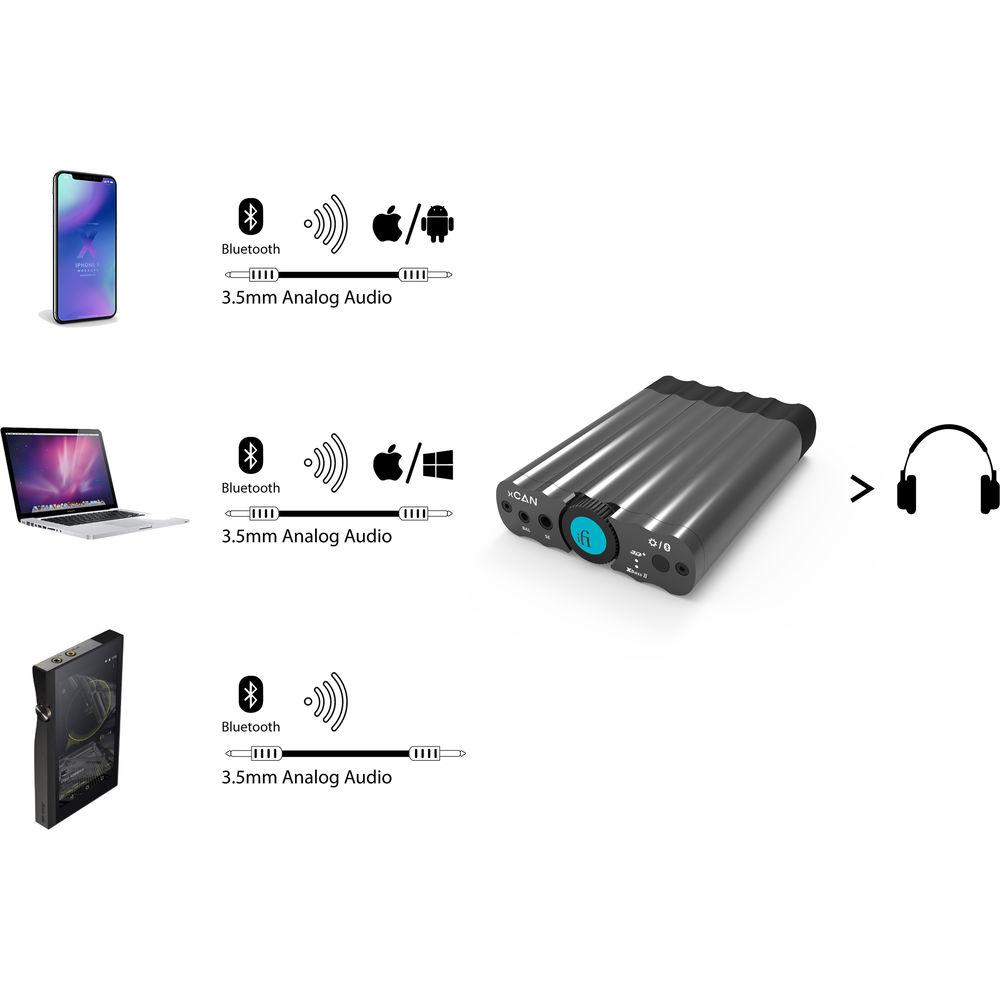

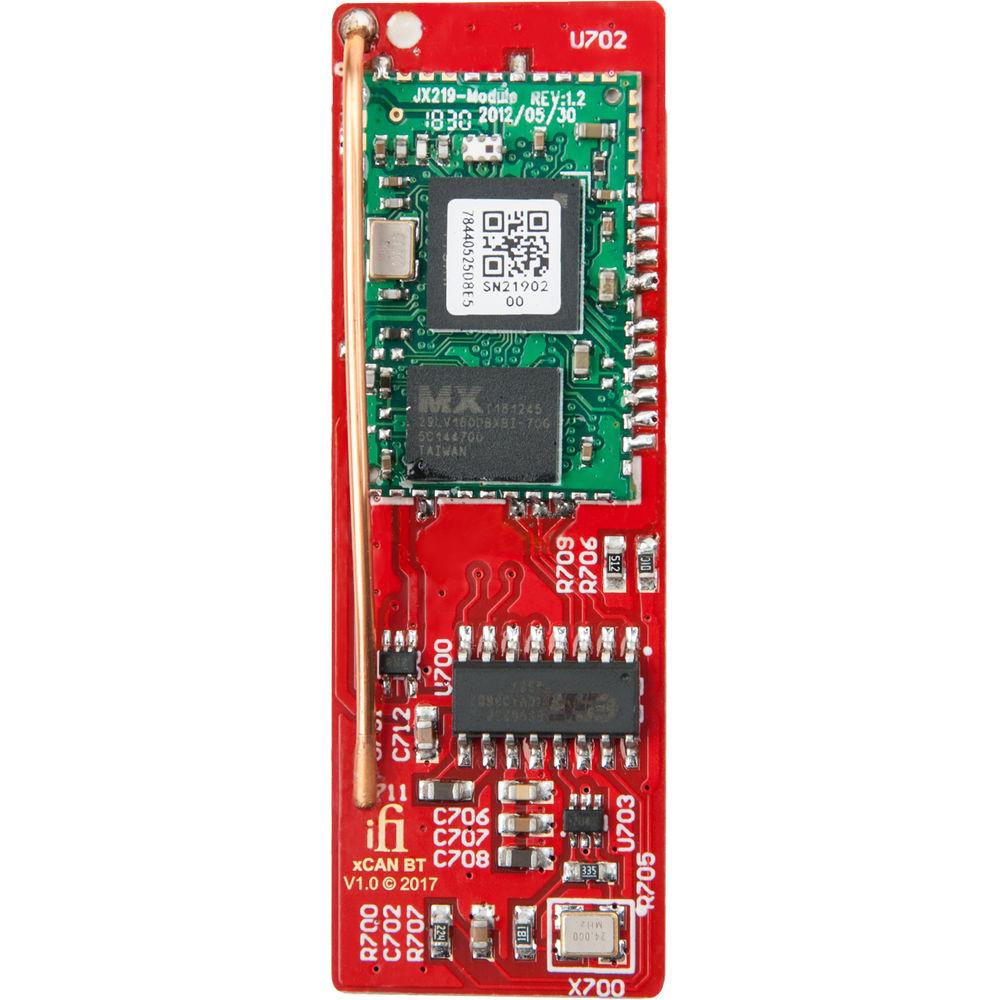

- The xCAN delivers CD-quality Bluetooth via AAC and aptX with added iFi technology. Stream from your smartphone or TV via Bluetooth to the xCAN—no need for wires. Just plug your headphones into the xCAN.
- S-Balanced Performance
- iFi S-Balanced technology delivers maximum performance from both single-ended and balanced headphones alike. The S-Balanced (single-ended compatible balanced) 3.5mm headphone output delivers the benefits of a balanced connection to single-ended headphones, including lower distortion and reduced crosstalk.
- 3D+ and XBass II
- The 3D+ Holographic dual-analog matrices create a louder, deeper soundstage that puts the artist with you in the room, not just in your headphones. And the XBass II analog bass correction system corrects headphone/speaker bass response to deliver a more natural sound to the midrange frequencies.
- Cyberdrive

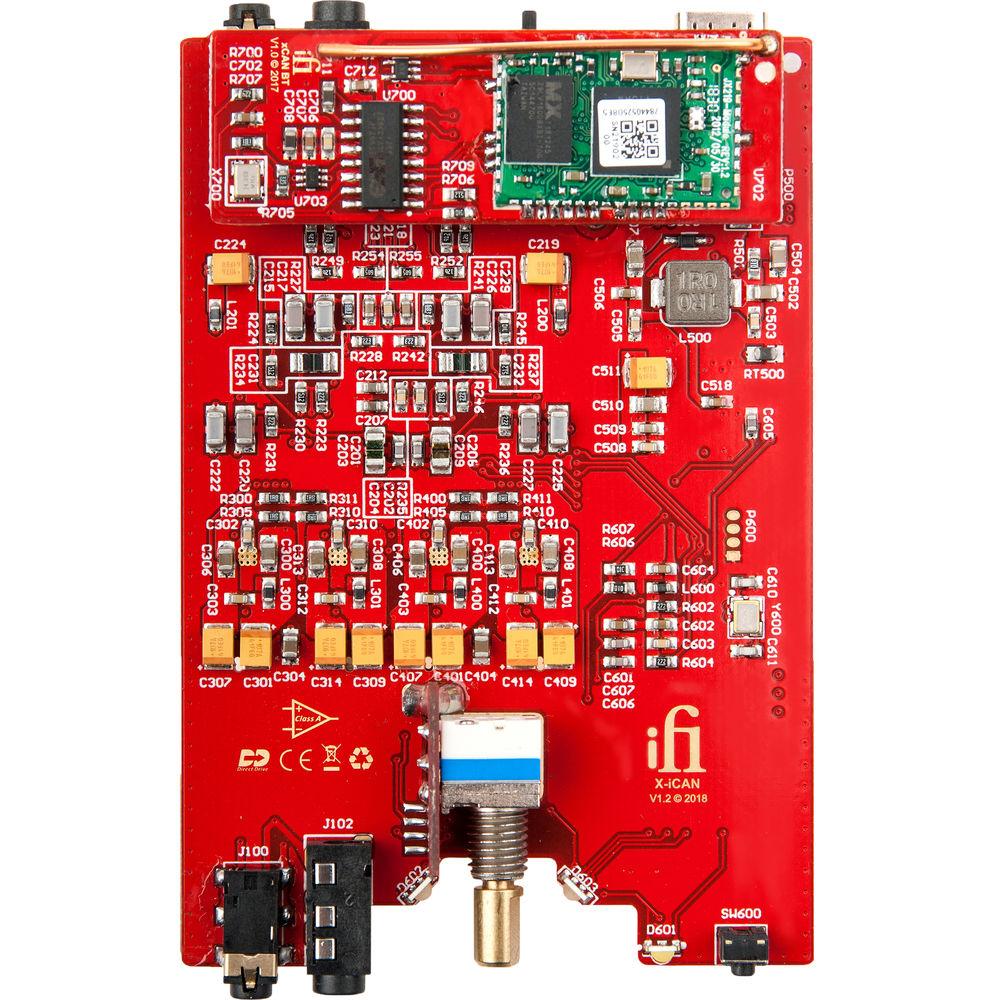

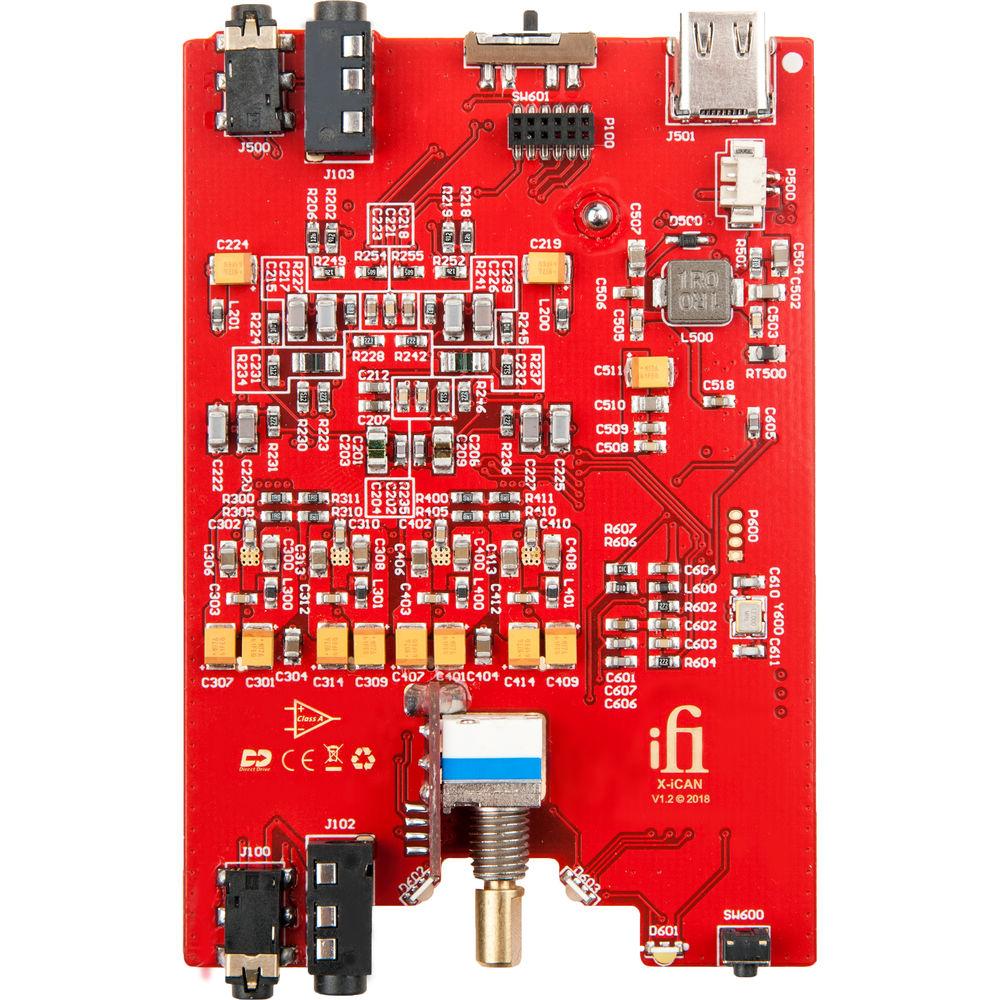

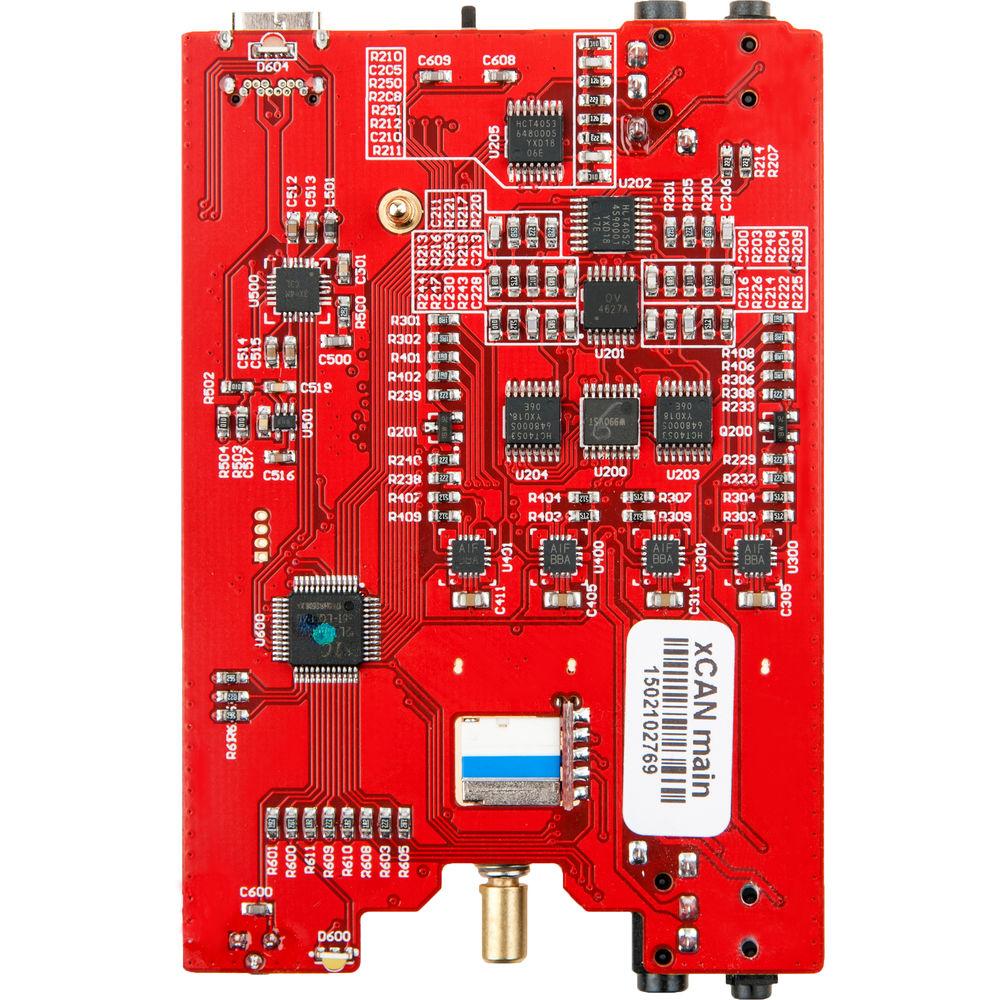

- The Cyberdrive headphone amplifier stage places all parameters of the fully analog system under digital control for a "best of both worlds" scenario. The Cyberdrive design incorporates the OV4627 ultra-low-noise FET input op-amp and the W990VST digitally controlled stepped attenuator to further enhance sound quality.
- Internal Power Supply
- With a separate power input (USB Type-C) to charge its own internal battery, the xCAN does not draw power from your smartphone or playback device. Playback time is up to eight hours.
In the Box iFi AUDIO xCAN Portable Headphone Amplifier with Bluetooth Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the iFi AUDIO xCAN Portable Headphone Amplifier with Bluetooth in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersiFi AUDIO xCAN Specs | Max Output | S-Balanced:
>3.8 V / 45 mW (@ 300 Ohms)
>3.5 V / 380 mW (@ 32 Ohms)
>3.1 V / 600 mW (@ 16 Ohms)
Balanced:
>7.6 V / 90 mW (@ 600 Ohms)
>7.2 V / 800 mW (@ 64 Ohms)
>5.7 V / 1,000 mW (@ 32 Ohms) | | Total Harmonic Distortion (THD) + N | S-Balanced: <0.005% (@ 100 mW/1.26 V, 16 Ohms)
Balanced: <0.006% (@ 360 mW/2.4 V, 16 Ohms) | | Signal to Noise Ratio | S-Balanced: >121 dBA (@ 3.8 V)
Balanced: >120 dBA (@ 7.6 V) | | Impedance | 16 to 600 Ohms | | Inputs | 1/8" / 3.5 mm unbalanced
3/32" / 2.5 mm balanced | | Headphone Outputs | 1/8" / 3.5 mm unbalanced
3/32" / 2.5 mm balanced | | USB | 1 x USB Type-C (charge only) | | Maximum Input | S-Balanced: 3 V RMS
Balanced: 6 V RMS | | Gain | -95 to +18 dB, adjustable in 114, 1-decibel steps (using volume control) | | Frequency Response | <2 hz to>200 kHz (-3 dB) | | Playback Time | >8 hours | | Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer | | | | Package Weight | 0.7 lb | | Box Dimensions (LxWxH) | 8.0 x 4.0 x 2.0" |
