User Manual for iFootage Carbon Fiber Shark Slider S1 Bundle Click to enlarge the picture
Contents of the user manual for the iFootage Carbon Fiber Shark Slider S1
- Product category: Camera Sliders iFootage
- Brand: iFootage
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for iFootage Camera Sliders
 |
User manual for the iFootage Carbon Fiber Shark Slider S1 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any iFootage product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official iFootage user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a iFootage product will considerably shorten its lifespan!
|

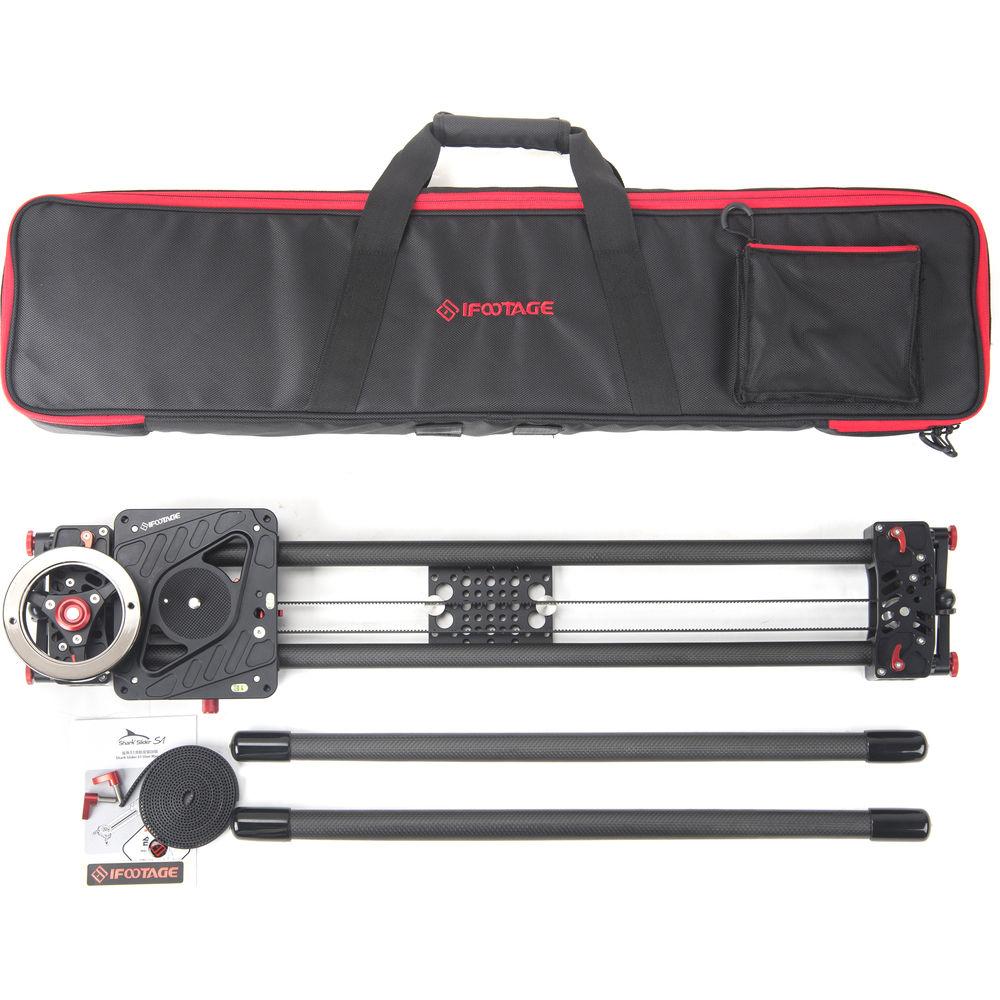

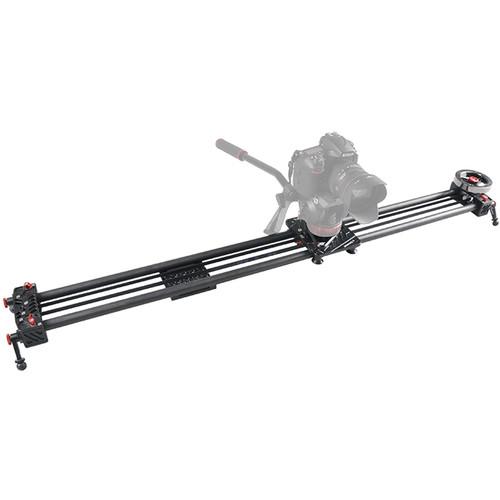

Product description The Carbon Fiber Shark Slider S1 Bundle from iFootage includes the Shark Slider S1 -- with the flywheel -- and adds extension rails and a longer drive belt. The standard S1 is 31" long end-to-end and features a 25" sliding length, and with the additional rails the sliding length is increased to 47". The S1 comes with a padded carrying bag which can fit the additional accessories of this bundle as well.
The Shark Slider S1 is a modular slider supporting up to 15 lb loads (11 lb with extension rails) and offering smooth movement thanks to silent bearings, synchronous belts, and a flywheel that adds inertia. The flywheel adds a damping effect to your slides, ensuring smooth acceleration/deceleration as opposed to jerky starts and stops. It achieves this through its centrifugal force while the slider belt is connected to it.
The S1 can be completely taken apart with just one included hex wrench and the different components packed separately, if you want. The end pieces offer adjustable feet that spread out in triangular form to add extra stability. The mounting plate attached on the bottom of the sliding carriage is also designed with stability in mind and is screwed into the carriage at four corners to minimize vibration when the slider is mounted on a tripod. The S1 offer has a 3/8"-16 camera mounting screw, and 1/4"-20 and 3/8"-16 tripod mount threaded holes.
The carbon fiber rails provide for better corrosion resistance than aluminum and also allow for a lighter system. The S1 supports longer rails from iFootage for a total sliding length of 70". It also supports the S1A1 and S1A3 Wireless Motion Controllers, and the Motion X2 System, which provides 360° camera movement. - Key Features
-
- 31" slider + extension rails and longer drive belt
- 47" total sliding length
- Flywheel
- 11 lb payload (15 lb without extension)
- 1/4"-20 and 3/8"-16 tripod mount holes
- Includes padded carrying bag

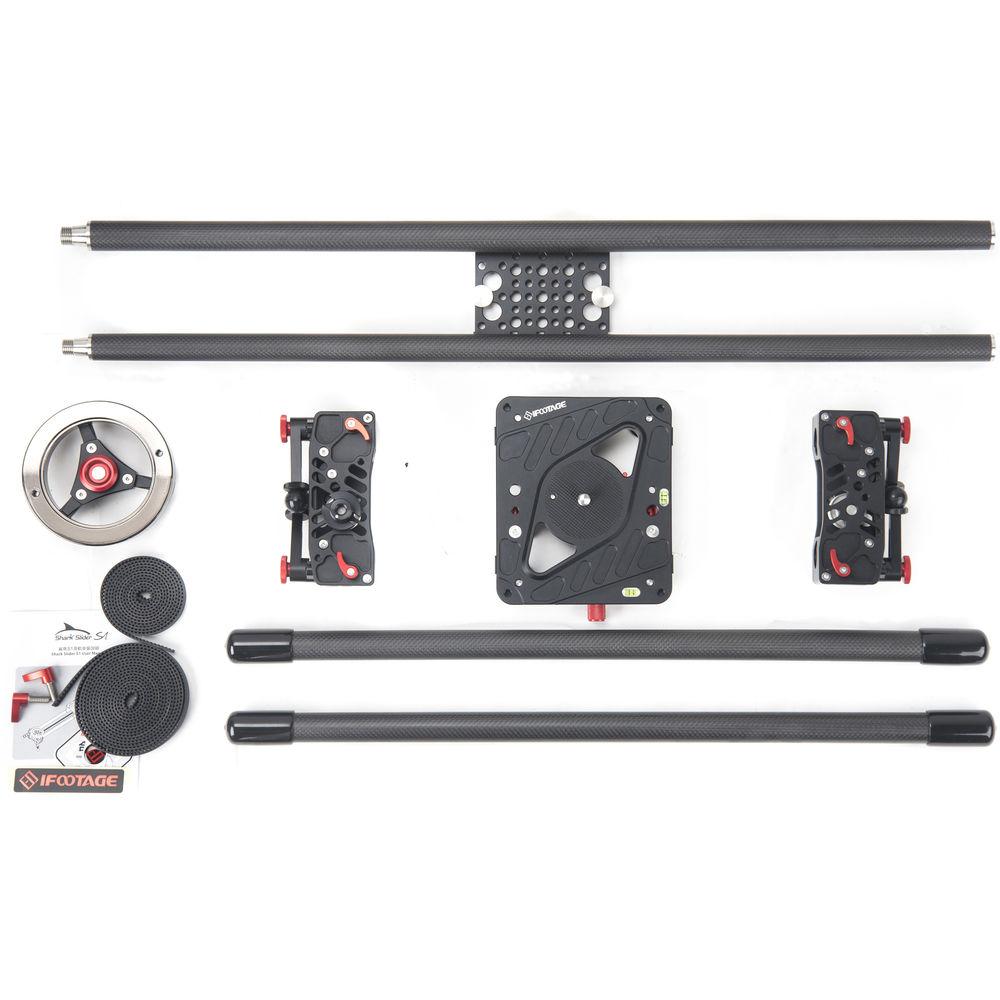

UPC: 647971368342 In the Box iFootage Carbon Fiber Shark Slider S1 Bundle Extension Rails Longer Drive Belt Padded Carrying Case Limited 1-Year Warranty User Manual PDF 1.7mbvxqffscbxueczwcdycbsatvxeuyq Table of Contents
|
Upload User Manual
Have you got an user manual for the iFootage Carbon Fiber Shark Slider S1 Bundle in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersiFootage S1 Specs | | | Load Capacity | 15 lb / 7 kg | | Travel Distance | 25" / 64 cm
47" / 120 cm, Including Extension | | | | Camera Mounting Screw | 3/8"-16 Male | | Tripod Mounting | 1/4"-20 Female Thread
3/8"-16 Female Thread | | | | Diameter | 0.8" / 22 mm | | Material | Carbon Fiber | | | | Body Material | Aluminum | | Track Length | 31" / 79 cm
53" / 135 cm, Including Extension | | Weight | 8.3 lb / 3.8 kg | | | | Package Weight | 12.0 lb | | Box Dimensions (LxWxH) | 32.5 x 8.0 x 6.0" |
