iFootage Carbon Fiber Shark Slider S1

User Manual for iFootage Carbon Fiber Shark Slider S1 with Dual Extension Tubes Bundle

• Product category: Camera Sliders iFootage
• Brand: iFootage
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for iFootage Camera Sliders

Product description

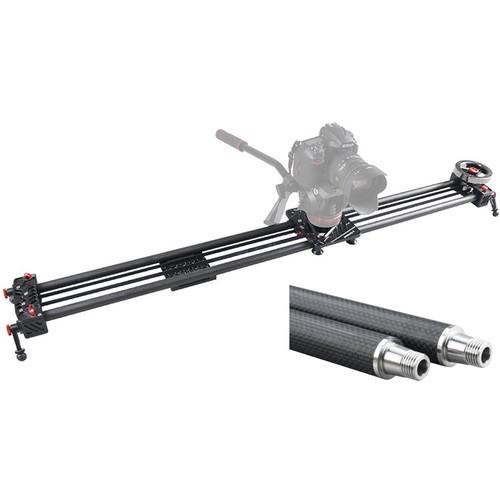

• iFootage Carbon Fiber Shark Slider S1 Bundle The Carbon Fiber Shark Slider S1 Bundle from iFootage includes the Shark Slider S1 -- with the flywheel -- and adds extension rails and a longer drive belt. The standard S1 is 31" long end-to-end and features a 25" sliding length, and with the additional rails the sliding length is increased to 47". The S1 comes with a padded carrying bag which can fit the additional accessories of this bundle as well.

  The Shark Slider S1 is a modular slider supporting up to 15 lb loads (11 lb with extension rails) and offering smooth movement thanks to silent bearings, synchronous belts, and a flywheel that adds inertia. The flywheel adds a damping effect to your slides, ensuring smooth acceleration/deceleration as opposed to jerky starts and stops. It achieves this through its centrifugal force while the slider belt is connected to it.

  The S1 can be completely taken apart with just one included hex wrench and the different components packed separately, if you want. The end pieces offer adjustable feet that spread out in triangular form to add extra stability. The mounting plate attached on the bottom of the sliding carriage is also designed with stability in mind and is screwed into the carriage at four corners to minimize vibration when the slider is mounted on a tripod. The S1 offer has a 3/8"-16 camera mounting screw, and 1/4"-20 and 3/8"-16 tripod mount threaded holes.

  The carbon fiber rails provide for better corrosion resistance than aluminum and also allow for a lighter system. The S1 supports longer rails from iFootage for a total sliding length of 70". It also supports the S1A1 and S1A3 Wireless Motion Controllers, and the Motion X2 System, which provides 360° camera movement.
  Key Features
  • • 31" slider + extension rails and longer drive belt
    • 47" total sliding length
    • Flywheel
    • 11 lb payload (15 lb without extension)
    • 1/4"-20 and 3/8"-16 tripod mount holes
    • Includes padded carrying bag
  UPC: 647971368342
• iFootage 40" Carbon Fiber Extension Tubes for Shark Slider S1 (Pair) These 40" Carbon Fiber Extension Tubes can be used to extend the range of the iFootage Shark Slider S1. The total length of the slider increases from 31" to 71". This pair of rods is composed of 6-layer carbon fiber for strength and stability. A slider belt is included with the rods.

• Carbon Fiber Shark Slider S1 Bundle yceafdsqtytrtzav
• Extension Rails
• Longer Drive Belt
• Padded Carrying Case
• Limited 1-Year Warranty

• 40" Carbon Fiber Extension Tubes for Shark Slider S1 (Pair)

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• iFootage Carbon Fiber Shark Slider S1 Bundle

  Load Capacity	15 lb / 7 kg
  Travel Distance	25" / 64 cm 47" / 120 cm, Including Extension

  Camera Mounting Screw	3/8"-16 Male
  Tripod Mounting	1/4"-20 Female Thread 3/8"-16 Female Thread

  Diameter	0.8" / 22 mm
  Material	Carbon Fiber

  Body Material	Aluminum
  Track Length	31" / 79 cm 53" / 135 cm, Including Extension
  Weight	8.3 lb / 3.8 kg

  Box Dimensions (LxWxH)	32.5 x 8.0 x 6.0"

• iFootage 40" Carbon Fiber Extension Tubes for Shark Slider S1 (Pair)

  Material of Construction	Carbon fiber
  Length	40" (101 cm)
  Other	With the addition of these extension rods, the slider length increases to 71" (180 cm) and payload becomes 6.6 lb (3 kg)

  Box Dimensions (LxWxH)	28.1 x 4.3 x 1.4"
