User Manual for iFootage M1-III Mini Crane Jib Arm Click to enlarge the picture
Contents of the user manual for the iFootage M1-III Mini Crane Jib Arm
- Product category: Cranes & Jibs iFootage
- Brand: iFootage
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for iFootage Cranes & Jibs
 |
User manual for the iFootage M1-III Mini Crane Jib Arm contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any iFootage product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official iFootage user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a iFootage product will considerably shorten its lifespan!
|
Product description - Review video of iFootage Mini Crane M1 III and iFootage Wild Bull Tripod T5

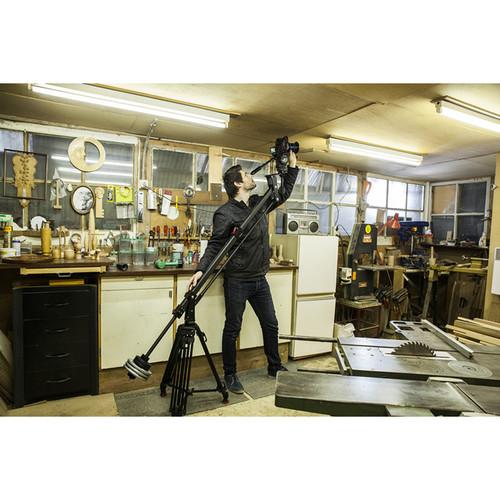

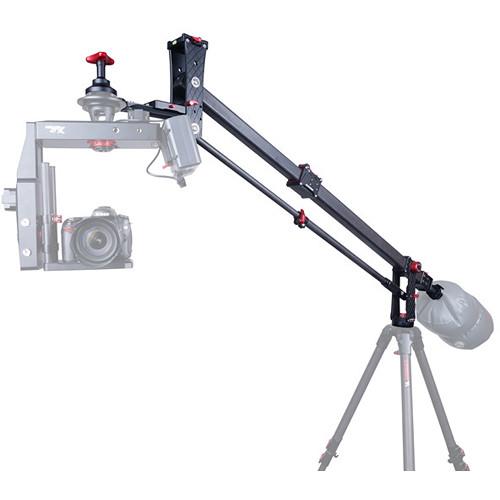

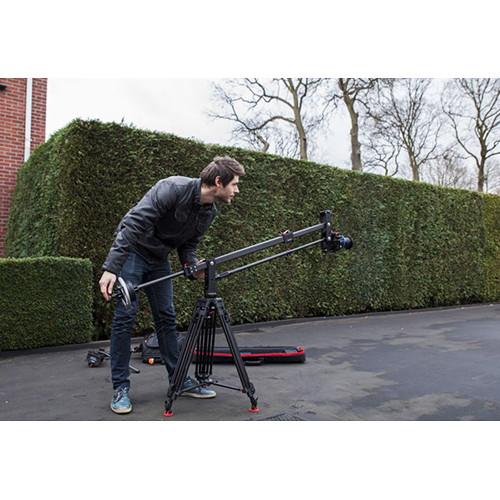

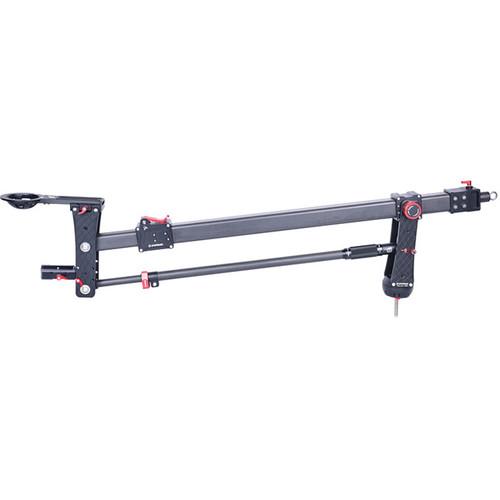

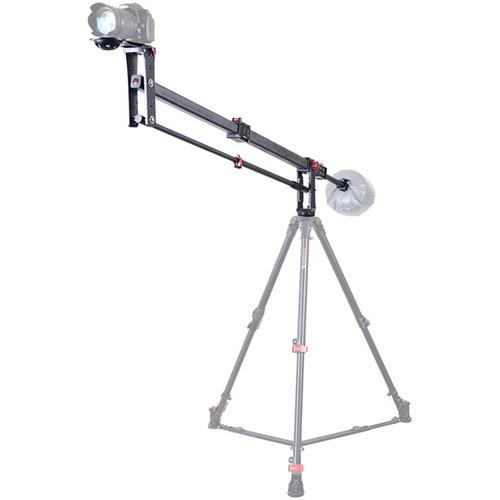

The M1-III Mini Crane from iFootage is a compact, portable jib arm featuring lightweight carbon-fiber construction, a telescoping square-arm tube, and multiple mounting options. Its square tube design helps to minimize potential shaking during operation. The M1-III has a maximum payload of 33 lb in standard mode and 22 lb in low-angle mode. The main jib arm and the counterweight arm each have one telescoping stage (two sections) with locking thumb-lever knobs. Standard barbell weights (available separately) may be used as counterweights.Mount your DSLR (or other small camera) on either of two included quick release plates: the M1 or the Motion X2. The M1 plate has both a flat camera plate and a ball mount, enabling use of a fluid head (with a 60 or 75mm ball). The Motion X2 plate is used with micro cameras or when using wide- angle lenses. Both the arm base and the camera base incorporate 1/4"-20 & 3/8"-16 holes for mounting accessories.The adjustable tilt-damping knob, the tilt lock, and the pan drag function give you added control over your crane shots. For programmable moves, the M1-III can be used with the iFootage Motion X2 or other motion control systems. Note: Low-mode use requires the M1 Low Profile Quick-Release Adapter (available separately).
Counterweights are not included. - 33 lb load capacity in standard mode, 22 lb in low mode
- Lightweight, carbon fiber, telescoping square-tubed main arm
- Compatible with 75mm ball or flat base–tripod heads

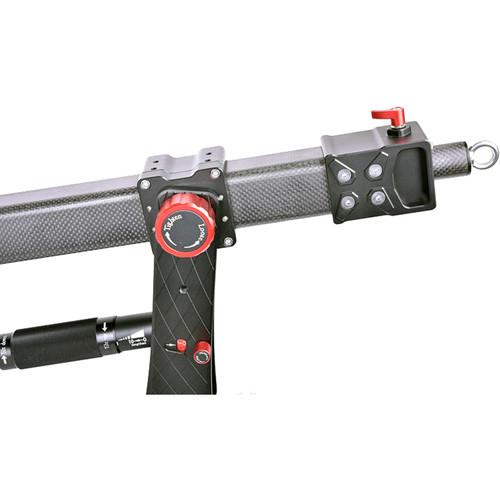

- Locking, damping-controlled tilt function, and pan drag control
- Camera can be mounted using the included quick-release plate or via a 60 or 75mm bowl head
- Quick-release plates have both 1/4"-20 & 3/8"-16 threaded holes
- Accessories can be mounted to the arm base and the camera base via 1/4"-20 & 3/8"-16 threaded holes
- Standard barbell weights can be used as counterweights
In the Box iFootage M1-III Mini Crane Jib Arm Tie-Down 1/2 Ball-Head 3/8"-16 Adapter Screw 2.5 mm Allen Keys M1 Quick-Release Plate Motion X2 Quick-Release Plate Weighted Buckle Carrying Bag Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the iFootage M1-III Mini Crane Jib Arm in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersiFootage M1-III Specs | Material of Construction | 20-layer carbon fiber
Aluminum alloy
Magnesium alloy | | Maximum Load Capacity | Standard Mode: 33 lb (15 kg)
Low-Angle Mode: 22 lb (10 kg) | | Tripod Mount Types | Crane: 75 mm bowl, flat base
M1 Camera Plate: 60, 75 mm bowl | | Tilt Range | 0-25° | | Tube Diameter | 1.7 x 1.6" (43 x 40 mm) | | Maximum Reach | 3.9' (1.2 m) | | Telescoping Range | 3.2 - 7.1' (1 - 2.2 m) | | Weight | 8.4 lb (3.8 kg) | | | | Package Weight | 13.0 lb | | Box Dimensions (LxWxH) | 39.0 x 9.0 x 5.0" |
