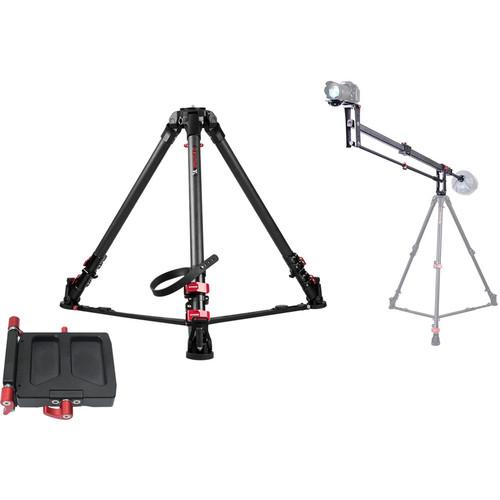

iFootage M1-III Mini Crane with Wild

User Manual for iFootage M1-III Mini Crane with Wild Bull T7 Tripod Kit

• Product category: Cranes & Jibs iFootage
• Brand: iFootage
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for iFootage Cranes & Jibs

Product description

• iFootage M1-III Mini Crane Jib Arm
  • Review video of iFootage Mini Crane M1 III and iFootage Wild Bull Tripod T5
  The M1-III Mini Crane from iFootage is a compact, portable jib arm featuring lightweight carbon-fiber construction, a telescoping square-arm tube, and multiple mounting options. Its square tube design helps to minimize potential shaking during operation. The M1-III has a maximum payload of 33 lb in standard mode and 22 lb in low-angle mode. The main jib arm and the counterweight arm each have one telescoping stage (two sections) with locking thumb-lever knobs. Standard barbell weights (available separately) may be used as counterweights.Mount your DSLR (or other small camera) on either of two included quick release plates: the M1 or the Motion X2. The M1 plate has both a flat camera plate and a ball mount, enabling use of a fluid head (with a 60 or 75mm ball). The Motion X2 plate is used with micro cameras or when using wide- angle lenses. Both the arm base and the camera base incorporate 1/4"-20 & 3/8"-16 holes for mounting accessories.The adjustable tilt-damping knob, the tilt lock, and the pan drag function give you added control over your crane shots. For programmable moves, the M1-III can be used with the iFootage Motion X2 or other motion control systems. Note: Low-mode use requires the M1 Low Profile Quick-Release Adapter (available separately).
  Counterweights are not included.
  • 33 lb load capacity in standard mode, 22 lb in low mode
  • Lightweight, carbon fiber, telescoping square-tubed main arm
  • Compatible with 75mm ball or flat base–tripod heads
  • Locking, damping-controlled tilt function, and pan drag control
  • Camera can be mounted using the included quick-release plate or via a 60 or 75mm bowl head
  • Quick-release plates have both 1/4"-20 & 3/8"-16 threaded holes
  • Accessories can be mounted to the arm base and the camera base via 1/4"-20 & 3/8"-16 threaded holes
  • Standard barbell weights can be used as counterweights
• iFootage Wild Bull T Series T7 Carbon Fiber Tripod
  • Review video of iFootage Mini Crane M1 III and iFootage Wild Bull Tripod T5
  The iFootage Wild Bull T7 Carbon Fiber Tripod can be used to support a camera rig, jib arm, or other load weighing up to 88 pounds. Constructed from carbon fiber, the T7 tripod is a lighter, more compact entry in the Wild Bull series. The tripod extends from 28" to 59" with a minimum height of 8" at maximum spread. Features include quick release levers for one-handed height adjustments, a half ball 75mm adapter for use with flat base heads, and an adapter tie-down.The carbon fiber legs have spiked ends for use on rough terrain and removable rubber foot pads to use on flat surfaces. The included ground spreader can also be positioned midway on the Wild Bull T7, a handy feature when the ground may be obstructing the spreader footprint. Use the load hook to attach a sandbag, or even your backpack as a counterweight. An integrated rubber belt enables you to strap the tripod legs together for easier and safer transporting.

  Features

  • The tripod is compatible with 75mm bowl tripod heads and includes a half ball adapter and tie-down knob for use with 75 mm flat-base heads
  • Constructed from carbon fiber, this three-section tripod supports up to an 88-pound load
  • The tripod extends from 28" when folded to a top height of 59"; the minimum height is around 8" at maximum spread
  • The legs end in spiked feet for use on rough terrain; and include removable rubber foot for use on flat surfaces
  • Single-handed height adjustments are possible thanks to the tripod's quick release levers
  • The included ground spreader may also be used mid-level in situations where the ground might be partially obstructed
  • A half ball adapter and tie-down knob are included for use with 75mm flat base tripod heads
  • A rubber belt attached to one leg can be wrapped around all three legs for easier, safer transportation
  • The load hook enables you to attach a sandbag or other load as a counterweight
• iFootage Low-Profile Quick Release Adapter for M1-III Mini Crane
  • Review video of iFootage Mini Crane M1 III and iFootage Wild Bull Tripod T5
  This Low-Profile Quick Release Adapter for M1-III Mini Crane from iFootage is designed for low-angle and low-mode shots. Use this quick release adapter to undersling your camera on the crane.

• M1-III Mini Crane Jib Arm uwyqrystyyavbexsadusawxxczyq
• Tie-Down
• 1/2 Ball-Head 3/8"-16 Adapter Screw
• 2.5 mm Allen Keys
• M1 Quick-Release Plate
• Motion X2 Quick-Release Plate
• Weighted Buckle
• Carrying Bag
• Limited 3-Year Warranty

• Wild Bull T Series T7 Carbon Fiber Tripod uwyqrystyyavbexsadusawxxczyq

Includes Free

• Low-Profile Quick Release Adapter for M1-III Mini Crane

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• iFootage M1-III Mini Crane Jib Arm

  Material of Construction	20-layer carbon fiber Aluminum alloy Magnesium alloy
  Maximum Load Capacity	Standard Mode: 33 lb (15 kg) Low-Angle Mode: 22 lb (10 kg)
  Tripod Mount Types	Crane: 75 mm bowl, flat base M1 Camera Plate: 60, 75 mm bowl
  Tilt Range	0-25°
  Tube Diameter	1.7 x 1.6" (43 x 40 mm)
  Maximum Reach	3.9' (1.2 m)
  Telescoping Range	3.2 - 7.1' (1 - 2.2 m)
  Weight	8.4 lb (3.8 kg)

  Box Dimensions (LxWxH)	39.0 x 9.0 x 5.0"

• iFootage Wild Bull T Series T7 Carbon Fiber Tripod

  Head Mount Type	3/8"-16 Male
  Load Capacity	88 lb / 40 kg
  Maximum Working Height	59.1" / 150 cm
  Minimum Working Height	7.9" / 20 cm
  Folded Length	28" / 720 mm
  Materials	Carbon Fiber
  Weight	7.7 lb / 3.5 kg

  Leg Sections	3

  Box Dimensions (LxWxH)	36.01 x 6.7 x 6.7"

• iFootage Low-Profile Quick Release Adapter for M1-III Mini Crane

  Maximum Load Capacity

  22 lb / 10 kg

  Box Dimensions (LxWxH)	3.75 x 3.6 x 2.1"
