User Manual for iFootage Motion Control S1A3 Bundle B0 Click to enlarge the picture
Contents of the user manual for the iFootage Motion Control S1A3 Bundle B0
- Product category: Tripods, Supports & Rigs iFootage
- Brand: iFootage
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for iFootage Tripods, Supports & Rigs
 |
User manual for the iFootage Motion Control S1A3 Bundle B0 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any iFootage product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official iFootage user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a iFootage product will considerably shorten its lifespan!
|

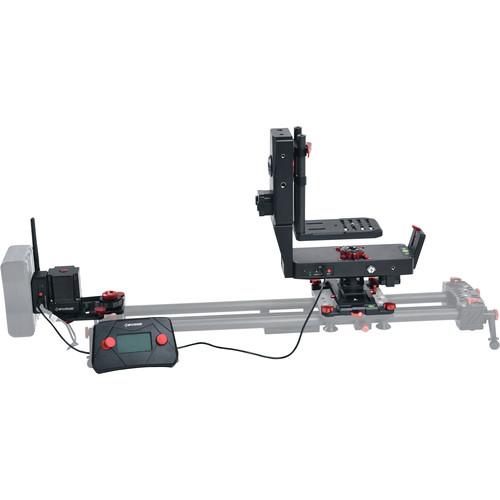

Product description The Motion Control S1A3 Bundle B0 from iFootage enables you to add motion control when using your camera on a Shark Slider S1 (not included). This kit contains the iFootage S1A1 motorized slider-carriage system, and the Motion X2 camera motion control bundle. Together, these components enable you to program precise movements suitable for time-lapse and panoramic shots, as well as standard filming. The Motion Control S1A3 Bundle B0 includes two wireless controllers with camera shutter, slider carriage position, and pan/tilt functions. Movements can be saved to nine tracks for playback; the system can also operate in manual mode for on the fly shooting. The Motion Control S1A3 Bundle B0 is compatible with the Autopano panoramic software (not included). This system can support DSLRs or camcorders weighing up to 17.6 lb. The Motion Control S1A3 Bundle B0 can capture 360° images with the two-axis head, capable of up to 360° of pan and 90° of tilt. The time-lapse function includes settings for the number of frames as well as the length of time between stills. Basic parallax adjustments can be made with the Motion Control S1A3 Bundle B0. Two hard-shell carrying cases are included in this bundle. - Motorized time-lapse and 360° panoramic movements
- Pre-record moves to nine separate channels
- Two-axis head features 360° of pan and 90° of tilt movement
- Can support camera rigs up to 17.6 pounds
- Compatible with Autopano software for panoramic shots
- Simple parallax adjustments can be programmed
- Two hard-shell cases with foam interiors are included

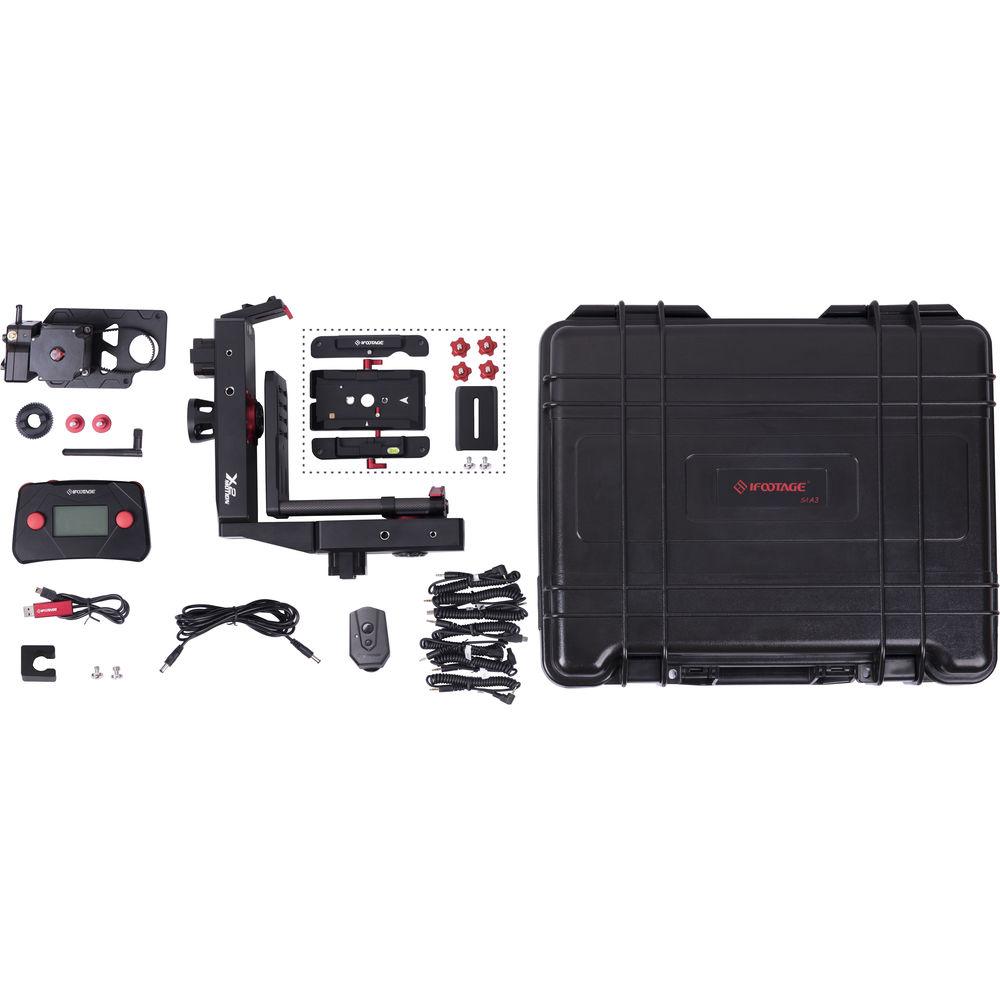

In the Box iFootage Motion Control S1A3 Bundle B0 Motion X2 Pan & Tilt Head Bundle B0 S1A1 Wireless Motion Control System with Battery/Charger for Shark Slider S1 Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the iFootage Motion Control S1A3 Bundle B0 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersiFootage S1A3B0 Specs | Rotation Speed | Motion X2:
0-40°/s | | Speed Range | S1A1:
0.00039 to 6.3 in/sec (0.01 to 160 mm/sec) | | Location Accuracy | Motion X2: 0.0025°
S1A1: 0.00039 in (0.01 mm) | | Load Capacity | Motion X2:
Optimum: 8.8 lb (4 kg)
Maximum: 17.6 lb (8 kg)
S1A1:
Maximum: 17.6 lb (8 kg) | | Motor Power | Motion X2: 8-32 W
S1A1: 8-32 W | | Speed | Motion X2 Regulation:
Stepless speed
Step speed | | Operating Voltage | Motion X2: 14.8~24 V
S1A1 Output: 14.8~24 V
Motor Module: 3.7 V
Shutter Module: 3.7 V | | Run Time (Up To) | Motor Module: 50 hours
Shutter Module: 50 hours | | Frequency Band | 2.4 GHz | | Remote Distance | 65.6' (20 m) | | Pan & Tilt Range | Pan: 360°
Tilt: 90° | | Battery | Motor Module: Lithium-ion (built-in, rechargeable)
Shutter Module: 2 x AAA (LR6) | | Maximum Battery Run Time | Continuous Video: 12 hours
Time-Lapse Mode: 16 hours | | Material of Construction | Aluminum | | Weight | Motion X2: 5.5 lb (2.5 kg)
Motor Module: 14.8 oz (420 g)
Shutter Module: 14.1 oz (400 g) | | | | Package Weight | 22.0 lb | | Box Dimensions (LxWxH) | 20.5 x 18.0 x 6.0" |
