User Manual for iFootage Shark Slider Mini Premium with Hard-Shell Backpack Click to enlarge the picture
Contents of the user manual for the iFootage Shark Slider Mini Premium with
- Product category: Camera Sliders iFootage
- Brand: iFootage
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for iFootage Camera Sliders
 |
User manual for the iFootage Shark Slider Mini Premium with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any iFootage product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official iFootage user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a iFootage product will considerably shorten its lifespan!
|

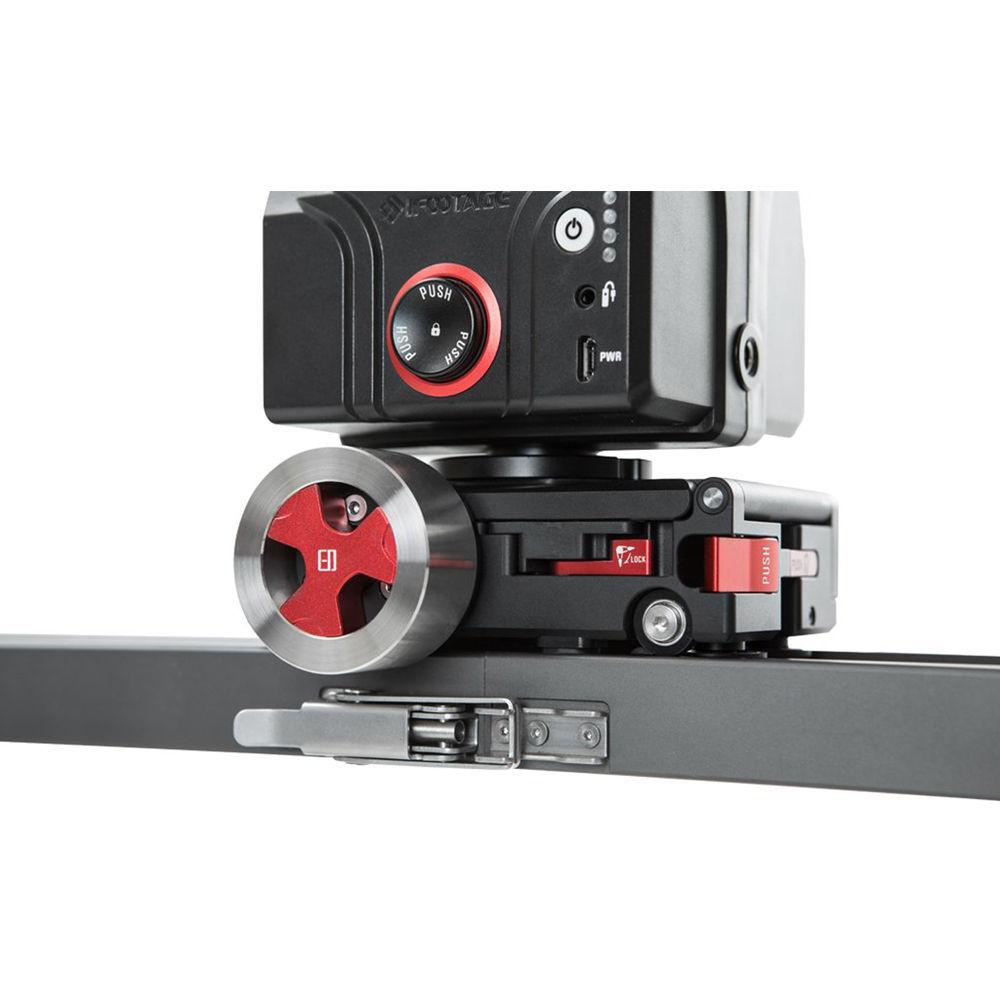

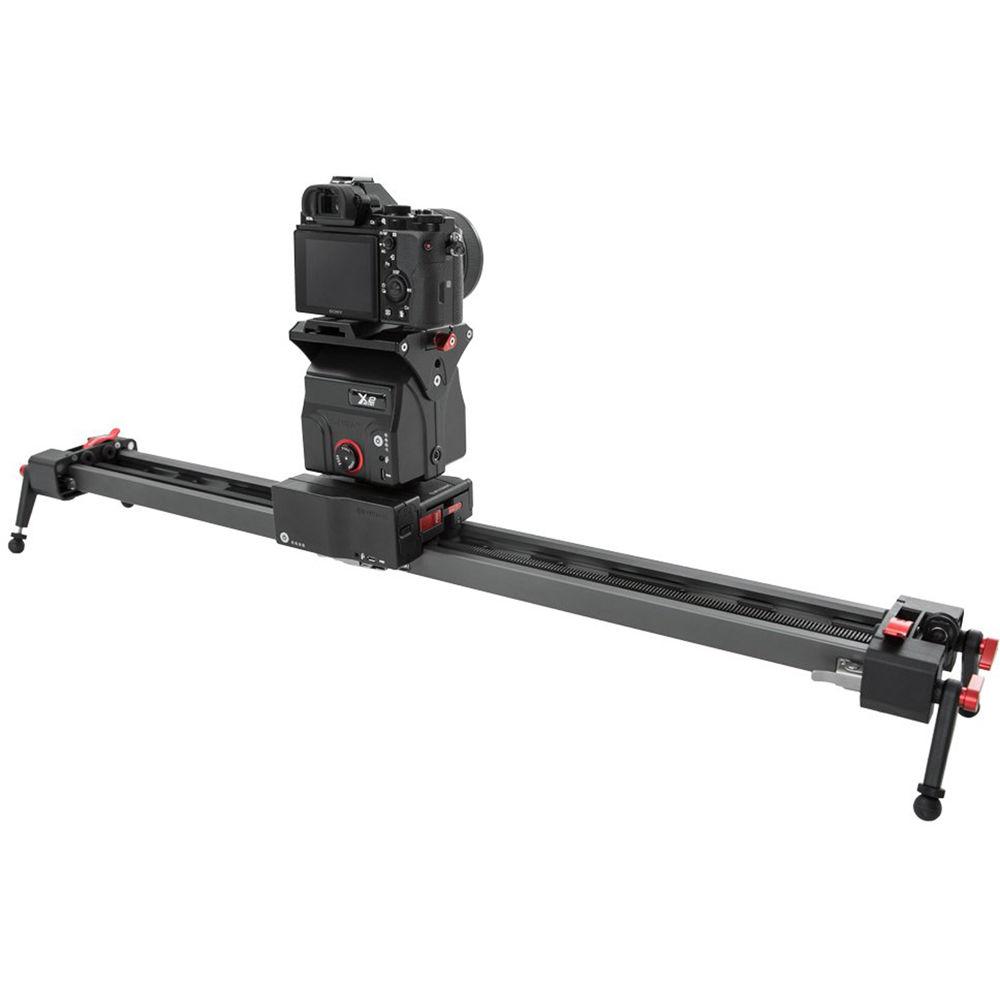

Product description The Shark Slider Mini Premium from iFootage includes two tracks, a slider carriage, two track stand accessories, a flywheel, an X2 Mini pan and tilt head, a slide module, two batteries, cables, and a hard-shell backpack. This 3-axis automated motion-control system is small and light enough to carry in your rucksack, yet big enough to provide you with smooth movement. The modular design and seamless track extension lets you connect the tracks, for a travel distance up to 24".
Control the Shark Slider Mini from your iOS device with the iFootage motion control app using Bluetooth 4.0 and 2.4 GHz. This app includes features such as target, manual, and timeline control, grid photo stitching mode, and panoramic control. - High-quality design, made of durable hard anodized materials and components
- iFootage motion control app with free firmware updates using Bluetooth 4.0 and 2.4 GHz
- Target control, for setting A and B camera points and easily creating repeatable movement with variable speeds
- Manual control is easy to understand and operate, with touchscreen control of all three axes
- Timeline control with preset Bezier curve for three-axis movement, for accurate control of speed, angles, and creative compositions
- Grid photo stitching resulting in high-resolution images
- Dynamic panoramic photography setup is quick and easy
- Highest location accuracy for motion-control slider is 0.000128", and for the pan and tilt head it is 0.001°
- Unique quick release mini flywheel and motion module
- USB power charge and power supply to motors
- Preset and repeatable camera movement
- Slider can be used both vertically and horizontally

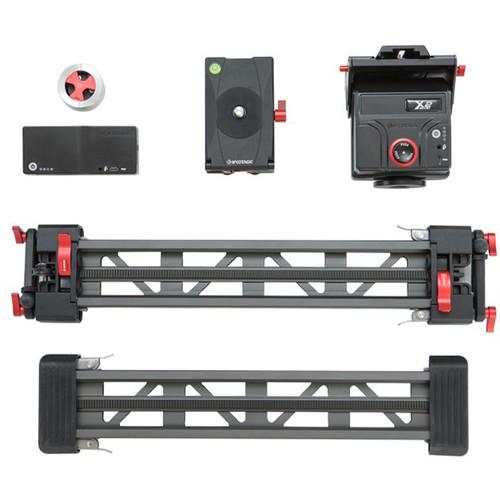

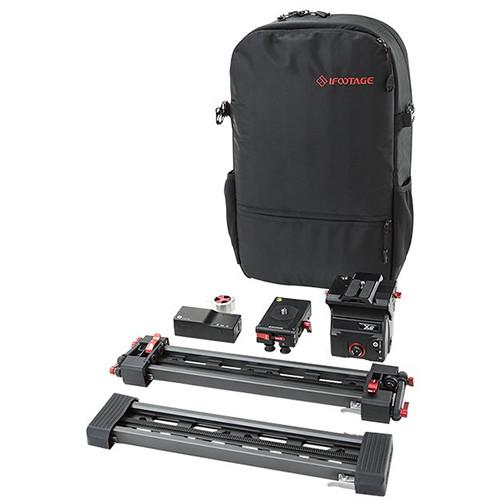

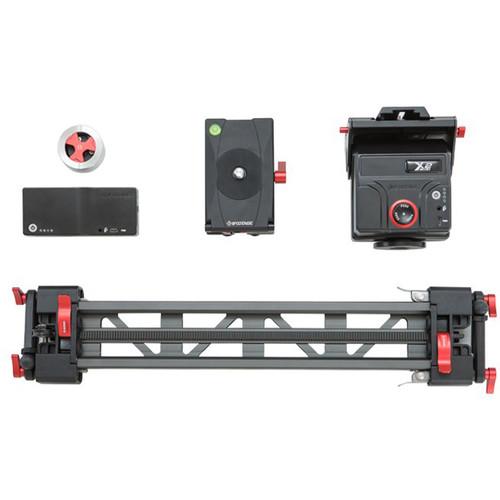

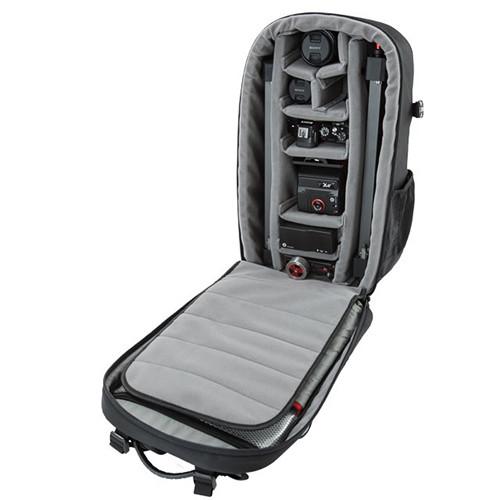

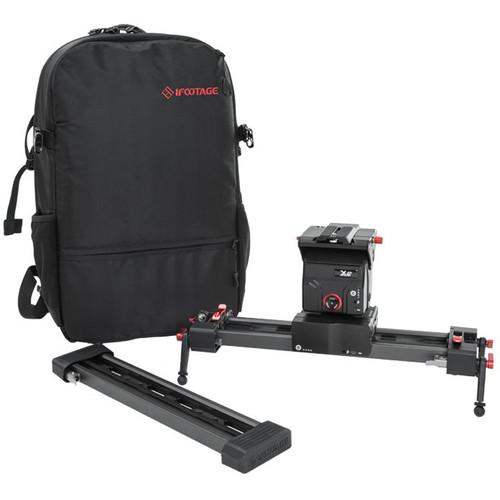

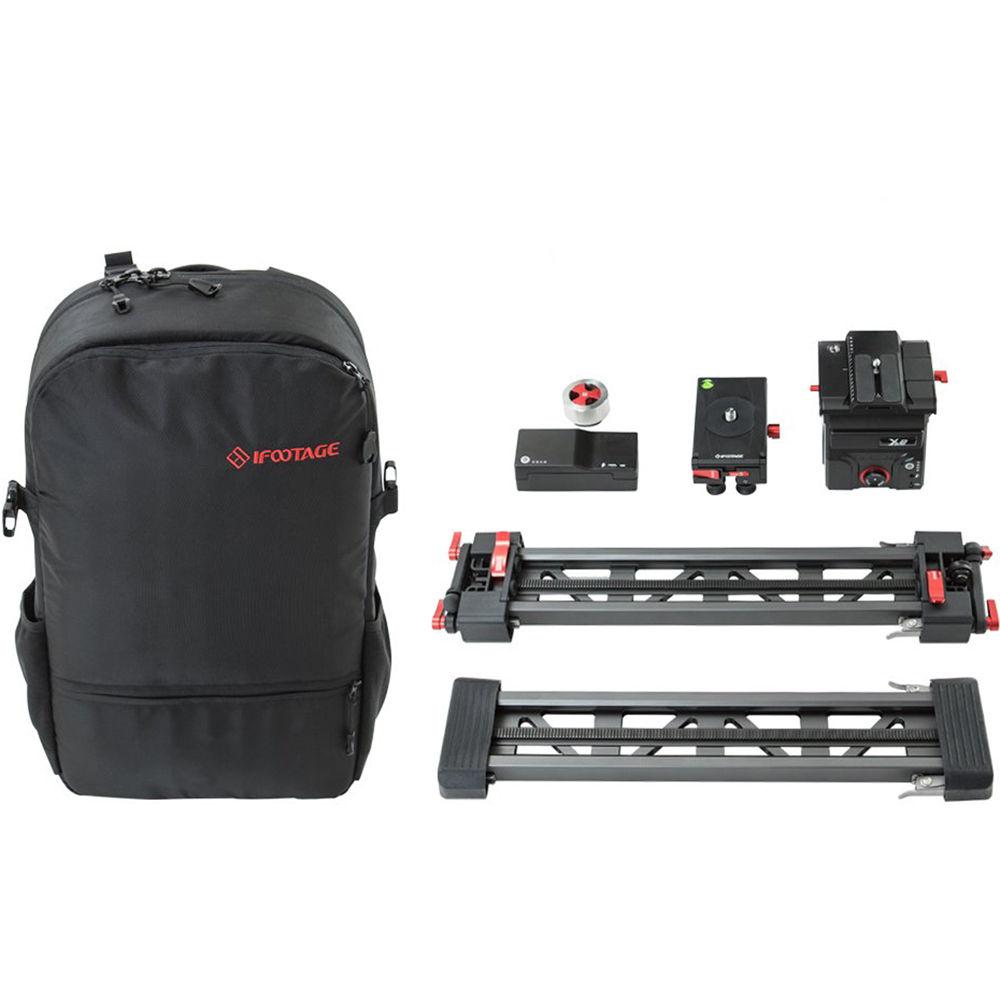

UPC: 842355110542 In the Box iFootage Shark Slider Mini Premium with Hard-Shell Backpack 2 x Track for Shark Slider Mini fsuuuywdvfrtyrcbcysw Slider Carriage 2 x Track Stand Accessory Flywheel X2 Mini Pan and Tilt Head Single Axis Slide Module 2 x FW50 Battery S2 Shutter Cable L1 Shutter Cable Hard-Shell Backpack Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the iFootage Shark Slider Mini Premium with Hard-Shell Backpack in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersiFootage Shark Slider Specs | | | Travel Distance | 24" / 60 cm, with both tracks attached | | Material | Aluminum magnesium alloys and SUS304 stainless steel | | Dimensions | 15.9 x 3.7 x 1.0" / 40.4 x 9.5 x 2.5 cm (each) | | Weight | 1.5 lb / 0.7 kg with pulley (each) | | | | Accuracy | 0.00325 | | Max Load | 4.4 lb / 2 kg | | Battery Power | 2 hours | | Speed | 0 to 1.96 in/sec / 0 to 50 mm/sec | | Operating Frequencies | Bluetooth and 2.4 GHz | | Signal Range | 33' / 10 m | | Operating Voltage | 7.2 to 8.4 V | | Motor Power | 2.5 to 3 W | | | | Accuracy | 0.001° | | Max Load | 3.3 lb / 1.5 kg | | Battery Power | 2 hours | | Spin Speed | 0 to 30°/s | | Operating Frequencies | Bluetooth and 2.4 GHz | | Signal Range | 33' / 10 m | | Operating Voltage | 7.2 to 8.4 V | | Head Weight | 2 lb / 0.9 kg |
