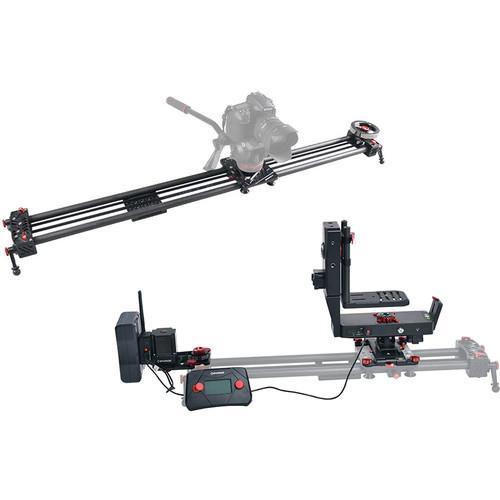

iFootage Shark Slider Motion Control Kit

User Manual for iFootage Shark Slider Motion Control Kit

• Product category: Camera Sliders iFootage
• Brand: iFootage
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for iFootage Camera Sliders

Product description

• iFootage Motion Control S1A3 Bundle B1 The Motion Control S1A3 Bundle B1 from iFootage enables you to add motion control when using your camera on a Shark Slider S1 (not included). This kit contains the iFootage S1A1 motorized slider-carriage system, and the Motion X2 camera motion control bundle. Together, these components enable you to program precise movements suitable for time-lapse and panoramic shots, as well as standard filming. The Motion Control S1A3 Bundle B1 includes two wireless controllers with camera shutter, slider carriage position, and pan/tilt functions. Movements can be saved to nine tracks for playback; the system can also operate in manual mode for on the fly shooting. The Motion Control S1A3 Bundle B1 is compatible with the Autopano panoramic software (not included). This system can support DSLRs or camcorders weighing up to 17.6 lb. The Motion Control S1A3 Bundle B1 can capture 360° images with the two-axis head, capable of up to 360° of pan and 90° of tilt. The time-lapse function includes settings for the number of frames as well as the length of time between stills. Basic parallax adjustments can be made with the Motion Control S1A3 Bundle B1. A 95W V-Mount battery, adapter, and charger are included for use with the motorized slider carriage. Two hard-shell carrying cases are included in this bundle.
  • Motorized time-lapse and 360° panoramic movements
  • Pre-record moves to nine separate channels
  • Two-axis head features 360° of pan and 90° of tilt movement
  • Can support camera rigs up to 17.6 pounds
  • Compatible with Autopano software for panoramic shots
  • Simple parallax adjustments can be programmed
  • Two hard-shell cases with foam interiors, one 95W slider battery, batter adapter, and charger are included
• iFootage Carbon Fiber Shark Slider S1 Bundle The Carbon Fiber Shark Slider S1 Bundle from iFootage includes the Shark Slider S1 -- with the flywheel -- and adds extension rails and a longer drive belt. The standard S1 is 31" long end-to-end and features a 25" sliding length, and with the additional rails the sliding length is increased to 47". The S1 comes with a padded carrying bag which can fit the additional accessories of this bundle as well.

  The Shark Slider S1 is a modular slider supporting up to 15 lb loads (11 lb with extension rails) and offering smooth movement thanks to silent bearings, synchronous belts, and a flywheel that adds inertia. The flywheel adds a damping effect to your slides, ensuring smooth acceleration/deceleration as opposed to jerky starts and stops. It achieves this through its centrifugal force while the slider belt is connected to it.

  The S1 can be completely taken apart with just one included hex wrench and the different components packed separately, if you want. The end pieces offer adjustable feet that spread out in triangular form to add extra stability. The mounting plate attached on the bottom of the sliding carriage is also designed with stability in mind and is screwed into the carriage at four corners to minimize vibration when the slider is mounted on a tripod. The S1 offer has a 3/8"-16 camera mounting screw, and 1/4"-20 and 3/8"-16 tripod mount threaded holes.

  The carbon fiber rails provide for better corrosion resistance than aluminum and also allow for a lighter system. The S1 supports longer rails from iFootage for a total sliding length of 70". It also supports the S1A1 and S1A3 Wireless Motion Controllers, and the Motion X2 System, which provides 360° camera movement.
  Key Features
  • • 31" slider + extension rails and longer drive belt
    • 47" total sliding length
    • Flywheel
    • 11 lb payload (15 lb without extension)
    • 1/4"-20 and 3/8"-16 tripod mount holes
    • Includes padded carrying bag
  UPC: 647971368342

• Motion Control S1A3 Bundle B1 cfyrufdssezyfufu
• Motion X2 Pan & Tilt Head Bundle B0
• S1A1 Wireless Motion Control System with Battery/Charger for Shark Slider S1
• 95W V-Mount Battery
• Limited 1-Year Warranty

• Carbon Fiber Shark Slider S1 Bundle

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• iFootage Motion Control S1A3 Bundle B1

  Rotation Speed	Motion X2: 0-40°/s
  Speed Range	S1A1: 0.00039 to 6.3 in/sec (0.01 to 160 mm/sec)
  Location Accuracy	Motion X2: 0.0025° S1A1: 0.00039 in (0.01 mm)
  Load Capacity	Motion X2: Optimum: 8.8 lb (4 kg) Maximum: 17.6 lb (8 kg) S1A1: Maximum: 17.6 lb (8 kg)
  Motor Power	Motion X2: 8-32 W S1A1: 8-32 W
  Speed	Motion X2 Regulation: Stepless speed Step speed
  Operating Voltage	Motion X2: 14.8~24 V S1A1 Output: 14.8~24 V Motor Module: 3.7 V Shutter Module: 3.7 V
  Run Time (Up To)	Motor Module: 50 hours Shutter Module: 50 hours
  Frequency Band	2.4 GHz
  Remote Distance	65.6' (20 m)
  Pan & Tilt Range	Pan: 360° Tilt: 90°
  Battery	Motor Module: Lithium-ion (built-in, rechargeable) Shutter Module: 2 x AAA (LR6)
  Maximum Battery Run Time	Continuous Video: 12 hours Time-Lapse Mode: 16 hours
  Material of Construction	Aluminum
  Weight	Motion X2: 5.5 lb (2.5 kg) Motor Module: 14.8 oz (420 g) Shutter Module: 14.1 oz (400 g)

  Box Dimensions (LxWxH)	20.7 x 18.8 x 6.0"

• iFootage Carbon Fiber Shark Slider S1 Bundle

  Load Capacity	15 lb / 7 kg
  Travel Distance	25" / 64 cm 47" / 120 cm, Including Extension

  Camera Mounting Screw	3/8"-16 Male
  Tripod Mounting	1/4"-20 Female Thread 3/8"-16 Female Thread

  Diameter	0.8" / 22 mm
  Material	Carbon Fiber

  Body Material	Aluminum
  Track Length	31" / 79 cm 53" / 135 cm, Including Extension
  Weight	8.3 lb / 3.8 kg

  Box Dimensions (LxWxH)	32.5 x 8.0 x 6.0"
