User Manual for IK Multimedia ARC System 2 Room Correction System Click to enlarge the picture
Contents of the user manual for the IK Multimedia ARC System 2 Room
- Product category: Notation & Utility IK Multimedia
- Brand: IK Multimedia
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for IK Multimedia Notation & Utility
 |
User manual for the IK Multimedia ARC System 2 Room contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any IK Multimedia product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official IK Multimedia user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a IK Multimedia product will considerably shorten its lifespan!
|

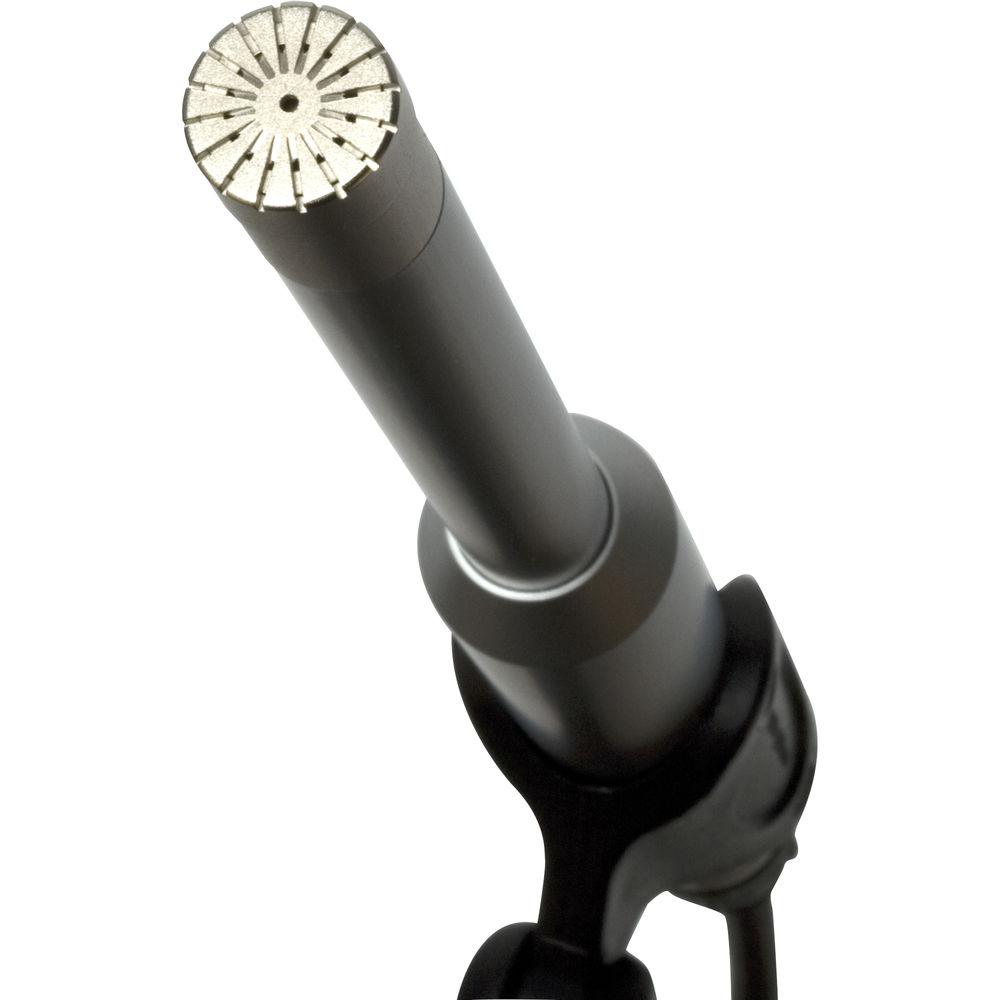

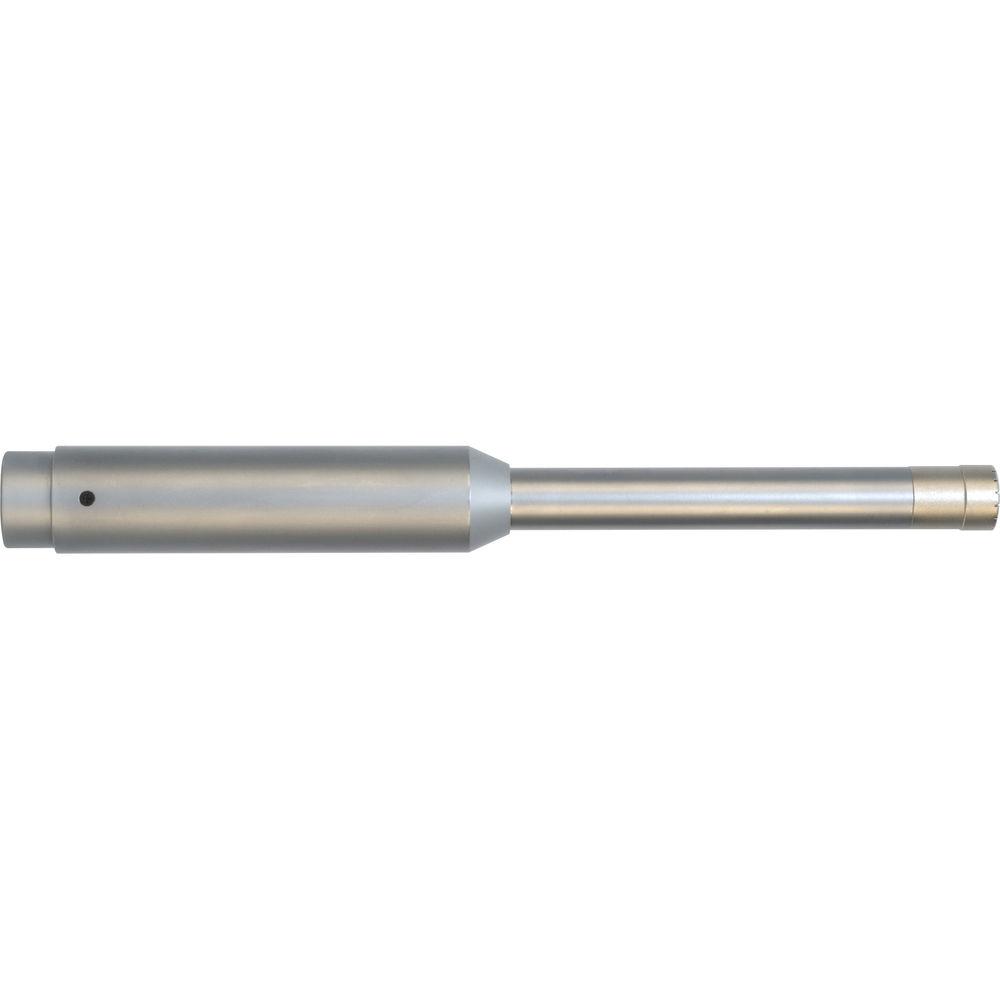

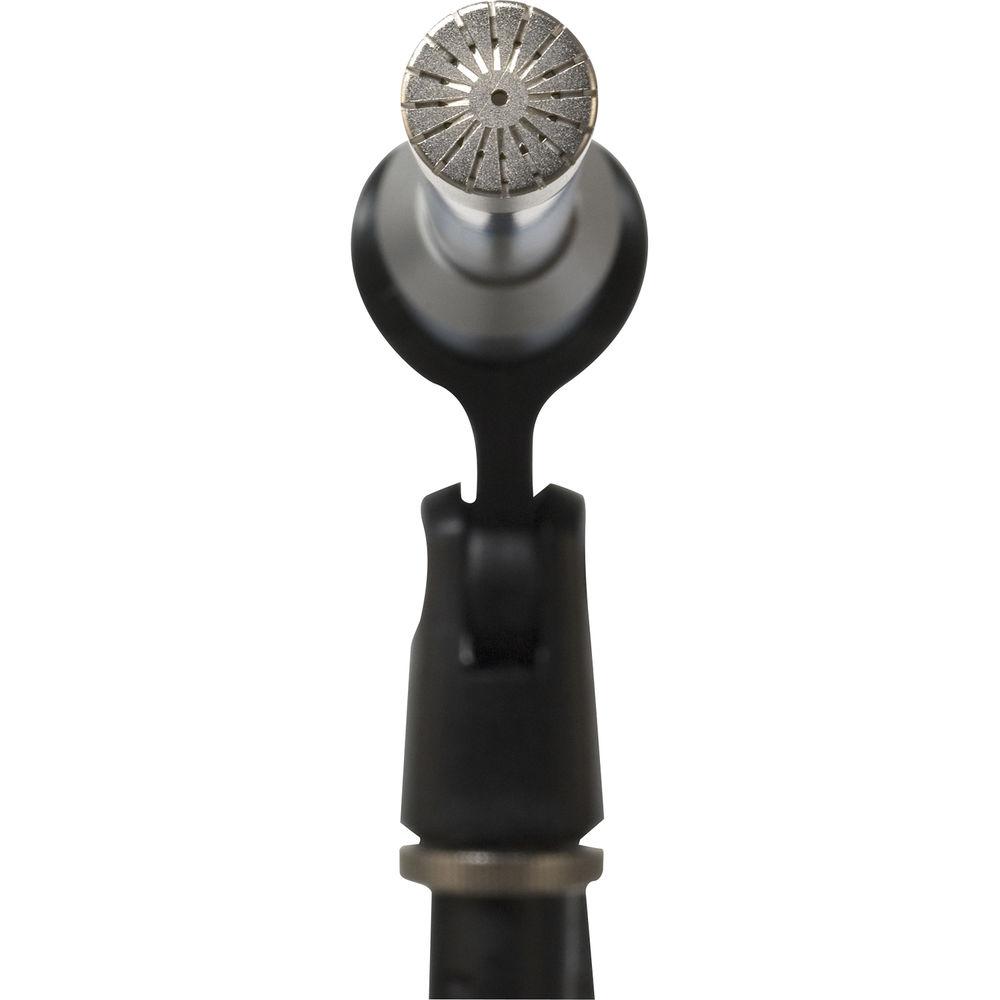

Product description Available as a downloadable upgrade for those whose already own the previous version, ARC System 2 from IK Multimedia is a studio-acoustics room-correction solution for improving anything from a bedroom studio to a high-end facility. The system utilizes a professional calibrated measurement microphone and stand-alone software to calculate proper room correction, providing an equalization solution in the form of a multi-platform plug-in.
The ARC system features Audyssey MultEQ XT32 technology that measures acoustical information throughout the listening area in the studio. After compiling this information to provide an accurate representation of the room's acoustical problems, the equalization solution corrects for both time- and frequency-response problems effectively and efficiently.
These measurements allow the software to accurately correct the entire room, not just the engineer's "sweet spot." Once a correction algorithm has been generated, placing the included plug-in on the DAW master bus delivers an accurate monitoring environment. Regardless of the acoustical issues in a studio, recording, mixing or mastering becomes immediately clear and reliable. Do remember, however, to bypass the plugin when bouncing your finished track. Note: You must be a registered user of ARC System version 1 or ARC System TDM in order to purchase this Upgrade.
This is only a software download; measurement microphone not included - New in Version 2
-
- Completely redesigned interface for improved usability
- Four times greater resolution improves critical low-end response
- Smoother, more natural sound in the midrange and high frequencies
- Combined L/R correction option maintains perfect focus with symmetrical control rooms

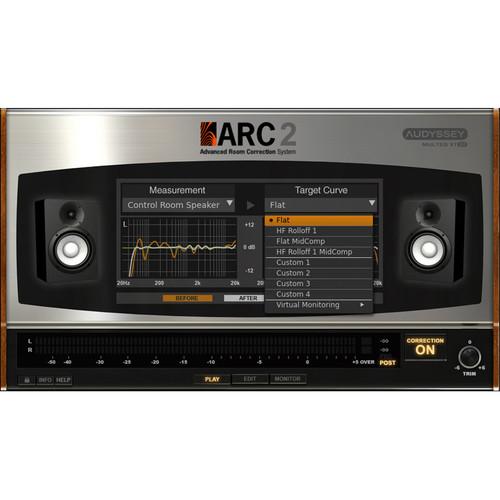

- Customizable target curves to match engineer's personal taste
- "Virtual Monitoring" feature mimics the sound of various listening devices like popular studio monitors, car systems, boom boxes, etc. allowing to the test of how mixes translate on different systems

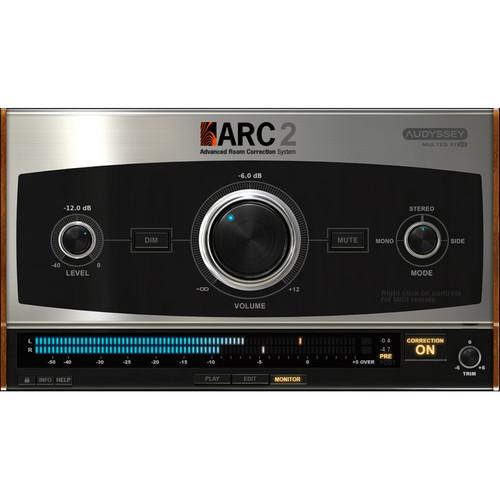

- Monitor Control panel interface streamlines workflow
- Fewer measurements now get higher-quality results and shortens setup time
- Measurements can be saved and used for multiple correction setups
- General
-
- DAW-based acoustic room-correction plug-in
- Includes measurement software and multi-platform correction plug-in
- Improves clarity, stereo imaging and frequency response of the monitoring system for faster and more reliable mixing
- Low-end alterations, typically added by small rooms, are removed with better low-frequency control, with more consistent frequency response across the entire frequency range
- Audyssey MultEQ XT32 technology corrects frequency and phase response not only for the engineer's "sweet spot", but also multiple points in the room
- Step-by-step setup measurement wizard helps the user get up and running in minutes
- Convenient and mobile correction solution for the traveling engineer
- 64-bit native plug-in compatibility
Table of Contents
|
Upload User Manual
Have you got an user manual for the IK Multimedia ARC System 2 Room Correction System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIK Multimedia AC-200-DDU-IN Specs | Measurement Software | Automatic multi-point room-measurement system, wizard based
Measurement precision when used with ARC System microphone: +/- 1.5 dB
Requires 48 kHz operation (only for measurements)
Requires ASIO Audio Hardware on Windows 7, Vista or XP, CoreAudio on Mac OS X
Saves Measurements sets to be opened on the ARC System Correction Plug-In | | Correction Plug-In | Multi-platform high-quality frequency- AND time-correction processor
Correction precision when used with ARC System microphone: +/- 1.5 dB
Correction processor resolution: 32-bit floating point
Correction processor supported sampling rates: 44.1 to 192 kHz
Four target curves

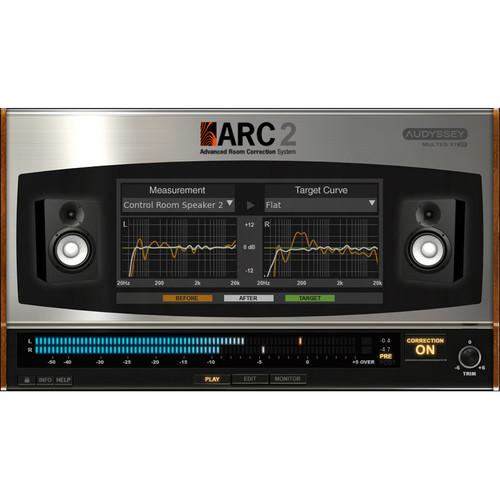

Graphic frequency-response display | | System Requirements | Mac
1.5 GHz Intel processor minimum
OS X 10.6 or later
1 GB RAM
Supported Plug-in formats - Audio Units, AAX, RTAS, VST
Requires a Core Audio-compatible audio interface that supports 48 kHz sampling rate (for room measurement)
32- and 64-bit
Windows
Intel Pentium IV 2.4 GHz or Intel CoreDuo or AMD Athlon 64 minimum
Windows XP, Vista, 7, 8, 10
1 GB RAM
Supported Plug-in formats - AAX, RTAS, VST
Requires ASIO-compatible audio interface that supports 48 kHz sampling rate (for room measurement)
32- and 64-bit |
