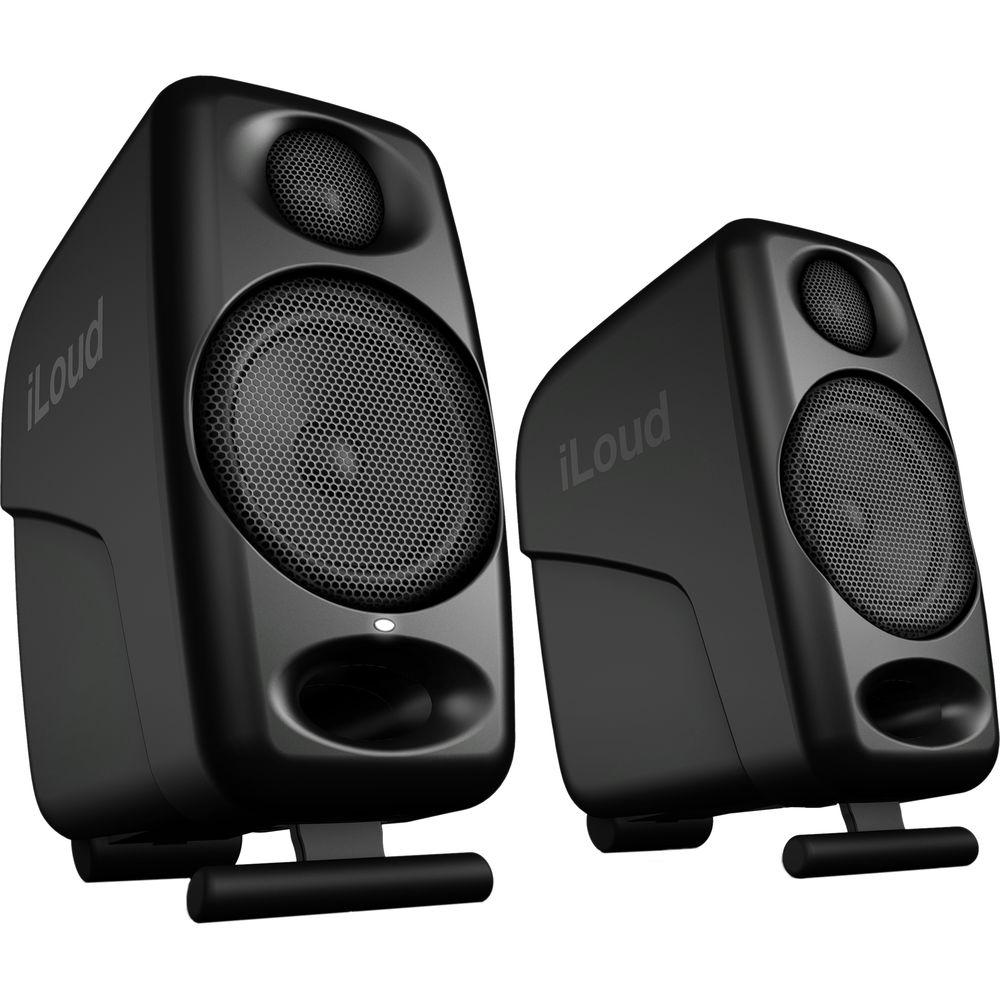

Product description It's a Small World: IK Multimedia iLoud Micro Monitors Read More Styled in a black finish, the iLoud Micro Monitors by IK Multimedia comprise a pair of Bluetooth-powered studio quality speakers in an exceedingly compact frame. Although they are designed to accommodate most iOS and Android devices through Bluetooth, they can also be sounded via a built-in 1/8" (3.5mm) auxiliary input, as well as a pair of unbalanced RCA inputs.

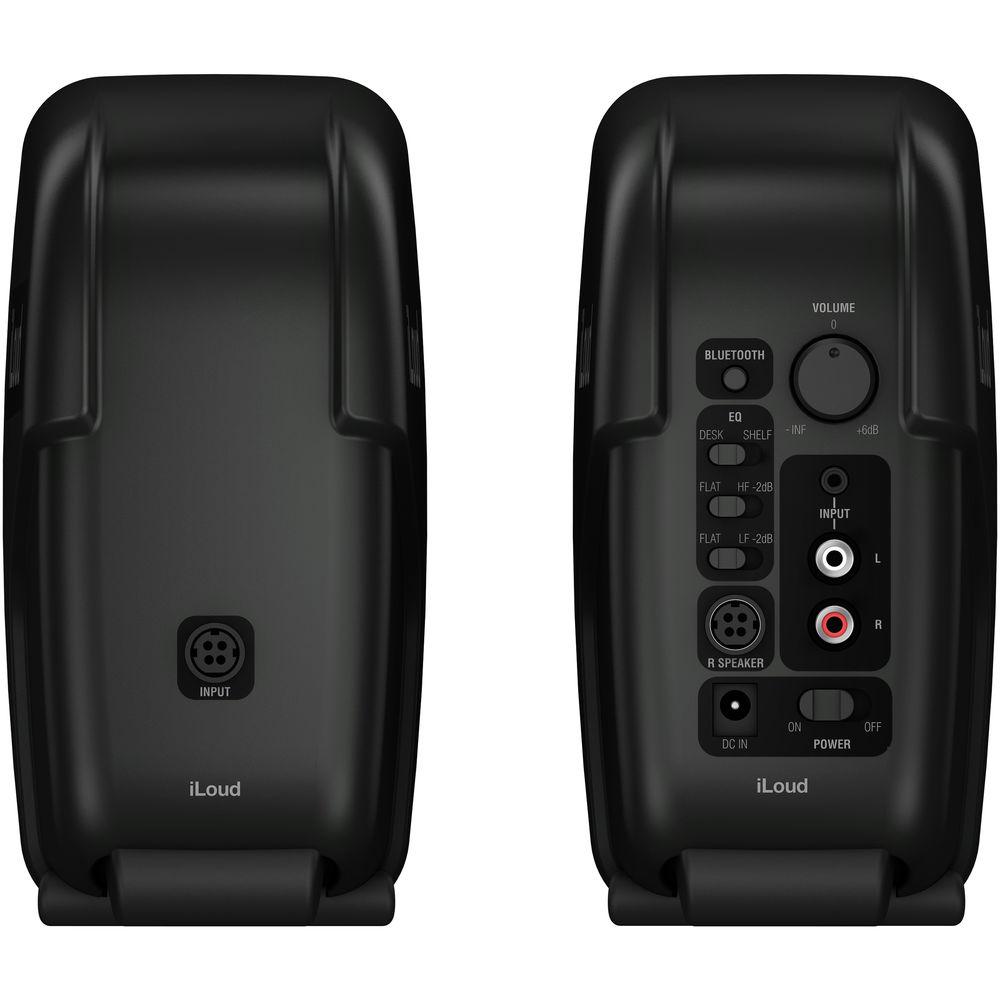

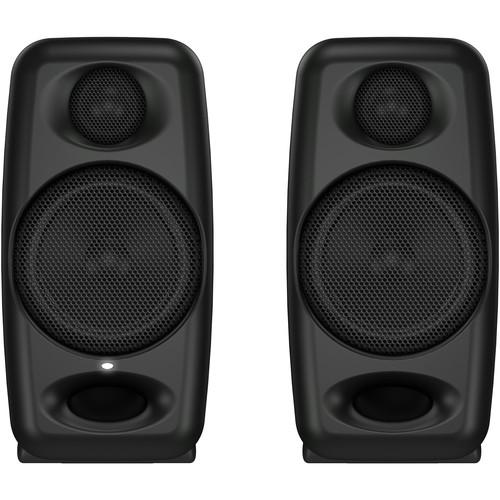

The monitors themselves are comprised of two 3/4" tweeters and two 3" woofers (one tweeter and one woofer per monitor) and are augmented by an onboard 56-bit DSP processor designed to ensure linear frequency response. On the rear panel of the left monitor, you'll find a three-band EQ section. This allows you to tune both speakers to any given listening environment. Due to the size, portability, and tuning options of these speakers, they will suit many different listening environments. - Key Features
-
- Twp 2-way bi-amped monitors
- Onboard DSP to ensure linear frequency response
- Four Class-D power amps
- 50W RMS total power
- High- and low-frequency adjustment switches
- Status/peak LED
- Desktop switch to aid in accurate response correction when placed atop desks
In the Box IK Multimedia iLoud Micro Monitors (Pair, Black) 4-Pin Speaker Connector Cable Limited 1-Year Warranty Limited 90-Day Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the IK Multimedia iLoud Micro Monitors in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIK Multimedia iLoud Specs | Type | 2-way active, bi-amped studio monitor | | Frequency Response | 55 Hz to 20 kHz (-3 dB)
45 to 22 kHz (-10 dB) | | Crossover Frequency | 3 kHz | | Tweeter | 0.75" / 19.1 mm silk dome, neodymium magnet | | Woofer | 3.0" / 76.2 mm high-rigidity custom composite material | | Maximum SPL | 107 dB at 21.7" / 50 cm (with two speakers playing; averaged sine wave from 100 Hz to 10 kHz) | | Amplifiers | 4 x Class-D | | Output Power | Total Output, Both Speakers: 70 W peak, 50 W RMS
Low Frequency Output Power, Single Speaker: 18 W RMS
High Frequency Output Power, Single Speaker: 7 W RMS | | Settings | High shelf (0 dB or +2 dB, 4 kHz and higher)
Low shelf (0 dB or -3 dB, 250 Hz and lower)
Desktop (+3.5 dB between 1 kHz and 10 kHz, -1 dB below 400 Hz) | | System Latency | Analog Input: 1.0 ms
Bluetooth Input: 155 ms, depending on host implementation (tested on iPhone 6S, iOS 10.0.1) | | Input | Bluetooth
1 x 3.5 mm jack
2 x RCA jack
1 x 4-pin speaker connector | | Bluetooth | Compatible with A2DP protocol | | Dimensions | 7.1 x 5.3 x 3.5" / 18.0 x 13.5 x 9.0 cm | | Weight | Left Speaker: 32.5 oz / 919.9 g
Right Speaker: 28.2 oz / 800.0 g
Combined Speakers: 60.7 oz / 1720.0 g | | | | Package Weight | 6.75 lb | | Box Dimensions (LxWxH) | 12.0 x 9.3 x 7.0" |
