Product description - iLoud MTM - Studio monitoring re-invented

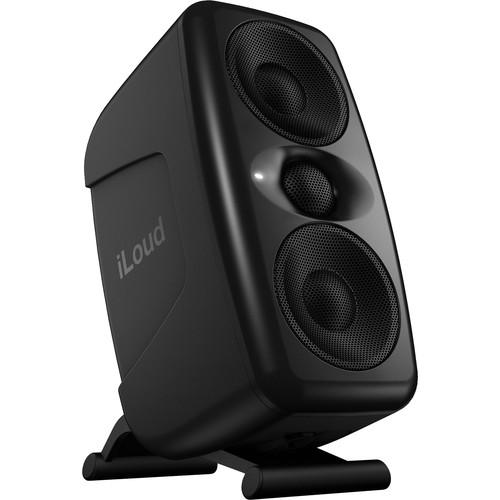

The IK Multimedia iLoud MTM is a compact high-resolution studio monitor designed to deliver accurate, uncolored sound for professional recording studios, project studios, and broadcast applications. IK Multimedia's patent-pending Physical Response Linearization (PRL) system uses a precise model of the enclosure’s design, construction and materials, combined with electro-mechanical measurements of the real units, to correct the system’s performance in real time, which results in a flat frequency response, accurate phase, and a firm, balanced bass output that competes with other monitors that are twice the size.

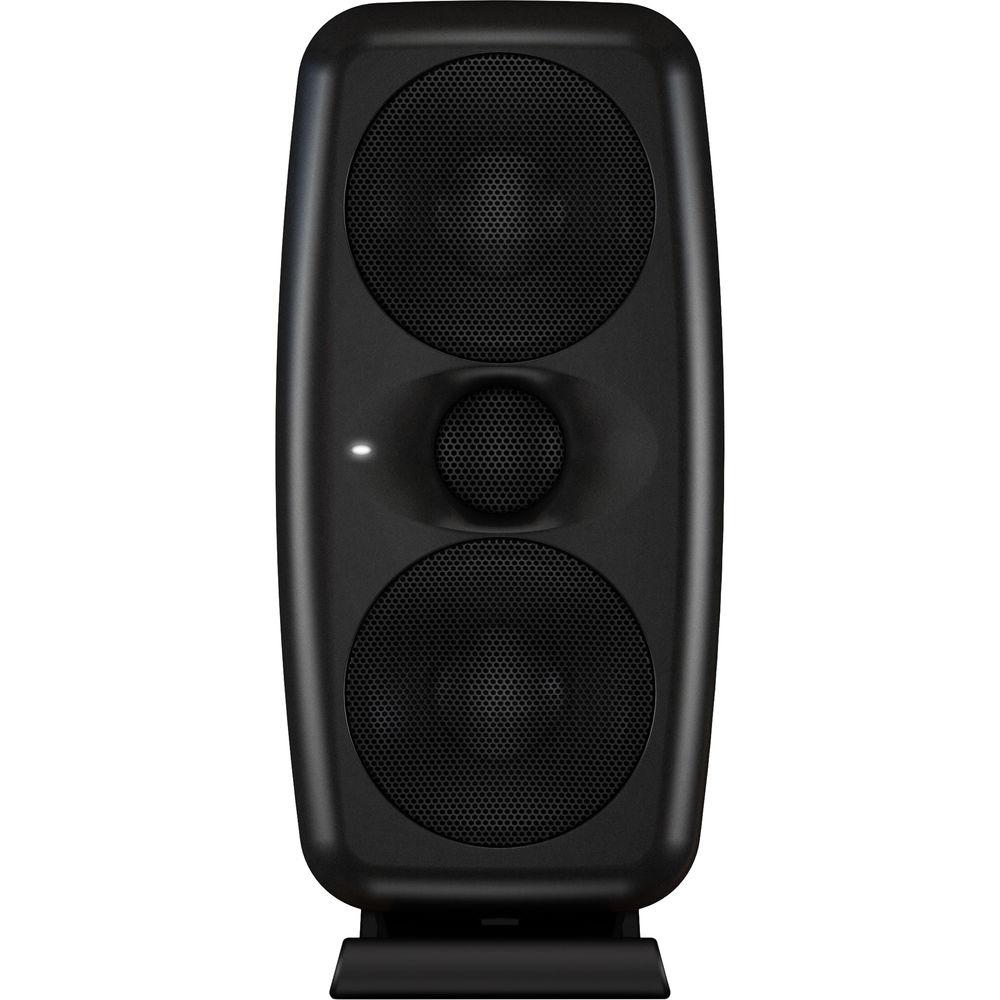

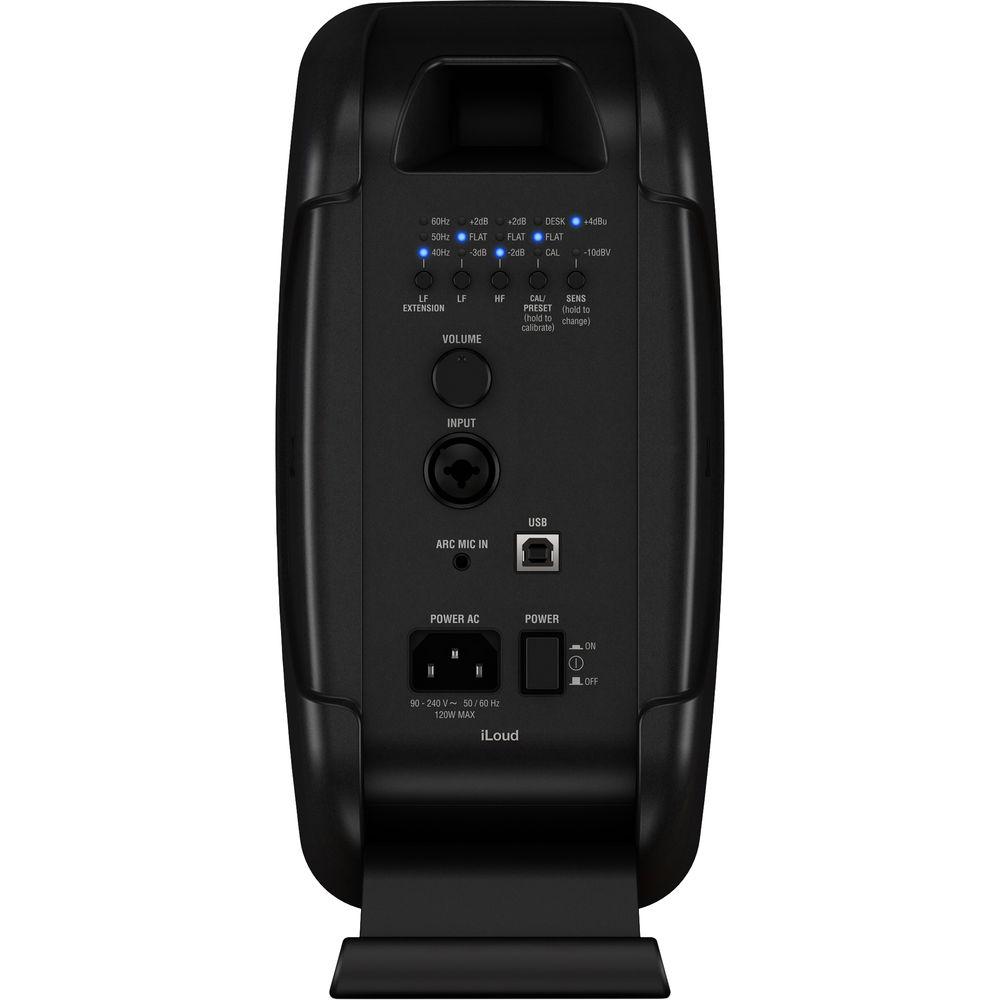

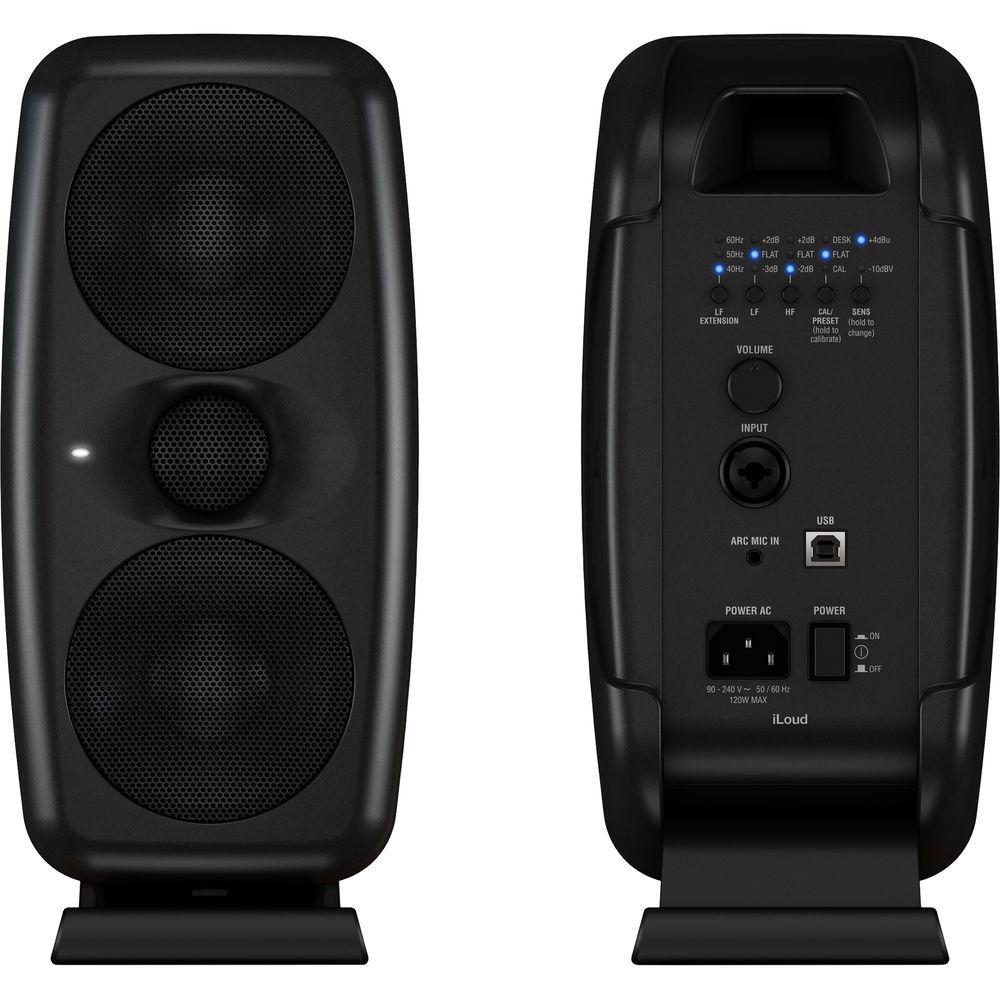

The MTM features a 100W Class-D bi-amplifier which drives 70W to the two 3.5" high-performance woofers and 30W to the single, back-chambered silk-dome tweeter, which combine for a frequency response of 40 Hz to 24 kHz and a maximum SPL output of 103 dB. The iLoud MTM offers built-in acoustic self-calibration via the included ARC reference microphone, which automatically adjusts the built-in DSP for true phase-coherency and precise, defined point-source sound. The rear panel also offers options to further customize user settings including LF extension, LF boost/cut, and HF boost/cut.

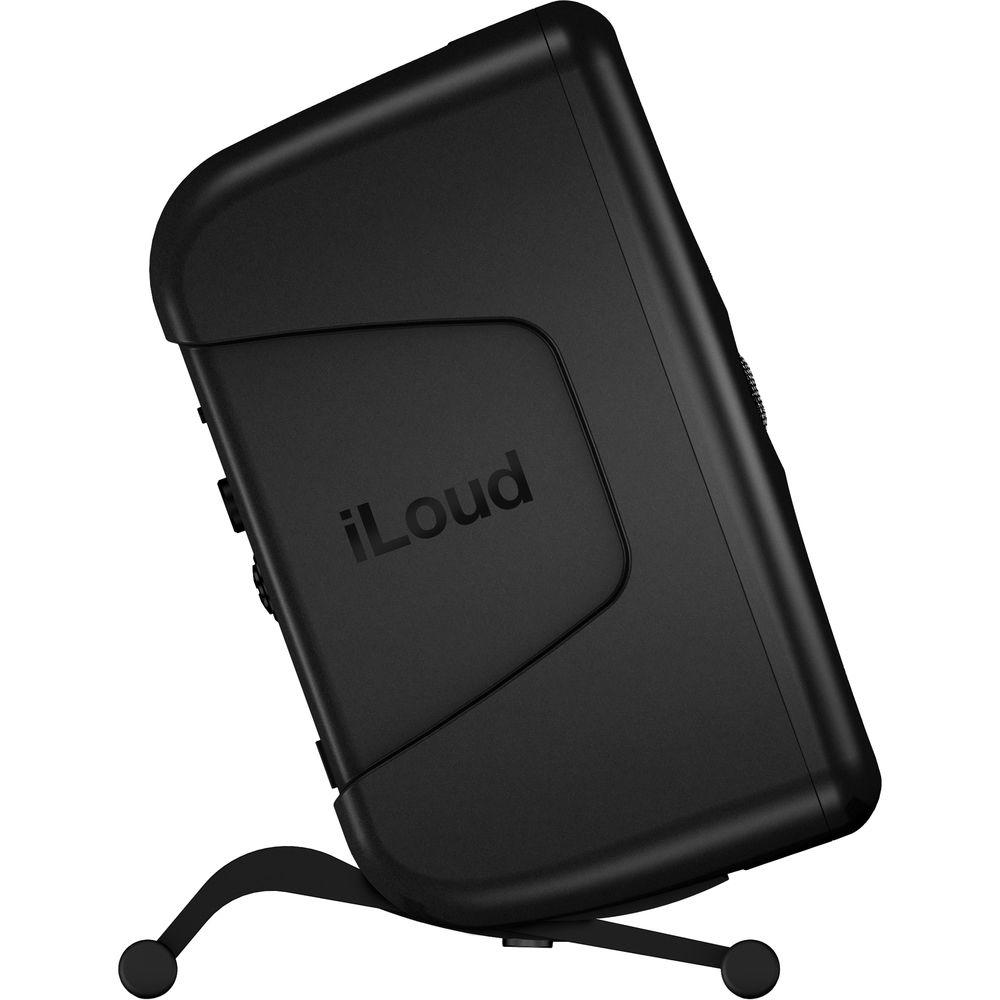

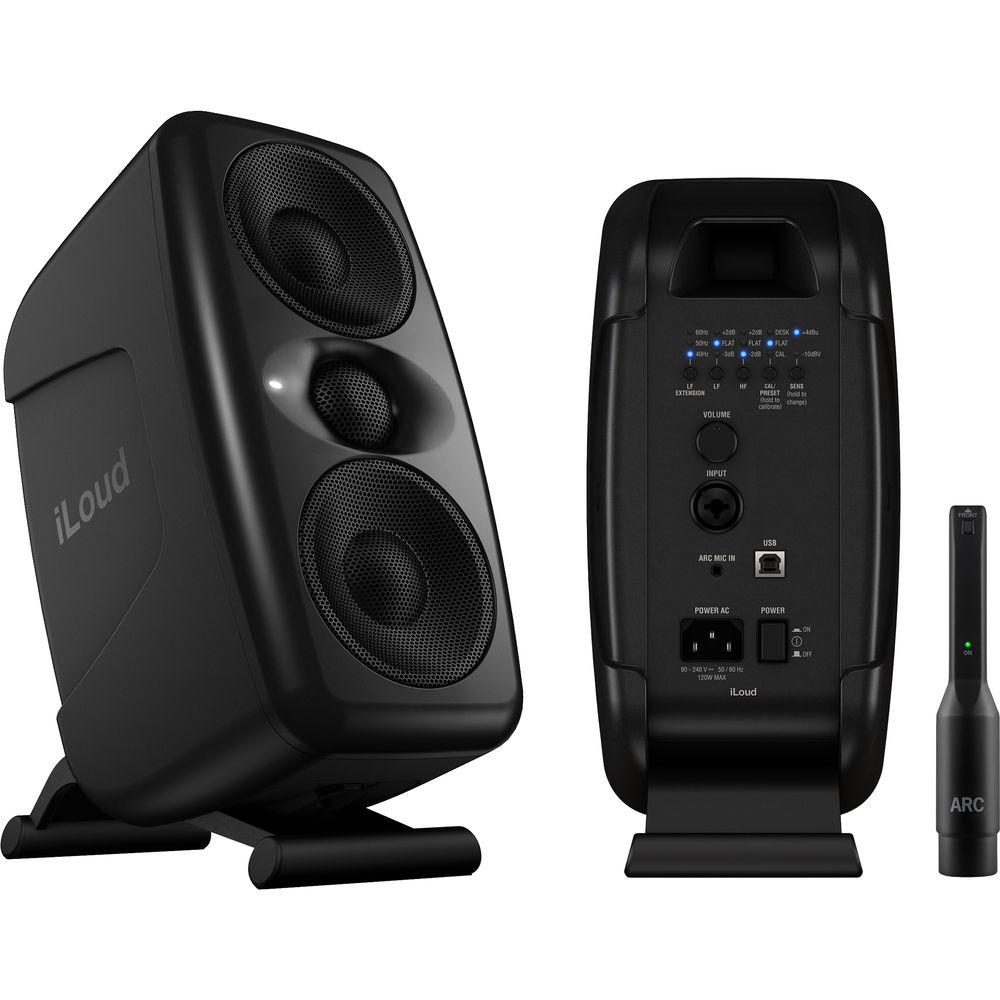

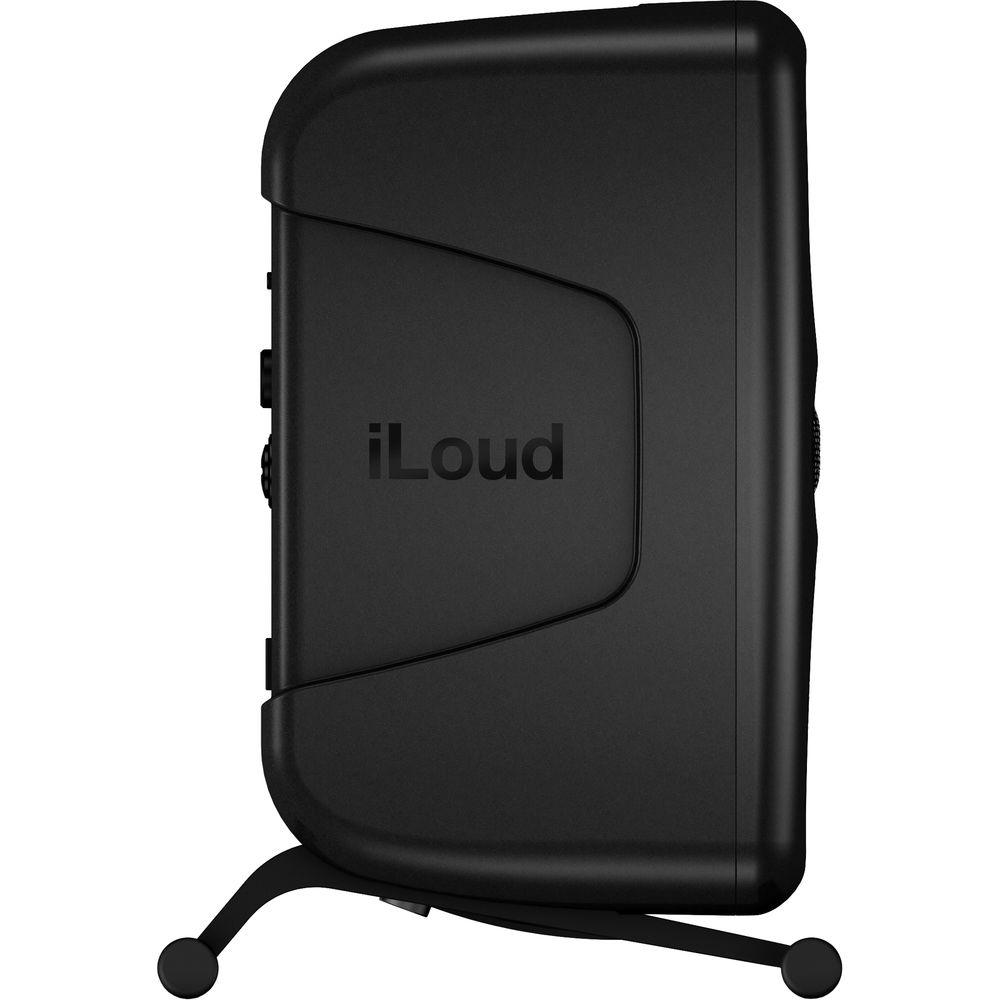

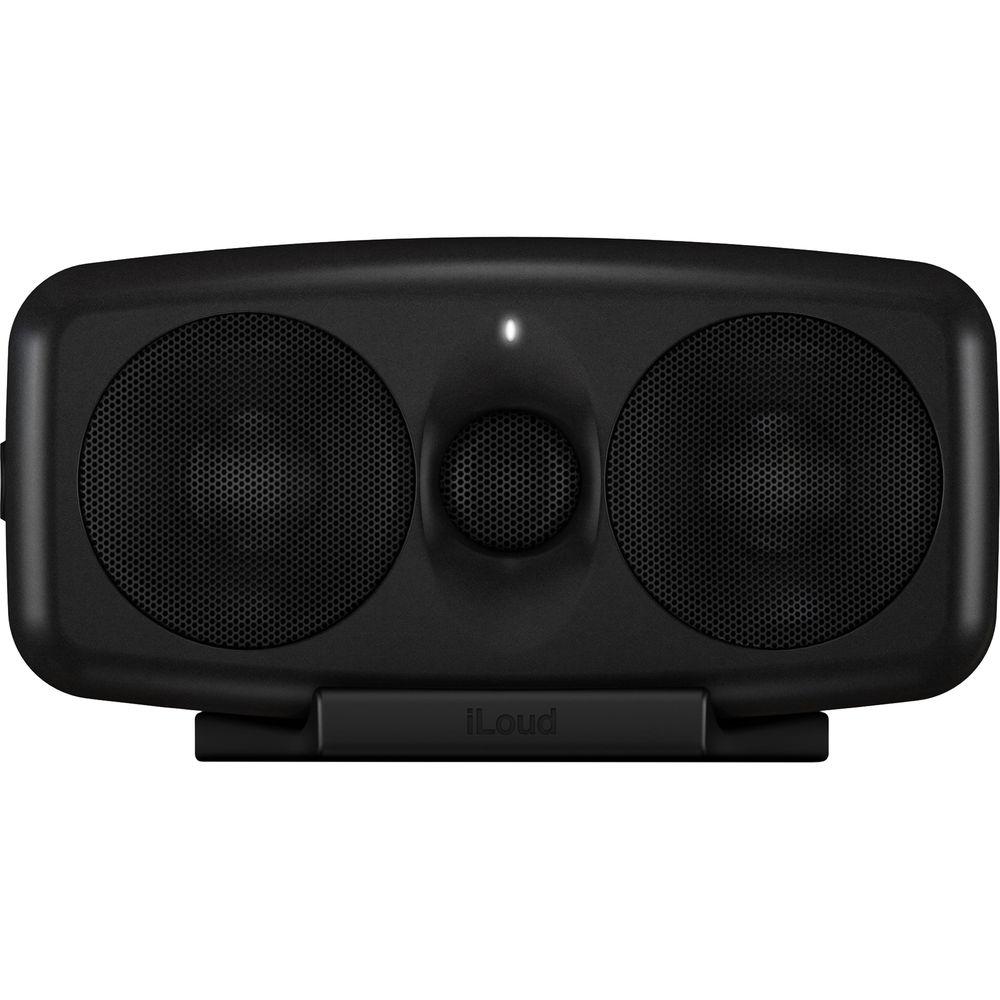

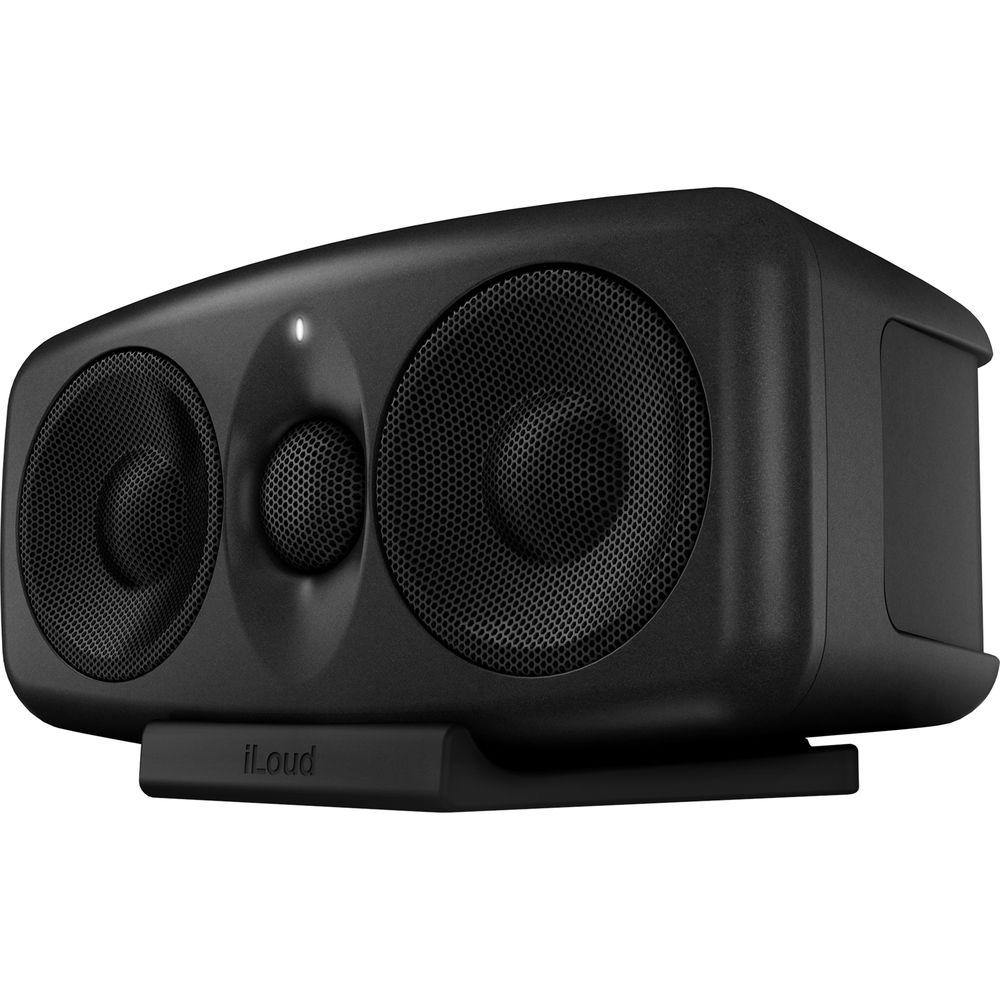

The included tilt mount allows you to set an angle from 0° to 20°, which helps isolate the dispersion away from flat surfaces, such as desktops or mixing boards. A horizontal bass is also provided and includes a bottom thread to mount to mic stands for more installation options. The IK Multimedia iLoud MTM Monitor includes the ARC microphone, an ARC mic cable, a power cord, a tilt stand, a horizontal support, and a locking key. -
- Designed for accurate sound focus and controlled sound dispersion
- Two 3.5” high performance polypropylene woofers
- Single 1” back-chamber loaded silk dome tweeter
- 100W 2-way bi-amped speaker with Class-D amplifiers
- 103 dB max SPL
- Flat 40 Hz to 24 kHz frequency response
- Coherent phase response within +/-15° from 200 Hz to 24 kHz
- XLR-1/4" combo input, -10 dBv or +4 dBu selectable sensitivity
- EQ controls: LF extension, LF boost/cut, HF boost/cut
- Automatic environment calibration with included ARC measurement microphone
- Compact dimensions for easy positioning even in the smallest place
- Multiple positioning with included 20° tilt range insulation base, horizontal base, and built-in mic stand thread
In the Box IK Multimedia iLoud MTM - High Resolution Compact Studio Monitor (Single) Power Cord ARC Microphone ARC Microphone Cable Tilt Stands Sets of Horizontal Support Feet Locking Key Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the IK Multimedia iLoud MTM - High Resolution Compact Studio Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIK Multimedia iLOUD MTM Specs | | | Monitor Type | Active 2-Way | | Enclosure | Bass-Reflex, Shielded | | Power Rating | 100 W RMS | | Drivers | LF Driver: 2 x 3.5" / 88.9 mm Polypropylene Woofer
HF Driver: 1 x 1" / 25.4 mm Silk Dome Tweeter | | Amplification | LF Amplifier: Class-D Rated at 70 W RMS
HF Amplifier: Class-D Rated at 30 W RMS | | | | Frequency Range | 40 Hz to 24 kHz ± 3 dB | | Frequency Response | 40 Hz to 24 kHz ± 3 dB | | Maximum Sound Pressure Level (SPL) | 103 dB | | Phase Adjustment | None | | | | Crossover Frequency | High-Pass Frequency: 3.1 kHz | | Crossover Type | Active | | | | I/O | 1 x Combo XLR / 1/4" Balanced Female Analog Input
1 x 1/8" / 3.5 mm TS Unbalanced Female Analog Input | | Computer Interface | 1 x USB Type-B | | | | AC Input Power | 90 to 240 VAC at 50/60 Hz | | Power Consumption | 120 W (Maximum) | | | | Dimensions (W x H x D) | 10.4 x 6.3 x 5.1" / 264.2 x 160.0 x 129.5 mm (Active Speaker) | | Weight | 5.5 lb / 2.5 kg (Each) |
