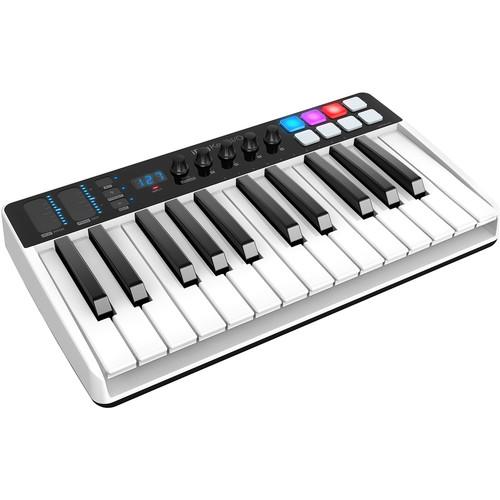

Product description The IK Multimedia iRig Keys I/O integrates a 25-note full-sized keyboard with a professional 24-bit / 96 kHz audio interface with balanced stereo and headphone outputs, plus a combo input jack for line, instrument, or mic input (with phantom power).

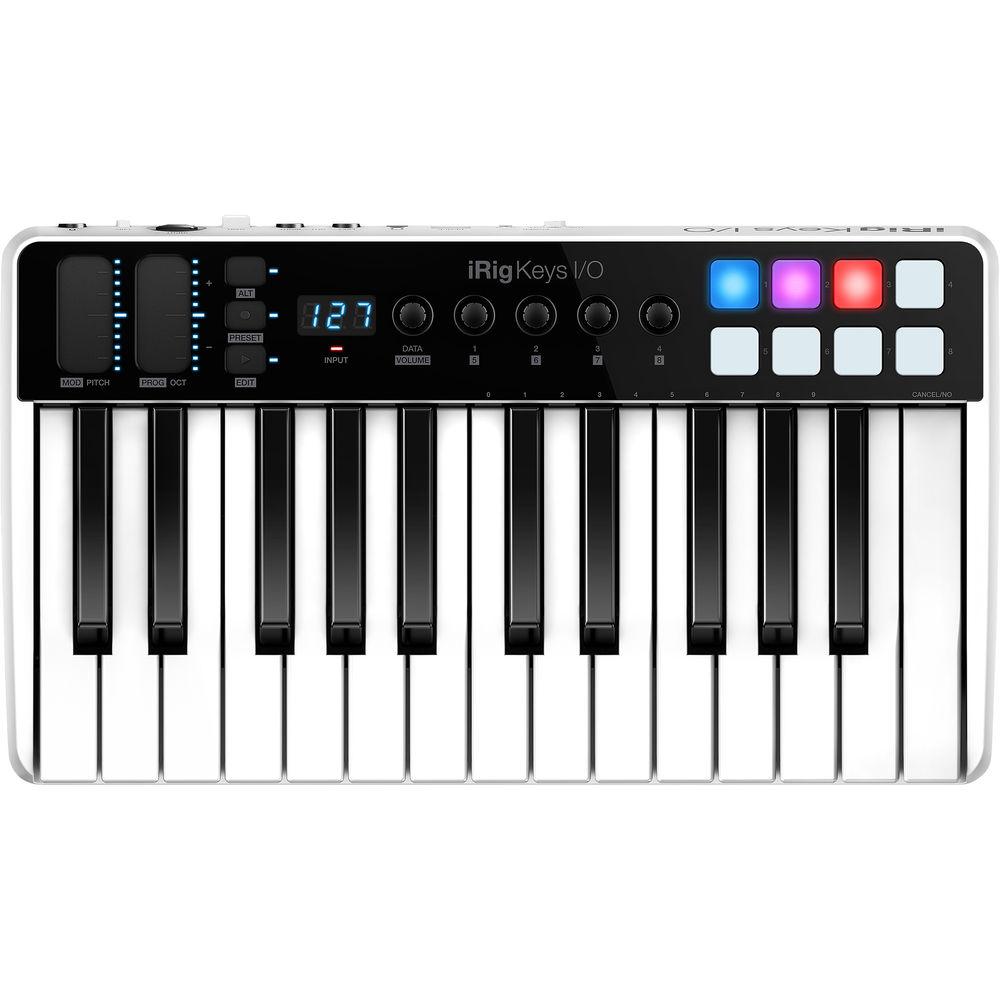

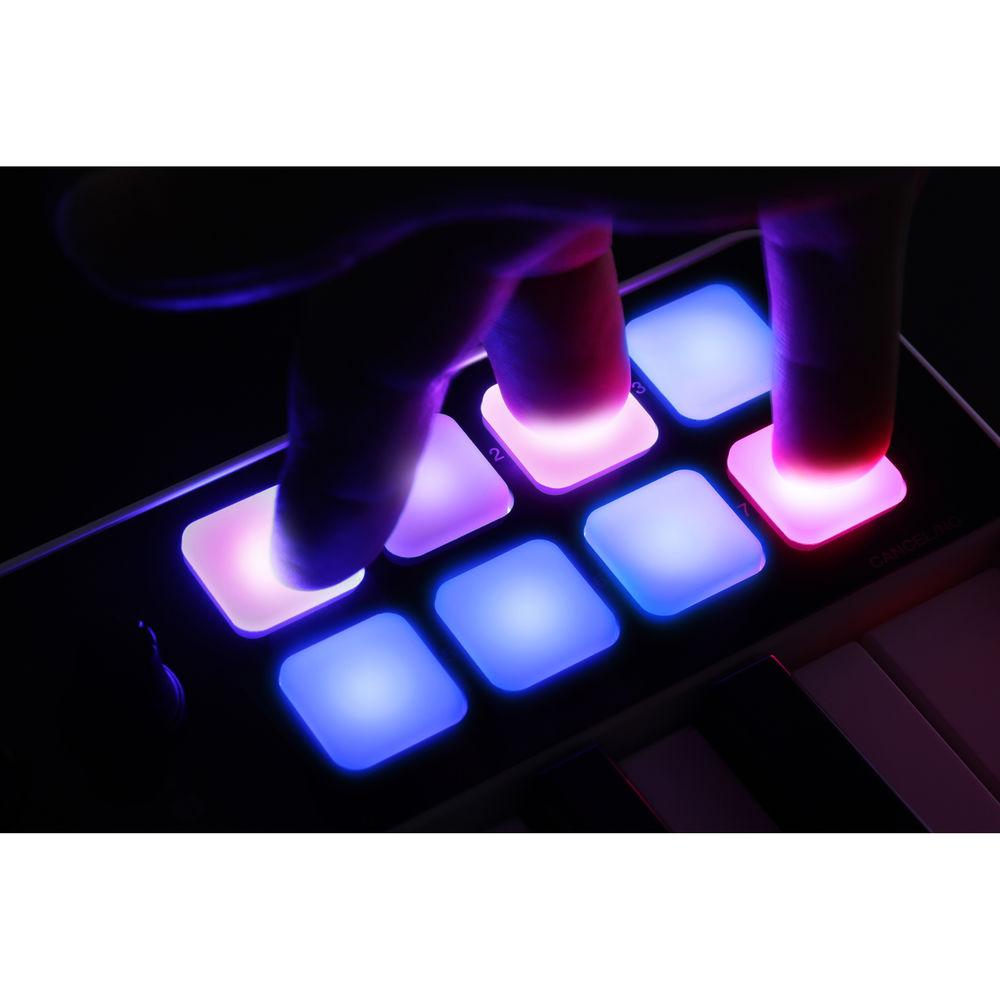

The keyboard controller offers a fast, synth-action keybed and features one volume/data push knob, four touch-sensitive control knobs on two banks (acting as 8 total controls), and eight multicolored, velocity-sensitive pads. There are 2 fully programmable touch-control strips acting by default as pitch and mod controls, allowing for dramatic performances in any genre and doubling as fully programmable sliders.

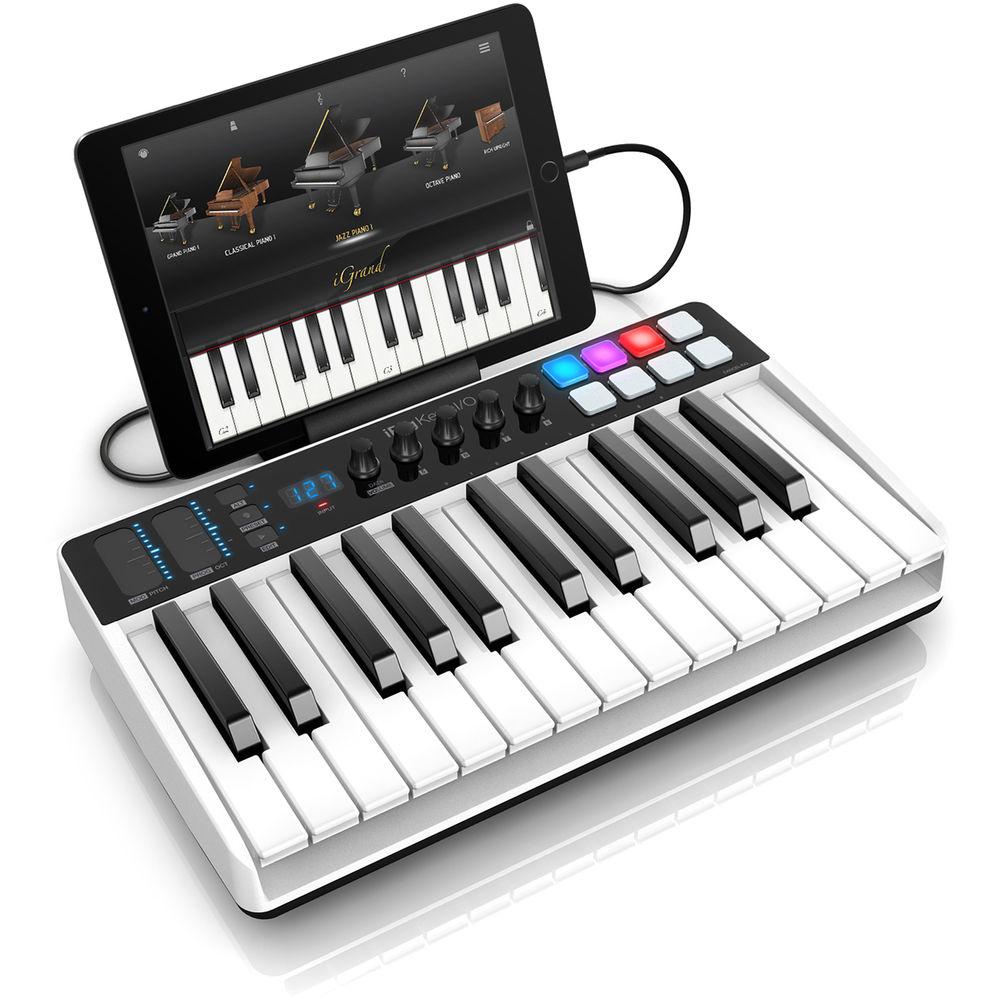

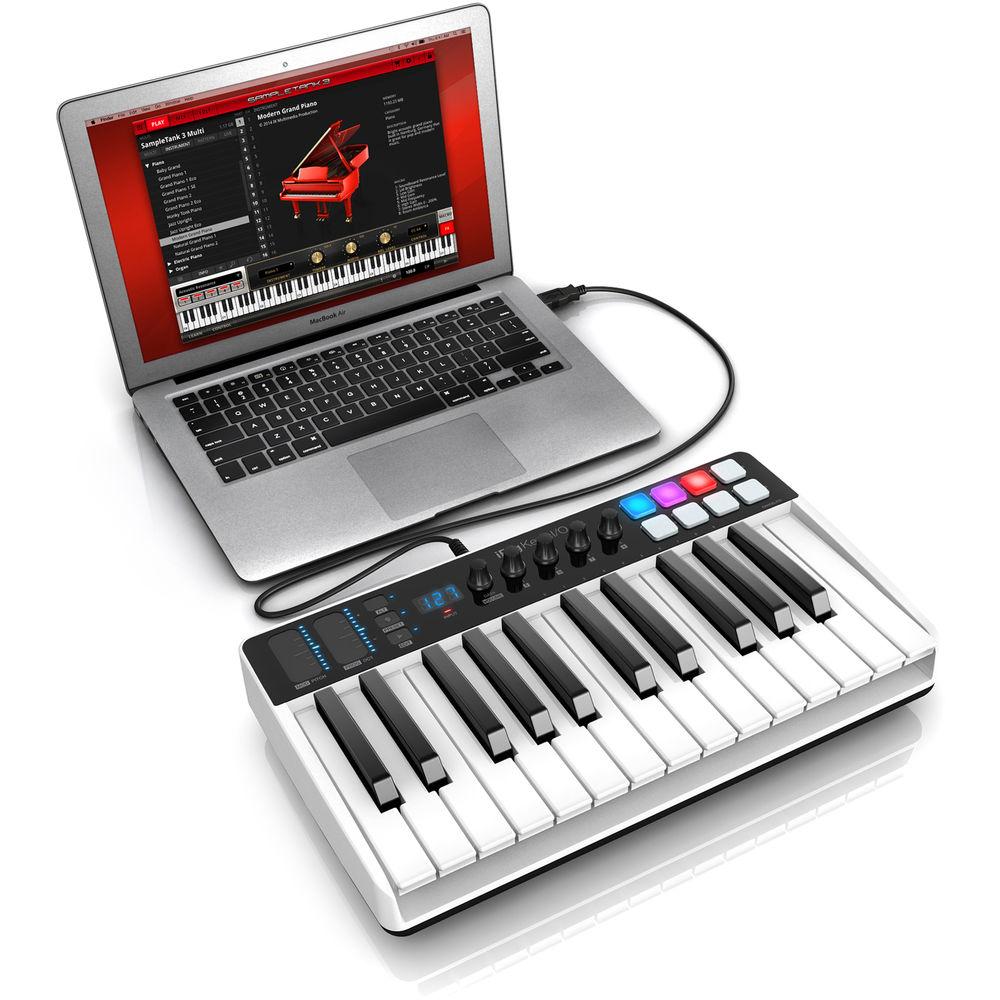

The iRig Keys I/O is an Apple MFi keyboard controller (Made for iPod, iPhone, iPad,) and is guaranteed to work out of the box with all iOS devices including the latest generation of iPhone 10. The included Lightning cable allows for straight plug-and-play with Apple iOS devices. The USB cable connects Mac and Windows computers. The controller can be powered via USB or by the included AA batteries. Additionally, an optional power supply adapter is available that not only powers the iRig Keys I/O, but also keeps your device charged simultaneously. Optional accessories are available including a padded carry bag and the iRig Keys I/O Mic with a sturdy gooseneck.
The iRig Keys I/O ships with IK software and apps for creating complete, finished productions out of the box including the full SampleTank 3 sound and groove workstation, Miroslav Philharmonik 2 CE orchestral workstation, Syntronik Pro-V vintage synthesizer, and T-RackS Deluxe mixing and mastering suite. The IK Multimedia iRig Keys I/O ships with a lightning to mini-DIN connection cable, a USB to mini-MIN connection cable, an iPhone/iPad stand, and four AA batteries. -
- All-in-one, fully portable, ultra-compact MIDI controller with 24-bit / 96 kHz capable input/output audio interface for iPhone, iPad, Mac and PC
- 25 full-sized keys with smooth, velocity-sensitive, synth-action
- Smart, ultra-compact, elegant design
- Easily transportable, fits anywhere
- MFi certified by Apple (Made for iPhone and iPad) includes Lightning cable

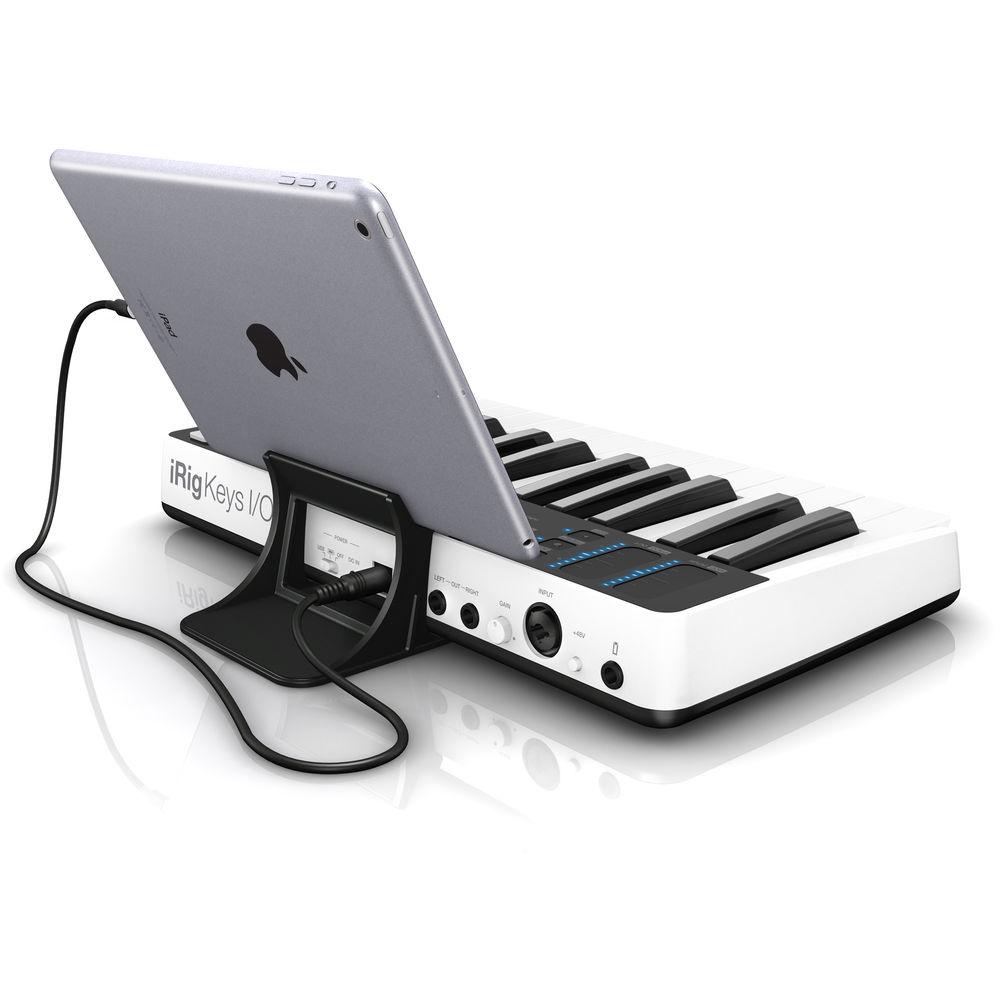

- Includes mobile device support stand
- Comprehensive Controls: 2 slider strips for pitch and modulation (user programmable), octave, program change, and transport controls, 5 programmable touch sensitive knobs, 8 velocity-sensitive multicolored assignable pads

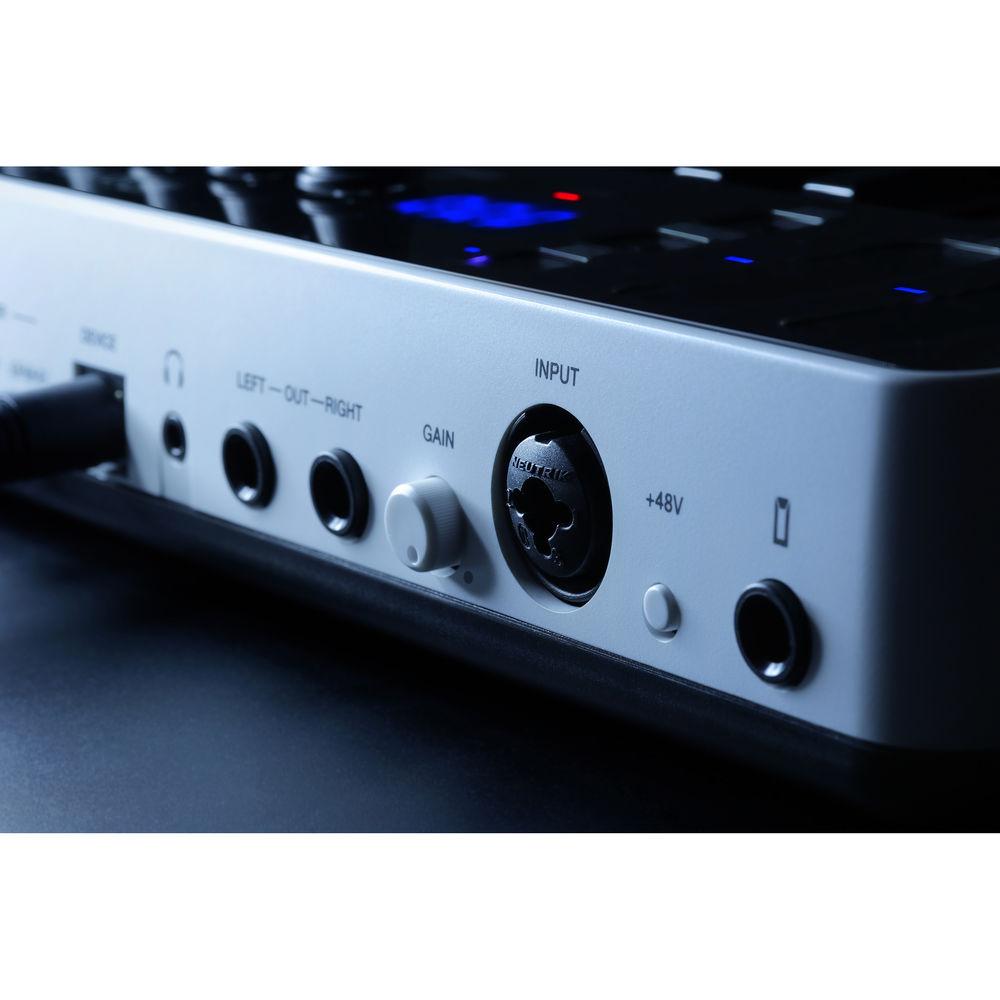

- Neutrik combo input jack for line, instrument or microphones
- 48V phantom power button
- Balanced stereo 1/4" and 1/8" headphone outputs
- Powered by USB, 4 x AA batteries or optional external power supply (charges your iOS device)
- Includes a comprehensive collection of software instruments and pro studio processors
- Optional iRig Keys I/O travel bag available
- Optional iRig Keys I/O gooseneck microphone available
In the Box IK Multimedia iRig Keys I/O - Controller/Audio Interface for iPhone, iPad, and Mac/Windows (25-Keys) Lightning to Mini-DIN Connection Cable USB to Mini-DIN Connection Cable iPhone/iPad stand 4 x AA Batteries Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the IK Multimedia iRig Keys I O - Controller Audio Interface for iPhone, iPad, and Mac Windows in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIK Multimedia iRig Keys I/O Specs | | | Keyboard | 25 Full-Size Keys, Synth Action with Velocity | | MIDI Control Surfaces | 1 x Ribbon Controller (Pitch-Bend)
1 x Ribbon Controller (Modulation)
8 x Pads (Velocity-Sensitive)

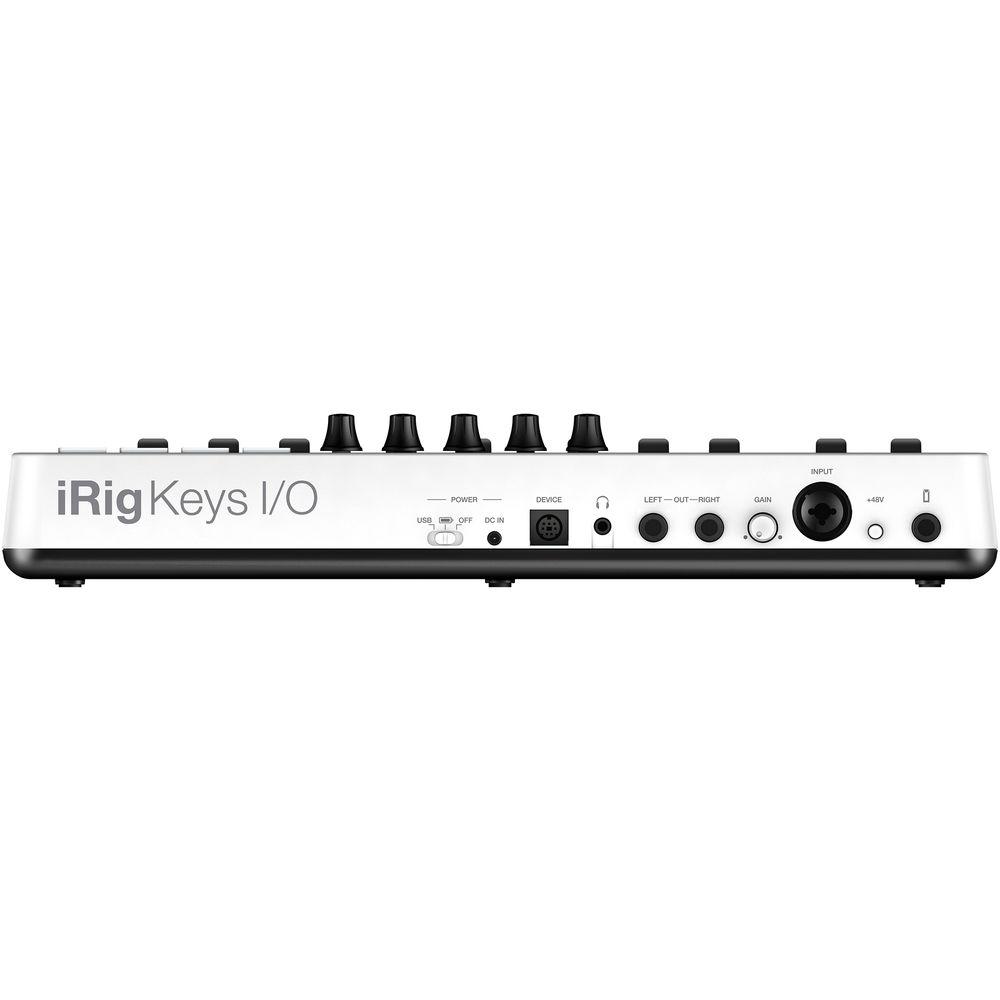

5 x Rotary Encoders (Clickable) | | Performance Functions | Octave Shift and Transport Controls | | | | I/O | 1 x Combo XLR / 1/4" TS Mic/Hi-Z Input
1 x USB Type-B
1 x 1/8" (3.5 mm) TRS Headphone Output
2 x 1/4" (6.3 mm) TRS Audio Output
1 x 1/4" (6.3 mm) TRS Pedal Input | | OS Compatibility | macOS 10.6 or Later
Windows 7 or Later
iOS 6 or Later | | | | Power Options | AC/DC Power Adapter (Not Included), Battery, USB Bus-Power | | AC/DC Power Adapter | Not Included Uses iRig PSU 3 A Power Supply | | Battery Type | 4 x AA (Included) | | | | Dimensions (W x D x H) | 14.7 x 8.2 x 2.6" / 373.0 x 208.0 x 65.0 mm | | Weight | 2.8 lb / 1.3 kg | | | | Package Weight | 4.6 lb | | Box Dimensions (LxWxH) | 16.5 x 12.0 x 4.0" |
