User Manual for IK Multimedia iRig Mic Studio, Portable Large-Diaphragm Digital Microphone Click to enlarge the picture
Contents of the user manual for the IK Multimedia iRig Mic Studio, Portable
- Product category: Mobile Microphones IK Multimedia
- Brand: IK Multimedia
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for IK Multimedia Mobile Microphones
 |
User manual for the IK Multimedia iRig Mic Studio, Portable contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any IK Multimedia product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official IK Multimedia user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a IK Multimedia product will considerably shorten its lifespan!
|

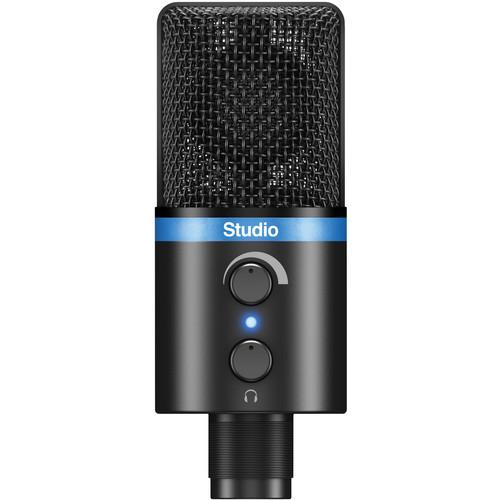

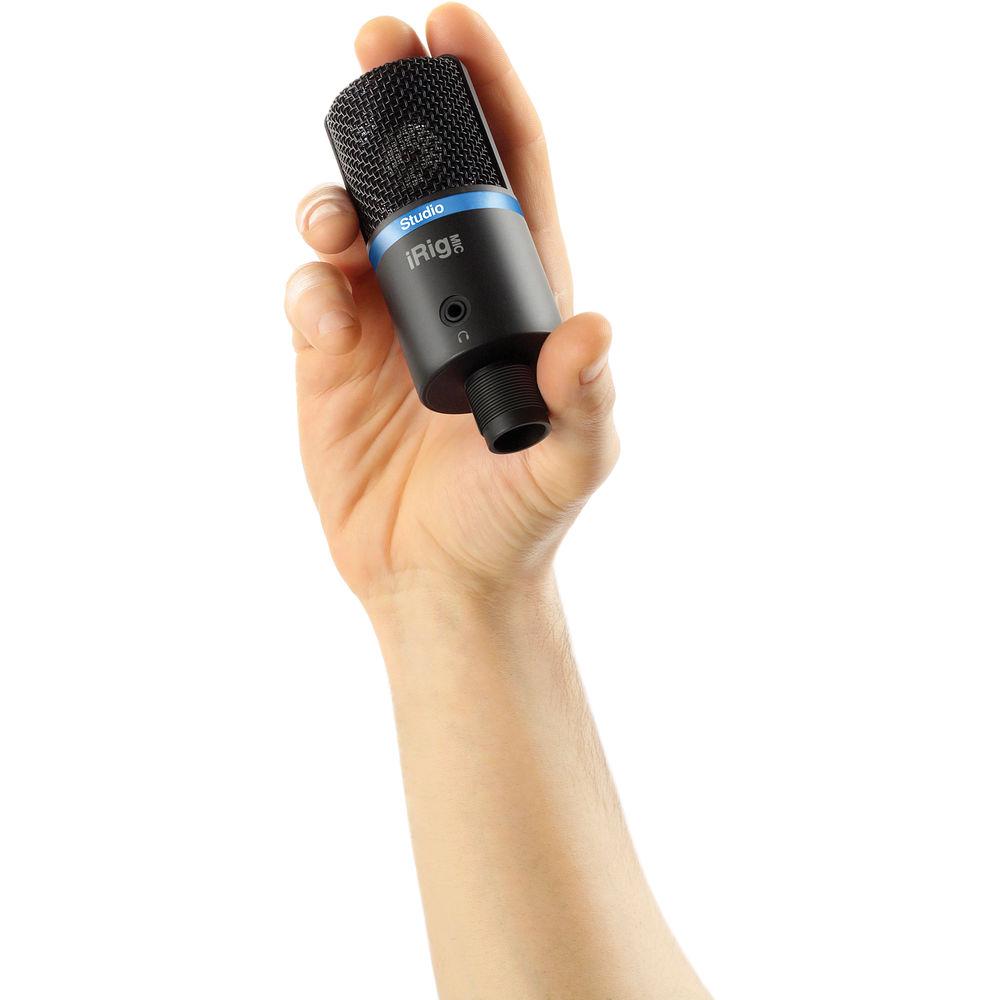

Product description The black iRig Mic Studio from IK Multimedia is a portable large-diaphragm digital condenser microphone with a 1" diameter condenser capsule for iPhone, iPad, iPod touch, Mac, PC, and Android devices. It can be used to capture audio in applications for musicians, vocalists, producers, podcasters, broadcasters, voice-over artists, and much more. Notably, other features of the iRig Mic Studio include a 24-bit converter with a 44.1/48 kHz sampling rate, a low-noise, high-definition preamp, a headphone output, and a multicolor LED status/level indicator that are built into the mic. In addition, its compact size makes it easy to carry around. Furthermore, several accessories are included such as a portable tripod tabletop stand, a storage bag, a mic clamp, Lightning, OTG, and USB connection cables. Finally, iRig Mic Studio comes equipped with a suite of vocal apps that match its cross-platform compatibility. iPhone, iPad and iPod touch users will be able to enjoy VocaLive, which is an effects processor and multi-track recording app with 12 real-time vocal effects. Likewise, EZ Voice is a streamlined sing-along app that allows vocalists to practice with any song in their music library. Additionally, there are also straight forward apps for field recording such as podcasting, note taking, and much more. - Compatible iOS Devices

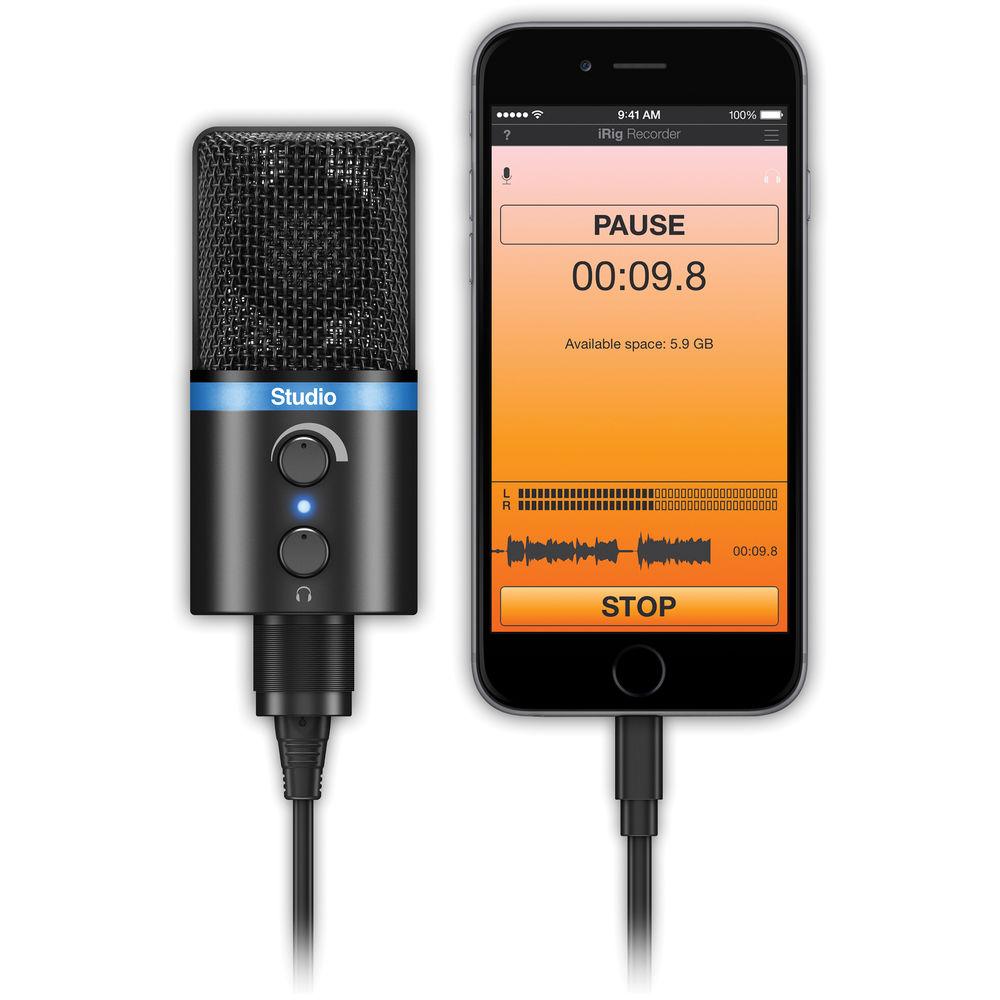

- Compatible with iPhone 6 Plus, iPhone 6, iPhone 5s, iPhone 5c, iPhone 5, iPhone 4S*, iPhone 4*, iPod touch (4th and 5th generation), iPad Air 2, iPad mini 3, iPad Air, iPad mini 2, iPad 4th generation, iPad mini, and iPad 3rd generation*
iOS 5.1 or later is required
*Using 30-pin cable (sold separately) - Compatible Android Devices
- Compatible with Android devices that support Samsung Professional Audio technology, like the Samsung Galaxy Note 4 and Galaxy Note Edge. Samsung Galaxy S5 and Galaxy Note 3 require Android 5

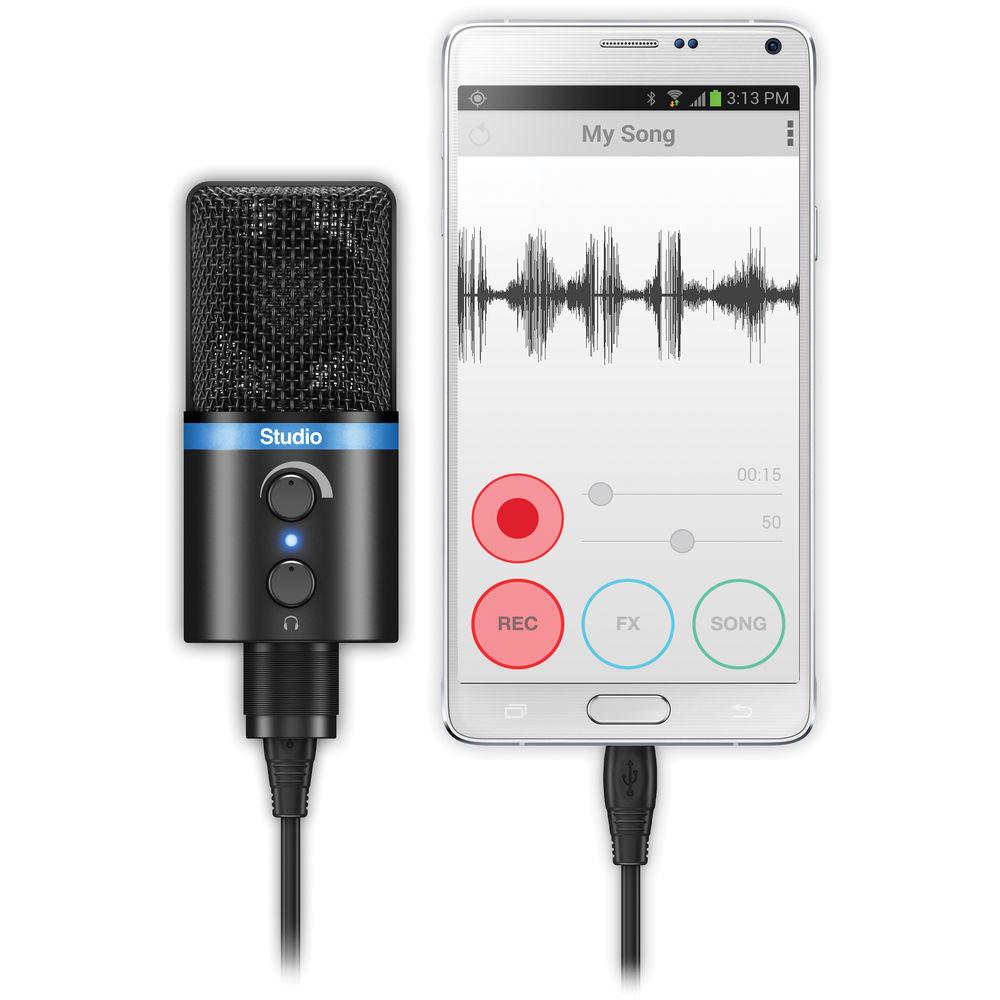

Compatible with Android devices with USB (OTG) connector running Android apps that use USB (OTG) audio input
Compatible with any Android devices with USB (OTG) connector running Android 5 - Compatible with Computers
- Mac: Mac OS X 10.6 or later; One free USB port
Windows: Support using the ASIO4ALL driver on Windows XP/Vista/7/8 - Big Sound, Small Size
- It features a large 1" diameter back electret condenser capsule, a 24-bit audiophile-grade A/D converter (with 44.1/48 kHz sample rate), and a built-in low-noise high-definition preamp
- 133 dB SPL Rating
- Allows for optimal recording at any sound pressure level - it can capture everything from the subtle and nuanced dynamics of the human voice to the full-on bombast of an amplified electric guitar, and everything in between

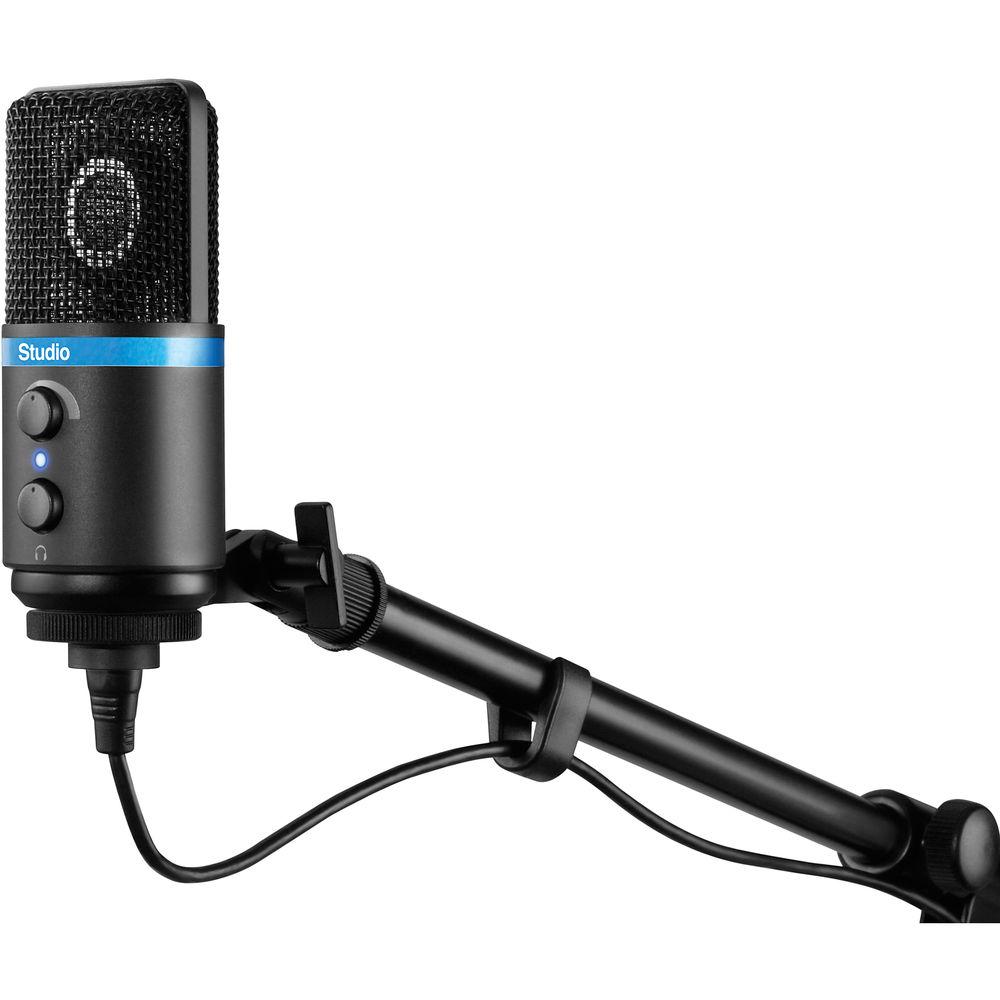

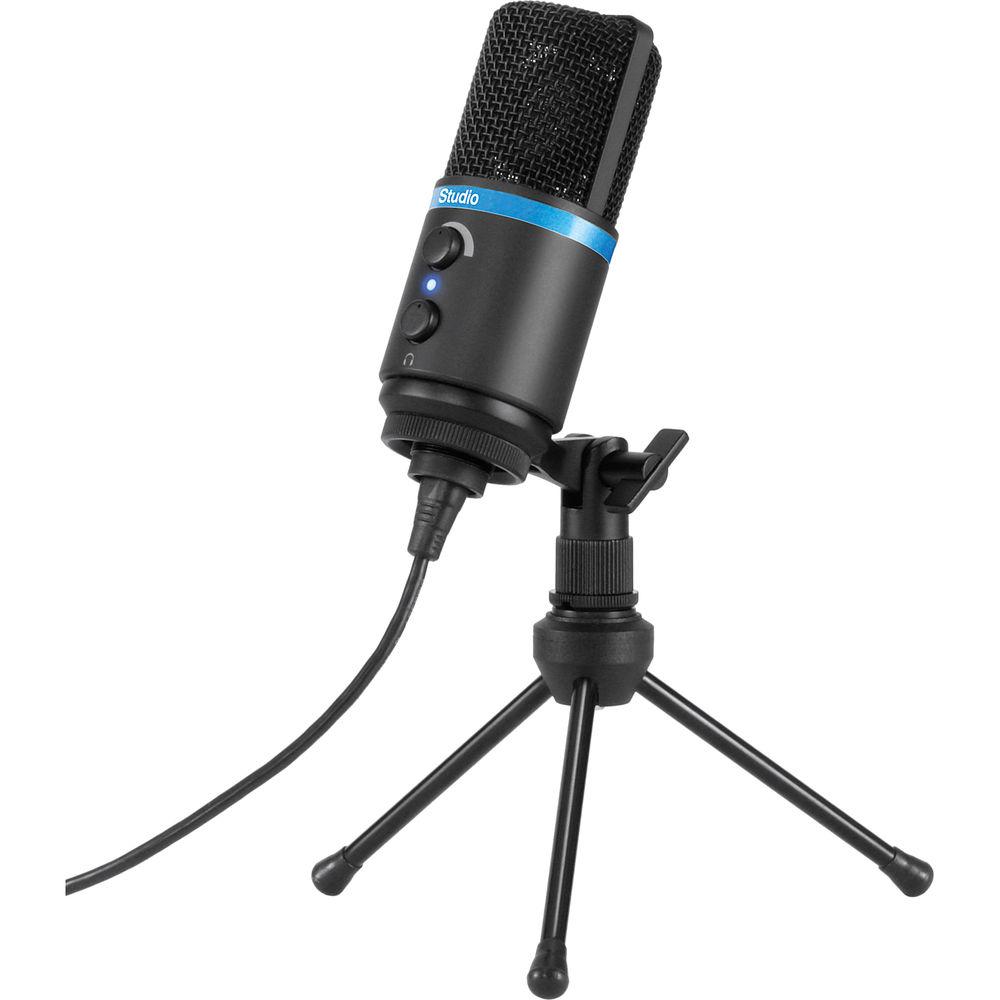

In the Box IK Multimedia iRig Mic Studio, Portable Large-Diaphragm Digital Microphone (Black) Lightning Connection Cable OTG Connection Cable USB Connection Cable Protective Storage Bag Mic Clamp Tabletop Stand Limited 1-Year Warranty Parts Limited 90-Day Warranty Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the IK Multimedia iRig Mic Studio, Portable Large-Diaphragm Digital Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

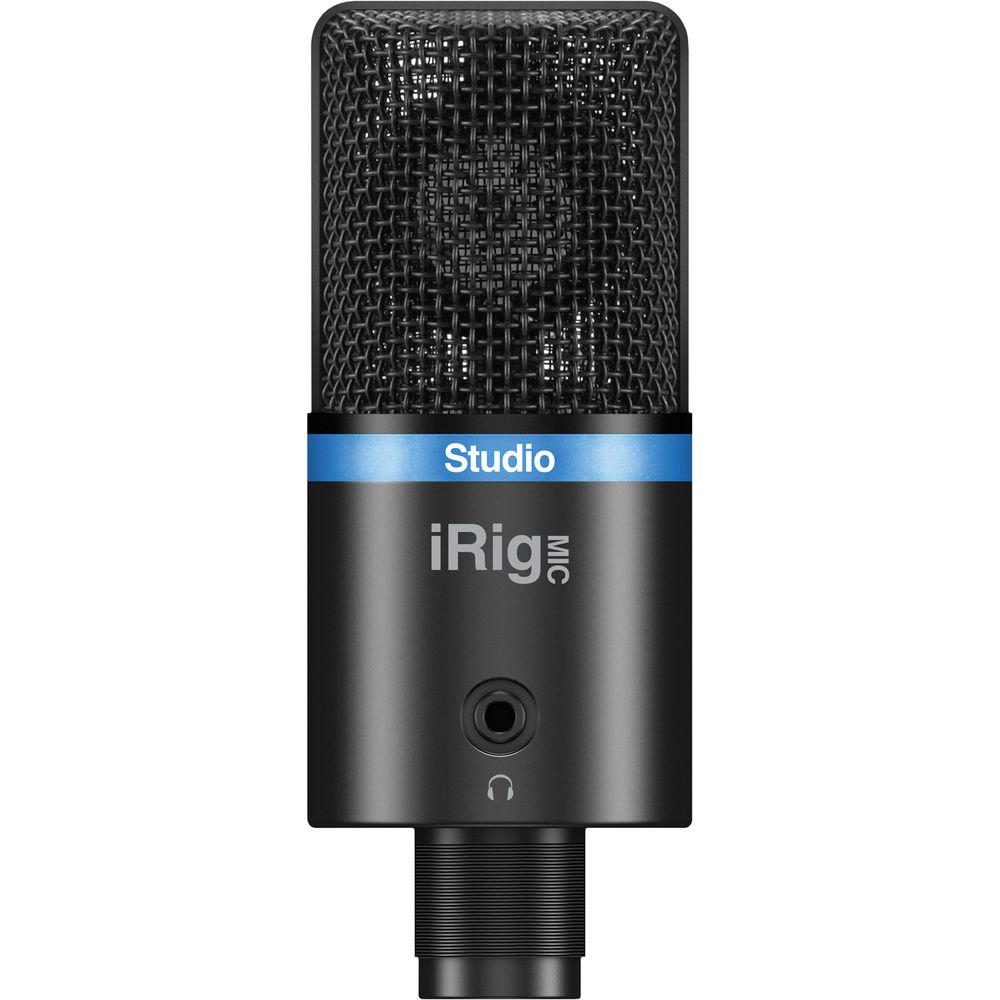

Technical parametersIK Multimedia IP-IRIG-MICSTDBLA-IN Specs | Type | Condenser, back electret | | Capsule Size | 1" (25 mm) | | Polar Pattern | Cardioid | | Interface Type | USB digital microphone, built-in low-noise high-definition preamp | | Frequency Response | 20 Hz to 20 kHz, -3 dB | | Gain Range | 40 dB | | Maximum Sound Pressure Level (SPL) | 133 dB | | Sensitivity | -42 ±3 dB at 1 kHz, 0 dB=1 V/Pa | | Resolution and Sample Rate | 24-bit up to 48 kHz recording | | Connector Type | Standard Micro-USB | | Headphone Output | 1/8" (3.5 mm) jack | | Power | Powered by connected device | | Controls | Built-in gain and headphone volume controls | | LED Status Indicators | Status and audio level indication | | Dimensions (L x W) | 4.61 x 1.77" (117 x 45 mm) | | Weight | 7.69 oz (218 g) | | | | Package Weight | 1.45 lb | | Box Dimensions (LxWxH) | 9.65 x 6.3 x 2.85" |
Rating74% users recommend this product to others. And what about you?
This product has already been rated by 29 owners. Add your rating and experience with the product.
