User Manual for IK Multimedia iRig Mobile Mixer For iPhone iPad iPod Touch Click to enlarge the picture
Contents of the user manual for the IK Multimedia iRig Mobile Mixer For
- Product category: DJ Mixers & Controllers IK Multimedia
- Brand: IK Multimedia
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for IK Multimedia DJ Mixers & Controllers
 |
User manual for the IK Multimedia iRig Mobile Mixer For contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any IK Multimedia product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official IK Multimedia user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a IK Multimedia product will considerably shorten its lifespan!
|
Product description - DJ Controllers Demo
- Product Demo

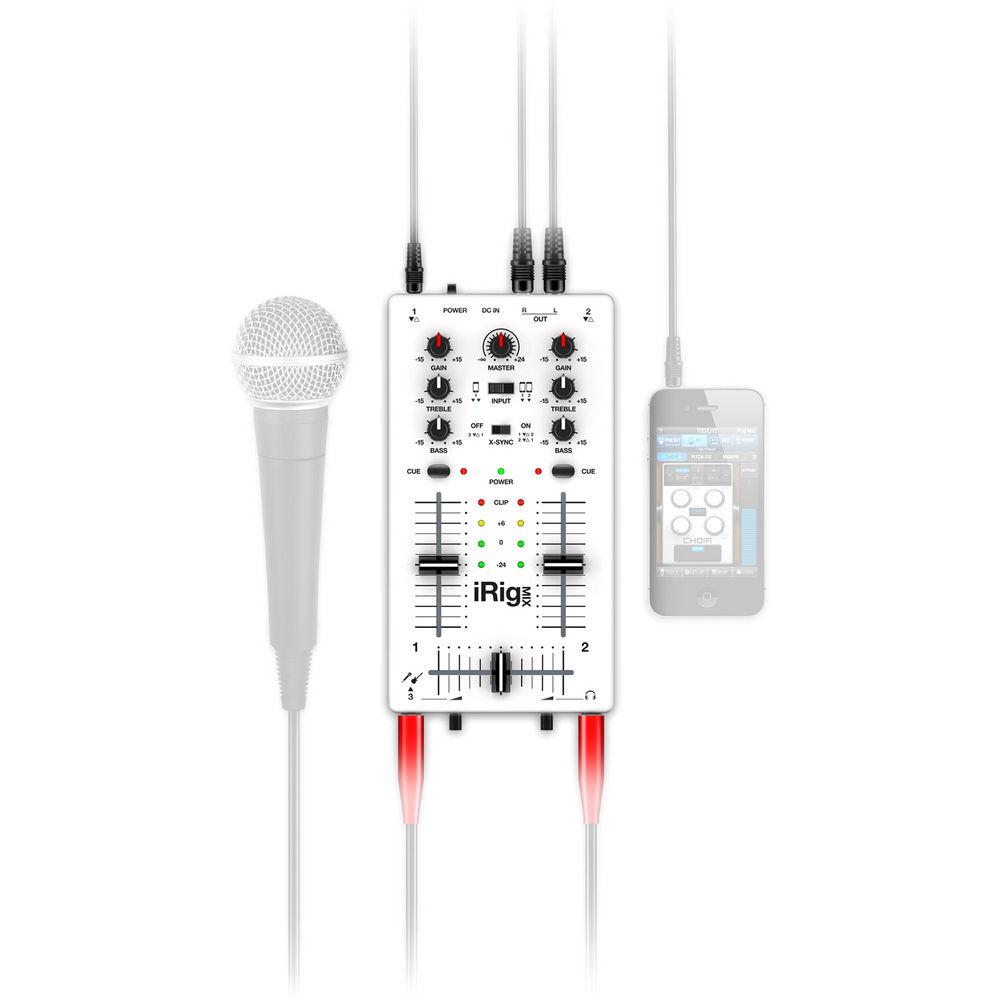

The iRig Mobile Mixer For iPhone/iPad/iPod Touch from IK Multimedia transforms your mobile device into a powerful yet compact mixer that easily fits into any bag. The mixer features 2 outputs for use with up to 2 audio sources and thanks to the included X-Sync, the mixer provides automatic tempo matching and beat syncing. The iRig is compatible with the following apps: abcDJ, Analog Scratch DJ HD, Baby Decks DJ, Baby Scratch, ChopDJ, Cue Play DJ-Lite, Deadmau5 Mix II, Decks, Diddy DJ Lite, DJ, DJ Loops , DJ Mixer Pro, DJ Party HD, DJ Rig, DJ Scratch, DJ SoundBox Pro, DJ Tools - Pro Scratch, DJ VirtualDeck, DJ VirtualDeck M, DJ World Studio, djay, Flare Scratch , Future DJ, iScratchDJ, MixDeck Scratch DJ, MixDeck Scratch DJ 2, Mixr DJ, Pocket DJ, Quixpin DJ, Scratch LP, Scratch LP Pro, Tap DJ, Touch DJ Evolution, TrakProDJ Note: The free apps can be downloaded from the App store. The 1st Mobile Mixer For iPhone/iPod touch/iPad - iRig MIX is the first mobile mixer for iPhone, iPod touch or iPad devices. iRig MIX offers the same controls you would expect from a professional DJ mixer (crossfader, cues, EQ and volume controls, etc.) in an ultra-compact mobile mixer that can be used with a huge variety of iOS DJ mixing and other apps

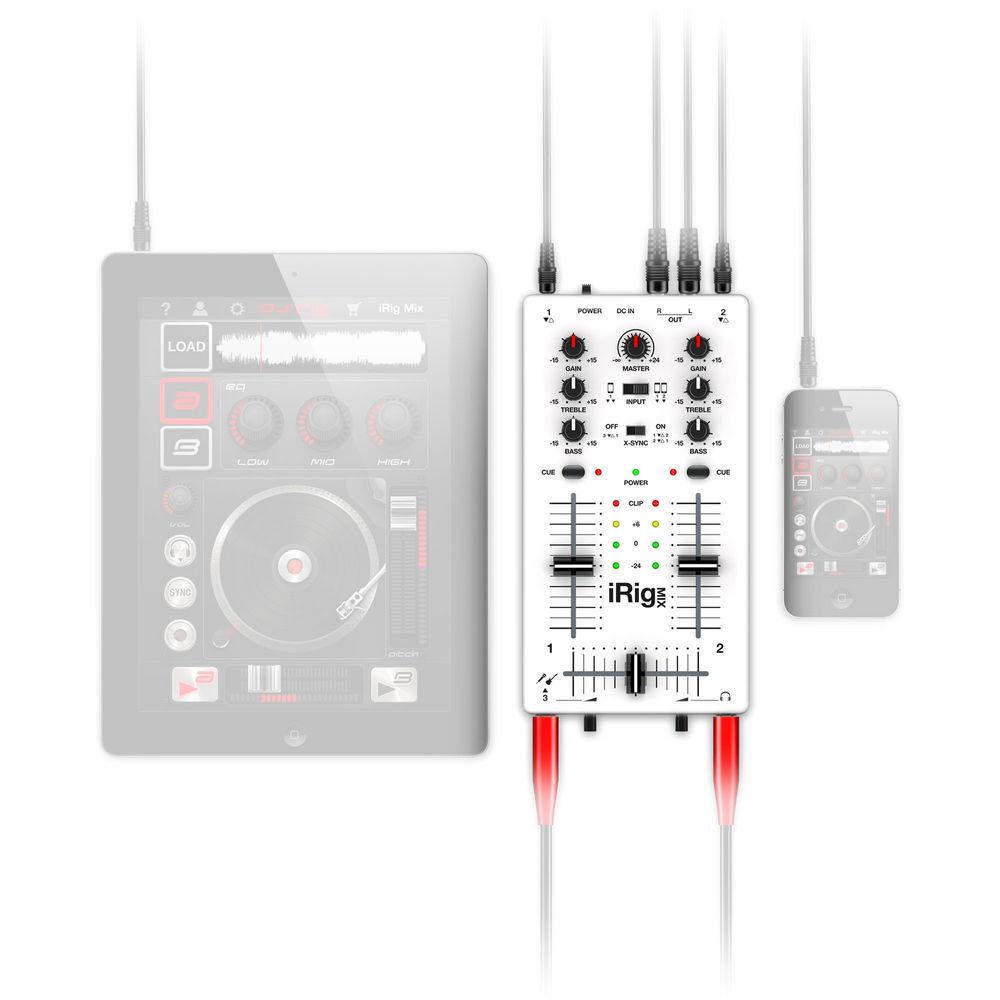

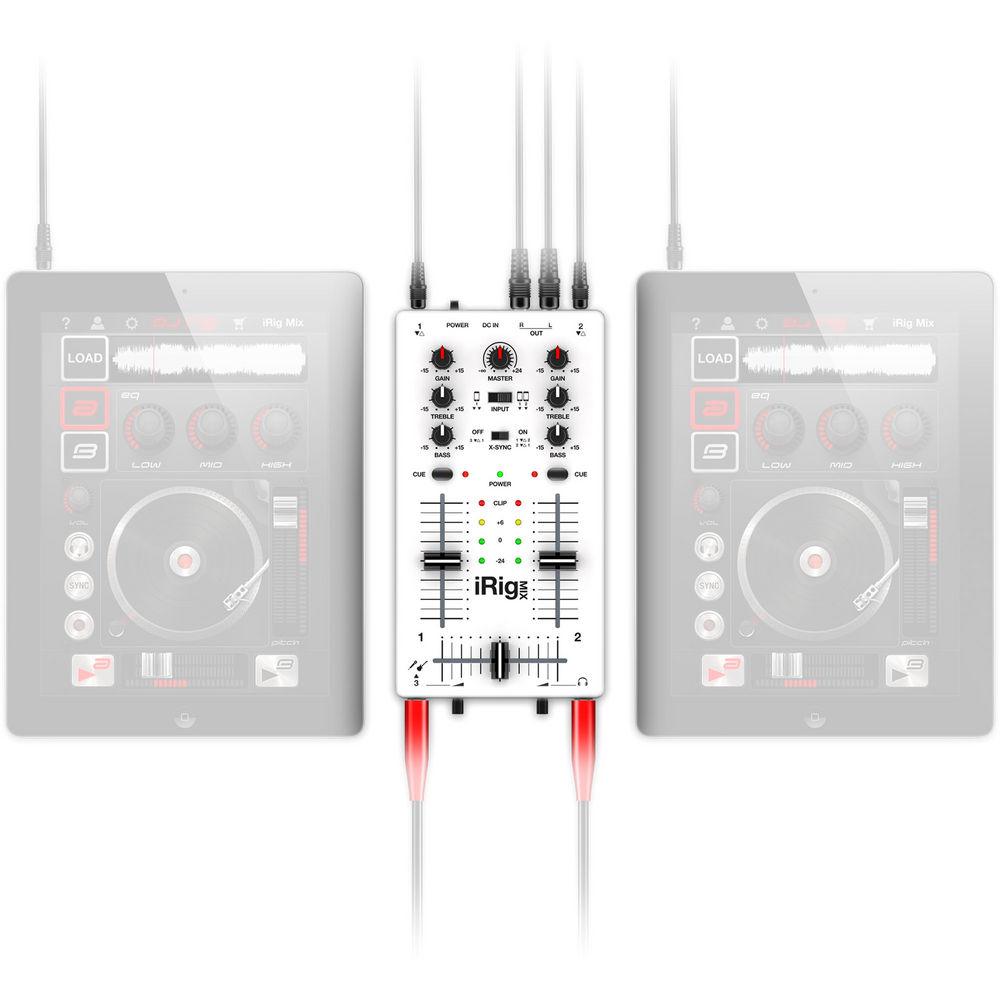

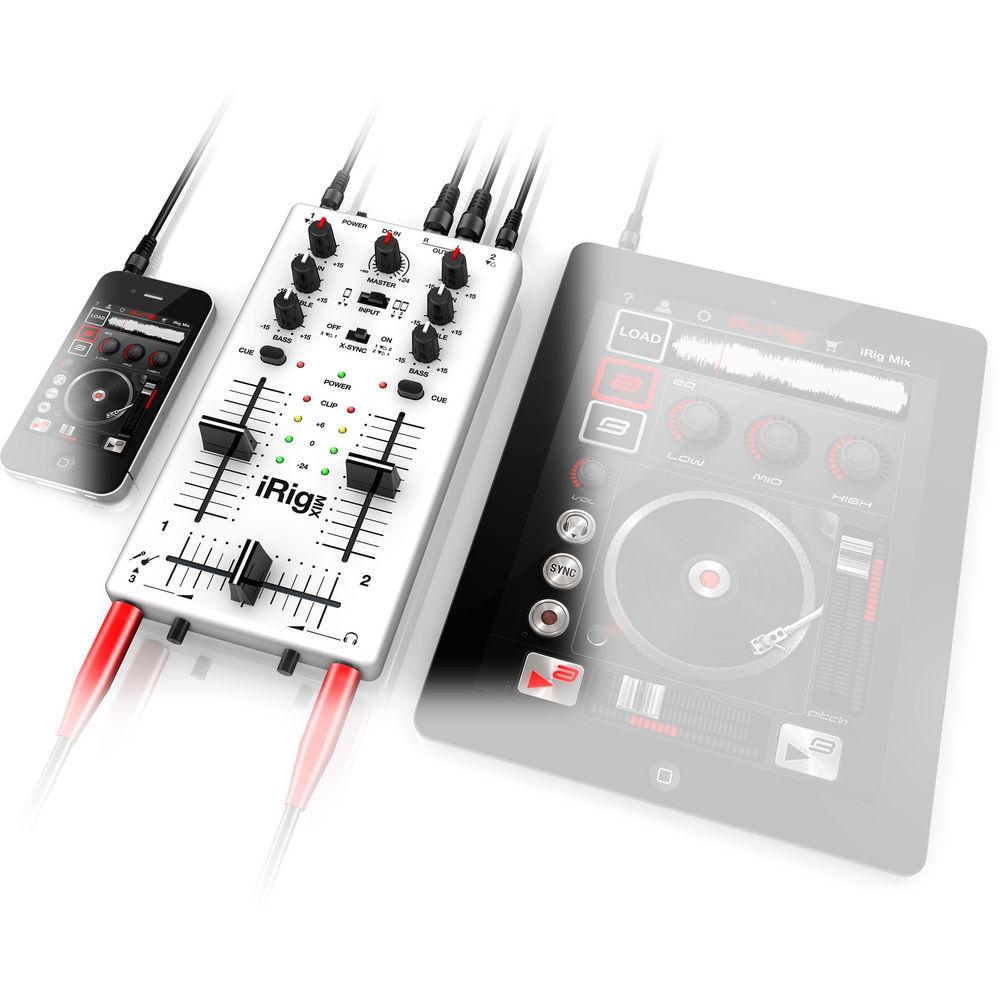

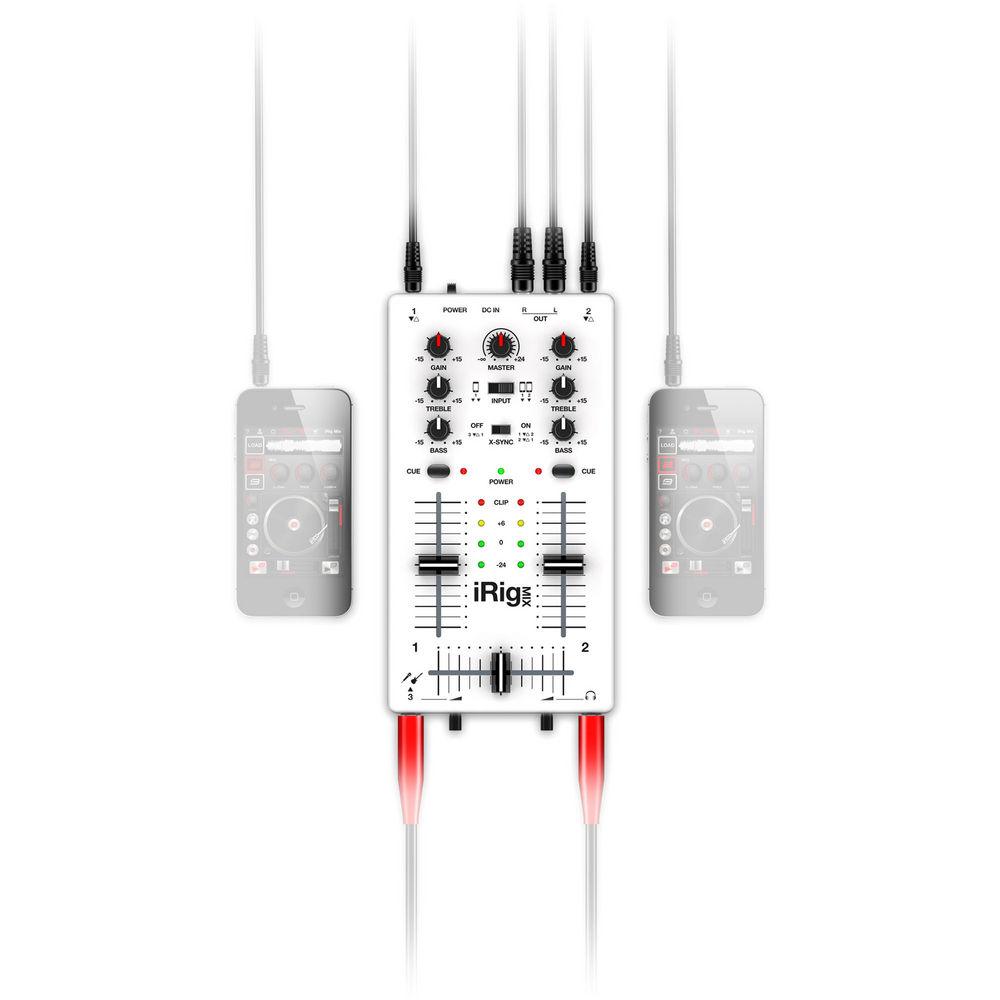

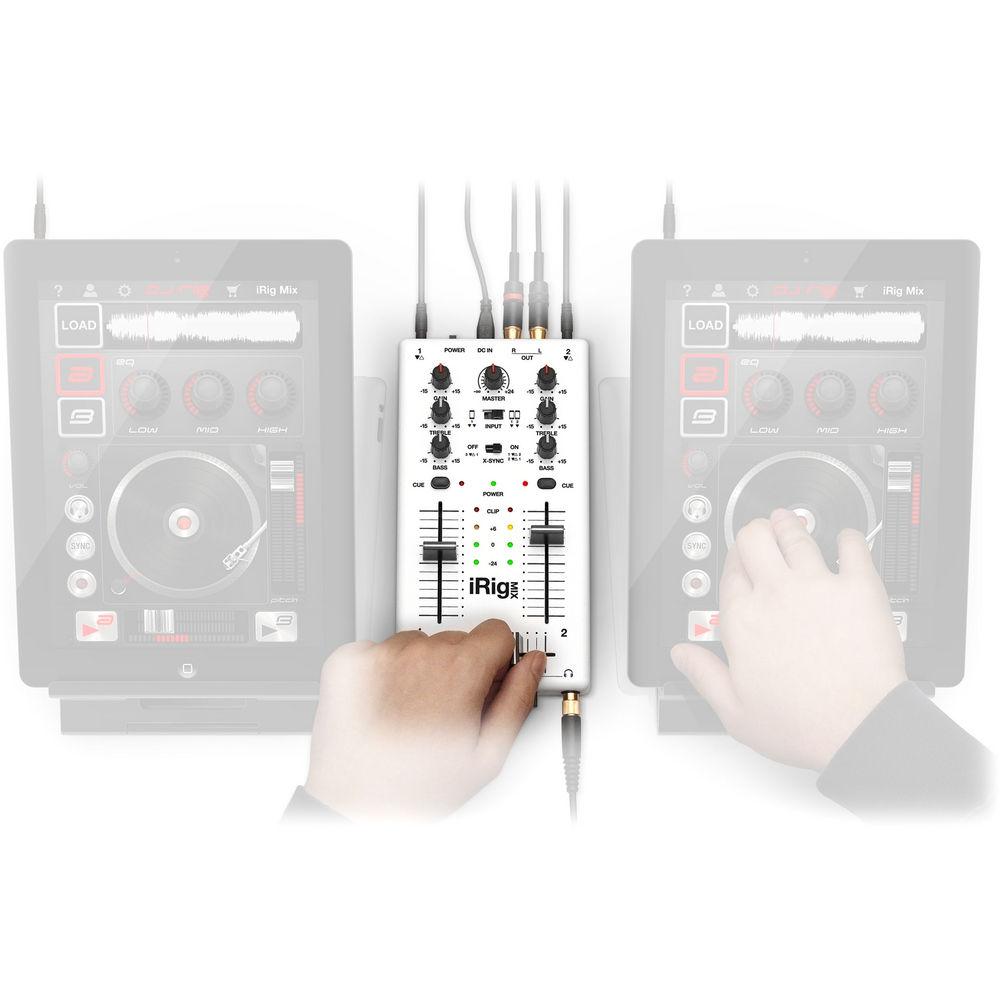

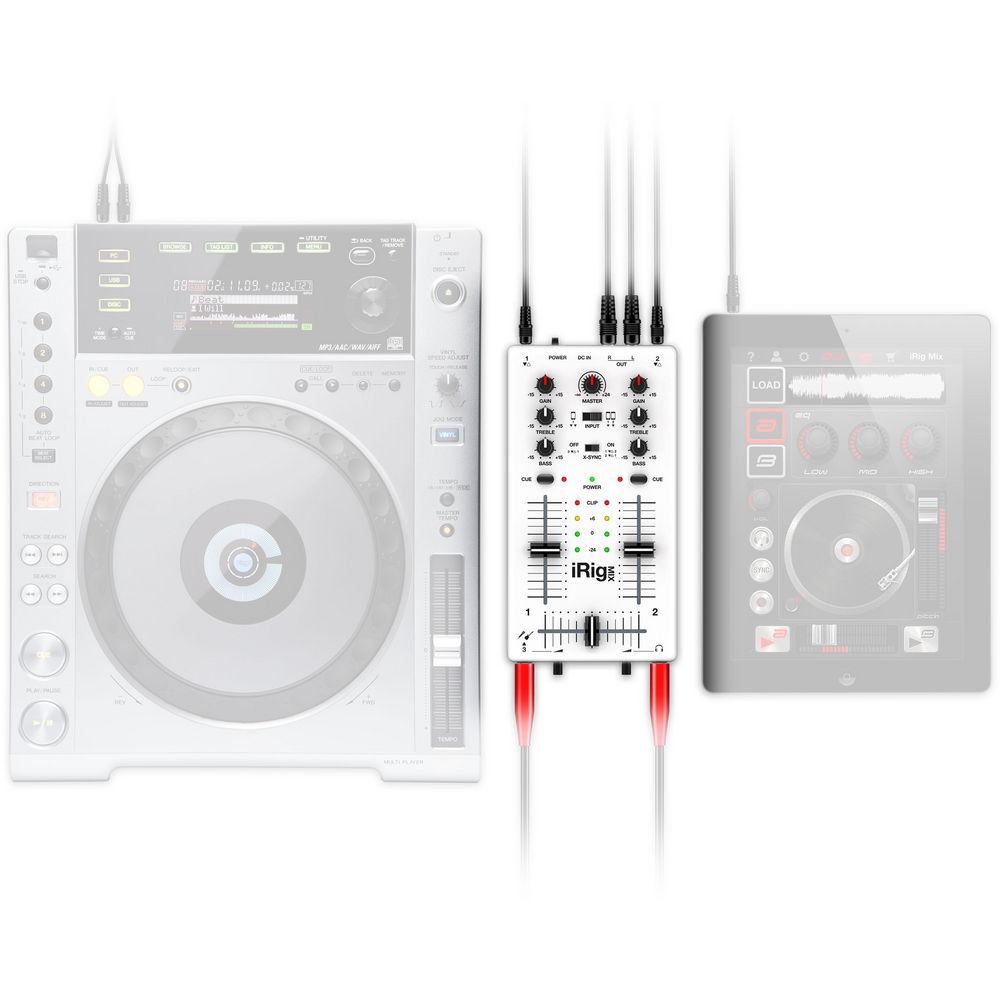

DJ Mixer - iRig MIX allows DJs to use a traditional setup with two devices (one plugged into each of the independent channels) OR a single iOS device. For the single iOS device setup, the output of the single device is split into dual-mono and sent to the individual channels. Additionally - for the first time on any DJ mixer - iRig MIX can be used for mixing any type of audio source (coming from mp3 players, CD players, etc.) with an iOS device using automatic tempo matching and beat syncing. This is accomplished with X-Sync, a feature that works in combination with the DJ Rig free app from IK Multimedia that is included with iRig MIX

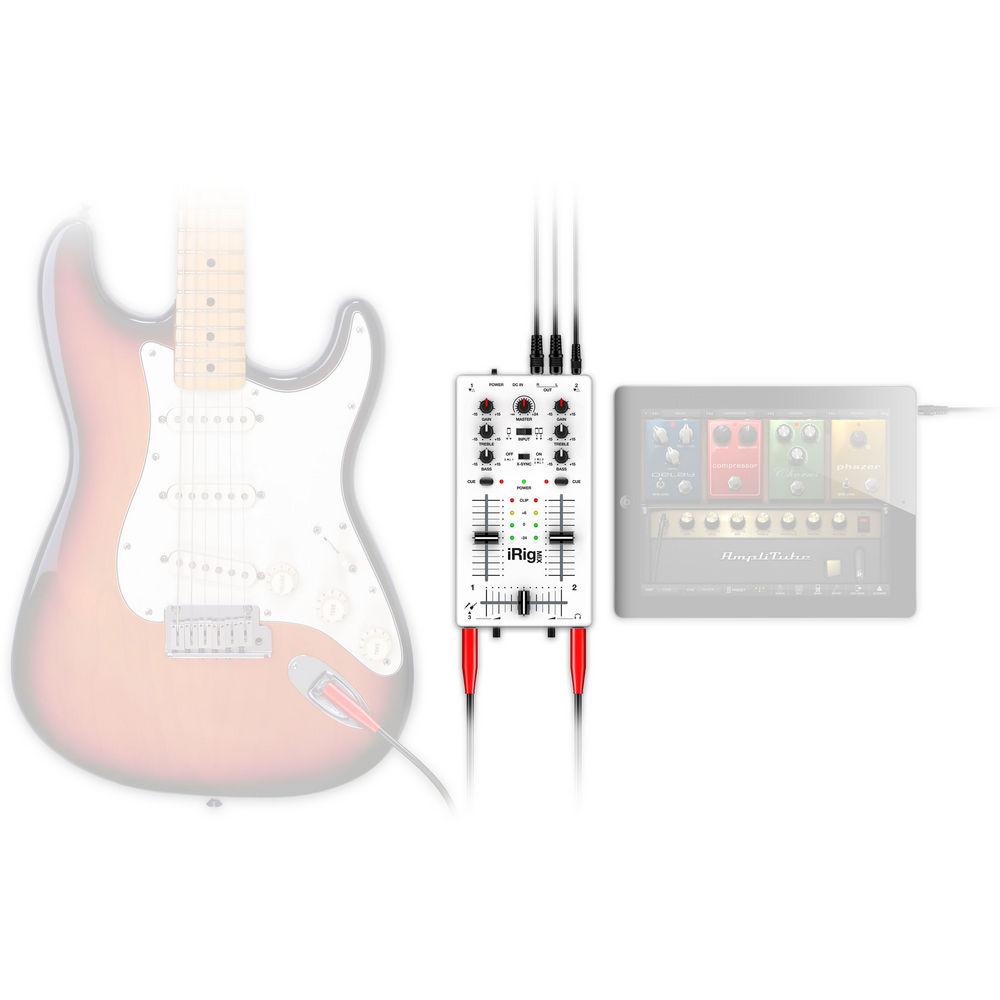

Not Just For DJs - iRig MIX also provides the perfect mixing solution for solo musicians or small ensembles that use one or more iOS devices to play live. It features an extra guitar/microphone input that facilitates processing with popular apps like AmpliTube and VocaLive or any other apps that offer real-time audio effects and processing. Its standard RCA output connectors provide direct connection to PA systems or powered speakers
Maximum Portability - The ultra-compact size and low profile of the iRig MIX allows it to be easily carried in a regular iPad bag. Plus its low-voltage power supply (only 5VDC) lets it be powered not only by any regular mobile device charger, but also by suitable iOS battery pack or laptop USB port for maximum mobility to mix anywhere. iRig MIX includes 4 free apps (downloads from the iTunes app store): DJ Rig, the new professional DJ mixing app from IK, AmpliTube, the most popular iOS guitar amp and effects app, VocaLive the processing app for vocalists, and GrooveMaker, the loop based beat and groove making app

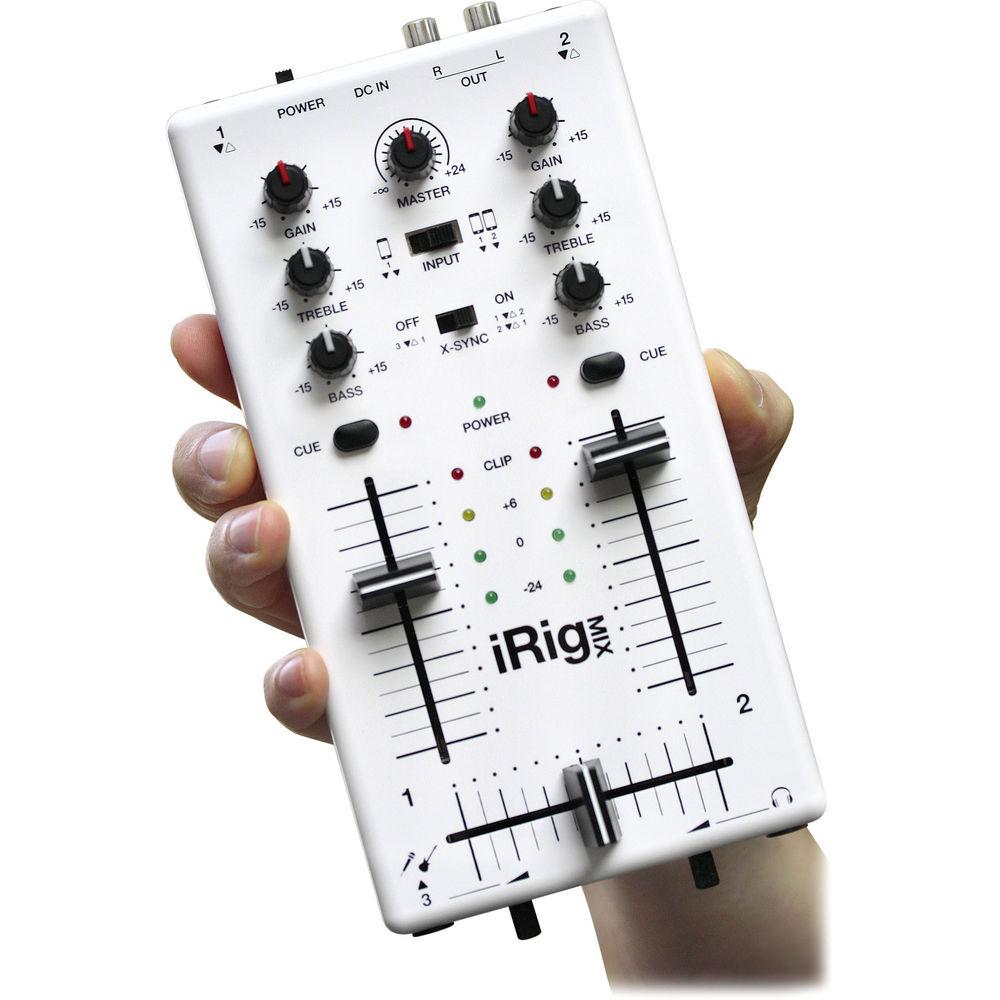

Features - 2 stereo inputs with gain, bass, treble and volume controls, independent cue on each channel with LED indication and channel cross-fader
- Instrument/microphone/extra input with volume control can be processed by iOS apps (such as AmpliTube, VocaLive)
- Stereo output with RCA connectors, master level and LED meters
- High quality, pristine sound
- Quality headphone output for master or cue monitoring with independent volume control
- Input switch splits Input 1 into dual-mono for use with DJ mixing apps on a single iOS device
In the Box IK Multimedia iRig Mobile Mixer For iPhone/iPad/iPod Touch 90-Day Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the IK Multimedia iRig Mobile Mixer For iPhone iPad iPod Touch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIK Multimedia IP-IRIG-MIX-IN Specs | Line Input | Frequency Response: 20 Hz to 20 kHz (±2 dB)
SNR: -80 dB
THD+Noise: 0.01%
Nominal Level: -10 dBV
Maximum Level: 3 Vrms
Impedance: 47k Ohm
Socket: 13.5 mm stereo/TRRS | | Line Output | Frequency Response: 20Hz - 20kHz (±2 dB)
SNR: -80 dB
THD+Noise: 0.05% (20 Hz to 20 kHz Bandwidth)
Nominal Level: -10 dBV
Maximum Level: 6 Vrms
Impedance: 200 Ohm
Socket: RCA | | Microphone Input | Hi-Z
Frequency response: 20 Hz to 20 kHz (±2 dB)
SNR: -80 dB
THD+Noise: 0.05% (20 Hz to 20 kHz Bandwidth)
Maximum Level (Min Gain): 3Vrms
Minimum Level (Max Gain): 10 mVrms
Impedance: 1 MOhm
Socket: 6.35mm mono | | Headphone Outputs | Frequency Response: 20 Hz to 20 kHz (±2 dB)
SNR: -80 dB
THD+Noise: 0.05% (20 Hz to 20 kHz Bandwidth)
Maximum Power: 125 mW into 32 Ohms
Socket: 6.35 mm stereo | | Controls | Low Tone Controls: ±15 dB @ 80 Hz, shelving
High Tone Controls: ±15 dB @ 8 kHz, shelving
Trim Controls: ±15 dB, 0 dB at center | | Power Supply | USB powered via micro USB (D TYPE) connector | | Power Consumption | Typical: 5 W
Maximum: 10 W (with full headphone output) | | Dimensions (LxWxH) | 8.54 x 4.33 x 1.81" (21.7 x 11.0 x 4.6 cm) | | | | Package Weight | 1.65 lb | | Box Dimensions (LxWxH) | 9.0 x 7.6 x 2.4" |
