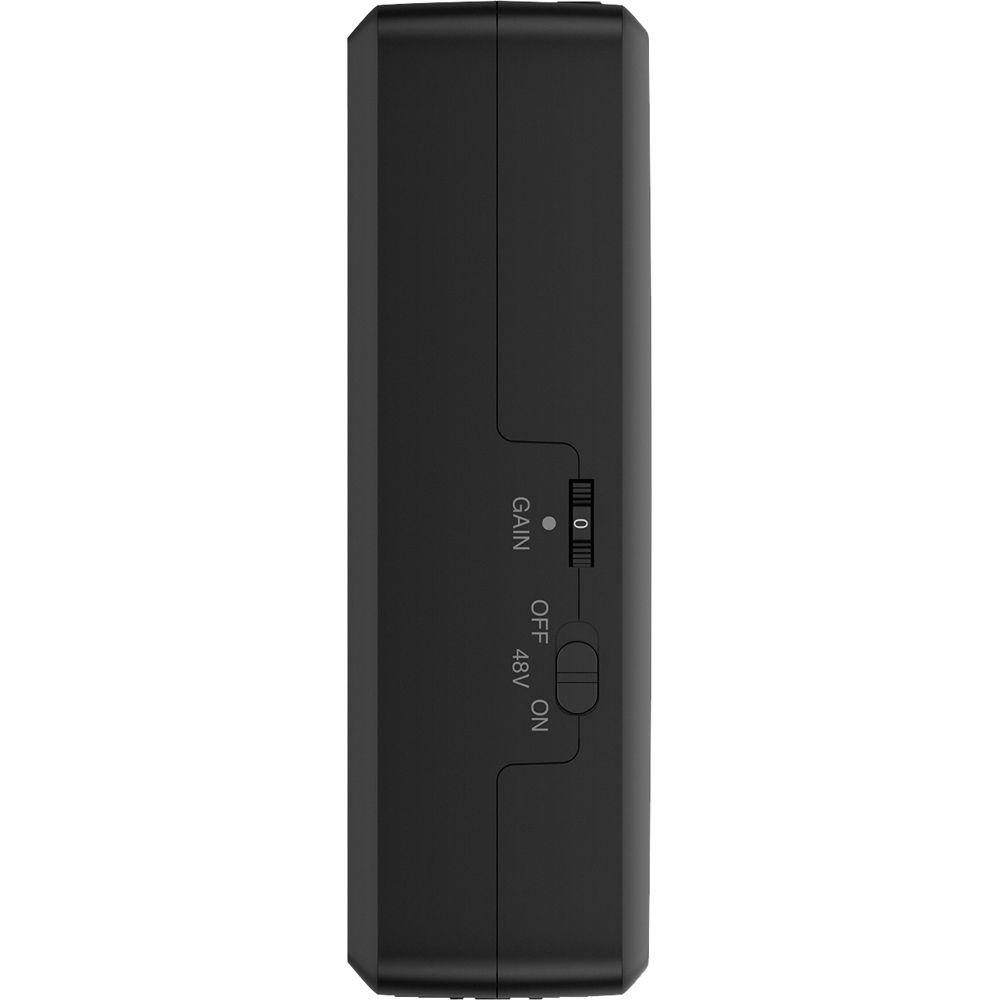

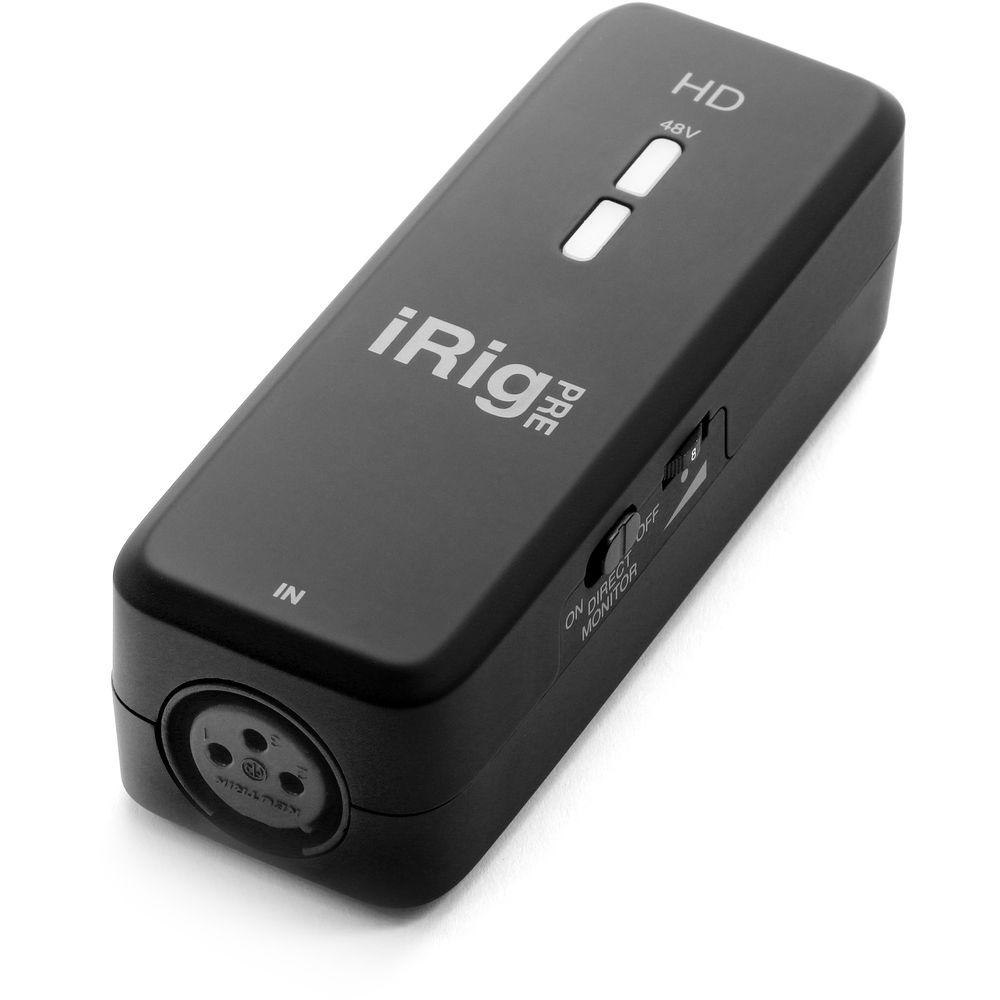

User Manual for IK Multimedia iRig Pre HD - Audio Interface with Mic Pre Click to enlarge the picture
Contents of the user manual for the IK Multimedia iRig Pre HD -
- Product category: Audio Interfaces IK Multimedia
- Brand: IK Multimedia
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for IK Multimedia Audio Interfaces
 |
User manual for the IK Multimedia iRig Pre HD - contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any IK Multimedia product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official IK Multimedia user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a IK Multimedia product will considerably shorten its lifespan!
|

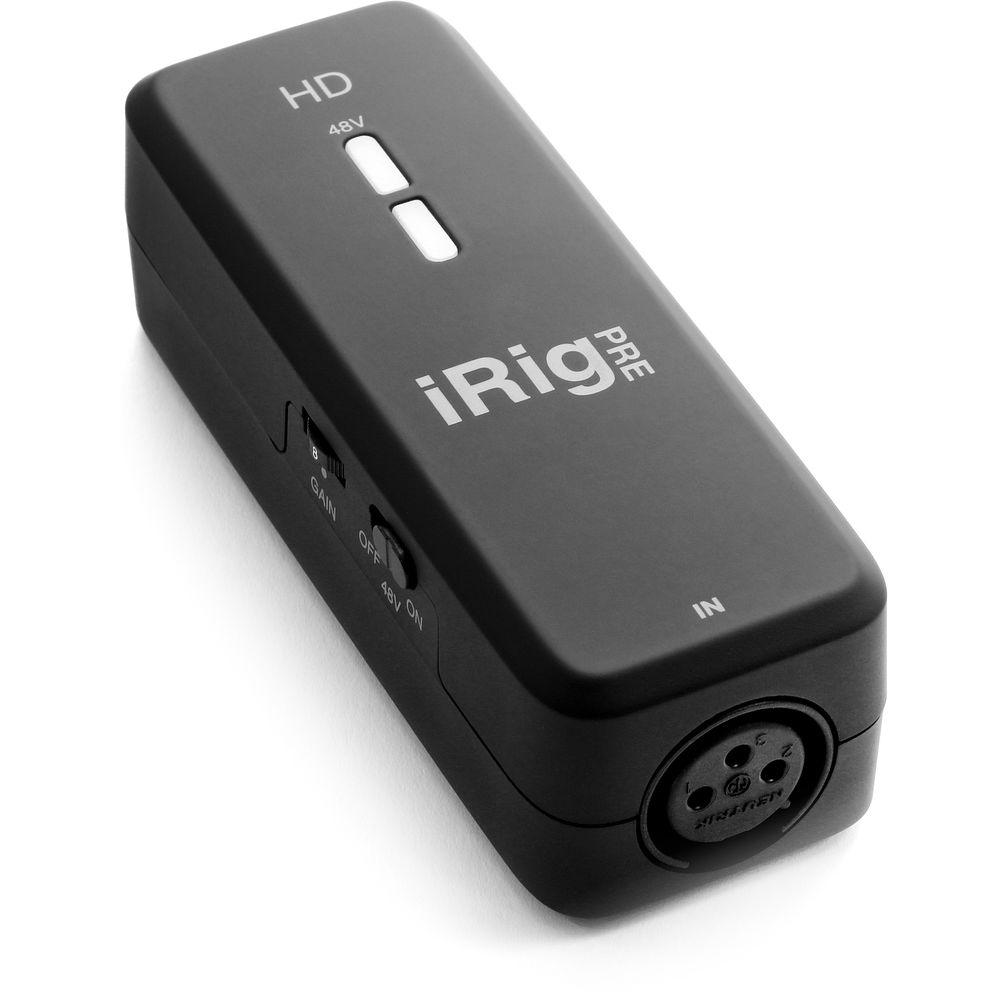

Product description Now at B&H: The IK Multimedia iRig Pre HD Audio Interface with Mic Pre Read More The IK Multi-Media iRig Pre HD is a digital, high-definition microphone interface with an integrated Class-A microphone preamplifier, well suited for musicians, podcasters, journalists, videographers, and vloggers. Designed for iOS, Mac, PC, and Android devices, the iRig Pre HD connects between your device and your favorite microphone, offering 24-bit / 96 kHz resolution and an integrated headphone amplifier with a switchable pre-/post-device monitor setting, which allows you to monitor with zero latency and hear the processed signal from your device. There's even +48V phantom power to enable your prized, studio-condenser microphone. The IK Multimedia iRig Pre HD ships with a lightning cable, a USB cable, two AA batteries (for phantom power), a hook-and-loop strip, and a variety of professional software from IK Multimedia. - General Features
-
- MFi microphone interface certified by Apple “Made for iPhone and iPad”
- Compatible with Mac and PC

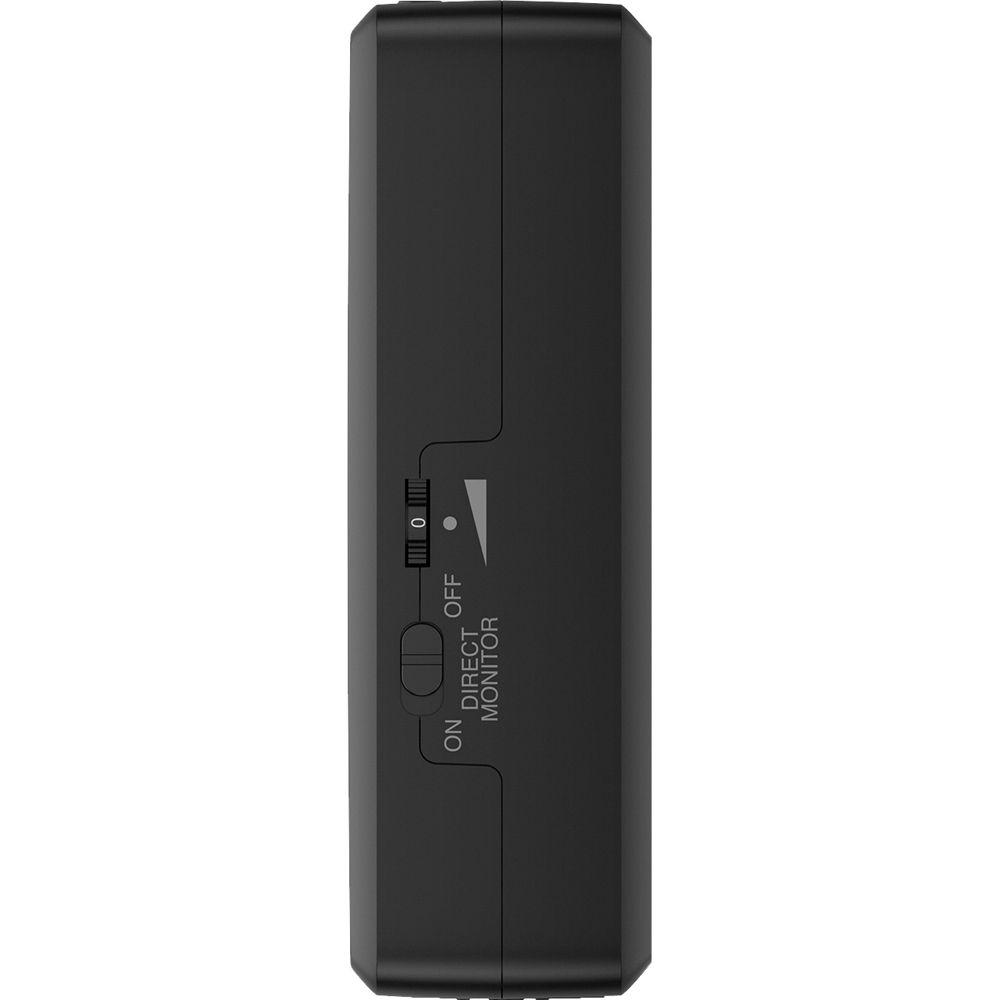

- Direct monitor switch for real-time monitoring or for playback
- +48V phantom power (with 2 x AA batteries)
- Class-A mic preamp with onboard gain control
- On-board headphone output (works with the latest iPhone)
- High-definition 24-bit converters with up to 96kHz sampling frequency
- Multi-color LED for easy gain settings
- Includes IK’s professional software and apps
- Ultra-light and compact
- Sleek and elegant design
- Comes with USB and Lightning cables, 2 x AA batteries and a hook-and-loop mounting strip
- Included Software and Content
-
- iPhone/iPad
- Mic Pack for VocaLive for iPhone/iPad: Unlock all the microphone models included in the Mic Room section of VocaLive
- Pro Bundle for iRig Recorder for iPhone/iPad: Add professional effect such as Normalize, Three Band EQ, Compressor, and Stereo Imager to iRig Recorder
- Mic Room: Upgrade from FREE version to FULL version. Includes Real time microphone modeling app with 9 mic models
- Microphones for Mic Room iOS: Velo 8 and Vintage Dynamic 20
- Mac/PC
- Mic Room: Microphone Modeling Module for T-RackS
In the Box IK Multimedia iRig Pre HD - Audio Interface with Mic Pre Lightning to micro-USB Cable USB to micro-USB Cable 2 x AA Batteries Hook-and-Loop Fastener Strip Table of Contents
|
Upload User Manual
Have you got an user manual for the IK Multimedia iRig Pre HD - Audio Interface with Mic Pre in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIK Multimedia IP-IRIG-PREHD-IN Specs | Compatibility | iOS Devices: iPhone 7 Plus, iPhone 7, iPhone SE, iPhone 6s Plus, iPhone 6s, iPhone 6 Plus, iPhone 6, iPhone 5s, iPhone 5c, iPhone 5, iPod touch 6th generation, iPod touch 5th generation, iPad Pro (12.9-inch) 1st Generation, iPad Pro (9.7-inch), iPad mini 4, iPad Air 2, iPad mini 3, iPad Air, iPad mini 2, iPad mini, iPad 5th generation, iPad 4th generation. iOS 6 or later is required
Computer:
Mac: macOS 10.6 or later. One free USB port
Windows: Fully supports Windows 10 WASAPI for low latency audio. One free USB port (ASIO4ALL is required on Windows 7 and 8 for low latency audio)

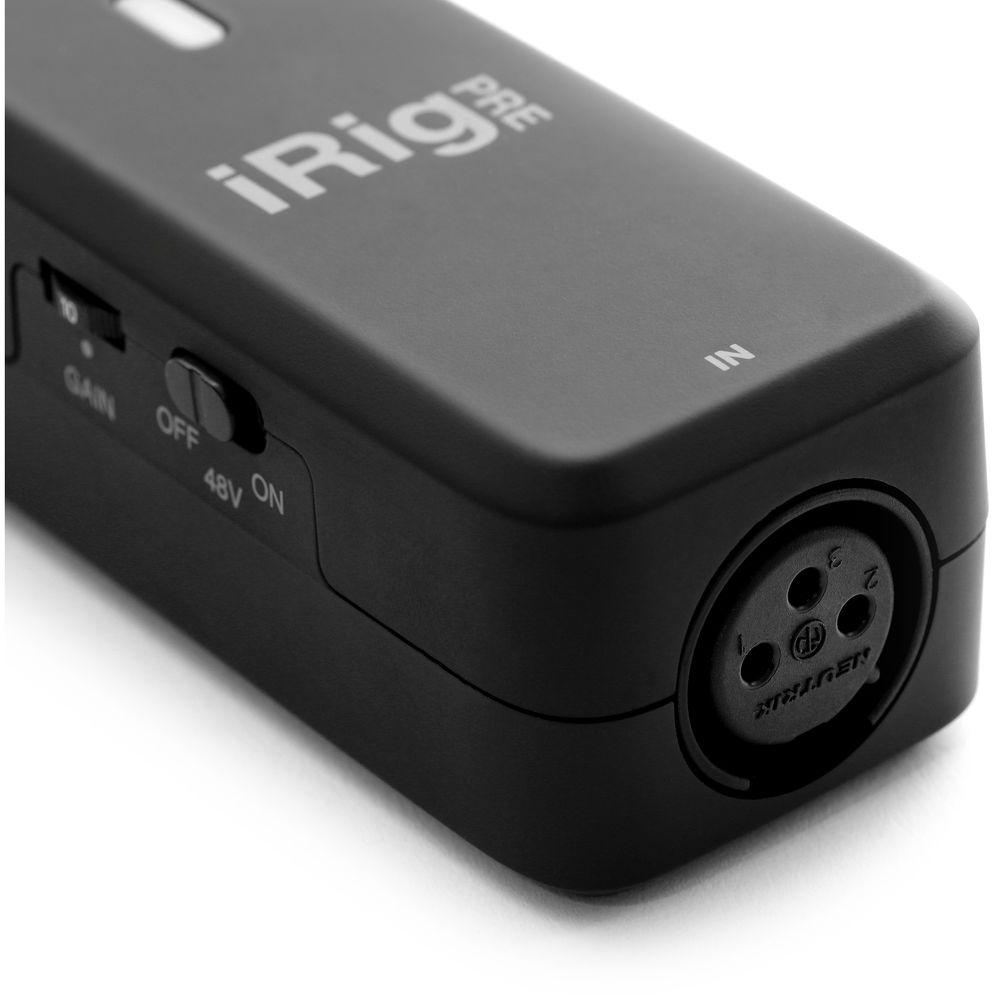

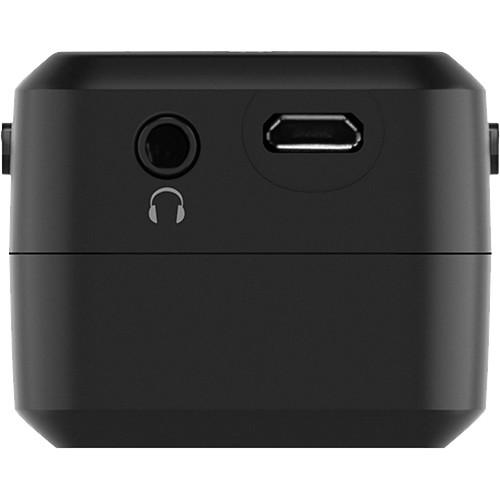

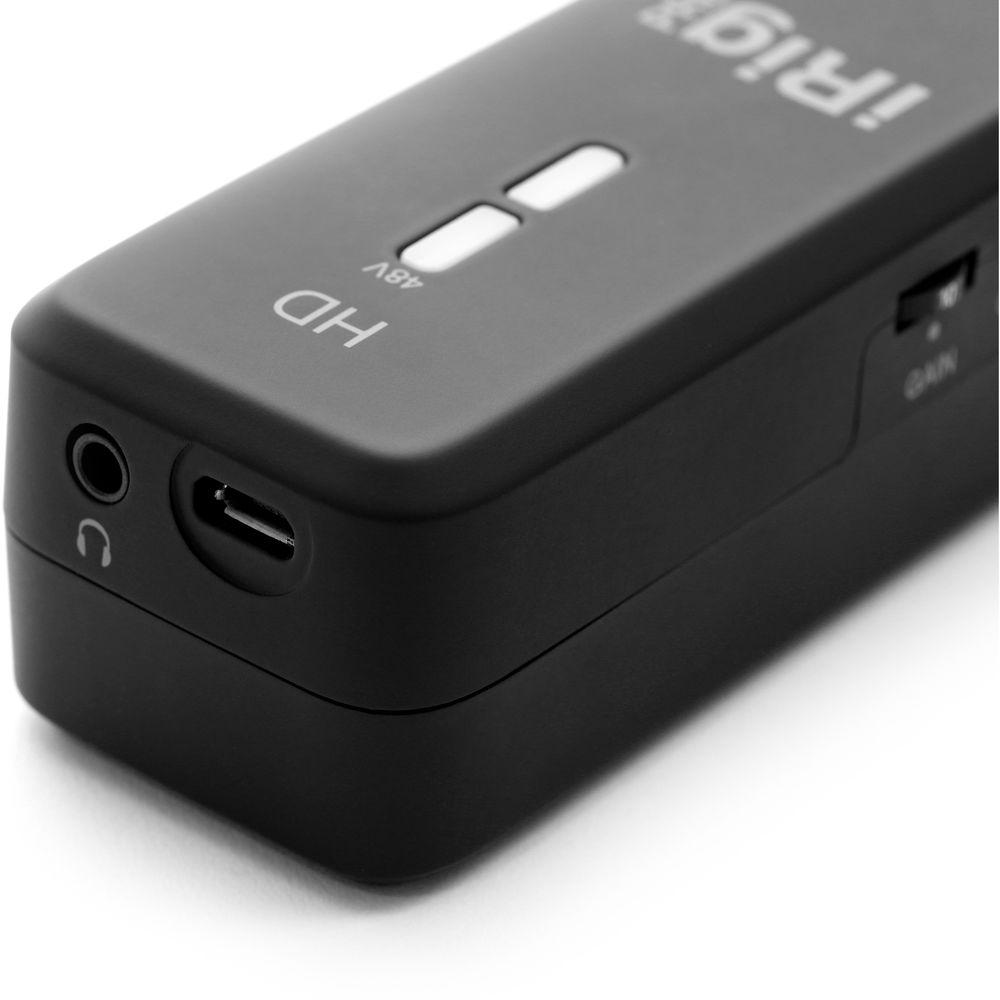

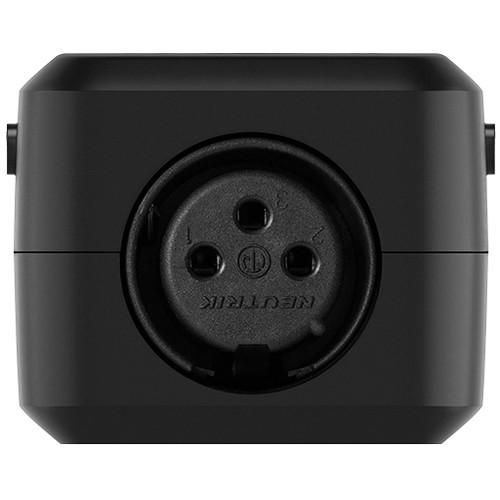

Android Devices: Compatible with Android devices running Android 5 or later and with USB digital audio capabilities. Micro-USB-OTG to Micro-USB cable (sold separately) is required | | Microphone Input | Balanced female 3-pin, XLR (Pin 2, 3, 1: Hot, cold, ground) | | Microphone Input Level | From 6 mVpp to 1.4 Vpp | | Microphone Input Impedance | 2 kOhms | | Gain Range | 40 dB | | Frequency Response | 20 Hz to 20 kHz, ±1.5 dB | | Input Noise | -97 dB RMS, -105 dB(A) | | Headphone Connector | 1/8" / 3.5 mm TRS jack (Tip, Ring, Sleeve: Right, left, shield) | | Headphone Level | Headphone Level Control: Numbered thumb-wheel
Headphone Level Power: 100 mW into 50 Ohms | | Device Connector Type | micro-USB | | LED Indicators | Status / Audio level LED

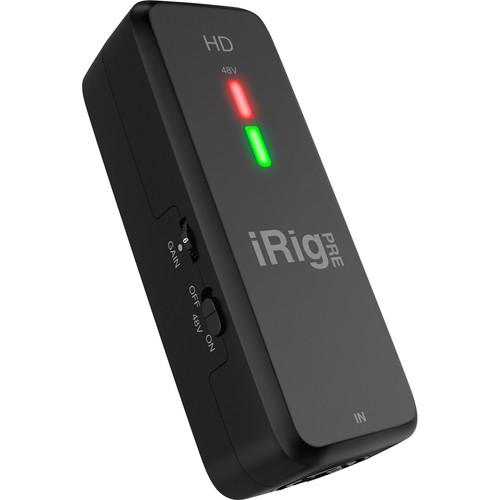

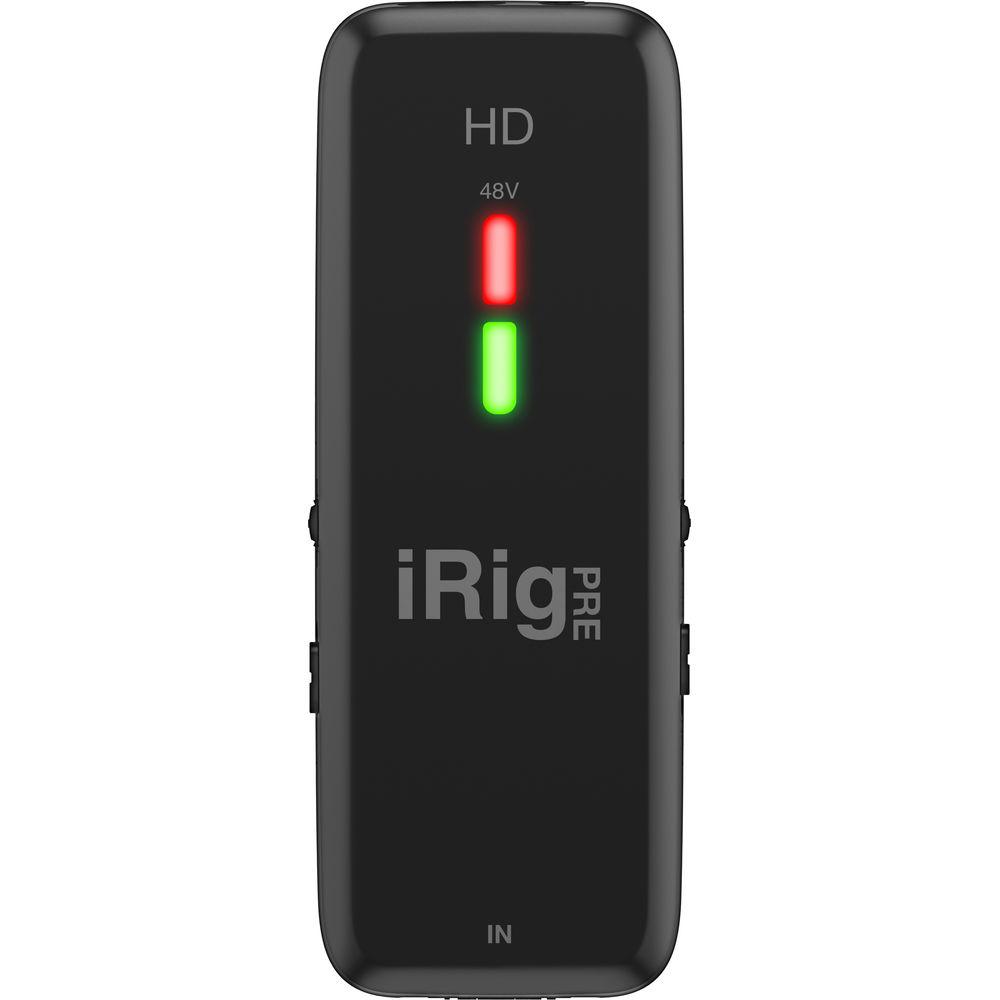

The lower LED will show the audio signal level and the status of the unit as follow:
LED Off: iRig Pre HD is not connected to any power source
LED Bright Blue: iRig Pre HD is connected and a signal is present at the input of the channel
LED Green: The input signal of the corresponding channel is low
LED Orange: The input signal of the corresponding channel is OK
LED Red: The input signal of the corresponding channel is too high
Phantom power LED
The upper LED show the phantom power status:
Off: Phantom power is off
Steady Red: Phantom power is on
Low Battery: When the battery level approach to be low, all the (turned on) LEDs will fast blink every “2” sec. When the battery is at a very low level the audio out is muted and the LED continuously blinks | | AD/DA Conversion | 24-bit | | Sample Rate | 44.1, 48, 88.2, and 96 kHz | | Power | USB bus powered when used with a computer Battery powered (2 x AA included) needed for +48 V phantom only | | Cable Length | 23.6" / 60.0 cm (without batteries) | | Dimensions (L x W x H) | 4.3 x 1.6 x 1.3" / 110.0 x 39.9 x 34.0 mm | | Weight | 2.6 oz / 75.0 g | | | | Package Weight | 0.7 lb | | Box Dimensions (LxWxH) | 7.3 x 6.4 x 2.2" |
