Product description Designed for instrumentalists who wish to integrate their computers and iOS devices into their live setups, the IK Multimedia iRig Stomp I/O is a USB controller in a pedalboard form factor. This MFi certified audio interface provides 5-pin DIN MIDI I/O that connects to Macs, Windows computers, iPhones, and iPads. Atop its four-footswitch layout is a bar for your tablet, so you can see the virtual processing you're using while you play.
The unit provides four onboard metal footswitches, alongside an expression pedal, all of which sport LED indicators to give you visual cues on stage as to what's going on with the pedalboard. Two 1/4" jacks on the rear of the device allow you to connect additional switches for even further control.
The Neutrik combination TRS-1/4" jack provides phantom power to microphones, as well as a Hi-Z connection to instruments. Balanced stereo outputs can route your resulting sound to mixers, PAs, and, thanks to their floating balanced implementation, instrument amplifiers. A 1/4" stereo headphone output with an independent volume knob makes silent practicing and private monitoring a reality.
The unit itself is a 96 kHz / 24-bit audio interface, through which you can record guitars, basses, or vocal microphones. You can record straight to your mobile device or tablet, and make seamless use of IK Multimedia's AmpliTube and VocaLive. Thanks to unit's Class A preamp, the iRig Stomp I/O provides an audio path that is equal to, if not surpassing, most floor processors. Included with your purchase of the iRig Stomp I/O are guitar and vocal processing effects and recording software. - Features at a Glance
-
- 4 onboard switches, expression pedal with optical switch
- 96 kHz / 24-bit audio interface with input gain and volume control
- Hi-Z/mic/combo input by Neutrik
- Balanced stereo and headphone outputs
- Class A preamp with +48V phantom power for condenser microphones
- In/out LED bar VU meters
- MIDI in/out with two additional 1/4" switch/pedal controller inputs

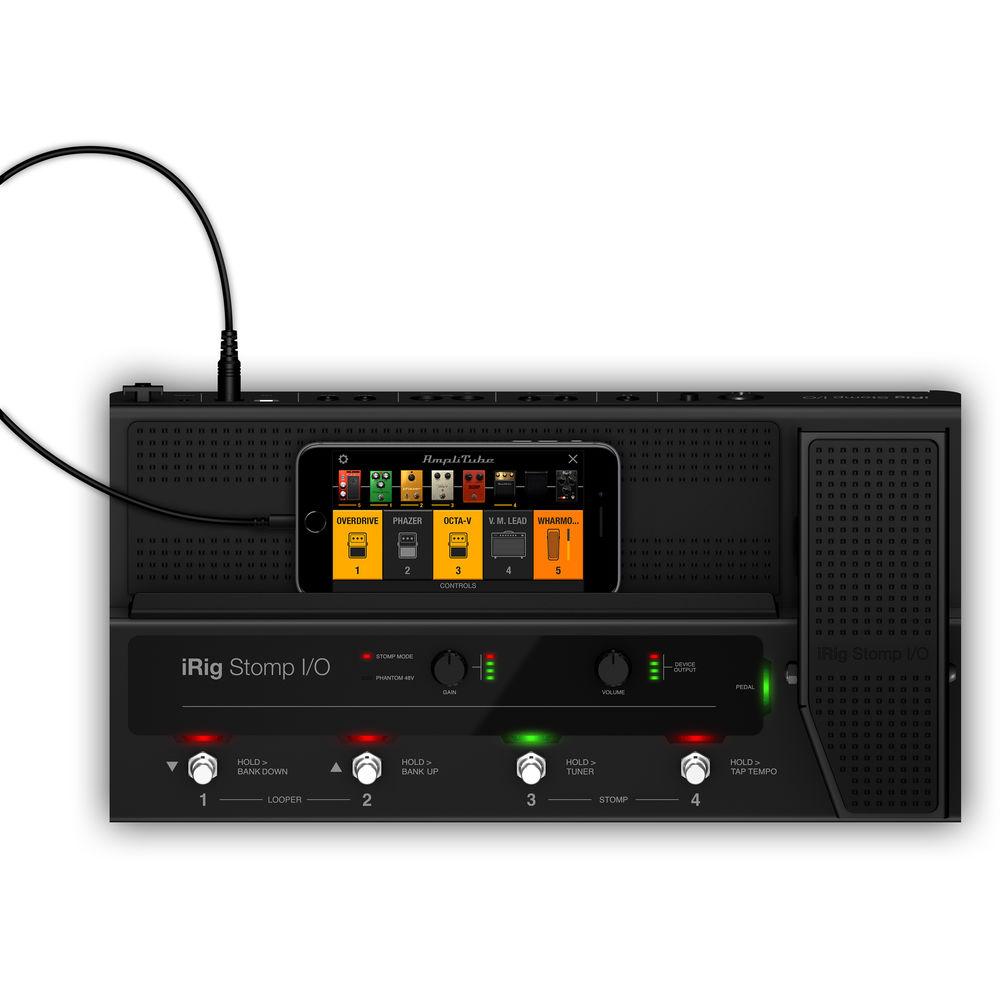

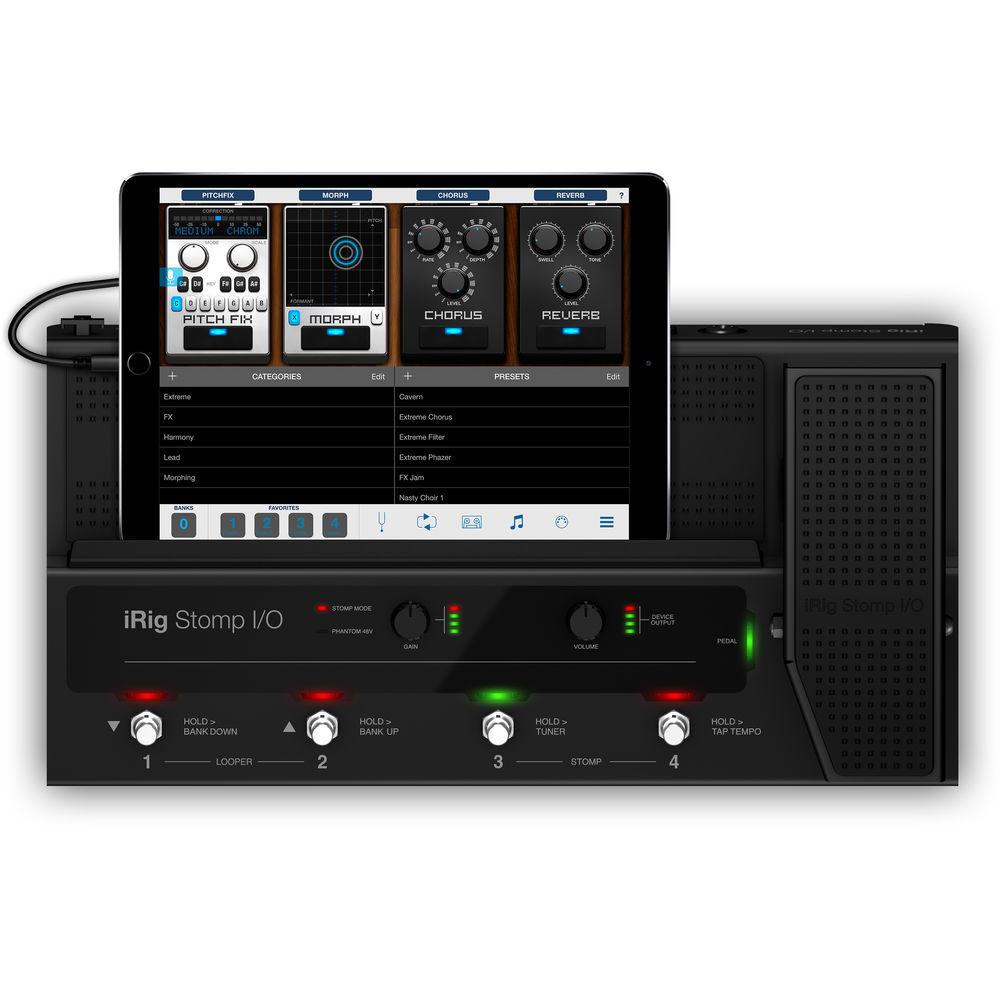

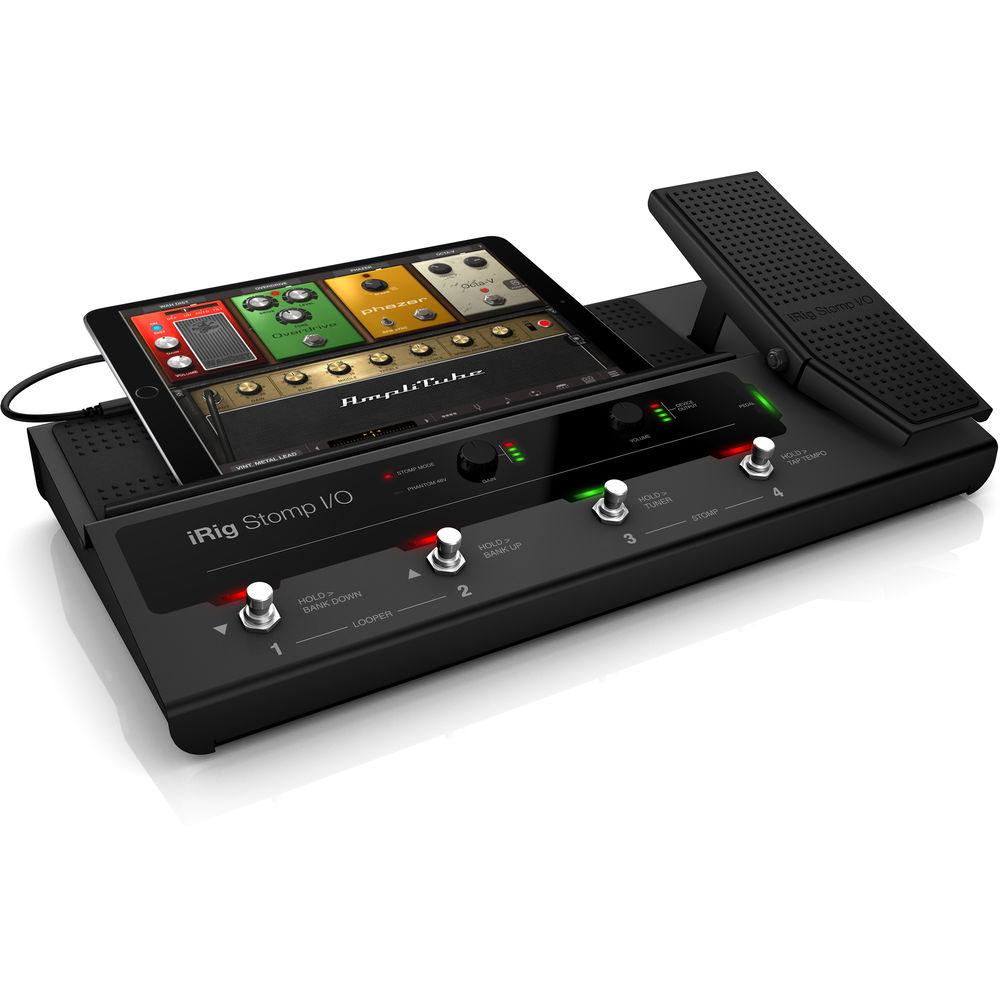

- Integrated device bay for easy positioning of iPhone, iPad or Microsoft Surface
- Includes AmpliTube 4 Deluxe, T-RackS processors (White 2A, Black 76, VC-670, EQP-1A, Mic Room) and Ableton Live 9 Lite for Mac/Windows, AmpliTube and AmpliTube Acoustic for iOS, VocaLive iOS and Mic Room for iOS
- Seamless, plug and play integration with AmpliTube (iOS/Mac/Windows) and VocaLive (iOS)
- When used with iPhone and iPad it charges your device while you play
- Can also work as a standalone MIDI foot controller, without a device or computer
- Road-ready, rugged metal construction
- For both studio and live use
- For guitar and bass players, singers, and vocalists
- Includes Mini-DIN, Lightning and USB cable
- Powered via USB or DC Adapter

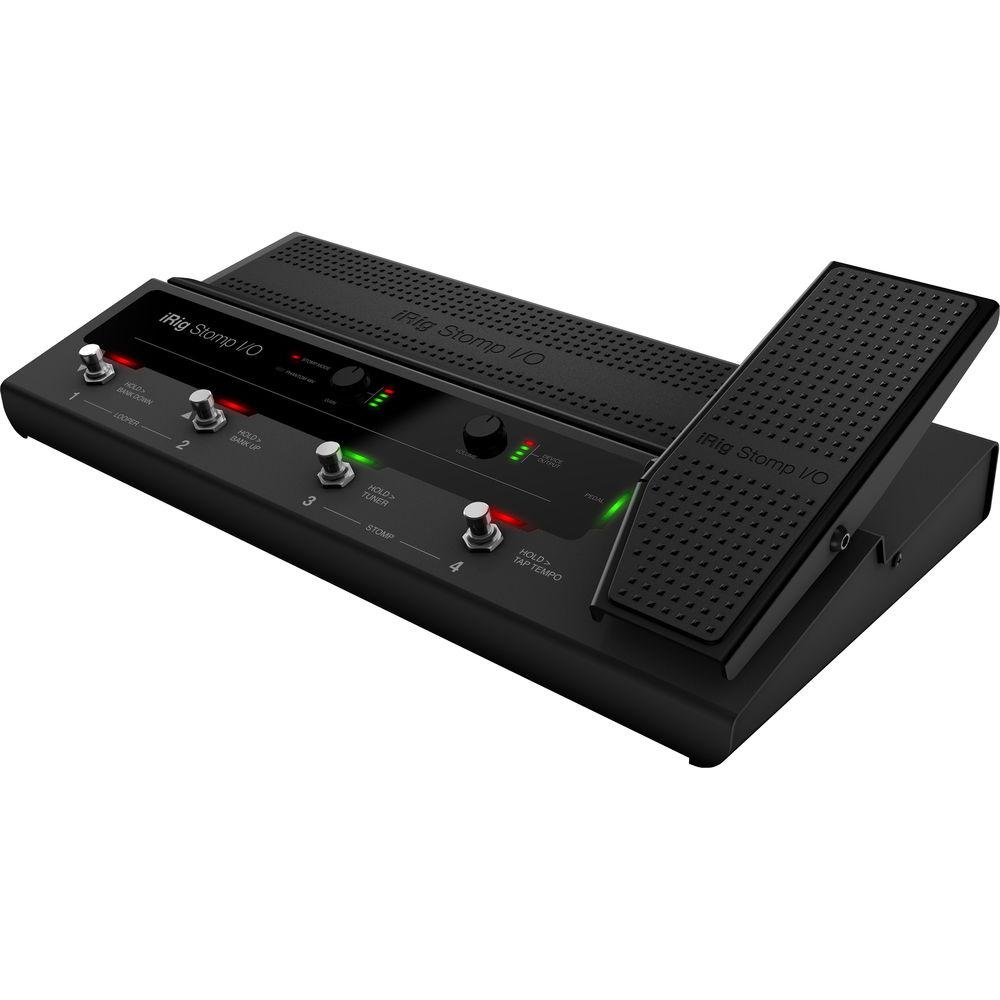

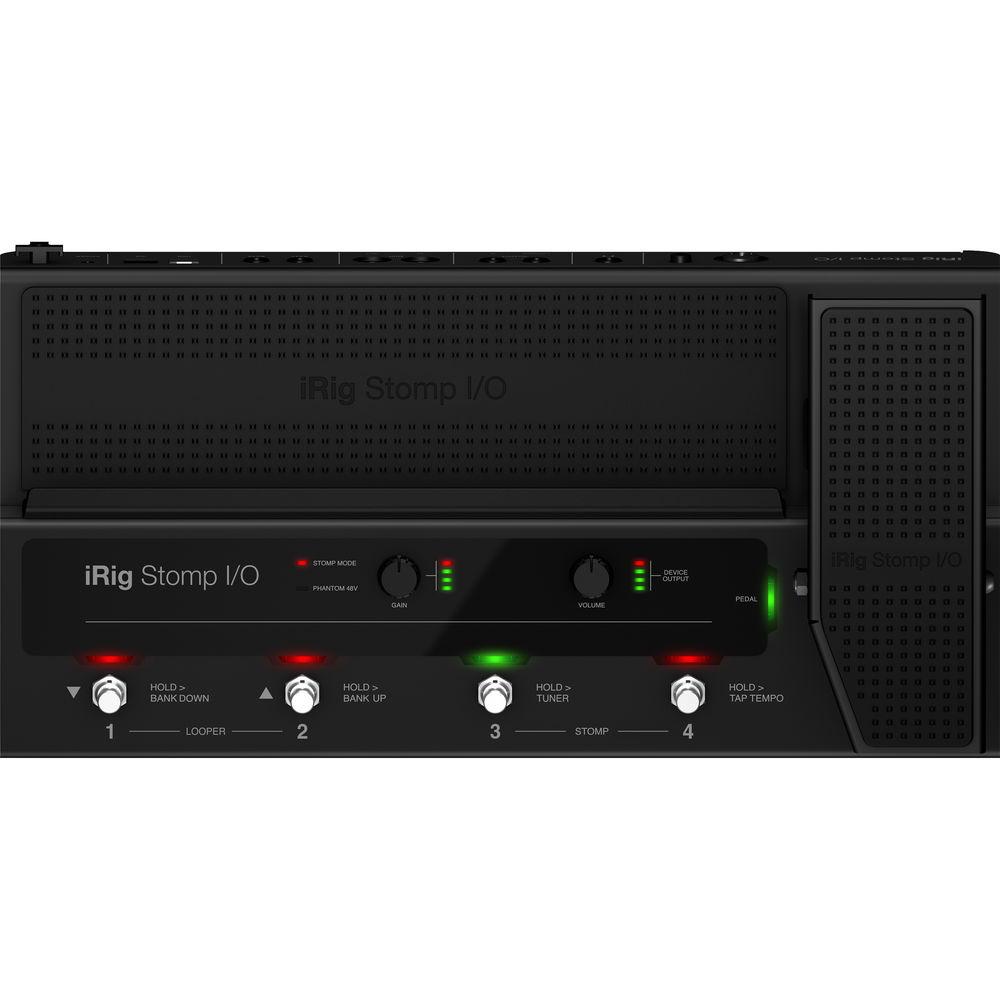

- Top Panel Layout
-
- 4 metal footswitches with LED indicators, dual-color
- 2 analog potentiometers with input gain and output volume
- Stomp MODE LED
- Phantom 48V LED
- Pedal LED
- 4-segment input level meter (mono, peak)
- 4-segment device output meter (peak)

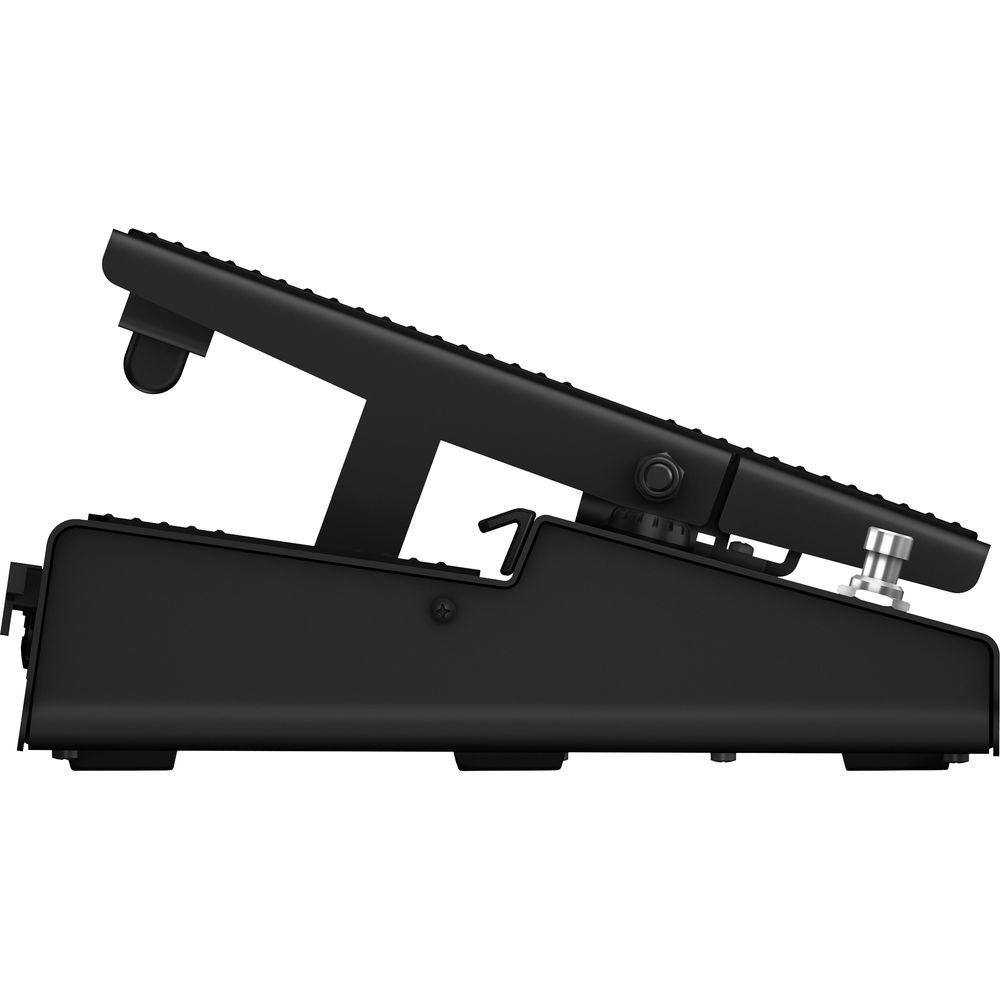

- Continuous pedal (expression pedal) with virtual switch at the top of pedal travel

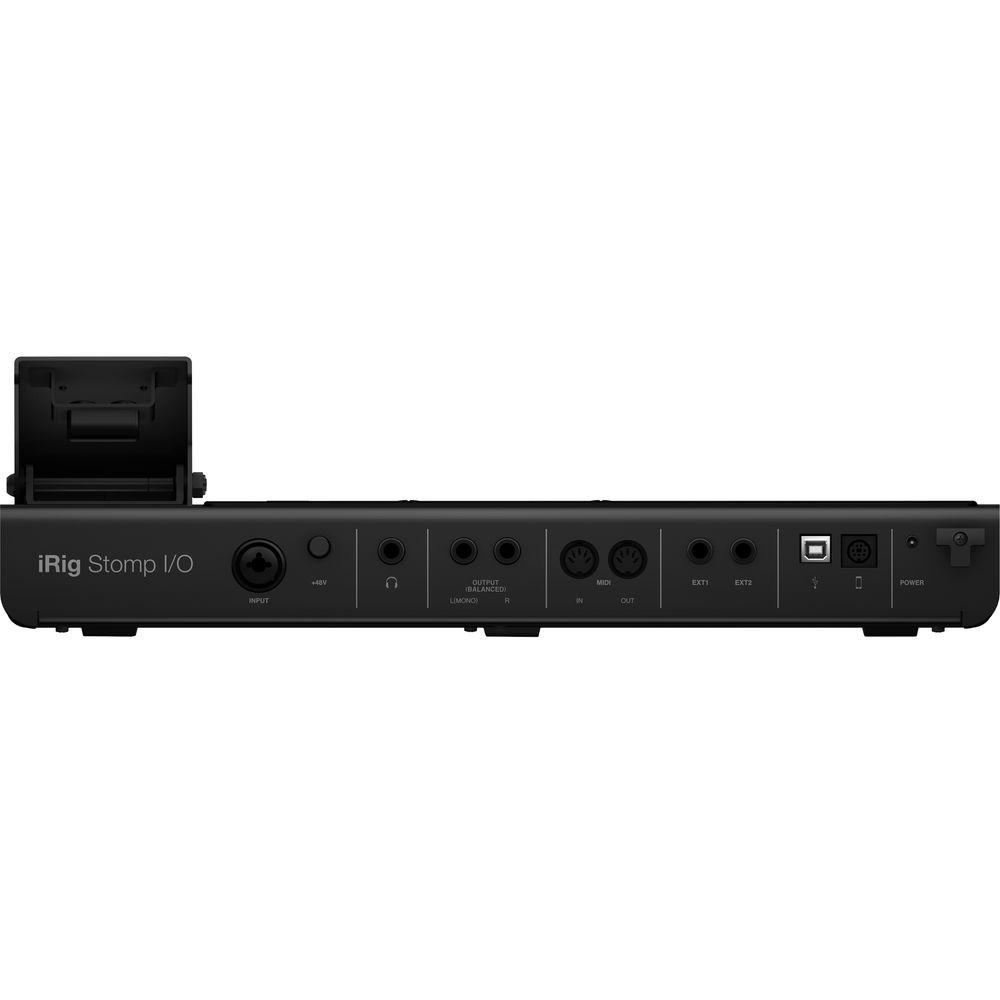

- Rear Panel Layout
-
- Neutrik combination XLR-1/4" socket for MIC input and instrument input (auto selecting)
- +48V phantom-power switch
- 1/4" headphone output
- Balanced-floating line outputs, phone type
- 5-pin DIN MIDI I/O
- 2 x 1/4" TRS external controller jacks
- USB Type-B socket for connecting to computers (Mac/Windows)
- Mini-DIN connector for iOS devices
- Barrel DC input socket for powering up the Stomp I/O while charging iOS devices simultaneously
In the Box IK Multimedia iRig Stomp I/O USB Pedalboard Controller 9V Battery 3.5mm mini-jack cable (6.5' / 2m) Mini-DIN/Lightning Cable to USB Cable Limited 1-Year Warranty on Parts AmpliTube 4 Deluxe Select T-Racks Processors (White 2A, Black 76, and More) Ableton Live 9 Lite AmpliTube and AmpliTube Acoustic for iOS VocaLive iOS Mic Room for iOS Limited 90-Day Warranty on Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the IK Multimedia iRig Stomp I O USB Pedalboard Controller in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIK Multimedia IP-IRIG-STOMPIO-IN Specs | | | Connector | XLR female (balanced, 3-pin) | | Input Level | 6 mV p-p to 1.4 V p-p | | Impedance | 3.2 kOhms | | Gain Range | 46 dB | | Phantom Power | +48 V (±4) | | Frequency Response | 20 Hz to 20 kHz, ±1.5 dB | | Input Noise | -100 dB RMS | | | | Connector | 1/4" TS jack, phone type (Hi-Z, unbalanced) | | Input Level | 30 mV p-p to 6.9 V p-p | | Gain Range | 27 dB, approximately | | Frequency Response | 20 Hz to 20 kHz, ±1.5 dB | | Input Noise | -100 dB RMS | | | | Connector | 1 x 1/4" TRS, phone type | | Level Control | Potentiometer | | Headphone Output Power | 100 mW into 50 Ohms | | | | Connector | 2 x female TRS 1/4" jack (floating balanced, phone type) | | Maximum Output Level | +13 dBu into 600 Ohms, balanced load | | Frequency Response | 0 Hz to 21 kHz, ±0.2 dB | | Dynamic Range | Output: 102 dBA | | Output Impedance | 150 Ohms, balanced | | | | Conversion | 24-bit A/D and D/A | | Sampling Rate | 44.1 kHz, 48 kHz, 88.2 kHz, and 96 kHz | | Power | USB bus powered (when used with a computer) or DC in | | Connection | USB Type-B and 5-pin mini-DIN | | Enclosure | Metal sheet | | | | Package Weight | 9.95 lb | | Box Dimensions (LxWxH) | 21.1 x 10.7 x 5.8" |
