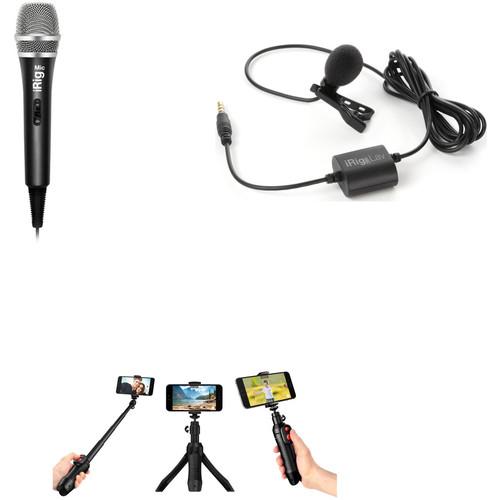

User Manual for IK Multimedia Mobile Field Kit with iRig Mic, iRig Lav, and iKlip Grip Pro

• Product category: Mobile Microphones IK Multimedia
• Brand: IK Multimedia
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for IK Multimedia Mobile Microphones

Product description

• IK Multimedia iRig Mic
  • Product Demo
  The IK Multimedia iRig Mic is a must have for the mobile musician / songwriter. It features a unidirectional condenser-electret microphone that provides quality recording in both close and long distance mic conditions. The iRig Mic plugs directly into your iOS or Android mobile device. The base of the cable features a dual mini-jack connector to plug in headphones or speakers, which facilitates studio-like monitoring of your mixes, instrument tracks and vocal takes. As an added bonus, the iRig Mic comes with two apps for iOS. The VocalLive app features a real-time effects processor suite for the singer and vocalist. Also included is the AmpliTube app, which turns your mobile device into the ultimate guitar and bass multi-effect processor and studio rig. All of these features, plus the three-level gain switch, make the iRig Mic suitable for multiple types of sound recording. It can turn your iOS or Android mobile device into a mobile recording / engineering studio.
  • Ideal for all vocal applications from singing to speech
  • Great for all types of sound recording or processing in music or other audio applications
  • Condenser-electret unidirectional capsule
  • Dual mini-jack connector allows real-time monitoring on headphones, speakers, mixers, PAs
  • Rugged, durable metal housing
  • Easy to set up for any sound source
  • Can be hand held or placed on a standard mic stand
  • Comes with app for singer/songwriters
  • Can be used with a variety of other apps.
• IK Multimedia iRig Mic Lav
  • Product Demo
  The iRig Mic Lav from IK Multimedia provides convenient, high-quality audio, right into your smartphone, tablet or computer. It is equipped with an omnidirectional condenser microphone to pick up sound from all directions, and the foam pop filter eliminates vocal plosives and wind noises. It is a simple, straightforward audio solution for videos, films or broadcasting scenarios.

  Any app that accepts input from a headset connection is compatible with the iRig Mic Lav. Just hook up the 1/8" TRRS jack to your device (iOS, Mac, Android & PC), open your recording app and you're ready to capture quality audio. The in-line connector hosts a 1/8" TRRS and a dedicated switch that allows you to connect your headphones for monitoring your recording or a second iRig Mic Lav.
  Features at a Glance
  • • Lavalier Mic with TRRS Jack
    • High-quality omnidirectional condenser capsule
    • Includes foam pop shield and durable mounting clip
    • Compatible with audio apps that accept audio from headset input
    • Compatible with Apple iOS/Android devices
    • Allows you to connect both headphones or a second iRig Mic Lav
• IK Multimedia iKlip Grip Pro
  • Product Demo
  The iKlip Grip Pro from IK Multimedia is a multi-functional stand for smartphones equipped with a 3.5 to 6" display size. The iKlip Grip Pro sports a large, ergonomic handle as well as a locking 4-segment telescopic extension pole that can extend up to 24" long to take selfies. For hands-free video chats, you can unfold the handle into a tripod, allowing you to place the iKlip Grip Pro on a table. To capture difficult shots, it can function as a monopod for nighttime use, and there's also a detachable Bluetooth shutter control for remote shooting. In addition to supporting smartphones, the iKlip Grip Pro is compatible with action cameras, handheld audio recorder devices, and cameras featuring a UNC 1/4"-20 screw thread.

  The iKlip Grip Pro features an expandable spring-loaded, soft-touch rubber bracket that supports equipment with a 2.13 to 3.58" width and provides secure holding power for your mobile device, with or without a case. To help capture that perfect shot, the bracket is attached to a pivoting ball-joint, which offers 90° angle adjustments and 360° rotations. Moreover, a holder clip on the handle lets you attach the Bluetooth remote controller, so you can use the remote as a thumb-activated shutter control for devices running iOS 5 or later.
  • Functions as a video handle, monopod, tripod, or smartphone tripod adapter
  • Large, ergonomic grip for comfort
  • Compact all-in-one design
  • Tabletop tripod with multi-position locking extender
  • Variable length of 7.4 to 24.4"
  • Integrated/detachable Bluetooth shutter controller included
  • 360° rotation and 90° adjustable holder angle
  • Standard UNC 1/4"-20 threaded ball mount
  • Compatible with nearly every smartphone with a 3.5 to 6" screen size, even with case on
  • Works with DSLR and digital cameras up to 2.2 lb
  • Compatible with action cameras and handheld audio field recorders

• iRig Mic wcvfefydfctxztbveeyedeeyebarxa
• Limited 1-Year Warranty

• iRig Mic Lav

• iKlip Grip Pro

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• IK Multimedia iRig Mic

  Microphone Type	Condenser Electret
  Polar Pattern	Unidirectional / Cardioid
  Frequency Response	100 Hz - 15 kHz, −3 dB
  Maximum Sound Pressure	Set for high: 120 dB Set for mid: 90 dB Set for low: 75 dB
  Distortion	3% THD @ 120 dB, 1 kHz
  Windscreen	Built-in
  Compatibility	iPhone 5S iPhone 5C iPhone 5 iPhone 4S iPhone 4 iPhone 3GS iPod touch (5th gen) iPod touch (4th gen) iPod touch (3rd gen) iPad Air iPad (4th gen) iPad (3rd gen) iPad 2 iPad iPad mini (2nd gen) iPad mini Also works with most Android devices Works with most Mac computers from 2008 or later (except Mac Pro line)
  System Requirements	iOS 4.3 or later
  Dimensions (WxHxD)	1.77 x 8.85 x 1.77" (45 x 225 x 45 mm)
  Weight	10.58 oz (300 g)

  Box Dimensions (LxWxH)	9.8 x 4.0 x 2.5"

• IK Multimedia iRig Mic Lav

  Microphone Element	Condenser
  Polar Pattern	Omnidirectional
  Audio Input Jack	TRRS
  Compatibility	iPhone, iPad, iPod touch, Android, Mac and PC *To be compatible, the mobile device must be compliant with the CTIA/AHJ wiring standard

  Box Dimensions (LxWxH)	5.4 x 5.4 x 2.0"

• IK Multimedia iKlip Grip Pro

  Compatibility	Devices: 2.13 to 3.58" / 54 to 91 mm in width Cameras and Mounts: UNC 1/4"-20 thread
  Adjustability	Rotation: 360° Angle: 90°
  Payload	2.2 lb / 1 kg
  Extension	Up to 24.4" / 62 cm
  Height	7.4" / 19 cm (folded without holding bracket)
  Weight	7.05 oz / 200 g

  Box Dimensions (LxWxH)	9.6 x 6.3 x 2.85"
