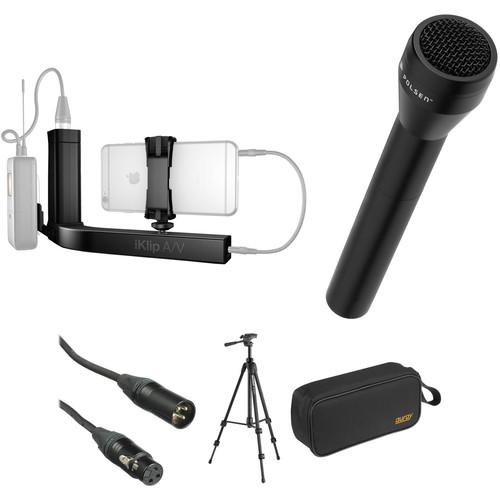

IK Multimedia Smartphone ENG Interview Rig

User Manual for IK Multimedia Smartphone ENG Interview Rig

• Product category: Handheld Interview Microphones IK Multimedia
• Brand: IK Multimedia
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for IK Multimedia Handheld Interview Microphones

Product description

• IK Multimedia iKlip A/V Smartphone Grip with Integrated Mic Preamp
  • iKlip A/V smartphone broadcast mount - Overview
  The iKlip A/V from IK Multimedia is a sturdy handheld grip for smartphones that features a built-in microphone preamp as part of its construction. It comes stocked with a side clip for wireless systems, should you choose to utilize those. Conversely, you can opt to plug a microphone straight into the iKlip's XLR input, and once connected, connect the microphone into your smartphone's mini-jack via a 1/8" cable. The unit runs on two AA batteries.

  Don't let the lower-case "i" in the name fool you: the adjustable vice grip is compatible with android devices, iOS devices, or any smartphone with a screen size between 3.5" and 6". Its preamp supports 48V phantom power and sports controls to change the gain, thus allowing the smartphone holder to control the volume of the microphone in use. Such a feature renders this unit suitable for on-the-go reporting, improved home videography, and the burgeoning business of the iPhone motion picture. With two AA batteries, it can last between 20 to 60 hours at a clip, depending on whether or not you're using phantom power.
  Key Features
  • • XLR mic preamp with 48V phantom power and gain control
    • Integrated wireless-receiver support
    • Headphone output to monitor sound in real-time
    • Features tripod- and camera-mount threads
    • Includes 3.5mm TRRS to TRRS cable
• Polsen HDR-10 Omnidirectional Handheld Dynamic ENG Microphone
  • iKlip A/V smartphone broadcast mount - Overview
  The Polsen HDR-10 is a handheld omnidirectional dynamic microphone that uniformly captures sound on- or off-axis. This makes it ideal for audio and video applications like ENG and interviews, because it can pick up sound in a 360° pattern. The frequency response is tailored for speech, resulting in a natural sound with clear dialogue intelligibility.

  The capsule is isolated in rubber to reduce handling noise, and the integrated metal mesh windscreen and included foam windscreen lower wind noise and plosive sounds. The body of the microphone is constructed from cast aluminum alloy to provide durability and a professional appearance.
  Designed for ENG
  • Ideal for audio and video applications like electronic news gathering (ENG) and interviews
  360° Sound Pickup
  • Omnidirectional capsule picks up sound in a 360° pattern to uniformly capture sound on- or off-axis
  Tailored for Speech
  • Frequency response is tailored for speech, resulting in a natural sound with intelligible dialogue
  Metal and Foam Windscreens
  • Integrated metal mesh windscreen and included foam windscreen reduce undesirable wind noise and vocal plosive sounds
  Includes Mic Clip
  • Microphone clip with 5/8" thread and 3/8" reducer bushing for versatile mounting
  Drawstring Pouch
  • Drawstring pouch included for safe storage and transport
  UPC: 847628572577
• Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 6' (1.8 m), Black
  • iKlip A/V smartphone broadcast mount - Overview
  The black Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable (6') is designed to be an extremely quiet and flexible cable that is ideal for the most demanding live sound and performance applications. The cable is engineered to be durable and to provide protection against EMI, RFI, and static noise. While the cable's color-coding affords the ability to quickly differentiate between multiple connections on stage, it provides a pleasant aesthetic quality at the same time.

  Premium Performance 3000 Series cables are made from 24-AWG OFC copper wire that's wrapped with PE insulation and a conductive PVC inner shield. A cotton-yarn inner layer helps reduce electrostatic and microphonic noise. 95% dual-spiral shielding makes the cable resistant to EMI and RFI noise. The Neutrik XX silver connectors provide a high level of connectivity, and all the solder connections are shrink-wrapped for protection.
  • 95% dual-spiral shielding offers protection from EMI and RFI noise
  • Twin conductive PVC inner shielding provides 100% coverage of the core conductor. It helps keep the cable's signal from radiating and affecting nearby cables, and also helps prevent external EMI from penetrating to the cable's core
  • 24-AWG oxygen-free stranded copper inner core provides the best possible conductivity
  • Cotton yarn reduces electrostatic and microphonic noise
  • All solder points shrink-wrapped for protection
  • Neutrik XX silver connectors offer high conductivity
  • Caged type contact and improved ground contact
  UPC: 847628558267
• Auray WMC-100 Wide Mouth Case
  • iKlip A/V smartphone broadcast mount - Overview
  The WMC-100 Wide Mouth Case from Auray is designed to hold and protect your microphone and accessories such as cables, mic clips, shock mount, small audio recorder, memory cards, and more. This wide mouth case features a single compartment with a fabric-hinged lid that closes with a wrap-around zipper on three sides.

  With a length of 11.5", the WMC-100 case can accommodate a long-handled interview microphone while remaining roomy enough for a mic flag, too. Smaller items can be secured in an interior storage pouch under the top lid with a touch-fastening tab closure.

  For added shock and impact protection, there's also an inner layer of foam padding. The interior is lined with faux fur to prevent scratches. To help guard against impact, dust and moisture, the exterior of the case is made of 600D ballistic nylon.

  To reinforce and maintain the case's shape, the exterior top and bottom circumferences feature a thin, black, plastic piping. Also on the outside of the case is a wrist-strap handle for hands free carrying. UPC: 847628585461

• iKlip A/V Smartphone Grip with Integrated Mic Preamp ywrwqyfvzyaaxcysvesszzuxxq
• 3.5mm TRRS to TRRS Cable
• Limited 90-Day Warranty

• Polsen - HDR-10 Omnidirectional Handheld Dynamic ENG Microphone

• Kopul - Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 6' (1.8 m), Black

• Auray - WMC-100 Wide Mouth Case

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• IK Multimedia iKlip A/V Smartphone Grip with Integrated Mic Preamp

  Input & Output	1x XLR input 1x 1/8" TRRS output 1x 1/8" headphone output
  Phantom Power	48 V

  Box Dimensions (LxWxH)	12.0 x 7.3 x 2.8"

• Polsen HDR-10 Omnidirectional Handheld Dynamic ENG Microphone

  Polar Pattern	Omnidirectional
  Element Type	Dynamic
  Output Connector	3-Pin XLR Male
  Frequency Response	50 Hz - 15 kHz
  Output Impedance	500 Ohms
  Sensitivity	2.2 mV/Pa
  Case Material	Aluminum
  Dimensions (L x D)	7.1 x 1.3" / 180.0 x 33.0 mm
  Weight	4 oz / 113 g

  Box Dimensions (LxWxH)	9.8 x 4.9 x 3.0"

• Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 6' (1.8 m), Black

  Connector 1	3-Pin XLR Male
  Connector 2	3-Pin XLR Female
  Cable Length	6' / 1.8 m
  Shielding	95% Spiral
  Wire Gauge	24 AWG
  Contact Plating	Silver

  Box Dimensions (LxWxH)	3.5 x 0.9 x 0.2"

• Auray WMC-100 Wide Mouth Case

  Materials	Exterior: 600D ballistic nylon Interior: Foam padding with faux fur lining
  Type of Closure	Zippered top lid
  Exterior Dimensions	11.5 x 6.0 x 3.25" / 29.2 x 15.2 x 8.3 cm
  Interior Dimensions	Pouch under top lid: 4.0 x 10.5" / 10.2 x 26.7 cm
  Carrying/Transport Options	Wrist strap: 1.0 x 6.25" / 2.5 x 15.9 cm
  Weight	7.2 oz / 204 g

  Box Dimensions (LxWxH)	11.8 x 6.2 x 2.9"
