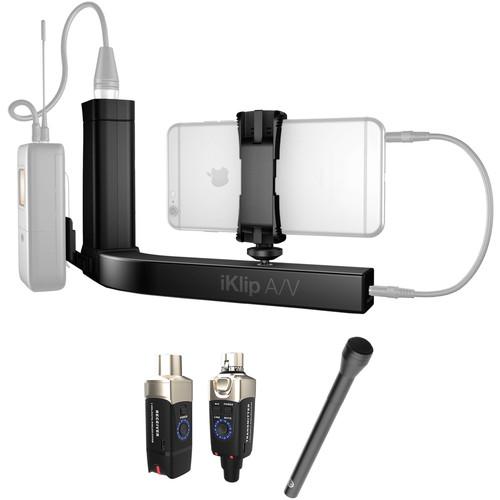

User Manual for IK Multimedia Wireless Smartphone Interview Kit Click to enlarge the picture
Contents of the user manual for the IK Multimedia Wireless Smartphone Interview Kit
- Product category: Audio Interfaces IK Multimedia
- Brand: IK Multimedia
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for IK Multimedia Audio Interfaces
|
User manual for the IK Multimedia Wireless Smartphone Interview Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any IK Multimedia product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official IK Multimedia user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a IK Multimedia product will considerably shorten its lifespan!
|
Product description The Wireless Smartphone Interview Kit from B&H includes the IK Multimedia iKlip A/V smartphone grip, a wireless mic transmitter, a wireless receiver with an XLR output, and a broadcast-quality handheld omnidirectional dynamic microphone. With convenient one-hand gripping style, easy gain adjustment, reduced handling noise, and a maximum range of 90 feet, this kit is ideal for reporting, interviews, and conferences. Setup is simple and efficient: Attach the plug-on transmitter to the microphone's XLR jack; Connect the receiver to the iKlip A/V's XLR input; Then, use the supplied 3.5mm cable to connect the iKlip A/V to your smartphone. - IK Multimedia iKlip A/V Smartphone Grip with Integrated Mic Preamp
- iKlip A/V smartphone broadcast mount - Overview
The iKlip A/V from IK Multimedia is a sturdy handheld grip for smartphones that features a built-in microphone preamp as part of its construction. It comes stocked with a side clip for wireless systems, should you choose to utilize those. Conversely, you can opt to plug a microphone straight into the iKlip's XLR input, and once connected, connect the microphone into your smartphone's mini-jack via a 1/8" cable. The unit runs on two AA batteries.
Don't let the lower-case "i" in the name fool you: the adjustable vice grip is compatible with android devices, iOS devices, or any smartphone with a screen size between 3.5" and 6". Its preamp supports 48V phantom power and sports controls to change the gain, thus allowing the smartphone holder to control the volume of the microphone in use. Such a feature renders this unit suitable for on-the-go reporting, improved home videography, and the burgeoning business of the iPhone motion picture. With two AA batteries, it can last between 20 to 60 hours at a clip, depending on whether or not you're using phantom power. - Key Features
-
- XLR mic preamp with 48V phantom power and gain control
- Integrated wireless-receiver support
- Headphone output to monitor sound in real-time
- Features tripod- and camera-mount threads
- Includes 3.5mm TRRS to TRRS cable
- Xvive Audio U3 2.4 GHz Digital Wireless Microphone System
- iKlip A/V smartphone broadcast mount - Overview
Turn your dynamic microphone into wireless with the U3 2.4 GHz Digital Wireless Microphone System from Xvive Audio. It features a 2.4 GHz wireless band, 20 Hz to 20 kHz frequency response, and less than 5 ms latency. The system works up to a 90' range, and includes two rechargeable batteries with a five-hour life for both receiver and transmitter units. The transmitter plugs into a dynamic microphone or into DI or XLR output gear, and the receiver plugs into a live sound mixer, portable PA system, or a recorder. This system broadcasts on six channels simultaneously, and is suitable for live vocals, presentations, video productions, and houses of worship. - Senal ENG-18RL Broadcast Omnidirectional Dynamic Microphone (Long)
- iKlip A/V smartphone broadcast mount - Overview
The Senal ENG-18RL is a broadcast-quality omnidirectional dynamic microphone. The dynamic capsule picks up sound in a 360° pattern and does not require a battery or phantom power, making it a reliable choice for critical field applications. The microphone's exceptionally low handling noise and resistance to wind noise and vocal plosives make it perfect for professional ENG applications like live reporting, interviews, and press conferences. At multiple areas inside the microphone, natural rubber with special shock-absorbing properties is bonded to carbon steel rings to isolate the sealed inner shell from the outer shell. This system protects the microphone capsule from impacts and inclement weather, and dissipates kinetic energy, dramatically reducing handling noise and resonance due to rustling and knocking. The microphone also incorporates multistage wind protection to minimize wind noise and vocal plosives. A mesh grille, acoustic foam, acoustic fabric, and another layer of acoustic foam work to diffuse excess sound pressure from wind and breath. A fixed rigid carbon-steel ring with a unique bullet-shaped design disperses breath to minimize vocal plosives. The EQ curve is tailored for broadcast use, with a gradual low-frequency roll-off to keep out unwanted rumble, a pronounced midrange to ensure speech intelligibility, and a high-frequency roll-off to eliminate hiss and sibilance distortion. Whether broadcasting on television, AM/FM radio, or over the internet, the ENG-18RL is designed to ensure that dialogue cuts through the mix, and can be broadcast live without EQ adjustment. The ENG-18RL features a durable aluminum-alloy shaft designed for EMI rejection and reduced internal resonance, with a matte black finish for a professional appearance and minimum light reflection. The mic is also long enough to accommodate a mic flag. - Ideal Choice for Critical Field Applications
- The broadcast-quality omnidirectional dynamic capsule picks up sound in a 360° pattern and does not require a battery or phantom power, making it a reliable choice for critical field applications
- Isolated Inner Shell
- The kinetic isolation system helps protect the microphone capsule and dissipate kinetic energy to dramatically reduce handling noise and resonance. Natural rubber shockmouts are bonded to carbon steel rings to isolate the sealed inner shell from the outer shell
- Diffuses Excess Sound Pressure From Wind and Vocal Plosives
- Multistage wind protection comprises a mesh grille, acoustic foam, a bullet-shaped ring, acoustic fabric, and another layer of acoustic foam to diffuse excess sound pressure from wind and vocal plosives
- Broadcast Live Without EQ Adjustment
- The EQ curve is tailored for broadcast use, with a gradual low-frequency roll-off to keep out unwanted rumble, a pronounced midrange to ensure speech intelligibility, and a high-frequency roll-off to eliminate hiss and sibilance distortion
- Can Accommodate Mic Flag
- The ENG-18RL is long enough to fit a mic flag for show or station identification
UPC: 847628572461 In the Box - iKlip A/V Smartphone Grip with Integrated Mic Preamp zcedsqrxyry
- 3.5mm TRRS to TRRS Cable
- Limited 90-Day Warranty
- Xvive Audio - U3 2.4 GHz Digital Wireless Microphone System
- Senal - ENG-18RL Broadcast Omnidirectional Dynamic Microphone (Long)
Table of Contents
|
Upload User Manual
Have you got an user manual for the IK Multimedia Wireless Smartphone Interview Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - IK Multimedia iKlip A/V Smartphone Grip with Integrated Mic Preamp
Input & Output | 1x XLR input 1x 1/8" TRRS output 1x 1/8" headphone output | Phantom Power | 48 V | | Box Dimensions (LxWxH) | 12.0 x 7.3 x 2.8" | - Xvive Audio U3 2.4 GHz Digital Wireless Microphone System
Wireless | 2.4 GHz | Tuning Bandwidth | 2400 to 2483.5 MHz | Frequency Response | 20 Hz to 20 kHz (-3 dB) | Latency | <5 ms | Channels | Up to 6 simultaneous channels | Range | Up to 90' / 27 m | Audio | High Resolution 24-bit / 48 kb/s | Dynamic Range | 110 dB | SNR | 110 dB | RF Sensitivity | -88 dBm | Total Harmonic Distortion | 0.2% | RF Output Power | 10 mW E.I.R.P. max | Ports | Transmitter: 1 x XLR male input 1 x USB
Receiver: 1 x XLR female output 1 x USB | Maximum Input Level | Mic Mode: 2.8 V p-p Line Mode: 7 V p-p | Maximum Output Level | 2.8 V p-p | Gain Adjustment Range | Mic: 0 dB Line: -10 dB | Antenna Type | 1/4 Wave Sleeve Dipole, non-removable on transmitter and receiver | Antenna Impedance | 50 Ohms | Impedance | Transmitter: 15 kOhms, 1 kHz Receiver: 470 Ohms, 1 kHz | Battery | 3.7 V rechargeable Li-ion, 860 mA for transmitter and receiver | Rechargeable Battery Life | 5 hours | Operating Temperature | -0.4 to 134.6°F / -18 to 57°C | Housing | Molded plastic and cast metal | Dimensions | Transmitter: 1.2 x 1.1 x 3.9" / 3.1 x 2.9 x 9.8 cm Receiver: 1.2 x 1.1 x 3.9" / 3.1 x 2.9 x 9.8 cm | Weight | Transmitter: 3.3 oz / 93 g Receiver: 3.2 oz / 92 g | | Box Dimensions (LxWxH) | 6.4 x 4.4 x 2.6" | - Senal ENG-18RL Broadcast Omnidirectional Dynamic Microphone (Long)
Polar Pattern | Omnidirectional | Element Type | Dynamic | Output Connector | 3-Pin XLR Male | Frequency Response | 50 Hz - 18 kHz | Output Impedance | 500 Ohms | Sensitivity | 2.2 mV/Pa | Case Material | Aluminum | Dimensions (L x D) | 1.3 x 9.1" / 33.0 x 231.0 mm | Weight | 4.8 oz / 136 g | | Box Dimensions (LxWxH) | 11.1 x 5.1 x 2.6" |
