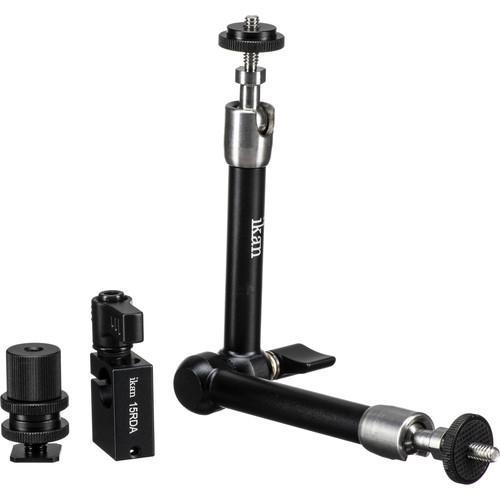

User Manual for ikan 11" Articulating Arm with Single 15mm Rod Mount Click to enlarge the picture
Contents of the user manual for the ikan 11" Articulating Arm with Single
- Product category: Articulating Arms ikan
- Brand: ikan
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ikan Articulating Arms
|
User manual for the ikan 11" Articulating Arm with Single contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ikan product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ikan user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ikan product will considerably shorten its lifespan!
|
Product description Attach accessories to your camera rig with Ikan's 11" Articulating Arm with Single 15mm Rod Mount. The articulating arm can interface with 1/4"-20 threads and shoe mounts. The added 15mm rod connection allows for the arm to be attached anywhere on a 15mm standard rod. - 11" Articulating Arm for Camera/Monitor The ikan 11" Articulating Arm for Camera/Monitor is a flexible arm that supports 5 pounds for attaching and positioning available accessories (sold separately) to your camera or accessory mounting point. It is machined from a metal alloy for strength and features three points of articulation that tighten and loosen using a single locking twist handle.
The ends of the arm feature 1/4"-20 threaded studs set into ball joints, with each joint providing swivel adjustment and up to 90° of lockable position adjustment. The threaded studs feature thumb wheels that allow you to tighten accessories on the threaded studs. The arm includes a removable shoe mount that attaches to your camera's accessory hot/cold shoe. - Threaded mounting studs on ball joints
- Three points of articulation
- Locking twist handle tightens the arm
- Removable shoe mount adapter
UPC: 847983009251 - 15mm Rod Adapter The ikan 15mm Rod Adapter is a mounting block that slides onto any industry-standard 15mm support rod. Its 1/4"-20 and 4mm screw threads allow you to attach additional accessories such as monitors, batteries, or lights to an Elements support rig.
- Universal fit for any 15mm rods
UPC: 847983006960 In the Box Bundle Items 11" Articulating Arm for Camera/Monitor 15mm Rod Adapter Table of Contents
|
Upload User Manual
Have you got an user manual for the ikan 11" Articulating Arm with Single 15mm Rod Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 11" Articulating Arm for Camera/Monitor
| Dimensions | 2.25 x 12.5 x 1" (5.7 x 31.8 x 2.54 cm) | | Weight | 0.7lb (317.5 g) | | | | Box Dimensions (LxWxH) | 9.65 x 4.0 x 1.15" | - 15mm Rod Adapter
| Compatibility | 15mm Support Rods | | Mount Diameter | 1/4"-20
4mm | | Dimensions | 1.4 x 1.1 x 0.6" (3.5 x 2.7 x 1.6 cm) | | Weight | 0.8 oz (22.7g) | | | | Box Dimensions (LxWxH) | 4.5 x 2.2 x 0.8" |
