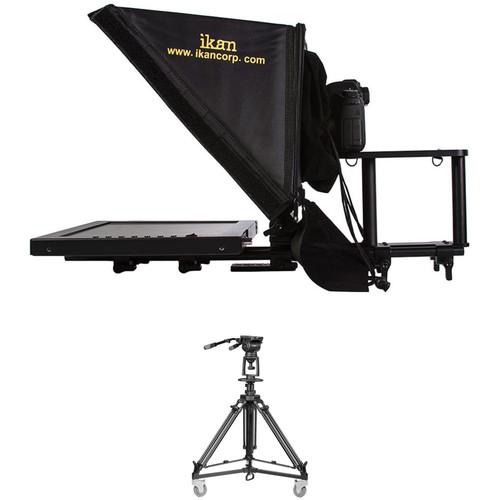

ikan 15" Teleprompter with Pneumatic Pedestal

User Manual for ikan 15" Teleprompter with Pneumatic Pedestal System for Cameras Weighing up to 18 Pounds

• Product category: Teleprompters ikan
• Brand: ikan
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for ikan Teleprompters

Product description

• ikan PT3500 15" Rod Mounted Teleprompter for Location and Studio
  • Ikan PT3500 / 3700 Rod Based Teleprompter
  Designed to be used in the field as well as in the studio, the ikan 15" Rod Mounted Teleprompter is lightweight, and quick to set up. Right out of the box, you can use the teleprompter with almost any camcorder that has a flat base. To use with a DSLR camera, or any other camera with a shorter footprint, the included special DSLR shelf can be fastened to the end of the camera base-plate in order to move your camera's lens closer to the prompter glass for optimal performance. The PT3500 Teleprompter's hardware is based on 15mm rods. This allows the monitor, the prompter glass, and the camera baseplate to be set up quickly, without requiring tools. Each component can easily be moved individually to adjust for different setups. To accommodate cameras with different heights, ikan includes 5" and 8" rods for mounting the baseplate. For editing and displaying prompter text, PrompterPro3 software is included. To ensure compatibility with different workflows, the software works with both PC and Mac computers. The monitor has Composite BNC, VGA, and HDMI inputs to accept video signals from your computer and other video sources as well.
  Adjustable Glass Frame
  • The adjustable glass frame on the PT3500 allows for fast and easy set up. The frame can also be folded to make the teleprompter compact and easy to transport.
  Dual Purpose Base Plate Design
  • The Dual Purpose Base plate supports various cameras, DSLR's and small to midsized cameras. The base plate comes with a DSLR Shelf which allows you to put a DSLR camera at the very edge of the base plate to get closer to the glass if needed.
  Height Adjustment Rods
  • The PT3500 includes 5" and 8" height adjustment rods for the baseplate, making the teleprompter more versatile for various sized cameras.
  15mm Rod System Design
  • The PT3500 is based on a 15mm rod system design, making it lightweight, easy to use, and quick to set up.
  High Quality 70/30 Teleprompter Glass
  • The high quality 70/30 teleprompter glass provides a balance between reflection and pass-through without distorting the image. This high quality glass allows your camera to have a clear picture, while providing reflection you need to read the text.
  Ships in Reusable Foam
  • The PT3500 is shipped in reusable custom cut foam which will help keep the kit safe and organized when you set it up or break it down. The custom cut foam can also be repurposed to perfectly fit in the SKB I Series 2918-10 Waterproof Hard Case.
  Includes Software for Mac or PC
  • The PrompterPro3 Teleprompting software for Mac and PC are included with this kit. This software offers a full text editor, vertical and horizontal screen flip, real-time text updates and live prompter mode for optimal control. The software is compatible with Mac OSX 10.7 and up (with 64-bit processor), as well as Windows XP, Vista, 7, and 8.
  UPC: 847983011490
• E-Image Air-Controlled Pedestal Kit
  • Ikan PT3500 / 3700 Rod Based Teleprompter
  The E-Image Air-Controlled Pedestal Kit was designed as an economical solution for small studios, houses of worship, and schools. The kit includes a fluid head, air-controlled tripod, and dolly, and supports 17-33 lb loads.

  The tripod features a two-section, air-dampened adjustable central column with an air pump system for setting the operating height. The entire system reaches a maximum height of right under 6 ft. The fluid head offers eight levels of adjustable counterbalance, and comes with two pan bars and a tick-marked camera plate with a 4" sliding range. The dolly has three studio-style wheels with independent locks on each.
  Key Features
  • • 17-33 lb payload
    • Approx. 6 ft maximum height
    • Two-section central air-dampened adjustable column with an air pump system
    • Eight levels of adjustable counterbalance
    • Two pan bars
    • Tick-marked camera plate with a 4" sliding range
    • Dolly with three studio-style wheels with independent locks on each
    • +90/-60° tilt range
    • 100mm bowl diameter
    • Bubble level
  UPC: 847983021239

• PT3500 15" Rod Mounted Teleprompter for Location and Studio tvfvtycvrvbzcvszwb
• Teleprompter Base Assembly with Glass
• Camera Mount Assembly
• PrompterPro3 Software Disc
• LCD Monitor with Power Supply
• Hood
• 2 x 15mm Rods (8")
• 2 x 1/4"-20 D-Ring Camera Mount Screws
• 4 x Cork Strips
• 5/32 Hex Key
• Limited 1-Year Warranty

• E-Image - Air-Controlled Pedestal Kit

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• ikan PT3500 15" Rod Mounted Teleprompter for Location and Studio

  Reading Range	20' / 6.1 m

  Size (Diagonal)	15" / 38.1 cm
  Maximum Brightness	350 cd/m2
  Native Resolution	1024 x 768
  Aspect Ratio	4:3
  Contrast Ratio	500:1
  Viewing Angle (H x V)	160 x 140°
  Input	1 x HDMI 1 x VGA 1 x Composite (BNC)
  Output Voltage	12 VDC at 4 A
  Power Consumption	10 W

  Dimensions	25.0 x 14.5 x 14.0" / 63.5 x 36.8 x 35.5 cm

  Box Dimensions (LxWxH)	29.5 x 18.5 x 10.5"

• E-Image Air-Controlled Pedestal Kit

  Payload Range	Fluid Head: 17-33 lb (8-15 kg)
  Maximum Height	Entire System: Approx. 6 ft (1.8 m)
  Counterbalance	0-8
  Grades of Pan Drag	0
  Grades of Tilt Drag	0
  Tilt Range	+90/-60°
  Camera Plate	2.4" (60 mm) plate with 4" (100 mm) slide range
  Bowl Diameter	100 mm
  Bubble Level	Yes
  Material of Construction	Aluminum
  Footprint Diameter	37" (95 cm)
  Temperature Range	-22 to 140°F (-30 to 60°C)

  Box Dimensions (LxWxH)	23.1 x 9.6 x 8.8"
