User Manual for ikan 17" Native 4K Quad HDMI 3G-SDI Monitor Click to enlarge the picture
Contents of the user manual for the ikan 17" Native 4K Quad HDMI
- Product category: Production Monitors ikan
- Brand: ikan
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ikan Production Monitors
 |
User manual for the ikan 17" Native 4K Quad HDMI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ikan product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ikan user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ikan product will considerably shorten its lifespan!
|

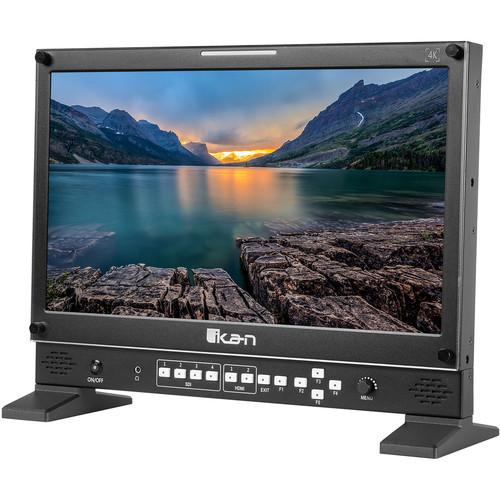

Product description The Native 4K Quad HDMI/3G-SDI Monitor from ikan is a 17" monitor with a 3840 x 2160 LCD display and a contrast ratio of 1000:1. This monitor features four 3G-SDI inputs, four 3G-SDI outputs, and two HDMI inputs which can be used for a quad split, dual split side by side, or above and below display. The 3840 x 2160p resolution allows you to have up to four 1080p quadrants on the screen at one time.

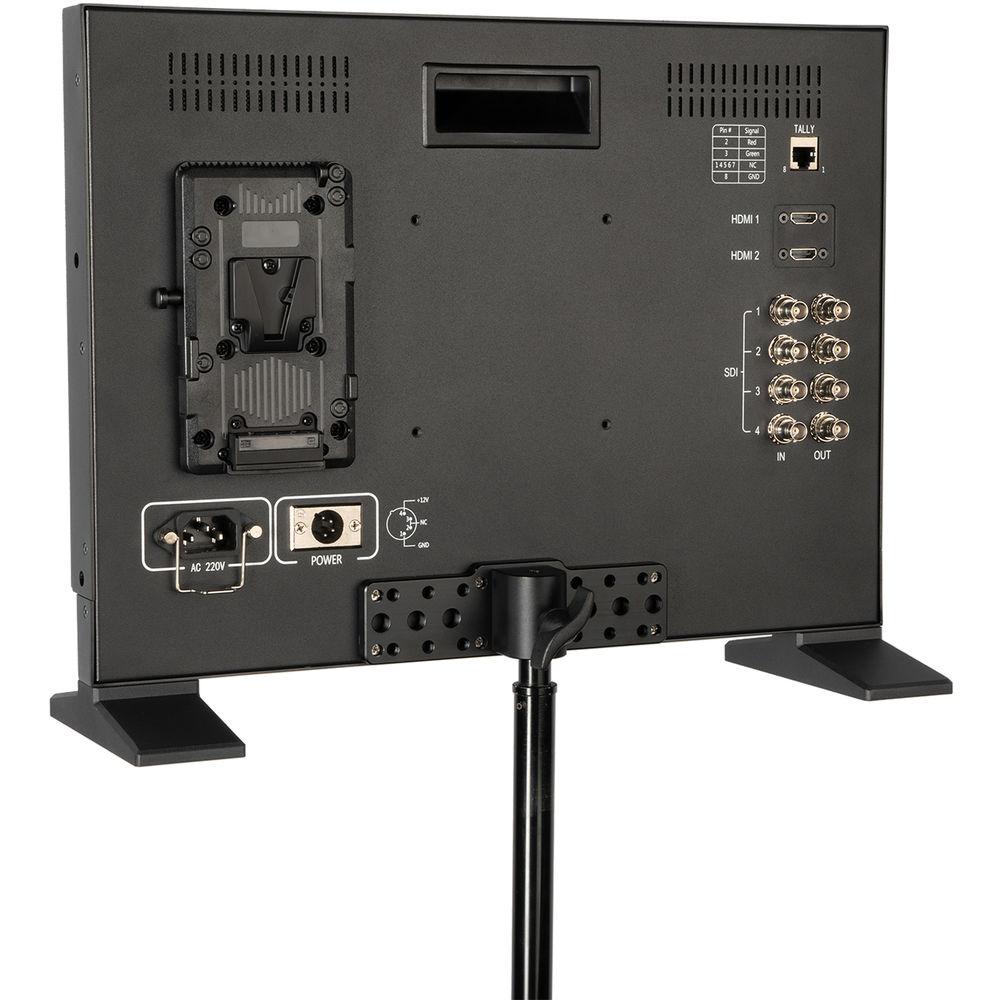

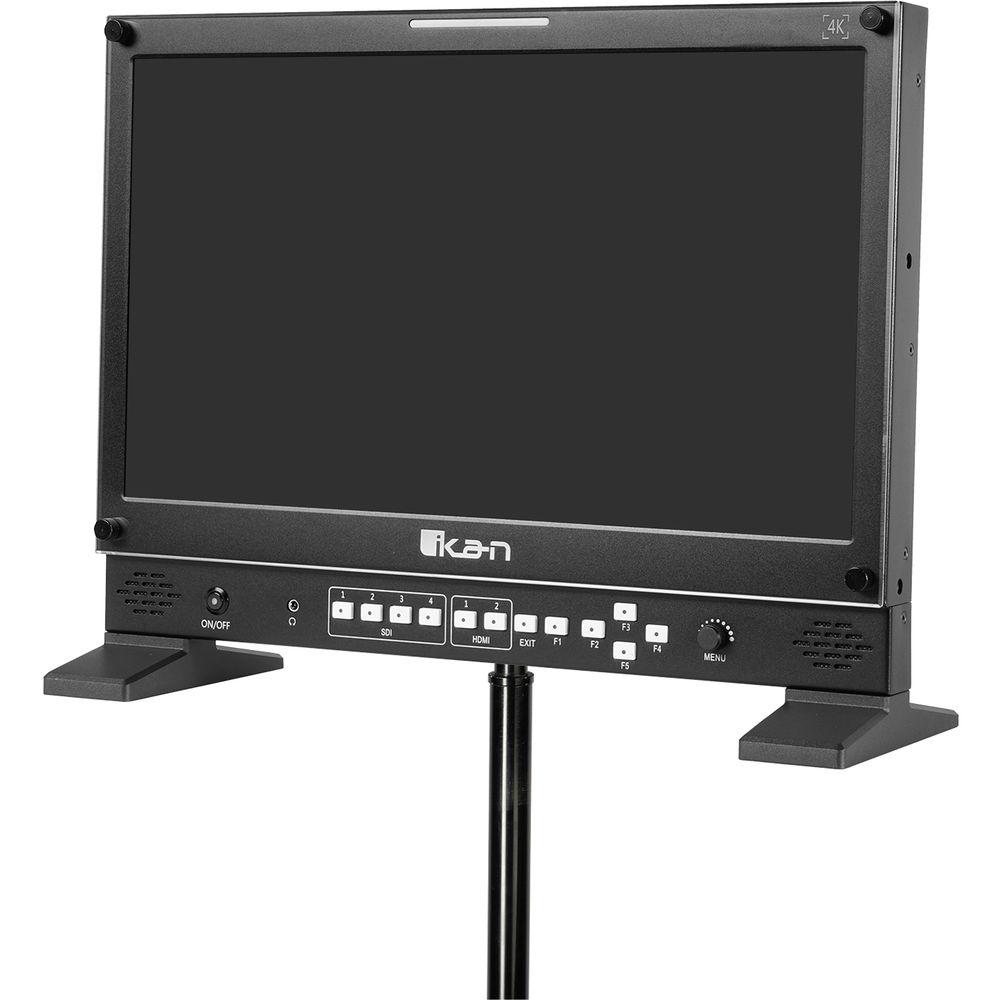

This rack-mountable monitor features a 3.5mm headphones output. The 3G-SDI video support resolutions of up to 1920 x 1080p at 60 Hz. The HDMI video support resolutions of up to 4096 x 2160p at 24 Hz. A light stand mount, power adapter with cord, rackmount set, and a V-Mount battery plate are included. - Peaking, check field, center mark, safe area, under scan, ratio, and horizontal/vertical flip

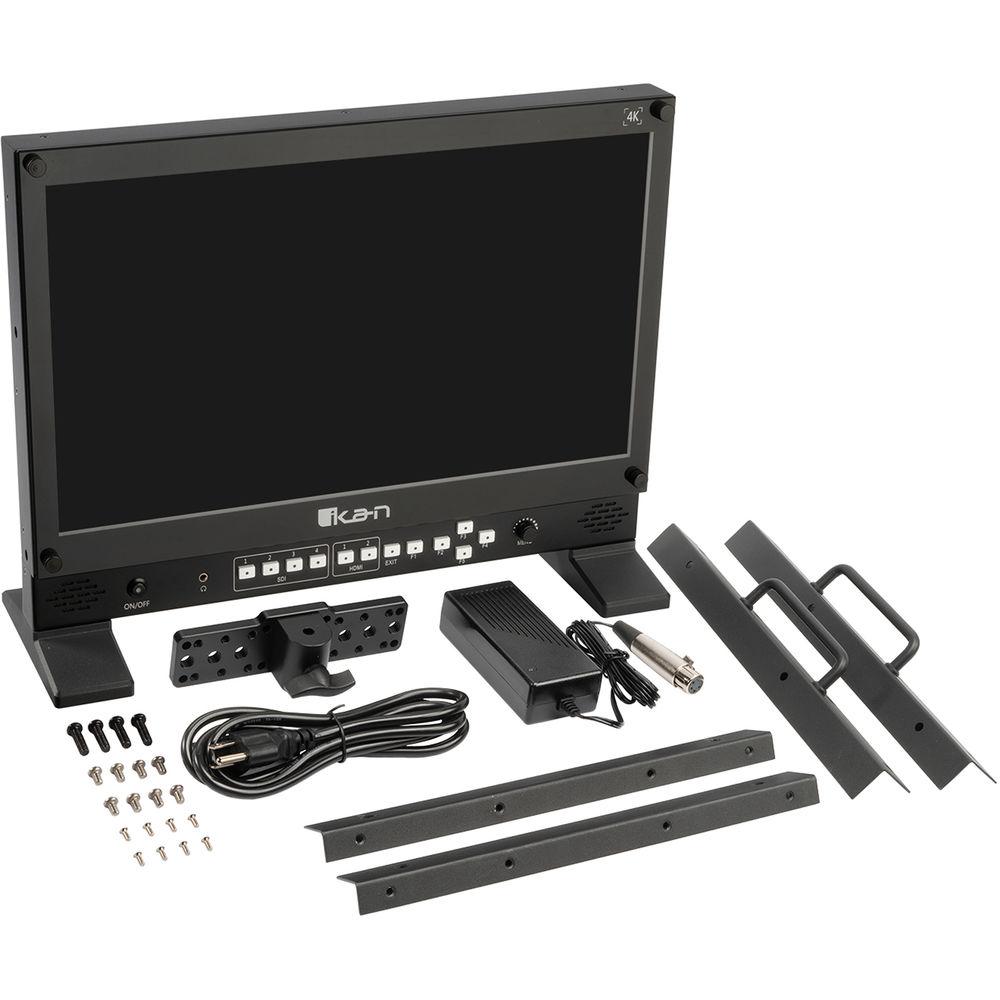

UPC: 847983026005 In the Box ikan 17" Native 4K Quad HDMI/3G-SDI Monitor Light Stand Mount Power Adapter with Cord Rack Mount Set V-Mount Battery Plate Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ikan 17" Native 4K Quad HDMI 3G-SDI Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersikan AX17 Specs | | | Panel Type | IPS-Type LCD | | Display Size | 17.0" / 43.2 cm | | Screen Resolution | 3840 x 2160 | | Aspect Ratio | 16:9 | | Viewing Angle | Horizontal: 178°

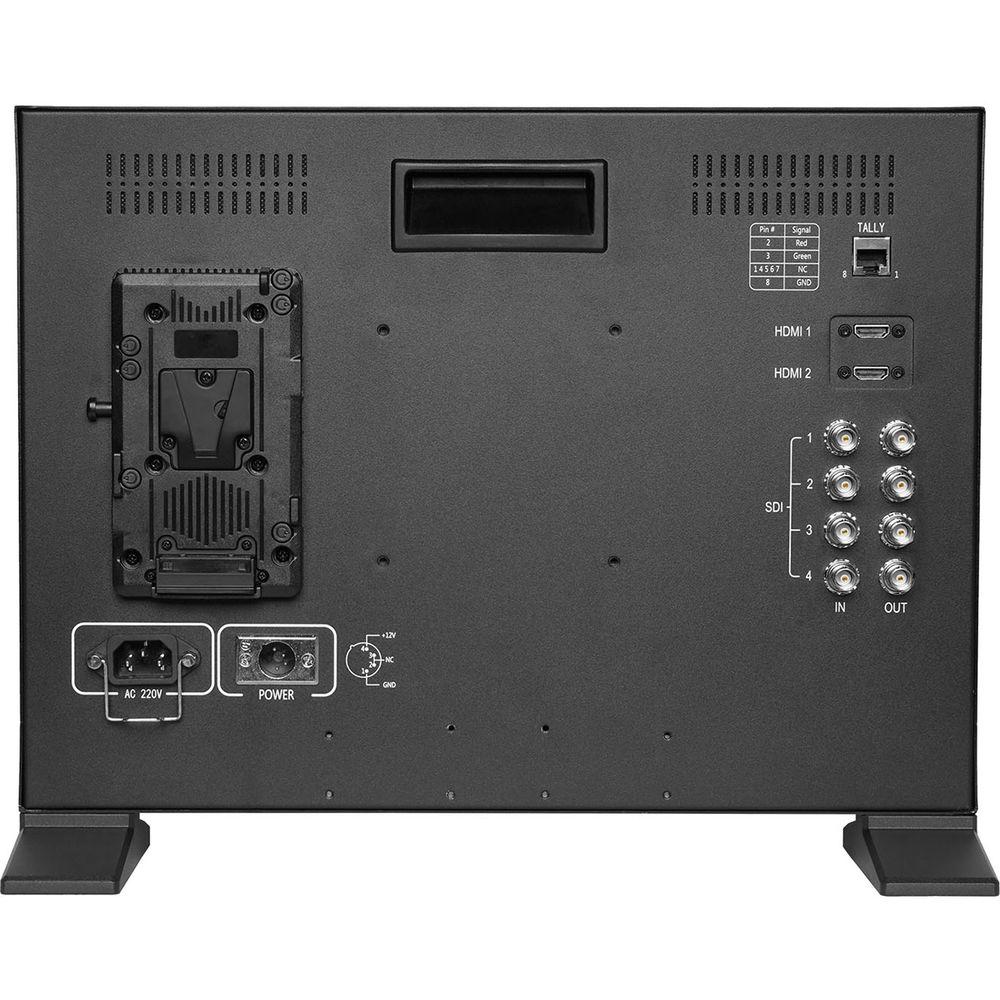

Vertical: 178° | | Touchscreen | No | | Maximum Brightness | 400 cd/m2 | | Contrast Ratio | 1000:1 | | Real-Time LUT Monitoring | No | | Image Controls | Color Temperature Selection, Focus Peaking, Image Flip, Picture-in-Picture, Underscan | | | | Video | 4 x BNC (3G-SDI) Input
4 x BNC (3G-SDI) Output
2 x HDMI Type A (HDMI 2.0) Input | | Audio | 1 x 3.5 mm Headphone Output | | Built-In Speaker | 2 | | Power | 1 x 4-Pin XLR Input
1 x IEC Input | | Other I/O | 1 x Tally (RJ45) | | Card Slot | None | | | | PC Resolutions | 3840 x 2160 | | | | AC Input Power | 110 to 220 VAC, 50 / 60 Hz | | DC Input Power | 12 VDC | | Battery Type | 1 x V-Mount | | | | Material of Construction | Steel | | Dimensions (W x H x D) | 16.5 x 13 x 3.5" / 41.91 x 33.02 x 8.89 cm | | Weight | 13 lb / 5.90 kg | | | | Package Weight | 16.355 lb | | Box Dimensions (LxWxH) | 19.7 x 16.8 x 7.7" |
