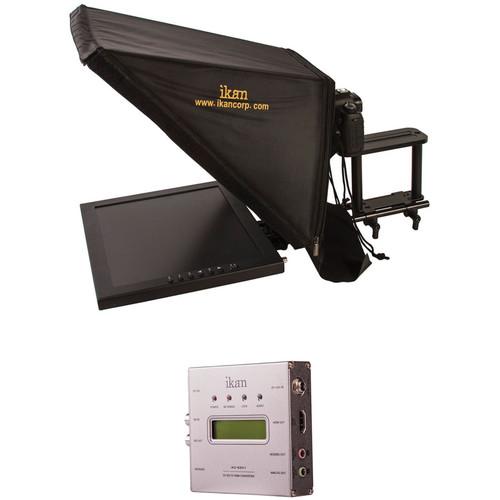

ikan 17" Rod Based Teleprompter for

User Manual for ikan 17" Rod Based Teleprompter for 15mm Rods with SDI to HDMI Converter

• Product category: Teleprompters ikan
• Brand: ikan
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for ikan Teleprompters

Product description

• ikan PT3700 17" Rod Mounted Teleprompter for Location and Studio
  • Quick Look: Ikan PT3700 Teleprompter
  • Ikan PT3500 / 3700 Rod Based Teleprompter
  • Product Demo
  Designed to be used in the field as well as in the studio, the ikan 17" Rod Mounted Teleprompter is lightweight, and quick to set up. Right out of the box, you can use the teleprompter with almost any camcorder that has a flat base. To use with a DSLR camera, or any other camera with a shorter footprint, the included special DSLR shelf can be fastened to the end of the camera base-plate in order to move your camera's lens closer to the prompter glass for optimal performance. The PT3700 Teleprompter's hardware is based on 15mm rods. This allows the monitor, the prompter glass, and the camera baseplate to be set up quickly, without requiring tools. Each component can easily be moved individually to adjust for different setups. To accommodate cameras with different heights, ikan includes 3, 5, and 8" height adjustment rods for mounting the baseplate. For editing and displaying prompter text, PrompterPro 4 software is included. To ensure compatibility with different workflows, the software works with both PC and Mac computers. The monitor has Composite BNC, VGA, and HDMI inputs to accept video signals from your computer and other video sources as well.
  Adjustable Glass Frame
  • The adjustable glass frame on the PT3700 allows for fast and easy set up. The frame can also be folded to make the teleprompter compact and easy to transport.
  Dual Purpose Base Plate Design
  • The Dual Purpose Base plate supports various cameras, DSLR's and small to midsized cameras. The base plate comes with a DSLR Shelf which allows you to put a DSLR camera at the very edge of the base plate to get closer to the glass if needed.
  Height Adjustment Rods
  • The PT3700 includes 3, 5, and 8" height adjustment rods for the baseplate, making the teleprompter more versatile for various sized cameras.
  15mm Rod System Design
  • The PT3700 is based on a 15mm rod system design, making it lightweight, easy to use, and quick to set up.
  High Quality 70/30 Teleprompter Glass
  • The high quality 70/30 teleprompter glass provides a balance between reflection and pass-through without distorting the image. This high quality glass allows your camera to have a clear picture, while providing reflection you need to read the text.
  Ships in Reusable Foam
  • The PT3700 is shipped in reusable custom cut foam which will help keep the kit safe and organized when you set it up or break it down. The custom cut foam can also be repurposed to perfectly fit in the SKB I Series 2918-10 Waterproof Hard Case.
  Includes Software for Mac or PC
  • The PrompterPro 4 Teleprompting software for Mac and PC are included with this kit. This software offers a full text editor, vertical and horizontal screen flip, real-time text updates and live prompter mode for optimal control. The software is compatible with Mac OSX 10.7 and up (with 64-bit processor), as well as Windows XP, Vista, 7, 8, 10.
  UPC: 847983011506
• ikan IKC-S2H1 3G-SDI to HDMI Converter
  • Quick Look: Ikan PT3700 Teleprompter
  • Ikan PT3500 / 3700 Rod Based Teleprompter
  • Product Demo
  ikan's IKC-S2H1 3G-SDI to HDMI Converter is a rugged unit built into a CNC machined aluminum housing making it suitable for location or studio work. It features a two line LCD text display with information about the input signal and audio level meters. It supports SD/HD/3G-SDI in with auto format detection; it converts the input signals to HDMI video, and loops through the signal to the SDI output. The converter supports 16 channels of Audio in the SDI stream, and makes two channels of audio available via AES/EBU or analog audio.

  The video conversion process is automatic, with manual control only necessary to change the LCD display, or audio input, via DIP switches on the side of the unit. A USB 2.0 port allows you to upgrade the firmware, if that becomes necessary, and the unit powers from 6 to 24VDC, although 6 to 12VDC is preferred. The power in port features a threaded collar, allowing you to secure the power connectors to the unit, and the included mounting plates allow you to mount the unit to a wall or other surface.
  LCD Display
  • The two line LCD display can be configured to display a variety of information about your input signal by adjusting DIP switches.

    • 1. LCD Backlight: Off / On
    • 2. LCD display: Resolution / Level Meters
    • 3. Output Format: YCbCr 4:2:2 / RGB 4:4:4
    • 4. Headphone AMP Gain: Low / High
    • 5. Audio Group: CH 1-8 / CH 9-16
    • DE-Embedded Audio Out CH Select
    • CH1/2 (9/10) 6-off / 7-off
    • CH3/4 (11/12) 6-off / 7-on
    • CH5/6 (13/14) 6-on / 7-off
    • CH7/8 (15/16) 6-on / 7-on
  LED Indicators
  • The front of the unit features four LED indicators for :
    • Power
    • No Signal
    • Lock
    • Audio
  UPC: 847983012404

• PT3700 17" Rod Mounted Teleprompter for Location and Studio
• Camera Baseplate
• 2 x 15mm Rods
• 2 x 3" Height Adjustment Rods
• 2 x 5" Height Adjustment Rods
• 2 x 8" Height Adjustment Rods
• 2 x 1/4"-20 D-Ring Camera Mount Screws
• Custom Cut Packing Foam
• PrompterPro 4 Software
• Limited 1-Year Warranty

• IKC-S2H1 3G-SDI to HDMI Converter

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• ikan PT3700 17" Rod Mounted Teleprompter for Location and Studio

  Reading Range	20' / 6.1 m

  Size (Diagonal)	17" / 43.2 cm
  Maximum Brightness	350 cd/m2
  Native Resolution	1024 x 768
  Aspect Ratio	4:3
  Contrast Ratio	500:1
  Viewing Angle (H x V)	160 x 140°
  Input	1 x HDMI 1 x VGA 1 x Composite (BNC)
  Output Voltage	12 VDC at 4 A
  Power Consumption	10 W

  Dimensions	25.0 x 14.5 x 14.0" / 63.5 x 36.8 x 35.5 cm

  Box Dimensions (LxWxH)	29.0 x 18.5 x 11.0"

• ikan IKC-S2H1 3G-SDI to HDMI Converter

  Display	2 x Line LCD text display
  Inputs	SD/HD/3G-SDI: 1 x BNC
  Outputs	HDMI (1.3): 1 x HDMI (Type A) SD/HD/3G-SDI: 1 x BNC AES/EBU(SDI de-embedded): 1 x 3.5mm stereo mini-jack(2-Channel support) Analog : 1 x 3.5mm stereo mini-jack(2-Channel support)
  Firmware Updates	Mini-USB Port
  Signal System	NTSC, PAL
  Video Formats	1920 x 1080p: 23.98/24/25/29.97/30/50/59.94/60 1920 x 1080i: 50/59.94/60 1280 x 720p: 50/59.94/60
  Supported Audio	SDI embedded 16ch audio support.
  LCD Display	2-Line Input resolution 2Ch audio level meter Input audio type Input audio frequency 60-level bar-graph/digital value 2ch audio level meter (Range: -60dBFS to 0dBFS) 2Ch AES/EBU or SPDIF external audio input support HDMI luminance range select (0-255/16-235)
  Power	6 to 24 VDC (6 to 12 VDC recommended)
  Dimension	Housing Only: 3.9 x 3.7 x 0.98" / 100 x 95 x 25 mm Including Connector: 4.6 x 3.7 x 0.98" / 118 x 95 x 25
  Weight	0.49 lb / 220 g

  Box Dimensions (LxWxH)	10.0 x 6.5 x 2.2"
