User Manual for ikan Advanced SDI to HDMI Converter Click to enlarge the picture
Contents of the user manual for the ikan Advanced SDI to HDMI Converter
- Product category: Signal Converters ikan
- Brand: ikan
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ikan Signal Converters
 |
User manual for the ikan Advanced SDI to HDMI Converter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ikan product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ikan user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ikan product will considerably shorten its lifespan!
|
Product description For SDI to HDMI conversion with selectable diagnostic and test pattern display overlays the Advanced SDI to HDMI Converter from ikan is at home both in the studio and in the field. It supports HD and SD resolutions and features one SDI input, one SDI loop through and one HDMI output that can display the signal monitoring overlays and test patterns. This allows you to insert the advanced converter into an SDI signal path, and monitor your signals on an HDMI monitor without affecting the SDI signal.

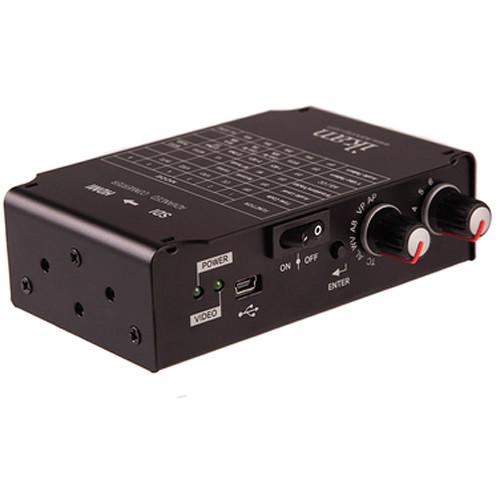

Using the two selection knobs allows you to employ a variety of diagnostic scopes and test patterns, you can select from four color bar patterns to be generated and displayed, including RP219 which is a SD/HD compatible color bar signal as well as four audio test tones from 1 kHz to 4 kHz. You can display timecode as well as horizontal or vertical audio level meters. The unit features an on/off switch and LED indicators for power and Video, with a 4-pin Mini XLR power connector. - The IKC-AS2H is an advanced signal converter that auto detects and converts SD/HD/3G-SDI signals to HDMI.

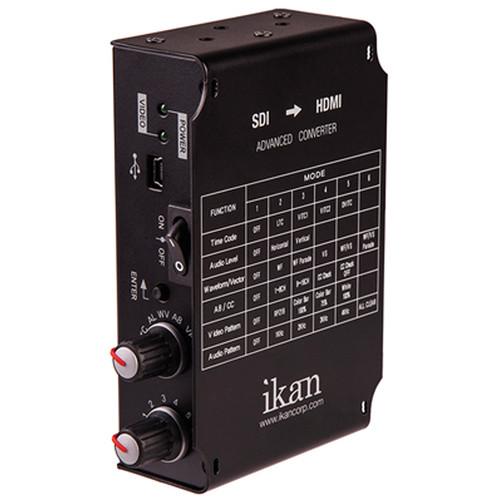

- The unit features two rotating knobs that control the SDI output, allowing you display monitoring overlays, which include Waveform, RGB Parade, Vector Scope, Waveform/Vector Scope split, and Waveform - Vectors Scope - Parade split on the SDI output.
- Waveform provides an objective evaluation of your video signal. It displays the brightness of your image on an IRE scale, allowing you to see if your image will clip, and where your black levels are.
- Vectorscope displays the signal on a circular field with targets so you can check the phase of your colors. The vectorscope function allows you to verify the overall tint and hue of an image.
- RGB parade is similar to the Waveform display, except it displays the video signal as three separate colors channels; red, blue and green. This feature lets you objectively see how much of each color you have in your image.
- The converter can be used as signal generator capable of producing video test patterns and audio test tones. Select the test pattern/audio tones using the two rotating test knobs and the enter button. Test patterns include:
- 100% Color Bars
- 75% color Bars
- 100% White
Audio Test tones are available from 1 to 4 kHz in 1 kHz increments. - You can select to display LTC, VITC1, VITC2, and DVITC
- You can select which set of 8 Audio channels in the SDI stream to embed in the HDMI signal, eight Channels 1 to 8 or channels 9 to 16.
- The Converter can de-embed two channels from the SDI stream and make that available through the analog audio output.
- The 1/4"-20 threading mounting hole allows you to mount the converter to a stable platform during use, and easily unmount it when you are done using it.
- The 4-pin mini XLR power connector provides a secure power connection resistant to the cable being yanked out of the device, yet is quick to disengage when it is time to pack up.

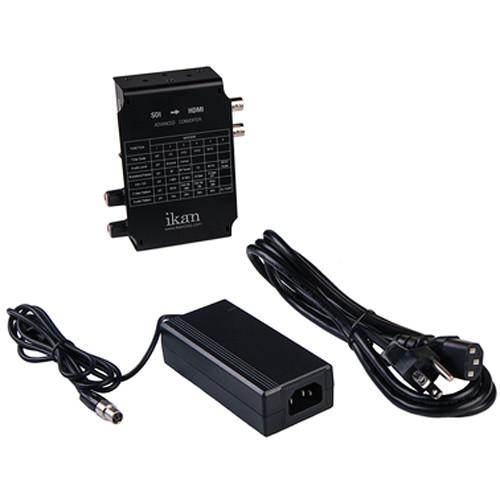

UPC: 847983012374 In the Box ikan Advanced SDI to HDMI Converter AC Adapter Power Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ikan Advanced SDI to HDMI Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

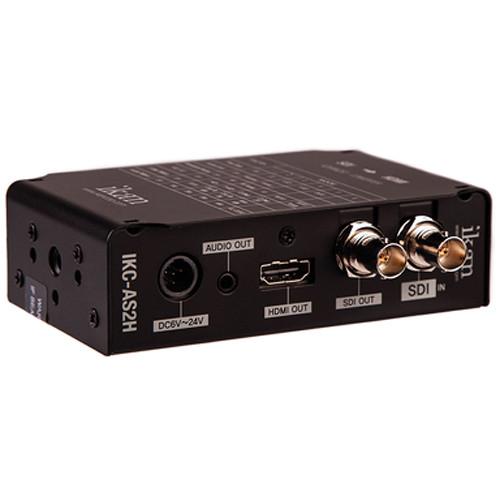

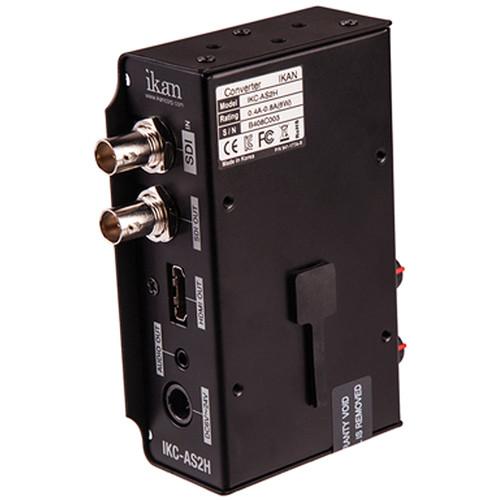

Technical parametersikan IKC-AS2H Specs | Input | 3G-SDI: 1 x BNC | | Output | HDMI: 1 x Type A
3G-SDI: 1 x BNC (loop through)
Audio: 1 x 3.5 mm | | Video Format | HD
1920 x 1080p 60/59.94/50/30/29.97/25/24/23.98
1920 x 1080i 60/59.94/50
1280 x 720p 60/59.94/50 | | | | Firmware Updates | 1 x mini-USB | | LED Indicators | Power/Battery: 1
Signal Lock: 1 | | Selection | 2 x Rotary knobs
1 x Enter button | | Power | 7 to 24 VDC
6W | | Power Connection Type | 4-pin mini XLR | | Operating Temperature | 14 to 104°F / -10 to 40°C | | Operating Humidity | 20 to 80% RH | | Dimensions | 3.3 x 4.6 x 1.3" / 84 x 117.2 x 34.5 mm | | Weight | 0.8 lb / 363 g | | | | Package Weight | 2.65 lb | | Box Dimensions (LxWxH) | 12.4 x 10.1 x 3.0" |
