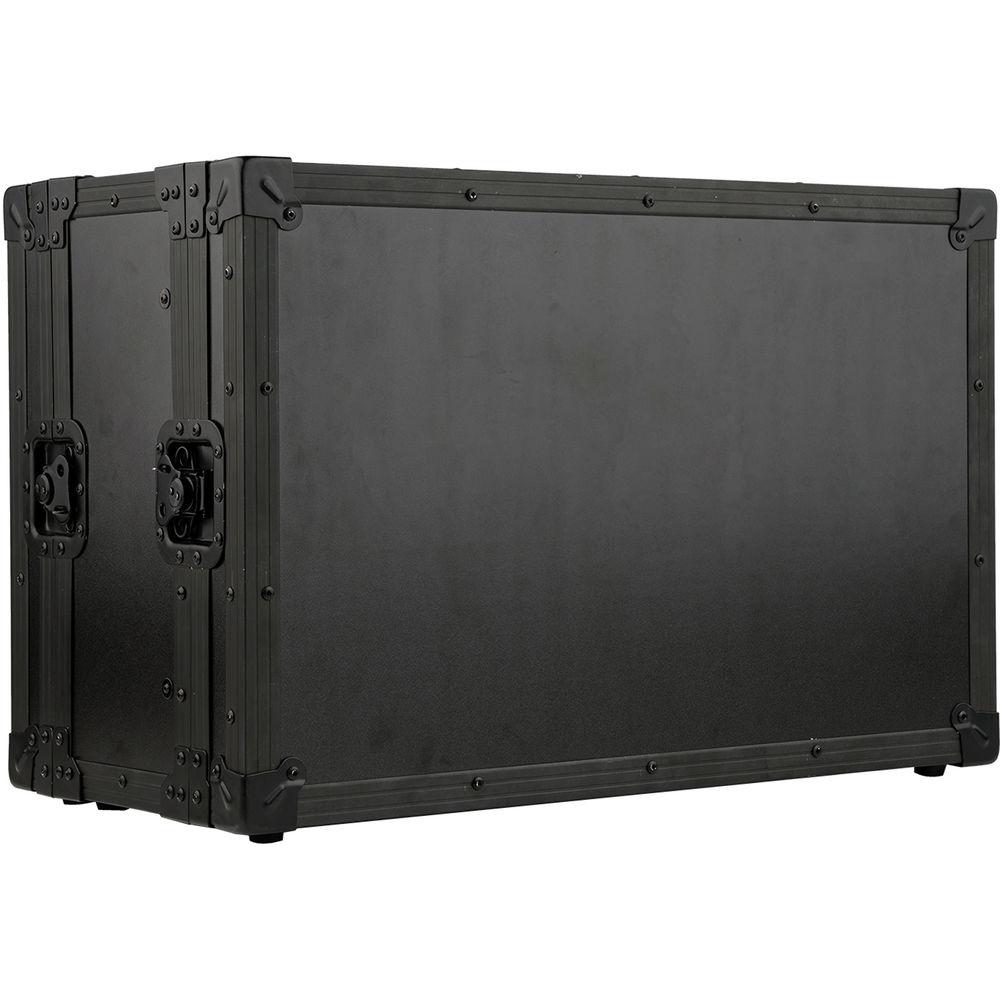

Product description The Atlas 19.5" Studio/Field Monitor with Hard Case from ikan features a 1920 x 1080 resolution LCD and 3G-SDI inputs with looping output. It supports Ultra HD and DCI 4K via HDMI input. With a durable aluminum frame, multiple VESA mounts, power outputs, and ikan's Quick Mount system, it is suitable for field use. The 19.5" LCD panel, waveform, vectorscope, CIE scopes, and the custom 3D-LUT import capability make it suitable for studio use as well. This version comes built into a hard case, great for taking out into the field and setting up on a tabletop. -
- 3G-SDI inputs with looping output
- HDMI input with looping output
- Ultra HD and DCI 4K support via HDMI input
- False color, peaking, and clip guides
- DSLR scaling
- Waveform, vectorscope, RGB parade, and CIE scope
- Heavy-duty aluminum construction
- 3G-SDI, HDMI, VGA, DVI video inputs
UPC: 847983025978 In the Box ikan Atlas 19.5" Studio/Field Monitor with Hard Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ikan Atlas 19.5" Studio Field Monitor with Hard Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersikan AX20 Specs | 3G-SDI | 1920 x 1080p at 50, 59.94, 60 Hz | HD-SDI | 1280 x 720p at 50, 59.94, 60 Hz 1920 x 1080i at 50, 59.94, 60 Hz 1920 x 1080psF at 23.98, 24, 25, 29.97, 30 Hz 1920 x 1080p at 23.97, 24, 25, 29.97, 30 Hz | SD-SDI | 720 x 480i at 59.94, 60 Hz 720 x 576i at 50 Hz | HDMI | 720 x 480i at 60 Hz 720 x 576i at 50 Hz 1280 x 720p at 50, 59.94, 60 Hz 1920 x 1080i at 50, 59.94, 60 Hz 1920 x 1080psF at 24, 25, 29.97, 30 Hz 1920 x 1080p at 23.97, 24, 25, 29.97, 30, 50, 59.94, 60 Hz 3840 x 2160p at 24, 25, 30 Hz 4096 x 2160p at 24 Hz | Component | 720 x 480i at 60 Hz 720 x 576i at 50 Hz 1280 x 720p at 23.97, 24, 25, 29.94, 30, 50, 59.94, 60 Hz 1920 x 1080i at 50, 59.94, 60 Hz 1920 x 1080psF at 24, 25, 29.97, 30 Hz 1920 x 1080p at 23.97, 24, 25, 29.94, 30 Hz | Composite | NTSC-M, NTSC-J, NTSC 4.43 PAL B/G H I D, PAL M, PAL N SECAM | S-Video | NTSC-M, NTSC-J, NTSC 4.43 PAL B/G H I D, PAL M, PAL N SECAM | DVI | 1920 x 1080p (24/25/30/50/60 Hz) 1920 x 1080psF (24/25/30 Hz) 1280 x 720p (24/25/30/50/60 Hz) 720 x 480i/p (60 Hz) 1920 x 1200 / 1680 x 1050 / 1600 x 1200 / 1440 x 900 / 1360 x 768 / 1280 x 1024 / 1280 x 960 / 1280 x 800 / 1280 x 768 / 1152 x 870 / 1152 x 864 / 1024 x 768 / 832 x 624 / 800 x 600 / 640 x 480 / 720 x 400 / 640 x 350 / 640 x 400 | | Screen Size (Diagonal) | 19.5" / 49.5 cm | Resolution | 1920 x 1080 | Viewing Angle (H/V) | 178°/178° | Aspect Ratio | 16:9 | Brightness | 240 cd/m2 | Material | Aluminum | Color System | PAL/NTSC/SECAM (auto-detected) | Contrast Ratio | 3000:1 | Display Technology | IPS | Inputs | 3G-SDI, HDMI, VGA, DVI | Operating Temperature | 32 to 122°F / 0 to 50°C | Operating Voltage | 12 to 24 VDC | Outputs | 3G-SDI, HDMI, VGA, DVI | Dimensions | 19.2 x 11.4 x 2.0" / 48.8 x 29.0 x 5.1 cm (without case) | Weight | Not specified by manufacturer | | Package Weight | 37.0 lb | Box Dimensions (LxWxH) | 23.6 x 15.9 x 11.9" |
