User Manual for ikan Blitz 1000 Pro Wireless Video Receiver Click to enlarge the picture
Contents of the user manual for the ikan Blitz 1000 Pro Wireless Video
- Product category: Wireless Transmission Systems ikan
- Brand: ikan
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ikan Wireless Transmission Systems
|
User manual for the ikan Blitz 1000 Pro Wireless Video contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ikan product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ikan user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ikan product will considerably shorten its lifespan!
|

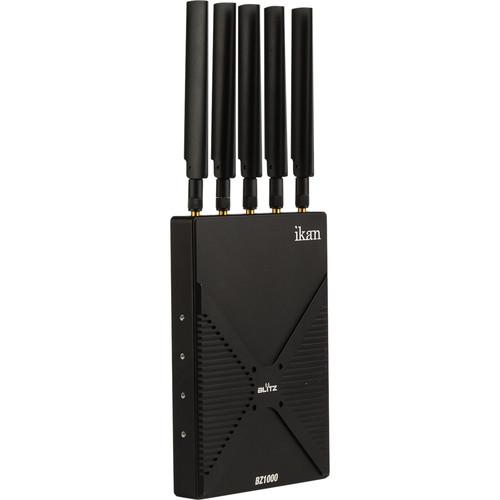

Product description The ikan Blitz 1000 Wireless Video Receiver transmits uncompressed video at an optimal range of 1000', with a maximum range of up to 2297'. This lightweight receiver is compatible with the ikan Quick Mount system, and features zero delay, 3G-SDI and HDMI inputs/outputs, and SDI/HDMI cross-compatibility. The Blitz 1000 system supports a variety of uncompressed 10-bit, 4:2:2 HD video signals up to 1080p60. Although the Blitz 1000 system can transmit up to 2297' line-of-sight, the best performance is achieved when transmitting up to 1000'. The receiver's aluminum chassis features a built-in battery plate, enabling you to power the receiver from readily available Sony L-Series batteries. The Blitz 1000 receiver may also be powered externally via its 4-pin LEMO connector. - Pair up to four receivers with one Blitz 1000 transmitter
- Supports a variety of uncompressed 10-bit, 4:2:2 HD video formats up to 1080p60
- Simultaneous 3G-SDI and HDMI 1.3 output, HDMI to SDI cross-conversion
- Power from readily available Sony L-series batteries, or its 4-pin LEMO connector
- Compatible with ikan's Quick Mount system
UPC: 847983023332 In the Box ikan Blitz 1000 Pro Wireless Video Receiver Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ikan Blitz 1000 Pro Wireless Video Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersikan Blitz 1000 Specs | Interface | Input
1 x 3G-SDI, BNC
1 x HDMI Type A
2 x RF-2 SMA antenna ports
Power
1 x 4-pin LEMO-type | | Input Video Formats | 3G/HD/SD-SDI (Auto-Select)
SMPTE-259/274/292/296/372/424/425
HDMI
1080p 60/59.94/50/30/29.97/25/24/23.98
1080i 59.94/50
720p 60/59.94/50
625i
525i | | Audio Input | SDI-embedded, 4-Ch 24-bit / 48 KHz | | Indicators | Power: Green
Video: Yellow | | Frequency Bands | 5.1 to 5.9 GHz | | Modulation Mode | OFDM 16-QAM | | Transmission Power | 21 dBm (maximum) | | Band | 40 MHz | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Compliance | FCC, CE | | Input Voltage | 7 to 16.8 VDC | | Power Consumption | <6.5 W | | Dimensions | 4.5 x 2.6 x 0.9" (115 x 67 x 23 mm) | | Weight | 9 oz (254 g) |
