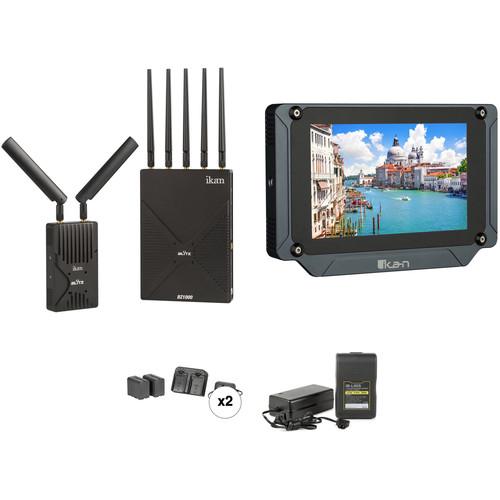

Product description This ikan Blitz 1000 Wireless Transmitter/Receiver Kit from B&H, provides a handy way to power and view the output of this wireless system. Components include one transmitter, one receiver, and a 7" Saga SX7 High Bright on-board monitor. The two L-series type batteries are used to power the transmitter, and the one V-mount battery provides juice for the receiver.
With a 1000' optimal range, this wireless video system is suitable for viewing, for helping pull focus when using a stabilizer or gimbal, or for anytime you need to be untethered from the camera. - ikan Saga SX7 7" High-Brightness 3G-SDI/HDMI Field Monitor with 3D LUTs & Scopes
- The Blitz Wireless Video Transmitter and Receiver Kits | Ikan Tech Corner
The Saga SX7 7" High-Brightness 3G-SDI/HDMI Field Monitor from ikan offers a brightness rating of 2000 cd/m2 and resolution of 1920 x 1200, allowing you to clearly view footage under bright lighting conditions. It comes with waveform, vectorscope, RGB parade, histogram, and eight-channel audio level meter. The monitor supports 3D LUTs and allows you to load LUT files from a USB drive. It comes pre-loaded with profiles for a wide variety of cameras. Its casing is made of aluminum, and the screen is protected by Gorilla Glass.
The SX7 is equipped with both HDMI and 3G-SDI inputs and outputs. In addition, a 3.5mm headphone output allows you to monitor audio. The monitor features a tally terminal and a USB port for software upgrades and importing 3D LUTs. The USB port also allows you to power various 5V devices. It supports pro and DV batteries, and features a mini-XLR power input for a secure connection. Monitor - 1920 x 1200 Full HD plus LCD panel
- 3G-SDI / HDMI inputs and outputs
- Software Features
- 3D LUTs
HDR preview
Guides
Grids
Crosshair
Waveform
Vectorscope
RGB parade
Histogram
Audio meters
Peaking
False color
Image zoom
Image flip
Check field
Zebra
Underscan
USB firmware update UPC: 847983023493 - 2 x ikan L-Series Battery Kit
- The Blitz Wireless Video Transmitter and Receiver Kits | Ikan Tech Corner
This Ikan L-Series Battery Kit contains two IBS-960 batteries and a compact L-series dual battery charger. Ikan's IBS-series batteries and the compact charger are compatible with Sony NP-F equipment and batteries, respectively. See below for more information on the individual items included in this kit. UPC: 847983016815 - ikan 95Wh V-Mount Power Kit
- The Blitz Wireless Video Transmitter and Receiver Kits | Ikan Tech Corner
Keep your on-set electronics juiced with this V-Mount Power Kit from Ikan. This kit includes a 95Wh lithium-ion battery and a compact D-tap charger that can easily fit in an equipment case. See below for more information on the individual items in this kit. UPC: 847983008797 In the Box - Blitz 1000 Pro Wireless 3G-SDI/HDMI Transmitter & Receiver Kit (1000') uqyzevsuuw
- Saga SX7 7" High-Brightness 3G-SDI/HDMI Field Monitor with 3D LUTs & Scopes
- 2 x L-Series Battery Kit uqyzevsuuw
Table of Contents
|
Upload User Manual
Have you got an user manual for the ikan Blitz 1000 Wireless Transmitter Receiver Kit with 7" Monitor & Batteries in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - ikan Saga SX7 7" High-Brightness 3G-SDI/HDMI Field Monitor with 3D LUTs & Scopes
| Screen Size | 7" / 178 mm | | Screen Type | IPS LCD screen | | Resolution | 1920 x 1200 | | Aspect Ratio | 16:10 | | Backlight | LED | | Brightness | 2000 cd/m2 | | Color Depth | 16.7 million | | Color System | PAL/NTSC/SECAM (auto-detected) | | Contrast Ratio | 1200:1 | | Viewing Angle (H/V) | 178°/178° | | Pixel Pitch | 0.07875 x 0.07875 mm | | Response Time | 20 ms | | Input/Output Connectors | Inputs
1 x 3G-SDI
1 x HDMI
Outputs
1 x 3G-SDI
1 x HDMI
1 x 3.5 mm headphone jack
1 x Tally
1 x USB | | Supported Resolutions | 3G-SDI
2048 x 1080PsF: 23.98, 24, 25, 29.97, 30
1920 x 1080p: 50, 59.94, 60 (4:2:2 YCbCr)
HD-SDI (4:4:4 YCbCr)
1920 x 1080p: 23.97, 24, 25, 29.97, 30
1920 x 1080PsF: 23.98, 24, 25, 29.97, 30
1920 x 1080i: 50, 59.94, 60
1280 x 720p: 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
SD-SDI (4:2:2)
720 x 576i: 50
720 x 480i: 60
HDMI
1920 x 1080p: 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
1920 x 1080PsF: 24, 25, 29.97, 30
1920 x 1080i: 50, 59.94, 60
1280 x 720p: 23.97, 24, 25, 29.94, 30, 50, 59.94, 60
720 x 576i: 50
720 x 480i: 60 | | Material of Construction | Aluminum | | Input Voltage | 7 to 24 VDC | | Power Consumption | Not specified by the manufacturer | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Dimensions | 8.5 x 5.7 x 0.9" / 21.6 x 14.5 x 2.3 cm | | Weight | 2 lb / 0.9 kg | | | | Box Dimensions (LxWxH) | 10.65 x 9.2 x 4.85" | - ikan IBS-970 Replacement Battery (Black)
| Mount / Series Type | Sony L-Series | | Chemistry | Lithium-Ion | | Amp-Hours | 6600 mAh | | Output Voltage | 7.4 VDC | | Dimensions (W x H x D) | 2.7 x 2.4 x 1.4" / 69.0 x 61.0 x 36.0 mm | | Weight | 9.6 oz / 272 g | | | | Box Dimensions (LxWxH) | 3.1 x 2.6 x 1.55" | - ikan Dual Sony L-Series Compatible Battery Charger
| Input | 100-220 VAC, 50/60 Hz | | | | Box Dimensions (LxWxH) | 6.2 x 3.8 x 3.8" | - ikan C-1K D-Tap Pro Battery Charger
| Operating Voltage | 16.8 VDC | | Input Voltage | 90-240 VAC
47-63 Hz | | Battery Connector | D-Tap | | Dimensions (LxWxH) | 5.4 x 2.6 x 1.5" / 13.7 x 6.6 x 3.8 cm | | Weight | 2.4 oz / 68 g | | | | Box Dimensions (LxWxH) | 7.55 x 4.85 x 3.35" | - ikan Compact 95Wh V-Mount Li-Ion Battery with LED Power Guage
| Voltage | 14.8 V | | Power | Watt Hours: 95
Amp Hours: 6.6 | | | | Mount | V-Mount | | Dimensions (H x W x D) | 5.4 x 3 2.25" (13.7 x 7.6 x 5.7 cm) | | Weight | 1.8 lb (0.8 kg) | | | | Box Dimensions (LxWxH) | 6.8 x 4.15 x 2.5" |
