Product description - The Blitz Wireless Video Transmitter and Receiver Kits | Ikan Tech Corner

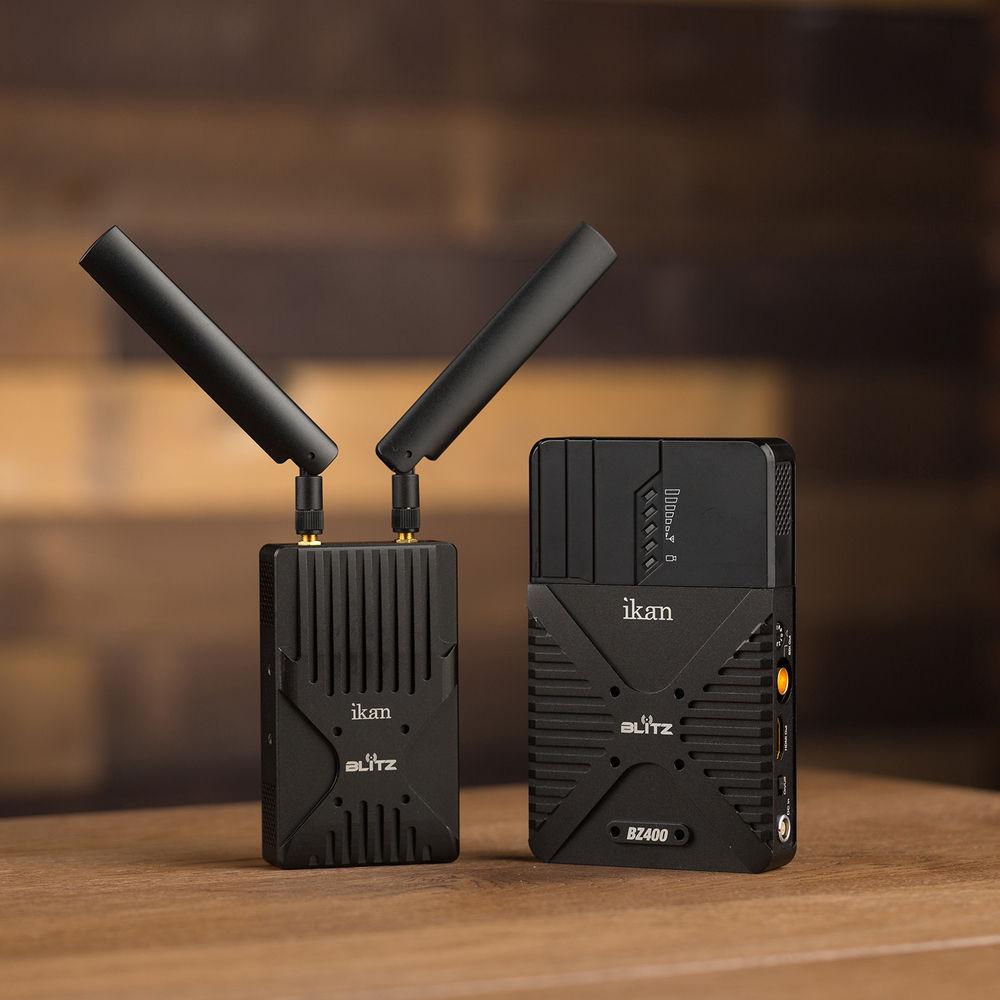

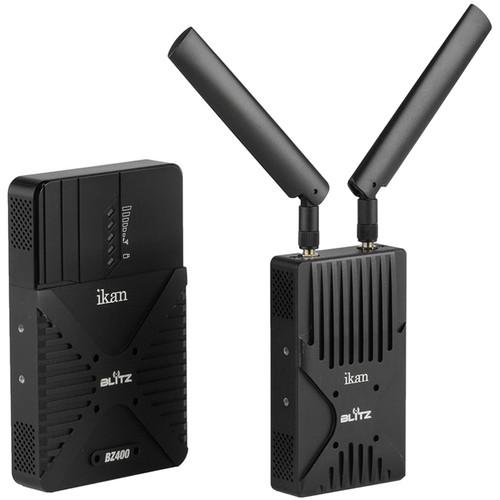

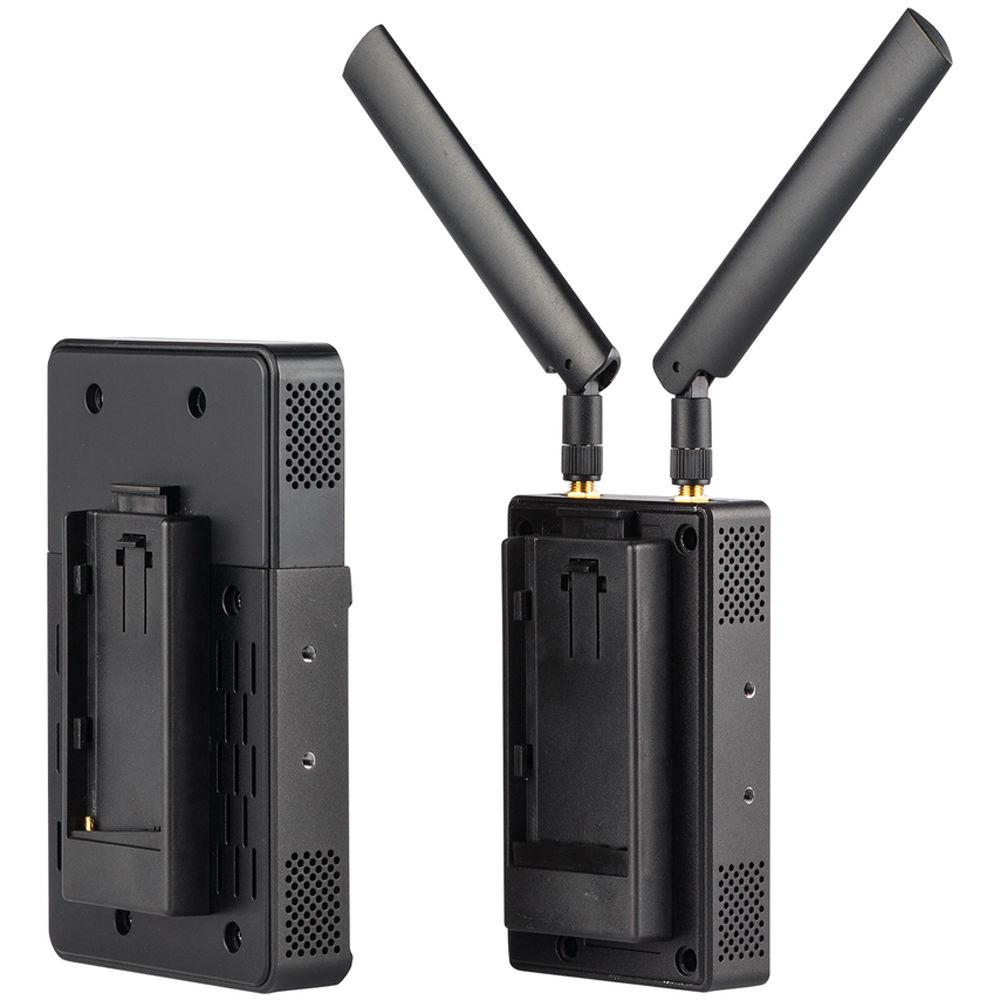

The ikan Blitz 400 3G-SDI/HDMI Wireless Uncompressed Zero Delay Video System features uncompressed, zero delay wireless video. The system features a maximum range of 984' line-of-sight, and an optimal range up to 400'. It supports both HDMI 1.3 and 3G-SDI so you get uncompressed high-definition video. The included Sony L-Series battery plates come pre-installed and allow you to power the units easily and reliably. The units also include 4-pin LEMO power connectors so you can supply power externally with the included D-Tap to LEMO cables, allowing you to use the same pro batteries that are powering your camera to also power the Blitz.

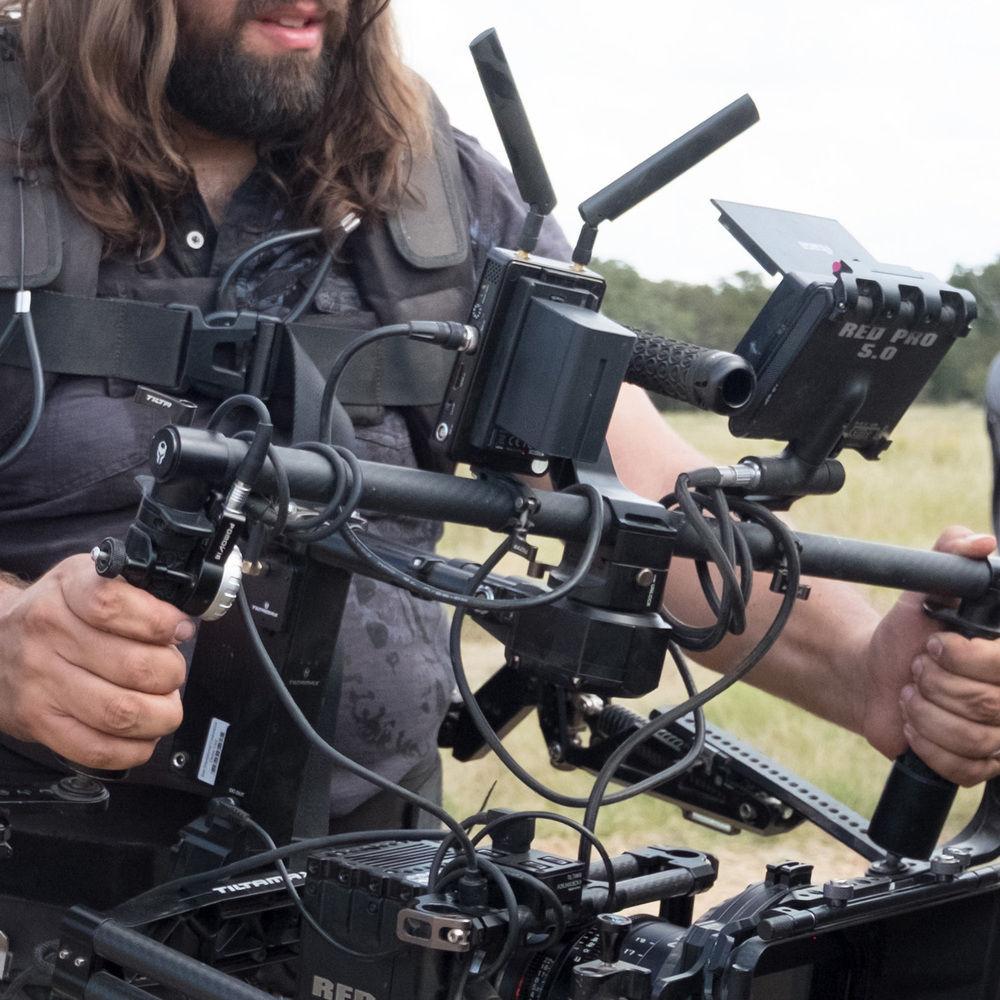

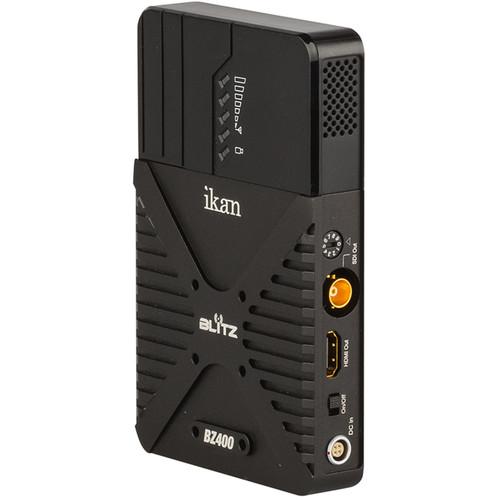

The Blitz 400 is made from durable machined aluminum. Just power the units on and they will sync in about 20 seconds or less. The transmitter is small and lightweight so it can be mounted just about anywhere, like to your camera’s shoe mount. The receiver features five internal antennas to ensure a strong signal, as well as four signal strength LED indicators. The Blitz 400 comes equipped inside a durable hard case to make transport easy. An articulating arm, a clamp, and two D-Tap to LEMO cables are included to help you mount the units. - Transmits uncompressed wireless video with zero delay
- 3G-SDI and HDMI inputs and outputs
- Optimal range is 400' line-of-sight; the Blitz 400 will work at a range of 984', but there will be signal degradation
- Supports Sony L-series batteries
- Supports up to four receivers connected to one transmitter

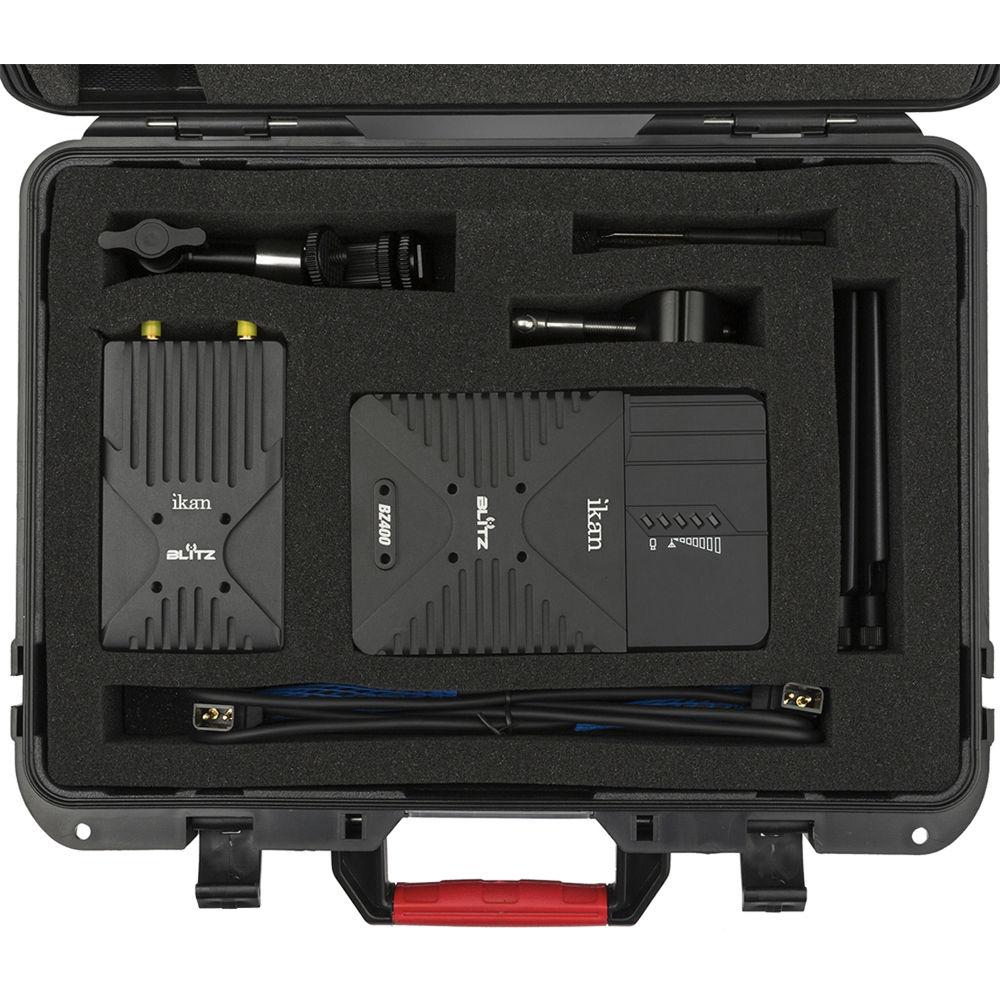

UPC: 847983019472 In the Box ikan Blitz 400 3G-SDI/HDMI Wireless Uncompressed Zero Delay Video System Transmitter Receiver 2 x 5 GHz Antenna (SMA Female) 2 x D-Tap to LEMO Cable 2 x Sony L-Series Battery Plate (Installed) Articulating Arm Clamp Hard Case Limited 1-Year Warranty One Sheet PDF 366.4kb Table of Contents
|
Upload User Manual
Have you got an user manual for the ikan Blitz 400 3G-SDI HDMI Wireless Uncompressed Zero Delay Video System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersikan BZ400 Specs | | | Interface | 3G-SDI BNC, input
HDMI Type A, input
2 x RF-2 SMA male antenna ports
DC 4 pin LEMO, input | | Input Video Formats | HDMI:
1080p 23.98/24/25/29.97/30/50/59.94/60
1080i 50/59.94
720p 50/59.94/60
625i, 525i
SDI:
3G/HD/SD-SDI (Auto Selected)
SMPTE-259/274/292/296/372/424/425 | | Input Audio Format | SDI-embedded 4-Ch 24-bit, 48 kHz | | Indicators | Power: Green
Video: Yellow | | Frequency Bands | 5.1 to 5.9 GHz | | Modulation Mode | OFDM 16QAM | | Transmission Power | Max 21 dBm | | Band | 40 MHz | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Input Voltage | 7 to 36 VDC | | Power Consumption | < 6.5 W | | Compliance | FCC, CE | | Dimensions | 4.5 x 2.6 x 0.9" / 11.5 x 6.7 x 2.3 cm | | Weight | 9.5 oz / 270 g | | | | Interface | 3G-SDI BNC, input
HDMI Type A, output
DC 4-pin LEMO, input | | Output Video Format | HDMI:
1080p 23.98/24/25/29.97/30/50/59.94/60
1080i 50/59.94
720p 50/59.94/60
625i, 525i
SDI:
3G/HD/SD-SDI (Auto Selected)
SMPTE-259/274/292/296/372/424/425 | | Audio Output | SDI-embedded 4-Ch 24-bit, 48 kHz | | Indicators | Power: Green
Wireless Signal: 5 x Green
Video: Yellow | | Frequency Bands | 5.1 to 5.9 GHz | | Modulation Mode | OFDM 16QAM | | Sensitivity | -75 dBm | | Band | 40 MHz | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Compliance | FCC, CE | | Input Voltage | 7 to 36 VDC | | Power Consumption | < 6.5 W | | Dimensions | 5.9 x 3.7 x 0.9" / 15.2 x 9.5 x 2.3 cm | | Weight | 12.5 oz / 355 g | | | | Package Weight | 6.15 lb | | Box Dimensions (LxWxH) | 14.9 x 13.8 x 5.1" |
