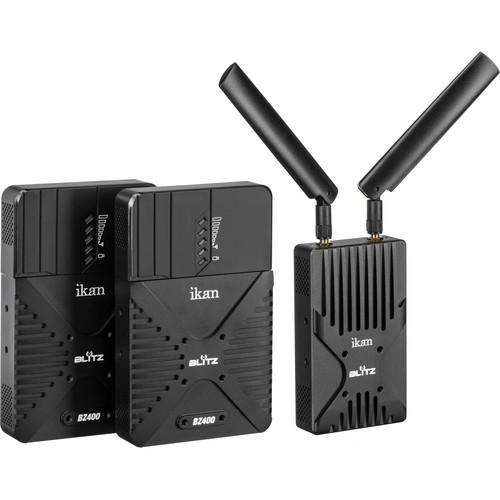

Product description The Blitz 400 Pro Wireless Uncompressed 3G-SDI/HDMI Video Kit from ikan features uncompressed zero delay wireless video. With a 400' range, this system is suitable for various types of uses such as with wireless follow focus systems as well as gimbal and Steadicam operators. It supports both HDMI 1.3 and 3G-SDI so you can get uncompressed, high definition video up to 1080p60.

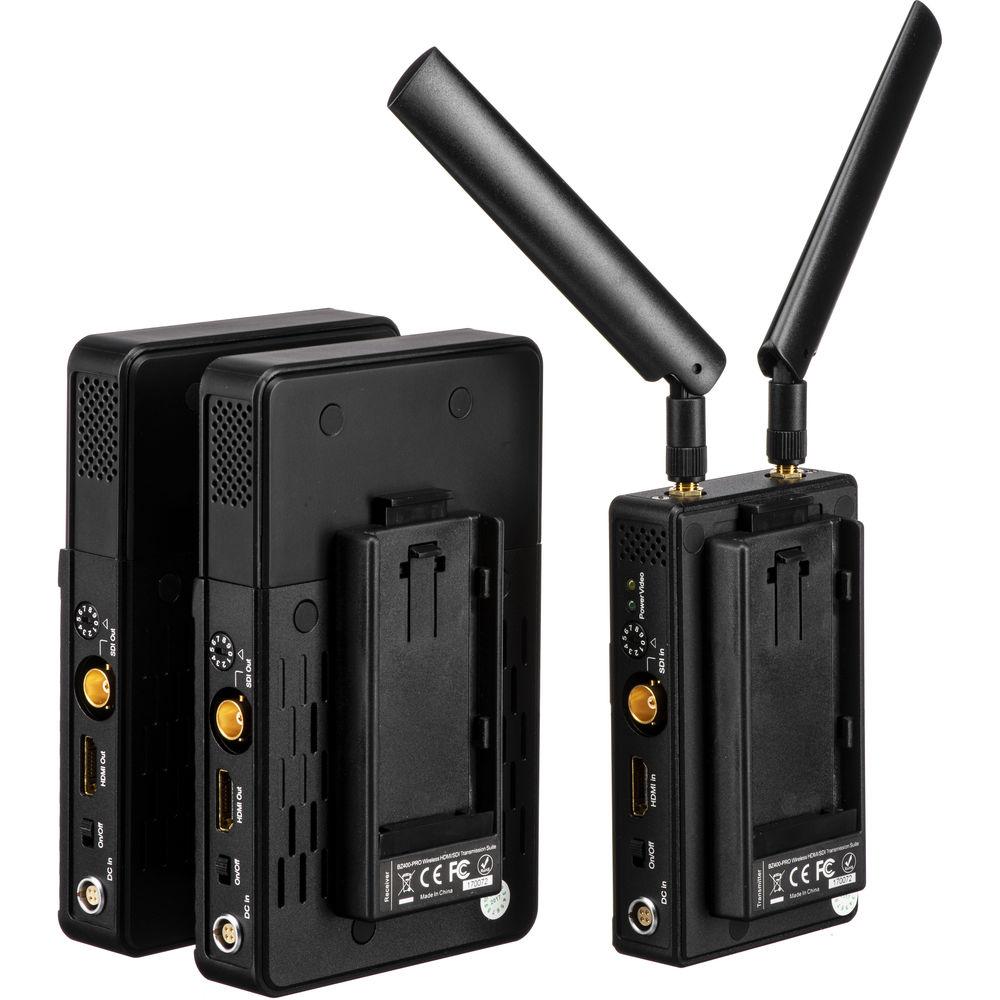

The transmitter is small and lightweight and can be mounted anywhere, like a camera shoe mount. The receiver features five internal antennas to ensure a strong signal, as well as four signal strength LED indicators making it easy to see the signal strength. The Blitz 400 is made out of durable, machined aluminum and is easy to set up. Just power on the units and they will sync in about 20 seconds or less. - Transmits uncompressed, zero-delay wireless video
- 3G-SDI and HDMI inputs and outputs
- Up to 400' line-of-sight range

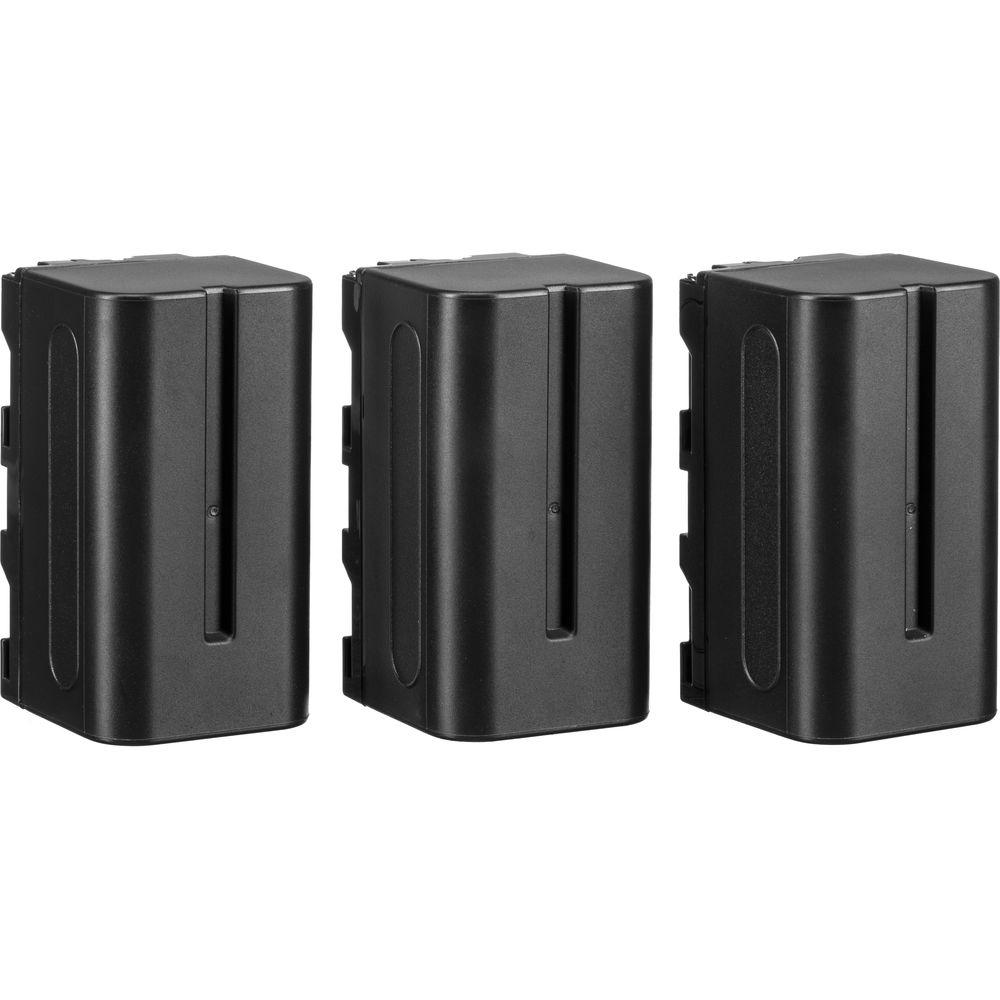

- Supports Sony L-series batteries
- Supports up to four receivers connected to one transmitter

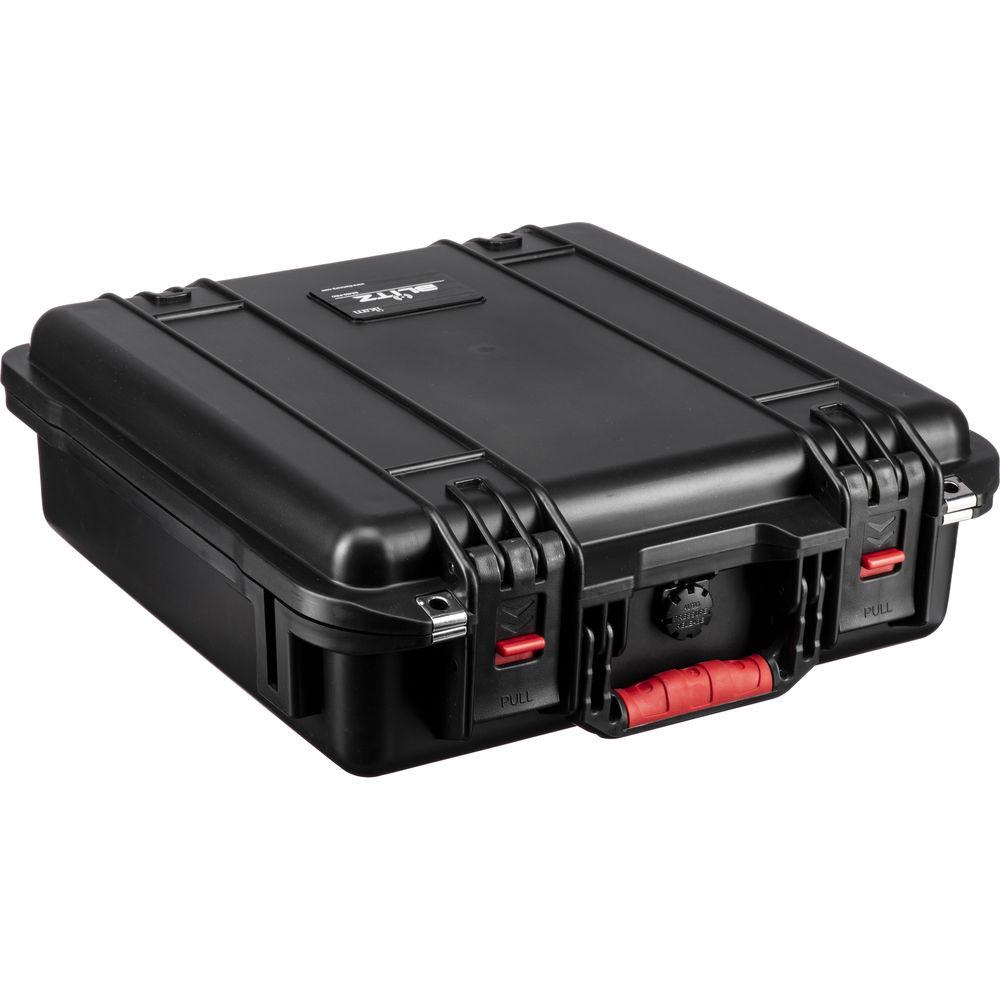

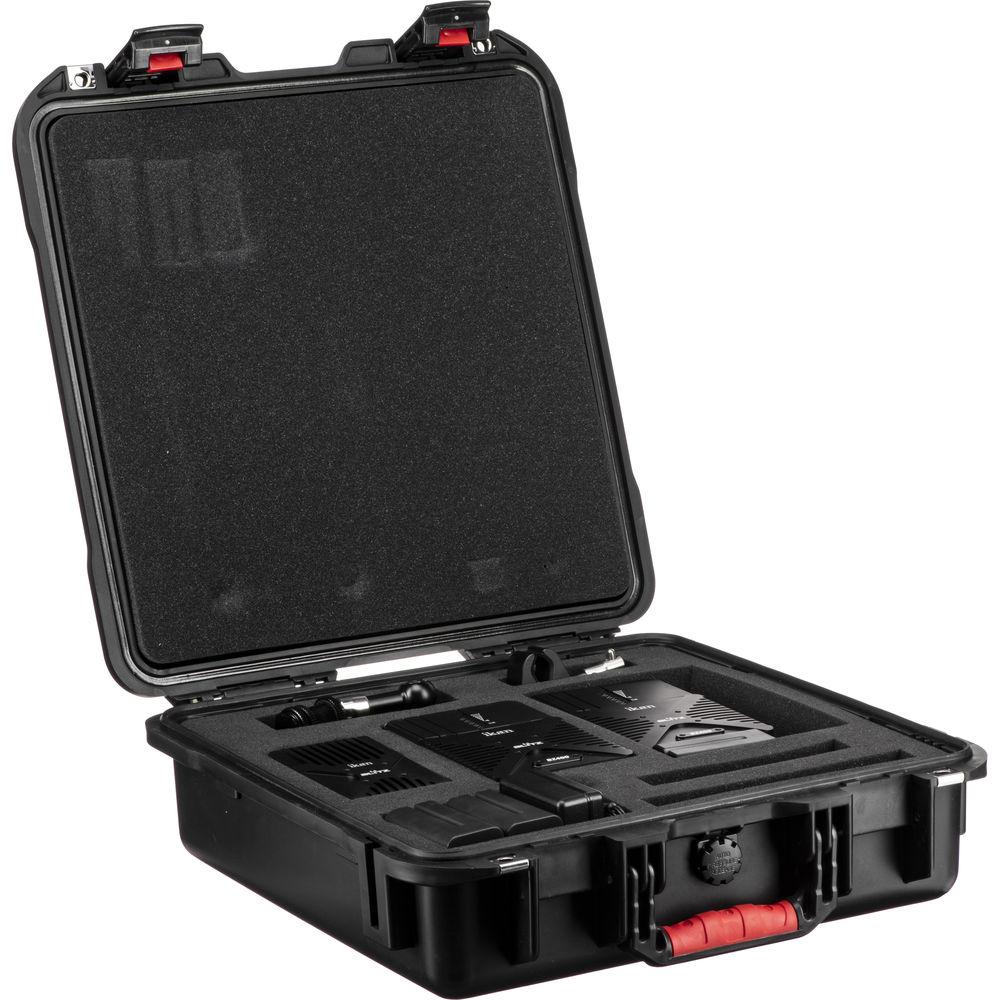

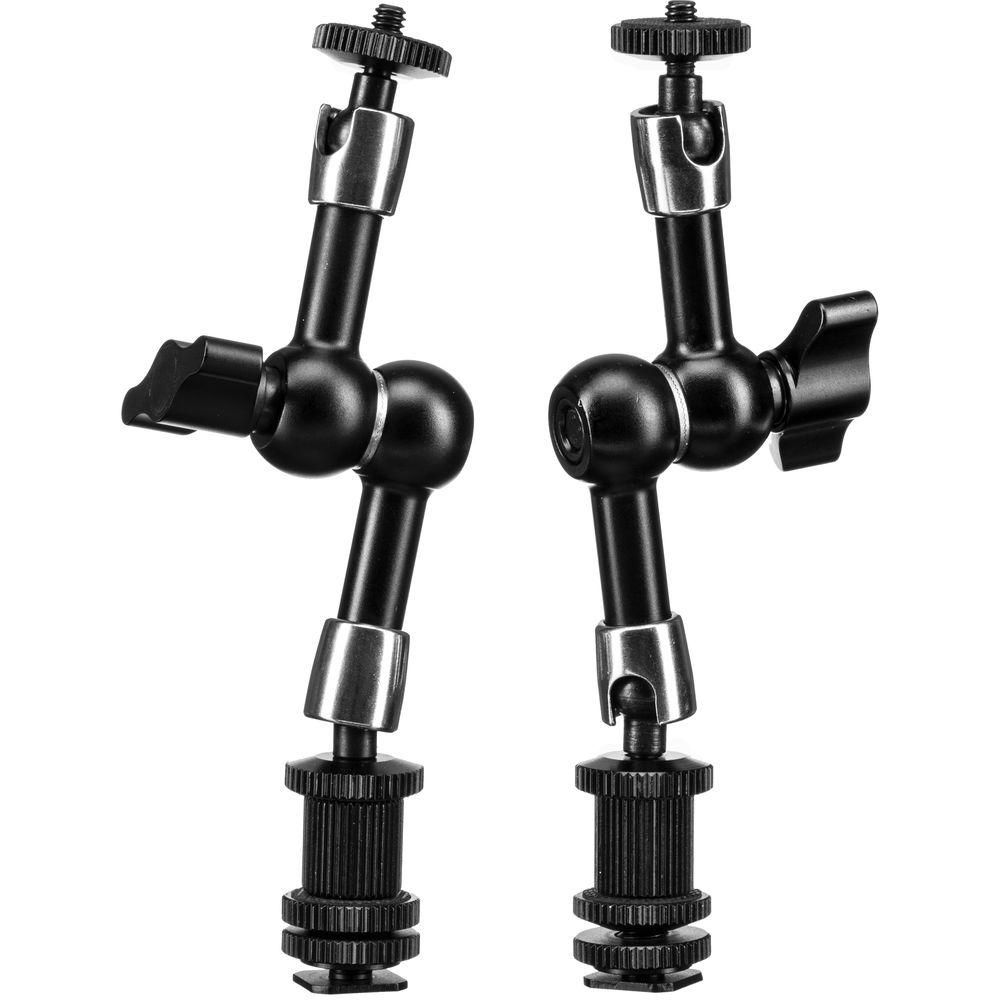

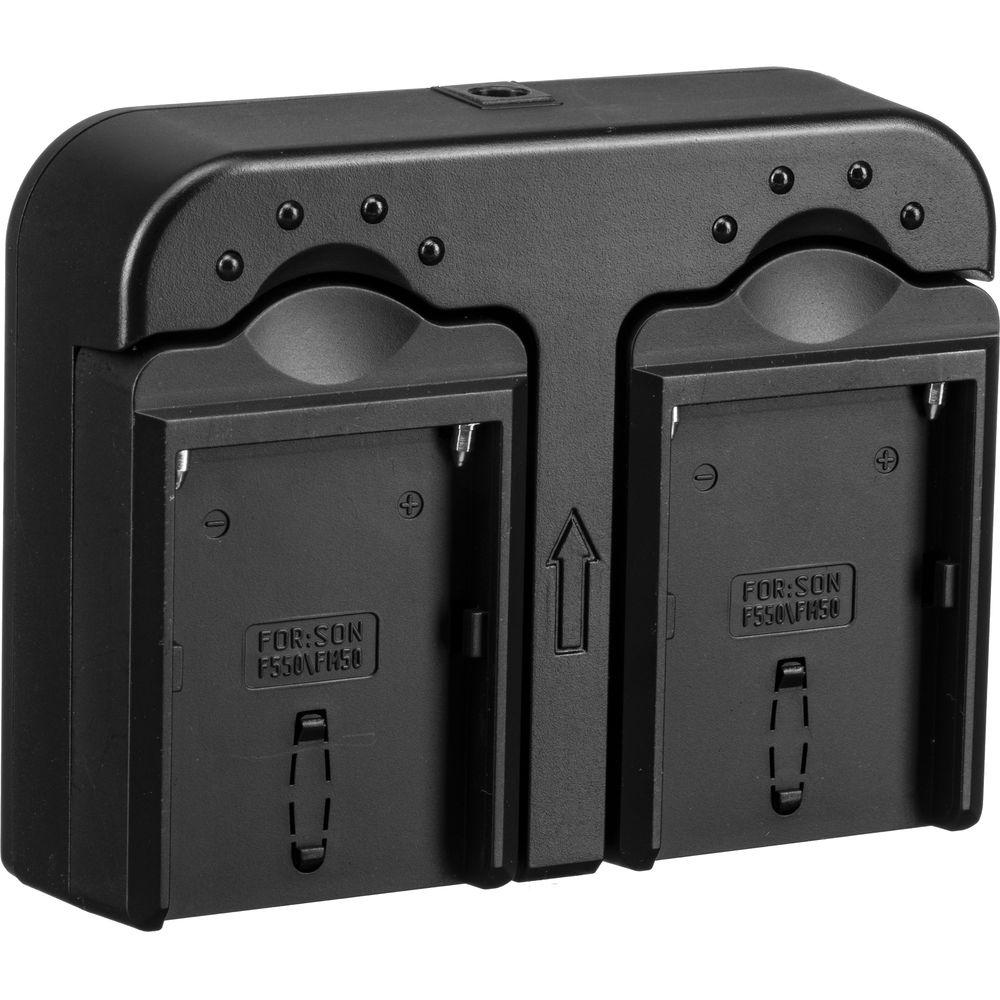

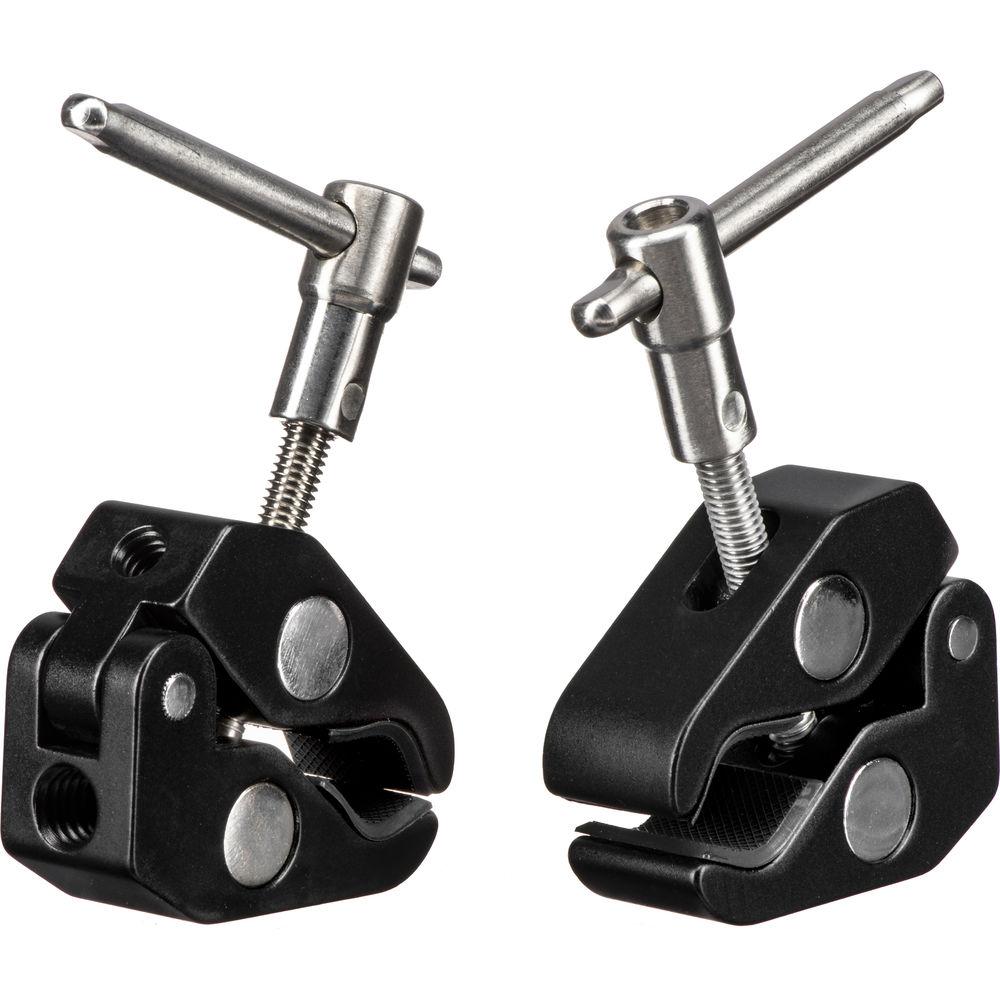

UPC: 847983022960 In the Box ikan Blitz 400 Pro Wireless Uncompressed 3G-SDI/HDMI Video Kit with Dual Receivers Transmitter 2 x Receiver Shoemount Adapter for Transmitter Articulating Arm Clamp Dual Sony L-Series Battery Charger 2 x 5GHz Antenna (SMA Female) 2 x D-Tap-to-Lemo Compatible Cable Hard Case Limited 1-Year Warranty One Sheet PDF 145.6kb Table of Contents
|
Upload User Manual
Have you got an user manual for the ikan Blitz 400 Pro Wireless Uncompressed 3G-SDI HDMI Video Kit with Dual Receivers in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersikan Blitz 400 Specs | | | Frequency Bands | 5.1 to 5.9 GHz | | Band | 40 MHz | | Interface | 3G-SDI Input (BNC female)
HDMI Input (Type A female)
2 x Antenna Ports (RF-2 SMA male)
DC Input (4-pin LEMO female) | | Input Video Formats | HDMI: 525i, 625i, 720p 50/59.94/60, 1080i 50/59.94, 1080p 23.98/24/25/29.97/30/50/59.94/60
SDI: 3G, HD, and SD-SDI (Auto-Selected), SMPTE-259/274/292/296/372/424/425 | | Input Audio Format | SDI-embedded, 4-channel 24-bit / 48 kHz | | Signal Indicator | Power: Green
Video: Yellow | | Modulation Mode | OFDM 16QAM | | Transmission Power | Maximum 21 dBm | | Input Voltage | 7 to 36 VDC | | Power Consumption | <6.5 W | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Compliance | FCC, CE | | Dimensions | 4.5 x 2.6 x 0.9" (115 x 67 x 23 mm) | | Weight | 9.5 oz (270 g) | | | | Frequency Bands | 5.1 to 5.9 GHz | | Band | 40 MHz | | Interface | 3G-SDI Input (BNC female)
HDMI Output (Type A female)
DC Input (4-pin LEMO female) | | Output Video Format | HDMI: 525i, 625i, 720p 50/59.94/60, 1080i 50/59.94, 1080p 23.98/24/25/29.97/30/50/59.94/60
SDI: 3G, HD, and SD-SDI (Auto-Selected), SMPTE-259/274/292/296/372/424/425 | | Audio Output | SDI-embedded, 4-channel 24-bit / 48 kHz | | Signal Indicator | Power: Green / Wireless Signal 5 x Green
Video: Yellow | | Modulation Mode | OFDM 16QAM | | Receiver Sensitivity | -75 dBm | | Input Voltage | 7 to 36 VDC | | Power Consumption | <6.5 W | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Compliance | FCC, CE | | Dimensions | 5.98 x 3.7 x 0.9" (152 x 95 x 23 mm) | | Weight | 12.5 oz (355 g) | | | | Package Weight | 14.7 lb | | Box Dimensions (LxWxH) | 17.9 x 16.4 x 6.5" |
